172JNN21032

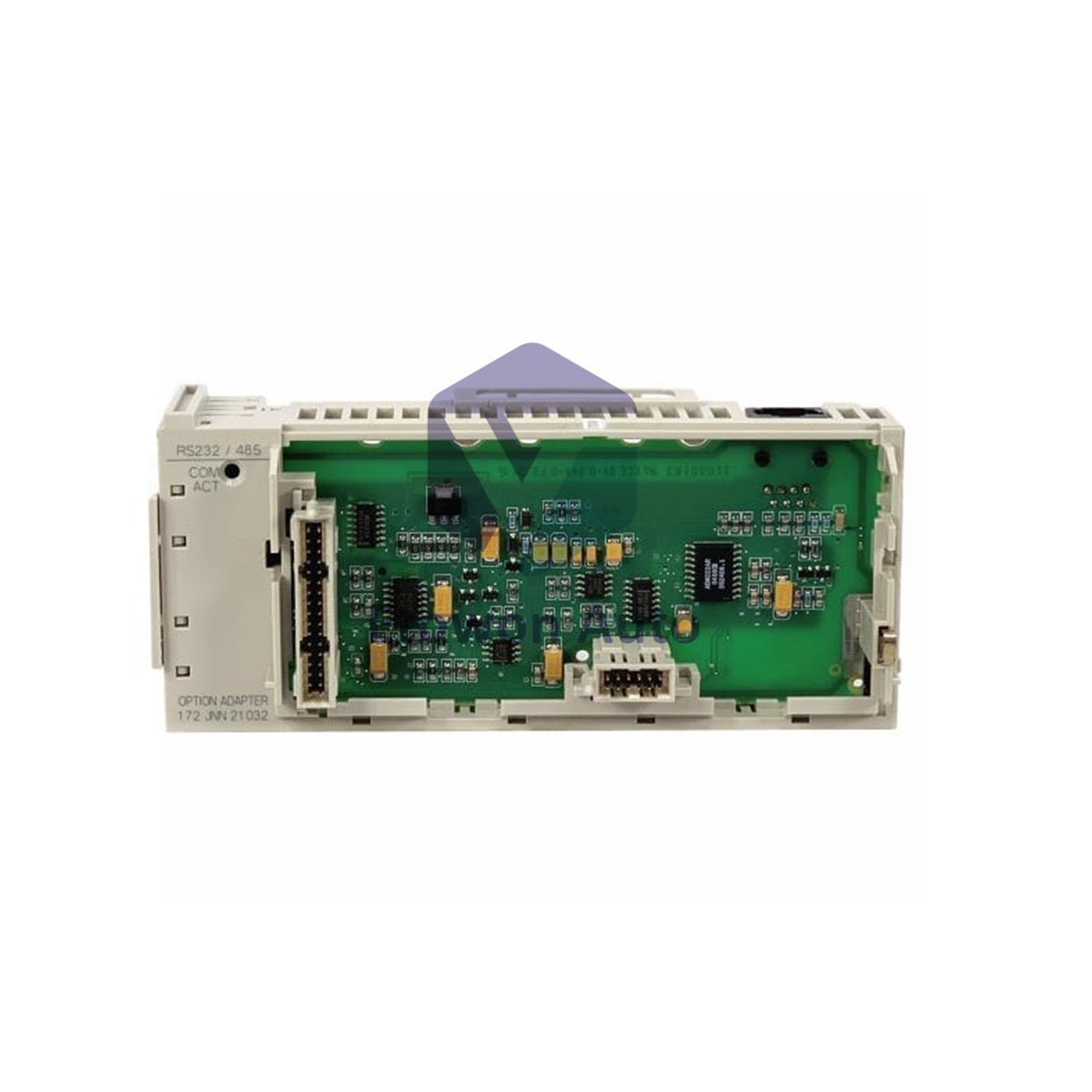

172JNN21032 Schneider Modicon Momentum Serial Adapter

In stock (11 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: 172JNN21032

  • Product Type: Adaptor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Schneider Electric 172JNN21032 Modicon Serial Link Adapter Module

The Schneider Electric 172JNN21032 is a serial link adapter module from the Modicon Momentum series. Weighing 0.45 kg, it operates on 5V DC with RS-485 or RS-232 communication, featuring conformal coating and IP20 protection for reliable serial connectivity in industrial control applications.

Product Identification

  • Manufacturer: Schneider Electric
  • Part Number: 172JNN21032
  • Product Line: Modicon Momentum
  • Product Type: Serial Link Adapter Module
  • Protection Class: IP20
  • Marking: CE

Technical Specifications

Parameter Value
Net Weight 85.05 g (0.45 kg with packaging)
Dimensions (W×H×D) 143.1 × 25 × 60.06 mm
Rated Supply Voltage 5V DC (±5%)
Current Consumption 700 mA at 12V DC
Communication Ports 1 (RS-232 or RS-485 selectable)
Electrical Connection 9-pin D-shell Modbus Plus connector
Battery Type Lithium (2/3 AA)
Battery Life Approx. 5 years
Clock Accuracy ±13 s/day
Dielectric Strength 500V DC
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% non-condensing
Operating Altitude ≤ 2000 m
Material Lexan
Protective Treatment Conformal coating (Humiseal 1A33)
Vibration Resistance 1 gn (57-150 Hz), 0.075mm (10-57 Hz)
Shock Resistance ±15 gn (11 ms half sine)

Status Indicators

  • 1 communication LED for operational status

Certifications and Standards

  • UL Listed
  • CSA Certified
  • NEMA 250 Type 1
  • IP20 (IEC 529)
  • CE Marked
  • IEC 529 compliant

Features

  • Selectable RS-232 or RS-485 serial communication.
  • 9-pin D-shell Modbus Plus connector.
  • Conformal coating for enhanced protection.
  • Lithium battery with 5-year lifespan.
  • Compact form factor for panel mounting.
  • CE, UL, and CSA certified.

Installation

  • Mount in Modicon Momentum chassis.
  • Power supplied via I/O base.
  • Select RS-232 or RS-485 mode as required.
  • Connect using 9-pin D-shell connector.
  • Ensure ambient temperature within 0°C to 60°C range.

Technical FAQs

Q1: What communication protocols does the 172JNN21032 support?
A1: RS-232 or RS-485 serial communication, selectable.

Q2: What is the battery life expectancy?
A2: Approximately 5 years.

Q3: What is the operating temperature range?
A3: 0°C to 60°C in non-condensing environments.

🏷️ Tags: Adaptor Module
  • DC-powered
  • AC-powered
  • Battery-powered
  • Modular

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
