1746-OB16

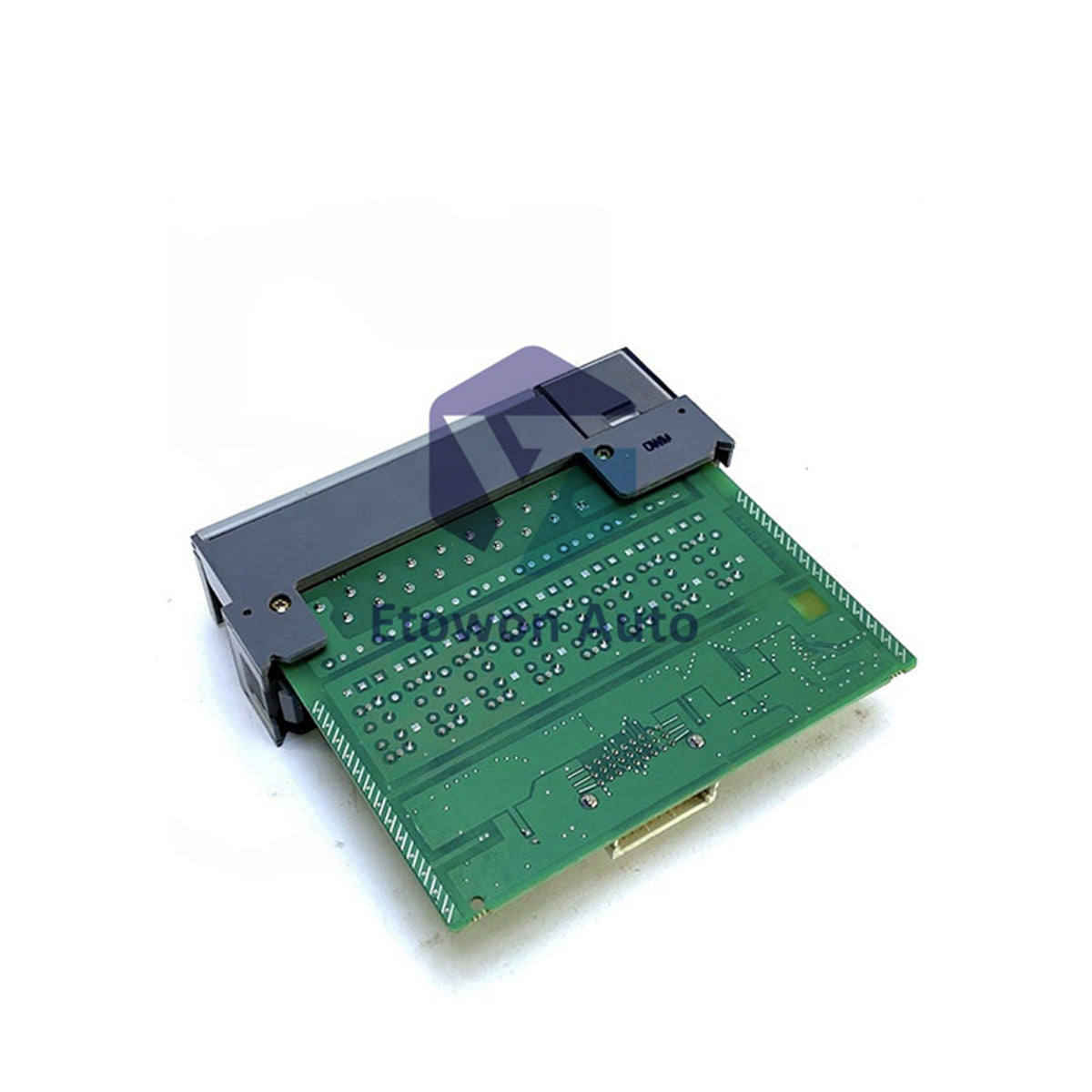

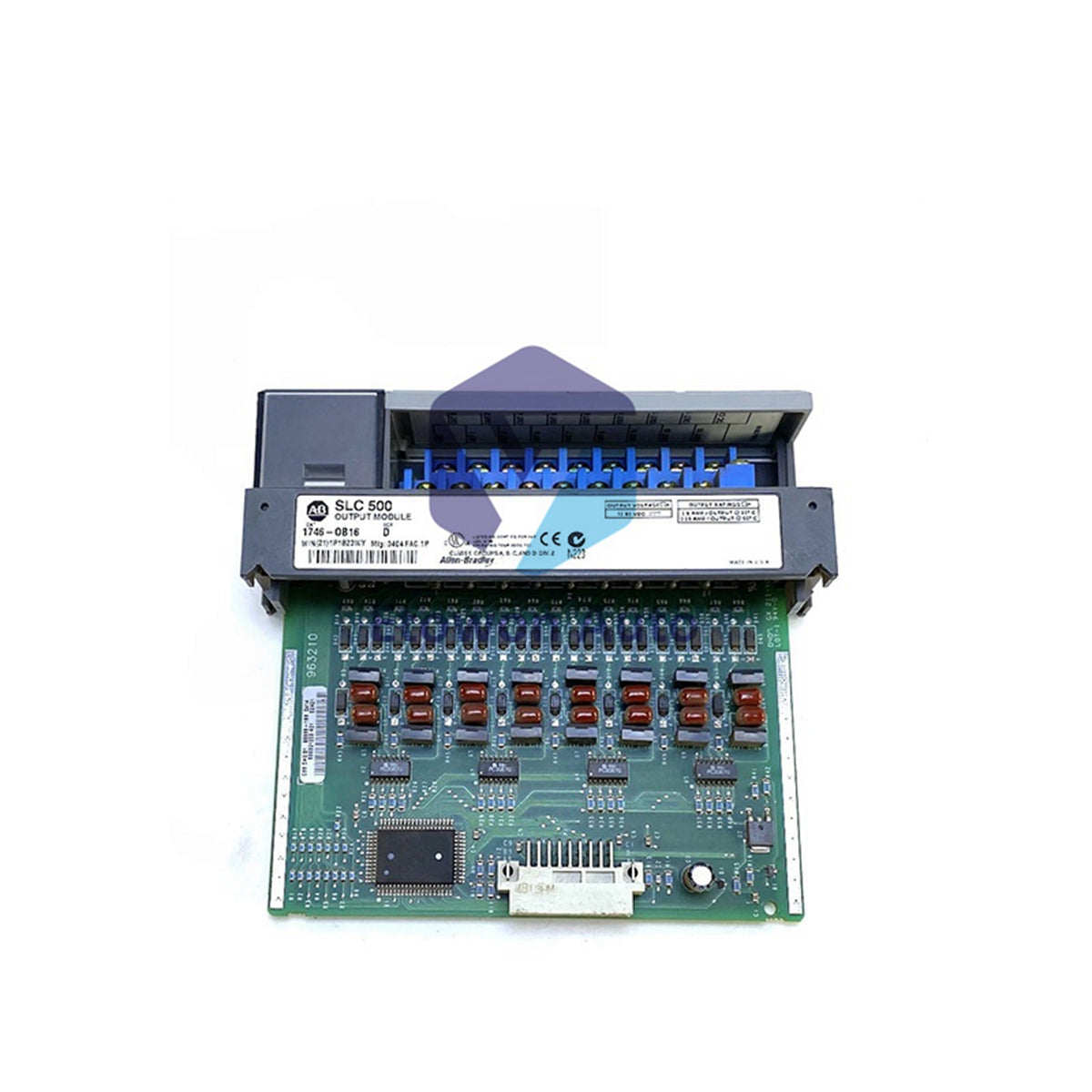

16 Output Point Allen-Bradley 1746-OB16 DC Output Module

In stock (24 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1746-OB16

  • Product Type: Digital DC Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 390g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 1746-OB16 Digital DC Output Module

The Allen-Bradley 1746-OB16 is a 16-channel digital DC output module with high-density output capabilities for industrial control systems.

Technical Specifications

  • Brand & Model: Allen-Bradley 1746-OB16
  • Output Channels: 16 digital outputs
  • Voltage Category: 24V DC Signal Output
  • Operating Voltage: 10-50 VDC (source)
  • Weight: 0.39 kg

Current Specifications

  • Current per Point @30°C: 0.50 A continuous
  • Current per Point @60°C: 0.25 A continuous
  • Module Current @30°C: 8.0 A total
  • Module Current @60°C: 4.0 A total
  • Surge Current: 4.0 A for 10 ms

Performance Specifications

  • Signal Delay ON: 0.1 ms maximum
  • Signal Delay OFF: 1.0 ms maximum
  • Off-State Leakage: ≤1 mA maximum
  • Load Current Minimum: 1 mA

Environmental & Safety

  • Temperature Range: -20°C to 60°C
  • Overvoltage Protection: 64V unidirectional clamping
  • Certifications: CE, UL Listed, C-Tick
  • Compliance: Industrial safety standards

FAQ

How many output channels does it have?

  • It provides 16 digital output channels for high-density control applications.

What is the module weight?

  • The module weighs 0.39 kg.

What are the current ratings?

  • 0.5A per point at 30°C, 0.25A at 60°C, with total module current of 8.0A at 30°C or 4.0A at 60°C.
