114M5330-01

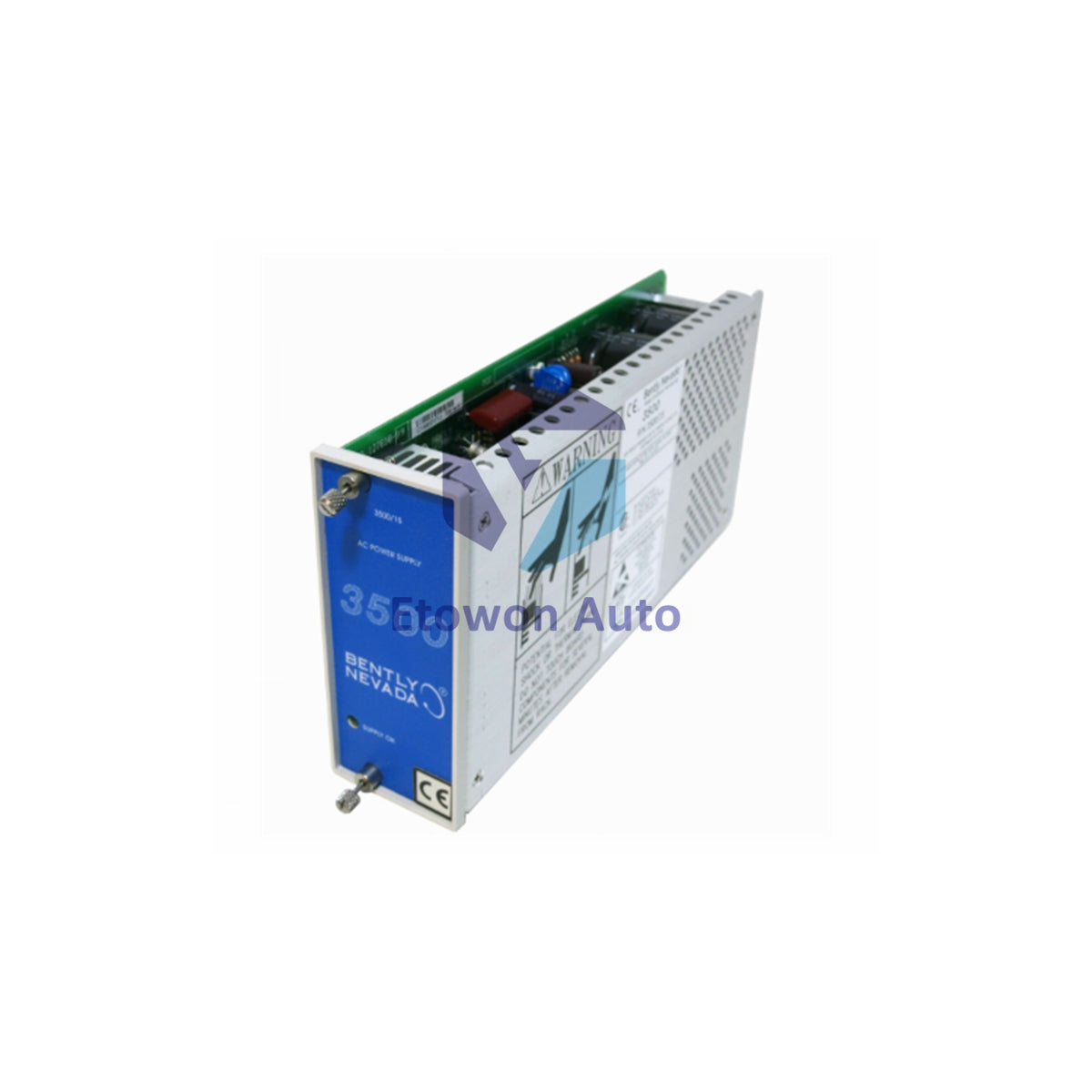

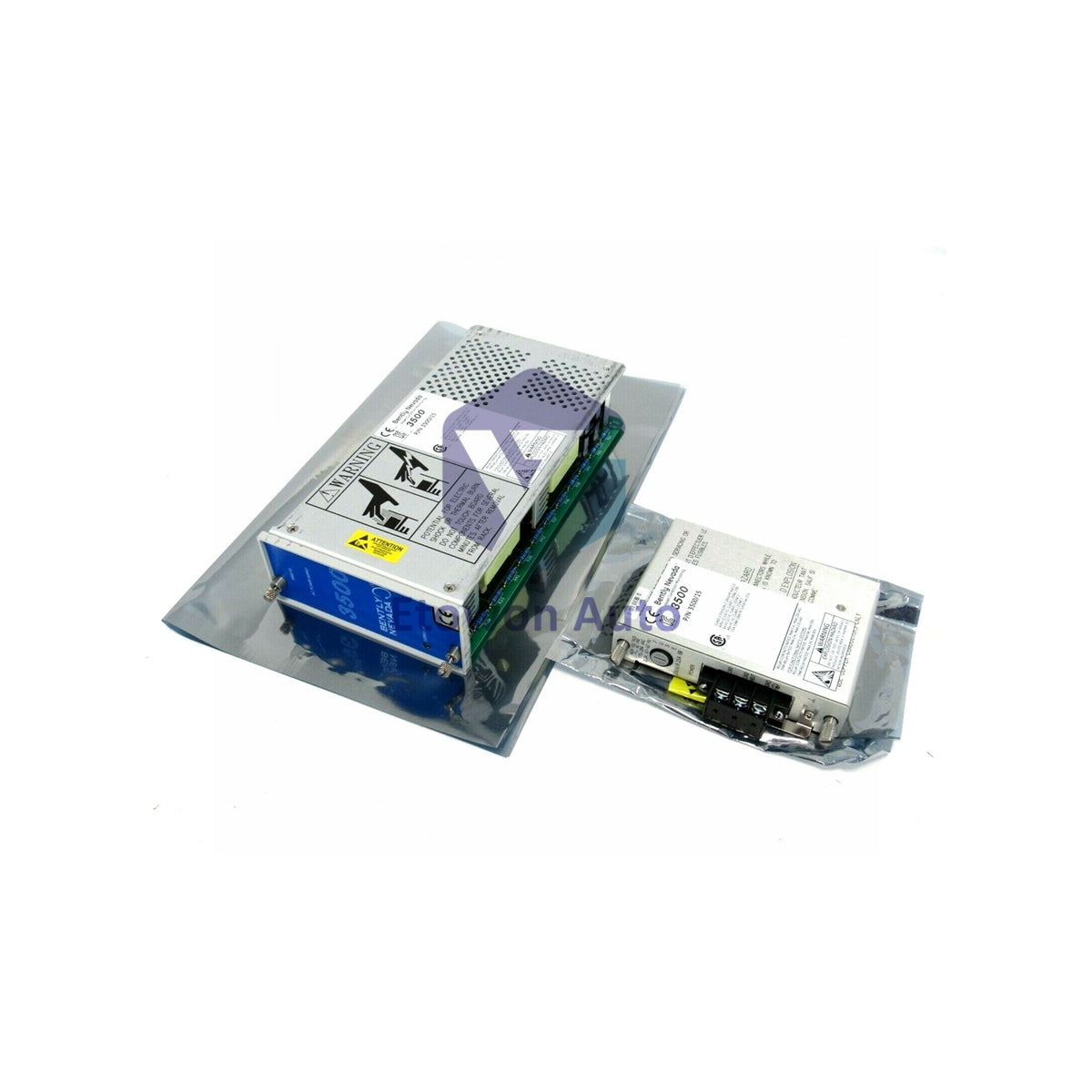

114M5330-01 Bently Nevada Power Supply 20-30VDC

Only 8 units left

  • Manufacturer: Bently Nevada

  • Product No.: 114M5330-01

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1390g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

114M5330-01 Bently Nevada 3500-15 Low Voltage DC Power Supply – 20-30VDC

The Bently Nevada 114M5330-01 is a low voltage DC power supply module for the 3500 Monitoring System. Accepts 20 to 30 Vdc input for 3500 rack systems.

Product Information

Manufacturer Bently Nevada
Model 114M5330-01
Product Type Low Voltage DC Power Supply
Power Input 20-30 Vdc
Weight 1.39 kg (3.06 lb)
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Warranty 12 Months

Dimensions

Length 251.5 mm (9.9 in)
Width 50.8 mm (2.0 in)
Height 120.7 mm (4.75 in)

Features

  • Low voltage DC input 20-30 Vdc
  • Designed for 3500 Monitoring System
  • Seamless integration with PIM
  • Wide operating temperature range
  • Robust performance for critical applications

Applications

  • 3500 Monitoring System racks
  • Turbine supervisory systems
  • Compressor monitoring
  • Power generation facilities
  • Oil and gas installations

FAQs

Q1: Which rack slot for installation?
A1: Install in the leftmost slot of the 3500 rack. Secure with two captive screws at 0.56 N·m (5 in·lb). Ensure the PIM is properly connected before power-up.

Q2: How to wire DC input correctly?
A2: Use 14-16 AWG 90°C wire. Connect positive (+) to terminal 1, negative (-) to terminal 2, ground to terminal 3. Torque terminals to 0.56 N·m. Verify 20-30 Vdc polarity before energizing.

Q3: Green LED off. What to check?
A3: Check DC voltage at terminals. Verify polarity is correct. If voltage present but green off, internal fuse is blown. This is a sealed module – replace the entire power supply. Do not attempt field repair.
