22F-D4P2N103

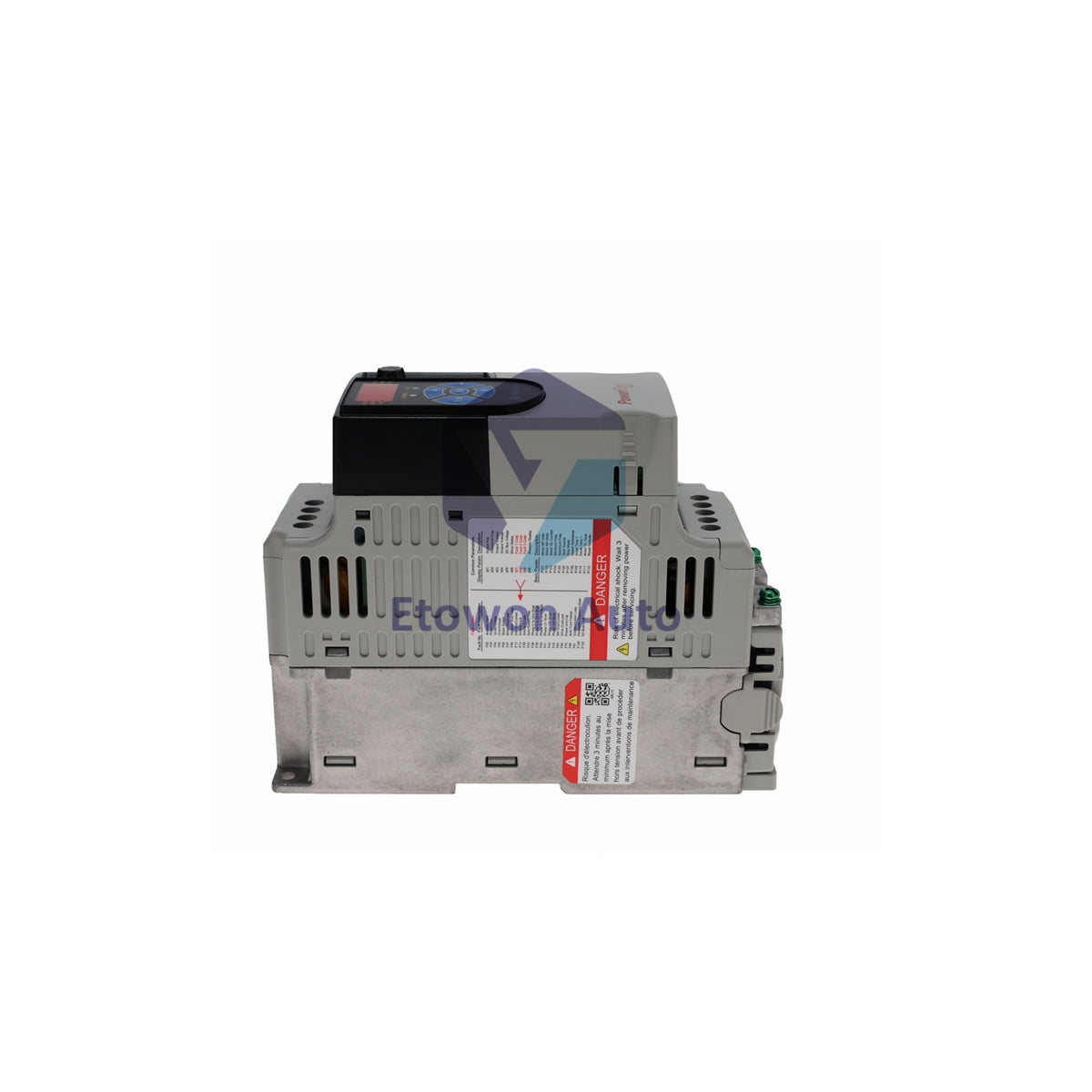

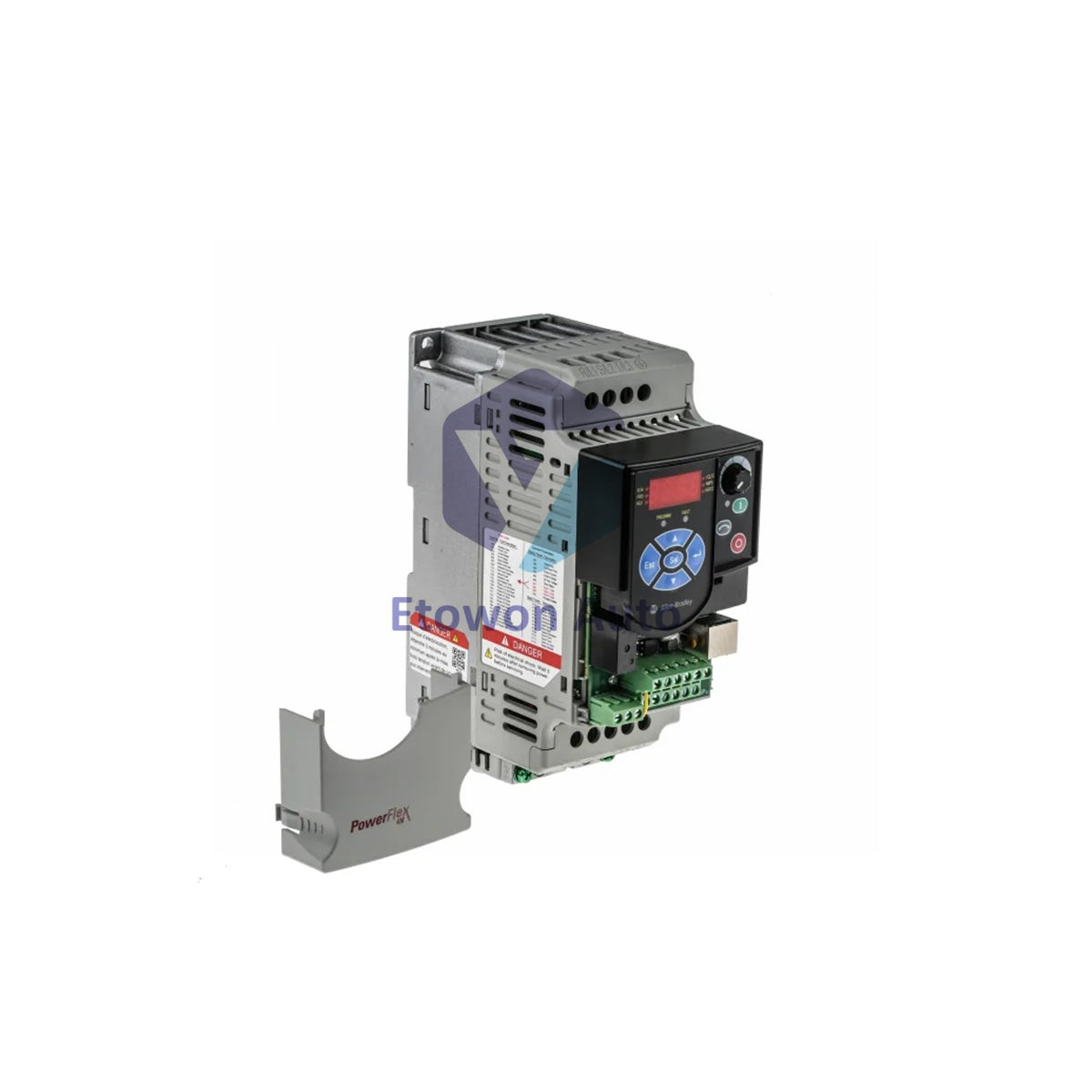

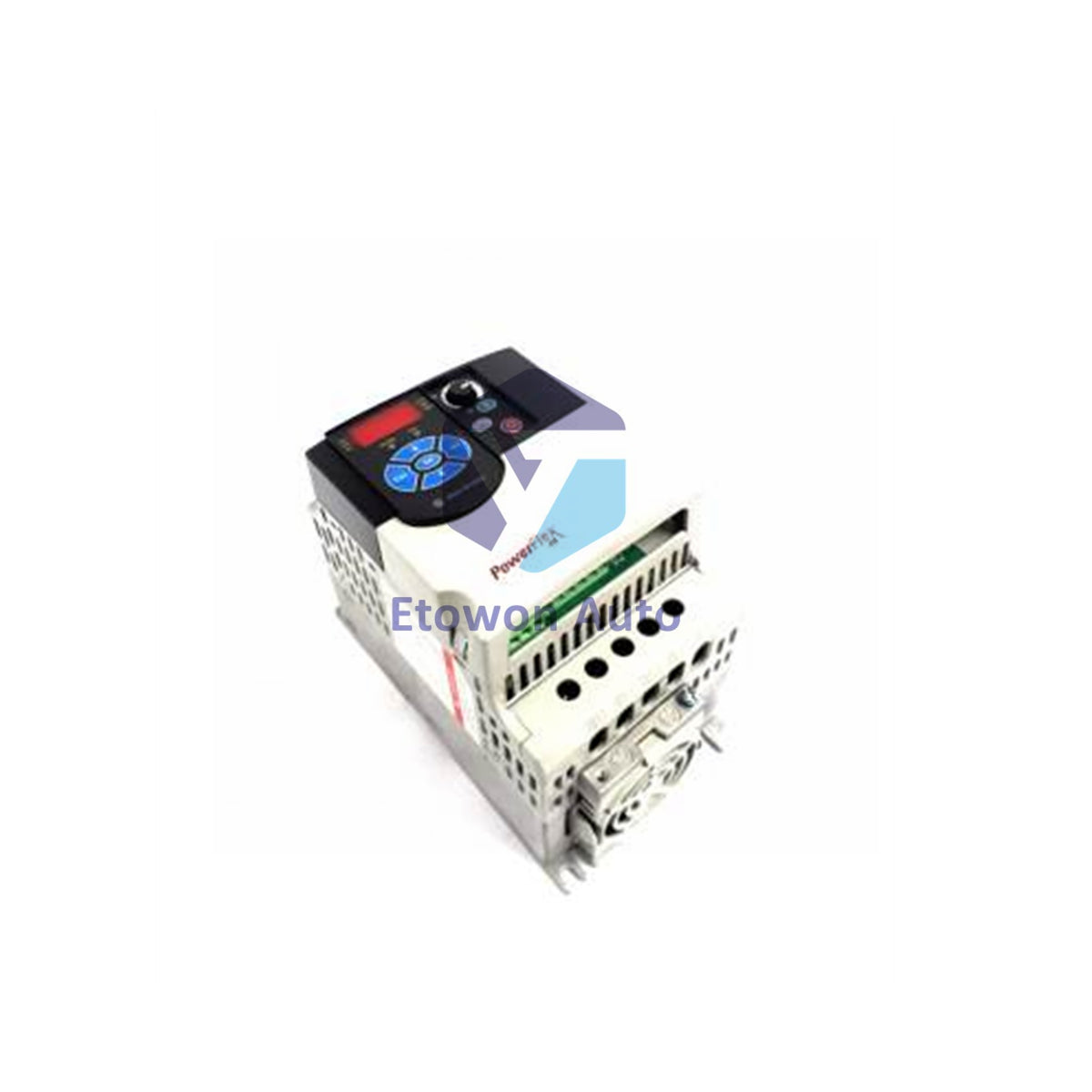

Rockwell 22F-D4P2N103 | PowerFlex 4M Frame B Controller Allen-Bradley

På lager (14 enheter), klar til å sendes

  • Manufacturer: Allen-Bradley

  • Product No.: 22F-D4P2N103

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 dagers returrett · 12 måneders garanti
  • Rask levering
  • 24/7 kundestøtte
  • Kvalitetssikring

Beskrivelse

Product Overview

The 22F-D4P2N103 is a high-efficiency adjustable frequency AC drive from the Allen-Bradley PowerFlex 4M series, meticulously engineered by Rockwell Automation for cost-effective motor control. Delivering 1.5 kW (2.0 HP) of output power, this Frame B drive features an impressive 97.5% efficiency rating to minimize energy loss in industrial applications. Weighing approximately 1.6 kg, its compact form factor and IP20 enclosure make it a perfect fit for dense control cabinets. The drive utilizes advanced Volts/Hertz control to provide smooth speed regulation across a wide output frequency range of 0-400 Hz, making it suitable for a variety of precise manufacturing and processing tasks.

Technical Specifications

Manufacturer Allen-Bradley / Rockwell Automation
Model Number 22F-D4P2N103
Input Voltage 380-480 VAC, 3-Phase
Output Power 1.5 kW (2.0 HP)
Output Current 4.2 Amps
Efficiency 97.5%
Dimensions (H x W x D) 183 mm x 118 mm x 154 mm

Engineering Advantages

  • Versatile I/O Control: Equipped with 5 discrete inputs (sink/source) and a configurable analog input (0-10V/0-20mA) for comprehensive field device interfacing.
  • Network Scalability: While featuring built-in RS485 communication, it supports optional protocols including Ethernet/IP, ProfiBus, and DeviceNet for enterprise-level connectivity.
  • Integrated Protection: Safeguards your motor investment with built-in protection against short circuits, overloads, overvoltage, and undervoltage conditions.
  • Compact Design: The Frame B architecture maximizes cabinet space while maintaining high performance without the need for an internal CE filter.

Installation & Maintenance

For optimal performance, ensure the 22F-D4P2N103 is installed in an environment within the 0°C to 40°C operating temperature range. The IP20 enclosure is designed for clean, dry indoor environments. When wiring the RS485 communication port, use high-quality shielded cables to prevent data corruption from electromagnetic interference. Regular maintenance should include checking the cooling airflow and verifying that terminal connections remain secure under vibration-heavy industrial conditions.

Technical FAQs

Q1: What is the benefit of the 0-400 Hz frequency range?
A1: This wide range allows the drive to control high-speed motors often used in specialized applications like spindles, centrifugal fans, or high-speed pumping systems.

Q2: Can the discrete output be used for safety signals?
A2: The Form C relay contacts provide versatile switching for status signaling or simple interlocking, but ensure they are used within their rated voltage and current limits.

Q3: Is a remote interface available for this model?
A3: Yes, while it includes a built-in digital keypad, it supports various optional communication protocols that allow for remote configuration and operation via a PLC or HMI.
