3500/42M-09-00

3500/42M-09-00 Seismic Monitor | Bently Nevada

Kun 5 enheter igjen

  • Manufacturer: Bently Nevada

  • Product No.: 3500/42M-09-00

  • Product Type: Proximitor Seismic Monitor

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 dagers returrett · 12 måneders garanti
  • Rask levering
  • 24/7 kundestøtte
  • Kvalitetssikring

Beskrivelse

Product Overview

The Bently Nevada 3500/42M-09-00 is a high-performance 4-channel monitor engineered for continuous machinery protection. It accurately processes signals from proximity, velocity, and acceleration transducers. By providing real-time data on radial vibration, thrust position, and eccentricity, it ensures the mechanical integrity of critical rotating equipment such as turbines, compressors, and pumps.

Technical Configuration

3500/42M-AA-BB Option Logic

  • A (09): Equipped with the 128229-01 Prox/Velom I/O Module. This configuration utilizes Internal Terminations, allowing field wiring to connect directly to the I/O module without additional external terminal blocks.
  • B (00): No Hazardous Area Approval specified for this specific configuration.

Technical Specifications

Feature Specification
Inputs 1 to 4 Proximity, Velocity, or Accel signals
Accuracy Within ±0.33% of full-scale (Typical)
Frequency Response 4 Hz to 4000 Hz (User-programmable)
Recorder Output +4 to +20 mA proportional to full-scale
Power Consumption 7.7 Watts (Typical)

Installation & Maintenance

  • Internal Terminations: The 3500/42M-09-00 simplifies rack installation by supporting direct field wiring to the rear I/O module.
  • LED Indicators: Use the OK LED for system health checks, the TX/RX LED for communication status, and the Bypass LED to identify inactive protection loops.
  • Signal Conditioning: Features 4-pole high-pass and low-pass filters to ensure clean signal acquisition for acceleration and velocity monitoring.

Engineering Advantages

  • Multimode Flexibility: Supports Prox/Accel, Velomitor, and HTVS transducer types.
  • Buffered Outputs: Front-panel coaxial connectors provide short-circuit protected, buffered signals for easy diagnostic tool connection.
  • Dynamic Range: Advanced filtering options including 1X and 2X vector filters and Constant Q notch filters for precise fault analysis.

Technical FAQs

Q1: What transducers are supported by the 09 I/O option?
A1: The 3500/42M-09-00 specifically supports Proximitor/Accel, Velomitor, or HTVS sensors.

Q2: Does this module require an external terminal block?
A2: No, the 09 option features internal terminations, land your field wires directly on the module terminals.

Q3: What does the OK LED signify?
A3: It indicates that the 3500/42M-09-00 monitor and its associated transducer circuits are functioning within normal operational limits.

Product Resources

📄 Download PDF
🏷️ Tags: Proximitor Seismic Monitor
  • Blå

Skalar (V/f)

Vektor

AC-drevet
  • Bekreft nøyaktig modell, delenummer og spesifikasjoner før bestilling.
  • Sørg for kompatibilitet med ditt nåværende maskineri eller kontrollsystemer.
  • Ta kontakt via sale@etowonauto.com eller +8617859788089 for teknisk assistanse.
  • Gå gjennom leveringsalternativer, leveringstider og fraktkrav.
  • Følg produsentens instruksjoner og beste praksis under installasjon.

Varer på lager sendes vanligvis samme virkedag. For produkter som ikke er på lager for øyeblikket, kan leveringstiden variere basert på tilgjengelighet. Internasjonal frakt er tilgjengelig, og fraktkostnader beregnes ut fra destinasjon, vekt og valgt transportør.

Returer godtas innen 30 dager etter mottak, forutsatt at varene er ubrukte og i original stand. Returfraktkostnader dekkes av kunden. Vennligst kontakt oss før du returnerer en vare for å få returautorisasjon.

For mer informasjon, vennligst se vår Frakt- og returpolicy.

 Vis alle detaljer

SIKRE PÅLITELIG MASKINYTELSE

Forvandle hjemmet ditt med de nyeste multi-elektroniske løsningene, fra intelligent belysning til stemmestyrte enheter – alle designet for å gjøre livet enklere, tryggere og mer tilkoblet. Optimaliser driften med Bently Nevada 3500 overvåkingssystem, som tilbyr sanntids vibrasjons- og maskintilstandsovervåking for å forhindre feil og maksimere oppetid.

Kjøp nå
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

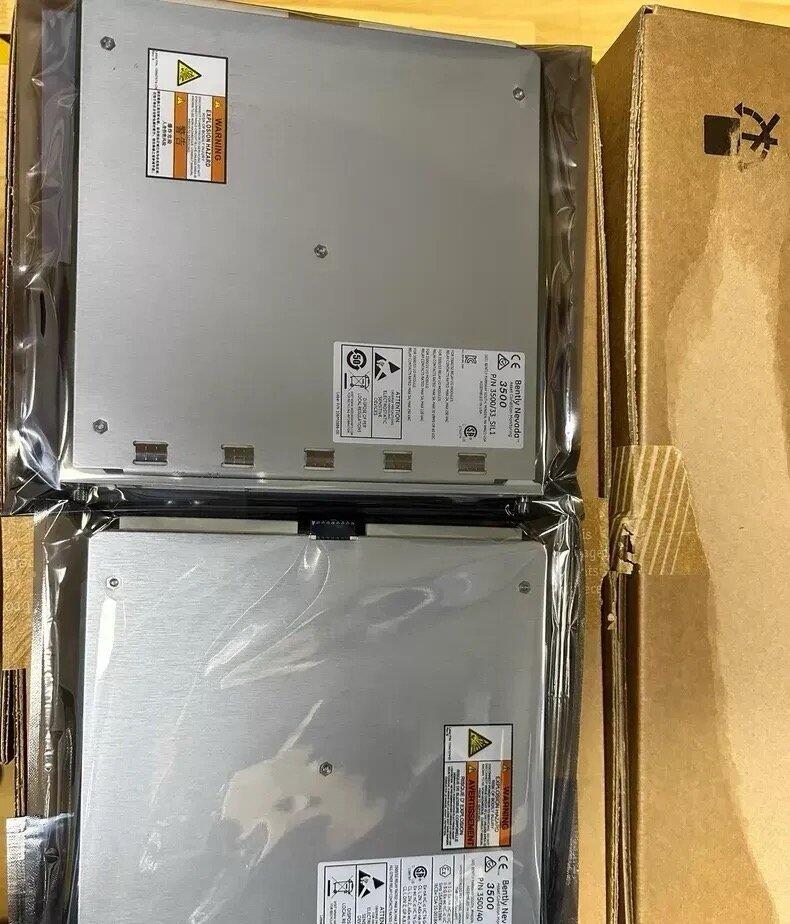

Ordered two Bently Nevada monitors. She shipped within two days—both in original factory packaging, never opened. Mounted one, powered it up, and it came online without issues. Clean deal from start to finish.

Anonymous review photo
A
Anonymous

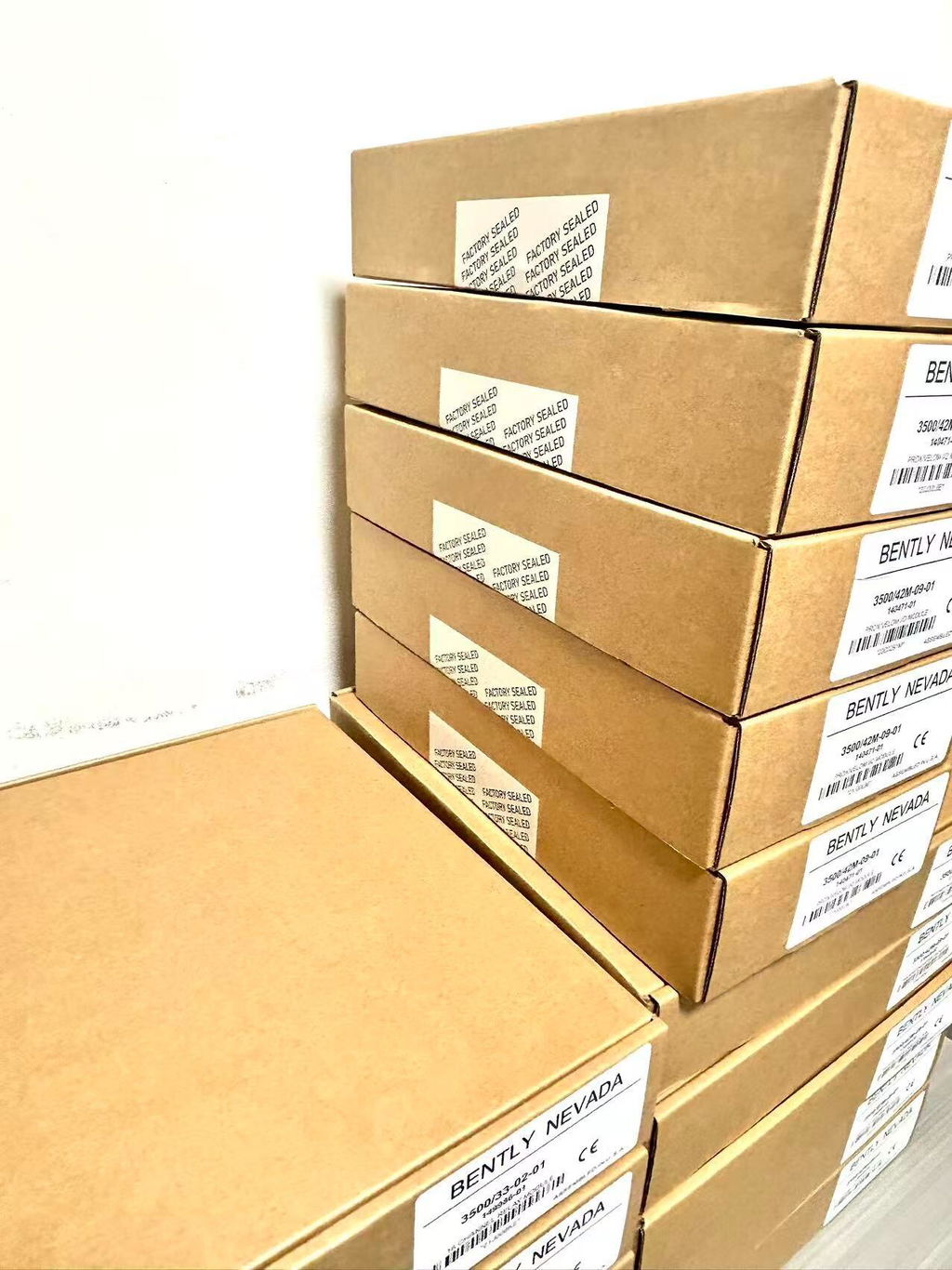

Ordered the 3500/42M-09-00 seismic monitor to round out a rack. She's sent me plenty of Bently cards before—every single one has arrived unopened and genuine. This was no different. Fast ship, clean part. Will keep coming back.

Anonymous review photo
