22D-E6P6F104

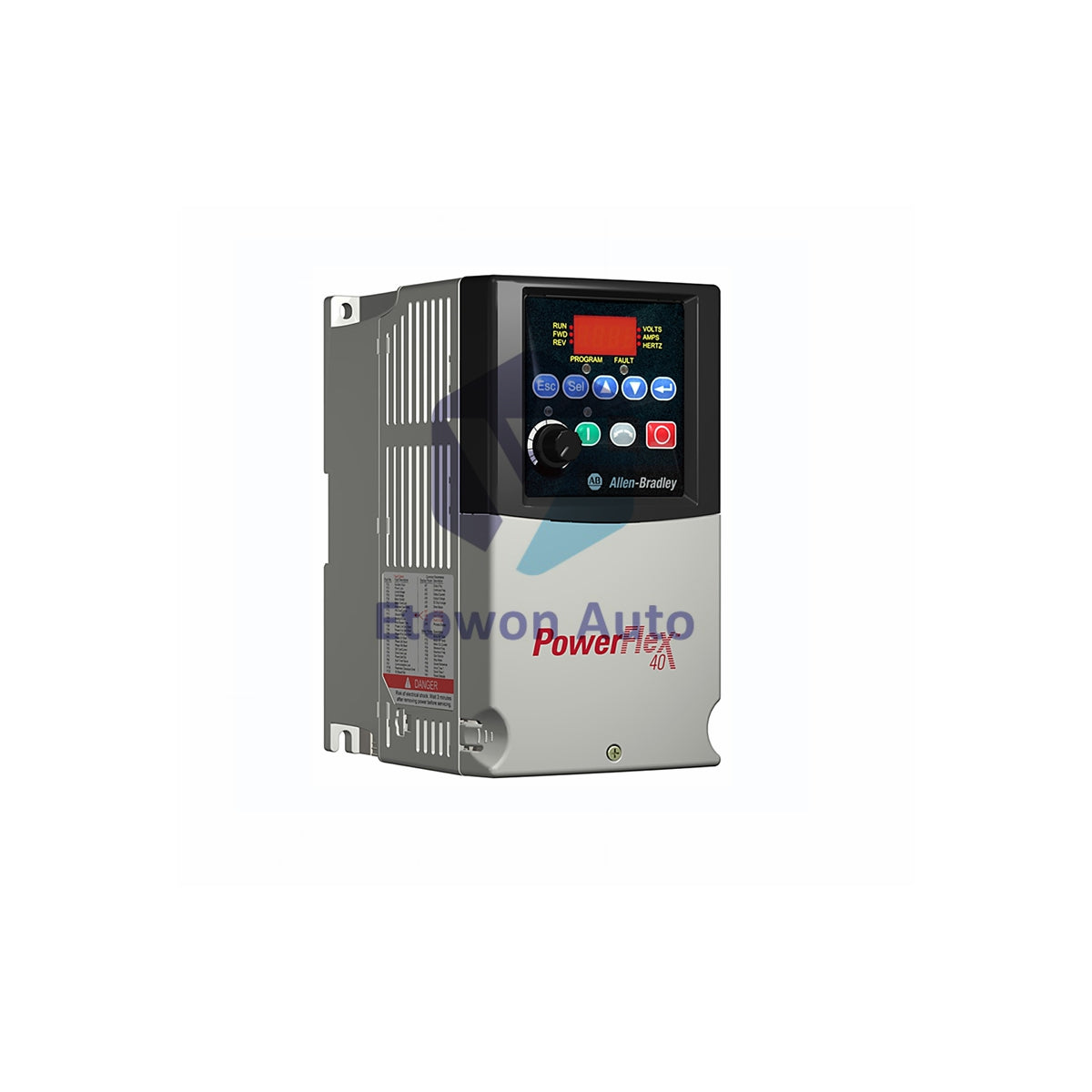

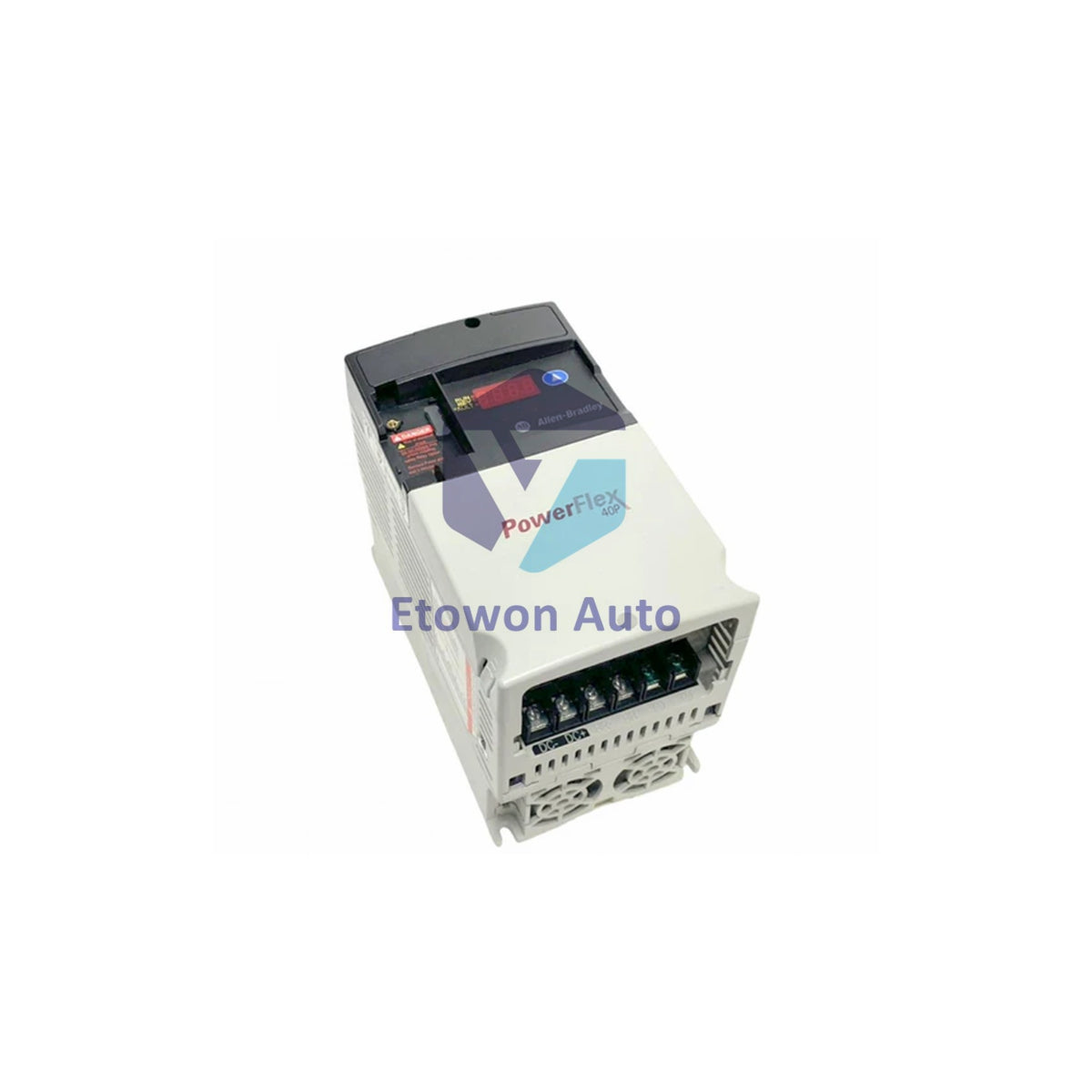

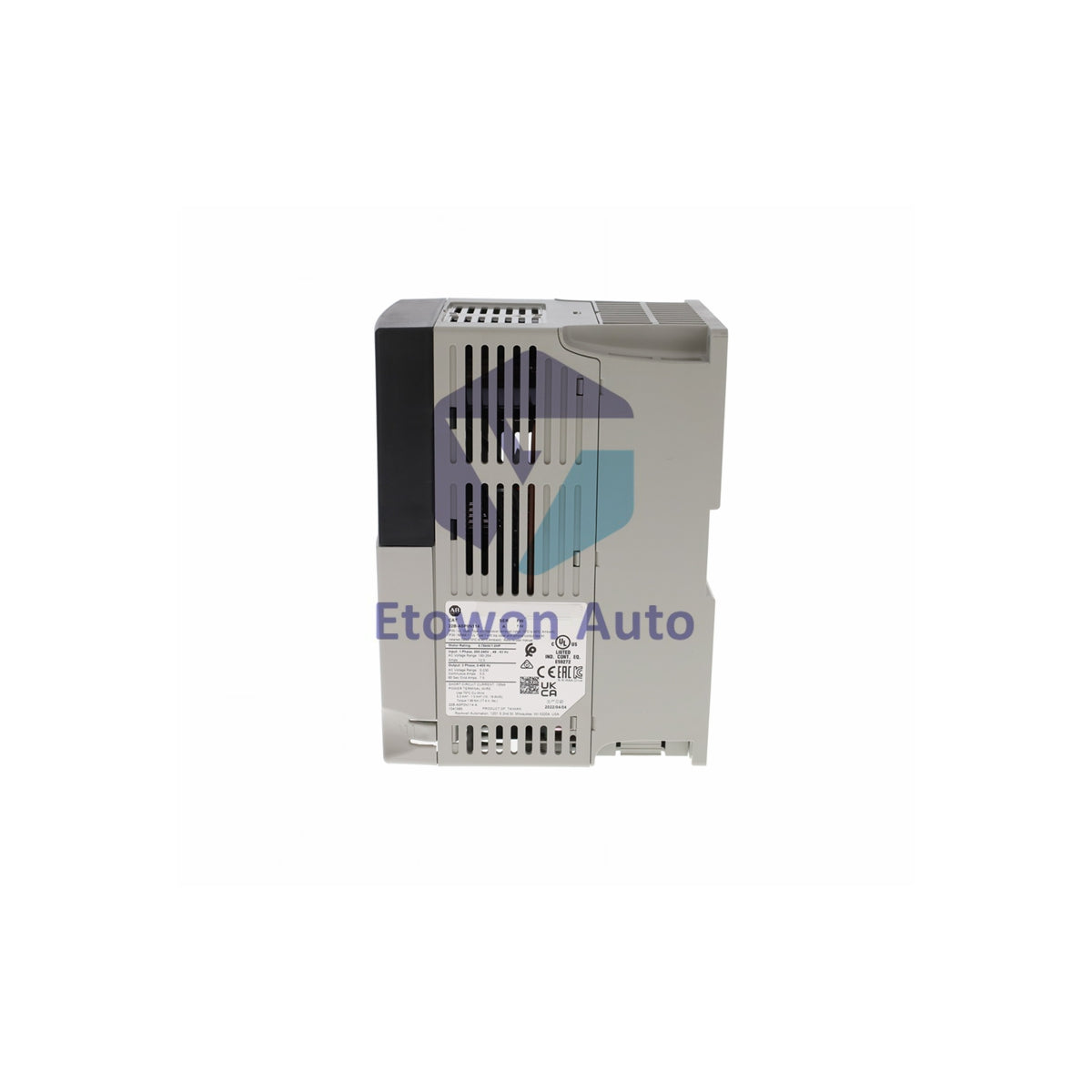

New Allen-Bradley 22D-E6P6F104 600V 3-Phase Motor Controller

På lager (12 enheter), klar til å sendes

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-E6P6F104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 6500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 dagers returrett · 12 måneders garanti
  • Rask levering
  • 24/7 kundestøtte
  • Kvalitetssikring

Beskrivelse

Product Overview

The Allen-Bradley 22D-E6P6F104 is a high-performance PowerFlex 40P AC drive designed for precise motor control in demanding industrial environments. This specific model is engineered for 600V AC 3-phase power systems, delivering a steady 6.6A output to drive motors up to 5 HP (4.0 kW).

A defining characteristic of the 22D-E6P6F104 is its Flange Mount (IP20) design, which allows for heat-generating components to be mounted through the back of a cabinet, utilizing convection cooling to manage its 160W power dissipation efficiently. Despite its advanced positioning capabilities, the module maintains a manageable shipping weight of approximately 6.5 kg (14.3 lbs), making it a robust yet compact solution for heavy-duty motor control.

Technical Specifications

Requirement Rating / Detail
Input Voltage 600V AC, 3-Phase (50/60 Hz)
Output Rating 6.6 Amps | 5 HP (4.0 kW)
Control Mode Sensorless Vector Control / Encoder Feedback
Mounting Type Flange Mount (Back-of-cabinet heat dissipation)
Enclosure Rating IP20 / Open Type
Operating Temp -10°C to +40°C (14°F to 104°F)

Advanced Control Features

  • Precision Positioning: The "P" in 40P stands for positioning; this drive supports encoder feedback for high-accuracy indexing and material handling tasks.
  • Rugged Protection: Includes built-in motor overload protection, ground fault protection, and a convection cooling system for long-term reliability.
  • Integrated Safety: Compatible with 140MD8E-C10 motor protectors and 100-C09 contactors for enhanced branch circuit safety.
  • Global Compliance: Fully certified under UL508C, CSA, and AS/NZS standards for worldwide industrial deployment.

Industrial Applications

The 22D-E6P6F104 is purpose-built for automation tasks that require more than basic speed control. It excels in smart conveyor systems, indexing machine positioning, and automated production lines where high-voltage 600V infrastructure is present. Its flange-mount configuration is particularly beneficial in compact control rooms where managing cabinet heat is a priority.

Technical FAQs

Q1: What is the benefit of the Flange Mount option?
A1: The flange mount allows the heat sink to sit outside the enclosure, significantly reducing the internal heat load of your control cabinet and potentially allowing for smaller enclosure sizes.

Q2: Does this drive support closed-loop control?
A2: Yes, the PowerFlex 40P series supports encoder feedback, enabling closed-loop speed and basic position control for improved performance over standard VFDs.

Q3: Can I use this drive on a 480V system?
A3: No, the 22D-E6P6F104 is specifically rated for 600V input. Using a lower voltage will result in undervoltage faults and improper operation.

Condition: New & Original in Factory Packing

Warranty: 12 Months Manufacturer Warranty
