IC697ACC644

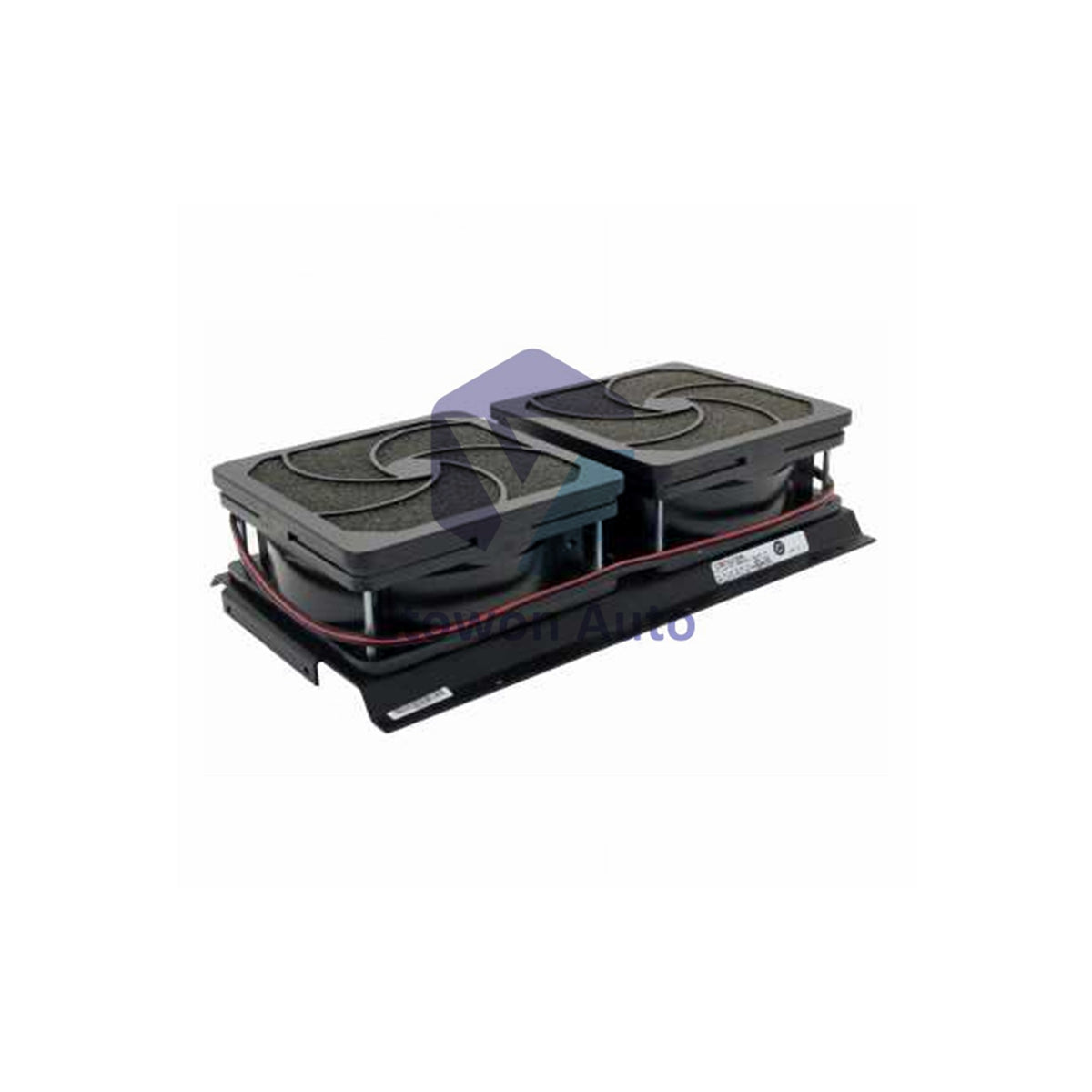

GE Fanuc IC697ACC644 30 PPI Filter Automation Rack Fan

På lager (11 enheter), klar til å sendes

  • Manufacturer: General Electric

  • Product No.: IC697ACC644

  • Product Type: Rack Fan Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 dagers returrett · 12 måneders garanti
  • Rask levering
  • 24/7 kundestøtte
  • Kvalitetssikring

Beskrivelse

Product Overview

The GE Fanuc IC697ACC644 is a heavy-duty rack fan assembly engineered specifically for the Series 90-70 automation system. This critical cooling component ensures optimal thermal management within the PLC rack, preventing hardware overheating and extending the lifespan of sensitive electronic modules.

This assembly features a dual-fan setup, providing redundant and high-volume airflow across the rack backplane. Operating on a standard 24 VDC supply, each fan consumes only 6.7 watts, making it an energy-efficient solution for 24/7 industrial operations. The rugged design is built to withstand extreme environments, with an impressive operating temperature range from -28°C to +70°C.

Technical Specifications

Technical Parameter Detail Specification
Input Voltage 24 VDC
Fan Configuration Dual-Fan System
Current Draw 0.28 Amps per Fan
Power Consumption 6.7 Watts per Fan
Filter Rating 30 Pores Per Inch (PPI)
Weight 1.8 kg (Approximately 4 lbs)

Key Performance Features

  • Advanced Dust Filtration: Equipped with a 30 PPI polyurethane foam filter to ensure clean airflow and protect internal components from particle buildup.
  • Flame-Retardant Materials: The filter retainer is constructed from UL94V-0 rated plastic, adhering to strict industrial safety standards.
  • Extreme Temperature Resilience: Reliable performance in harsh climates, capable of operating in sub-zero temperatures down to -28°C.
  • Easy Maintenance: The assembly is designed for quick access, allowing for rapid filter inspection or replacement to maintain peak cooling efficiency.

Installation & Maintenance

The IC697ACC644 is designed to mount directly to the Series 90-70 rack frame. For maximum effectiveness, ensure that the intake and exhaust areas are free from obstruction. Regular cleaning of the polyurethane foam filter is recommended to maintain the rated airflow and prevent current draw increases due to motor strain.

Technical FAQs

Q1: Does this fan assembly require a separate power supply?
A1: The assembly requires a 24 VDC source, which can typically be drawn from the PLC power supply or an external industrial DC supply.

Q2: Can the fans be replaced individually?
A2: While the IC697ACC644 is sold as a complete dual-fan assembly for guaranteed balance and airflow, the internal fans are standard industrial components.

Q3: Is the filter washable?
A3: Polyurethane foam filters of this type can often be cleaned with low-pressure air or mild soap and water, but they should be completely dry before re-installation.

Condition: New & Original in Factory Packing

Warranty: 1 Year Comprehensive Warranty
