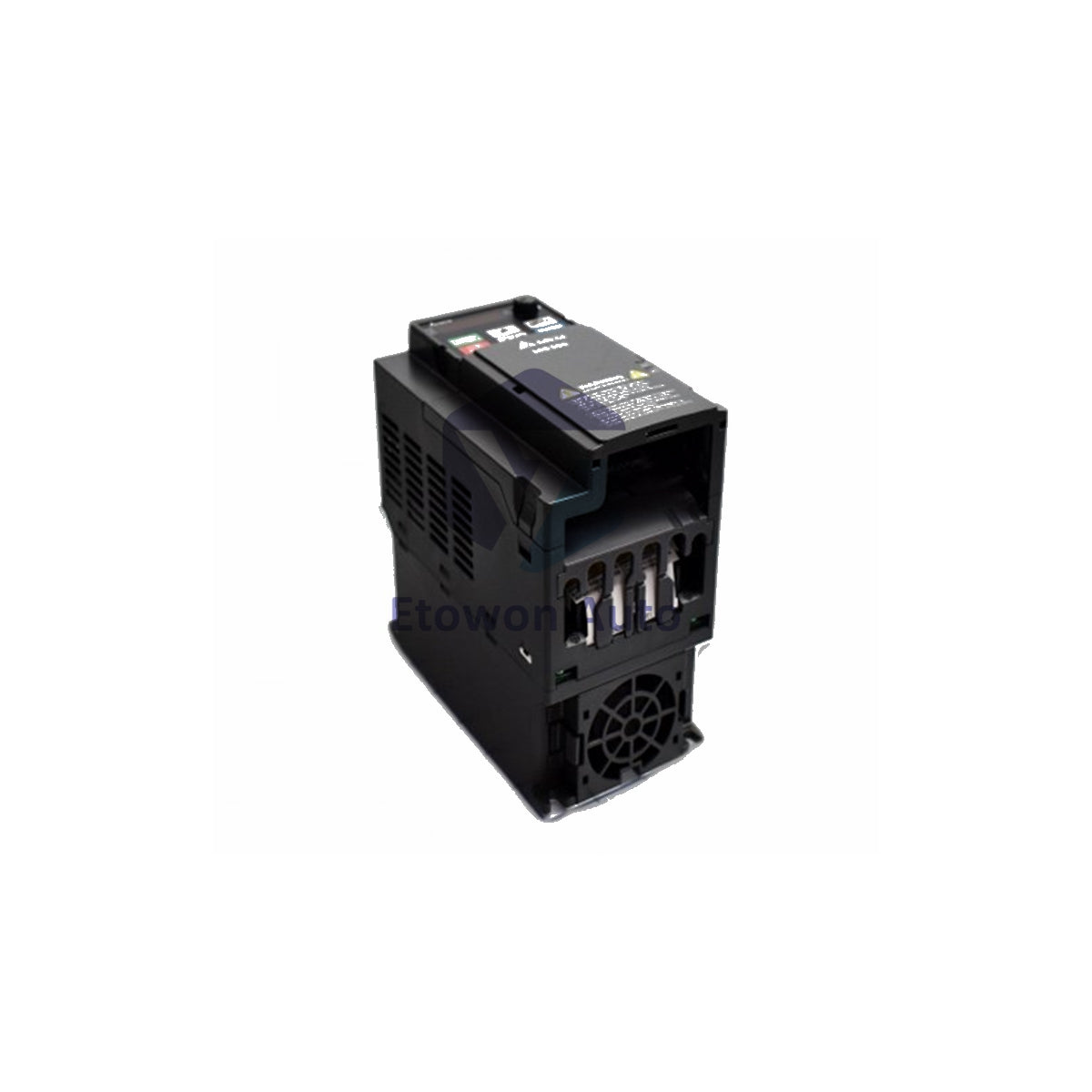

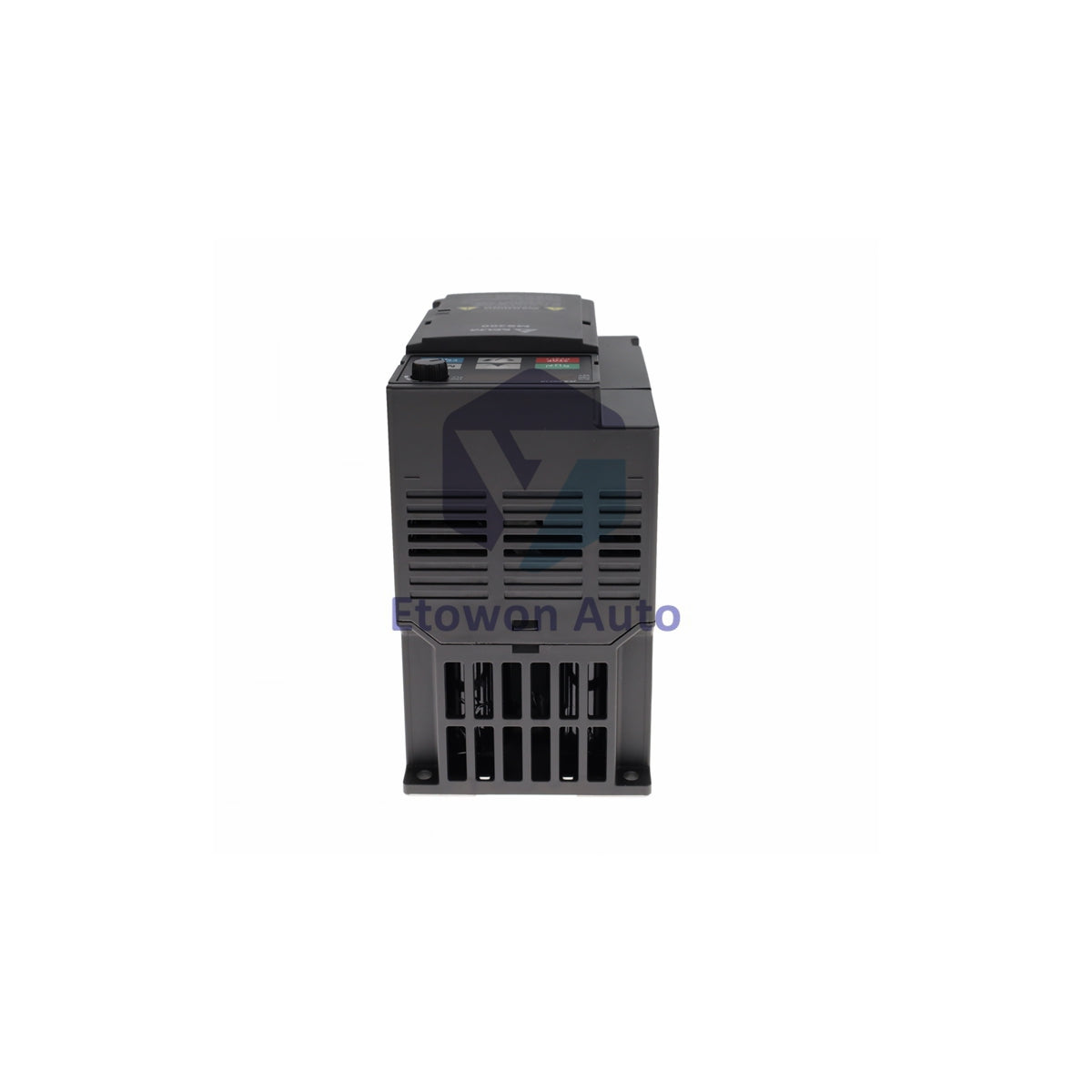

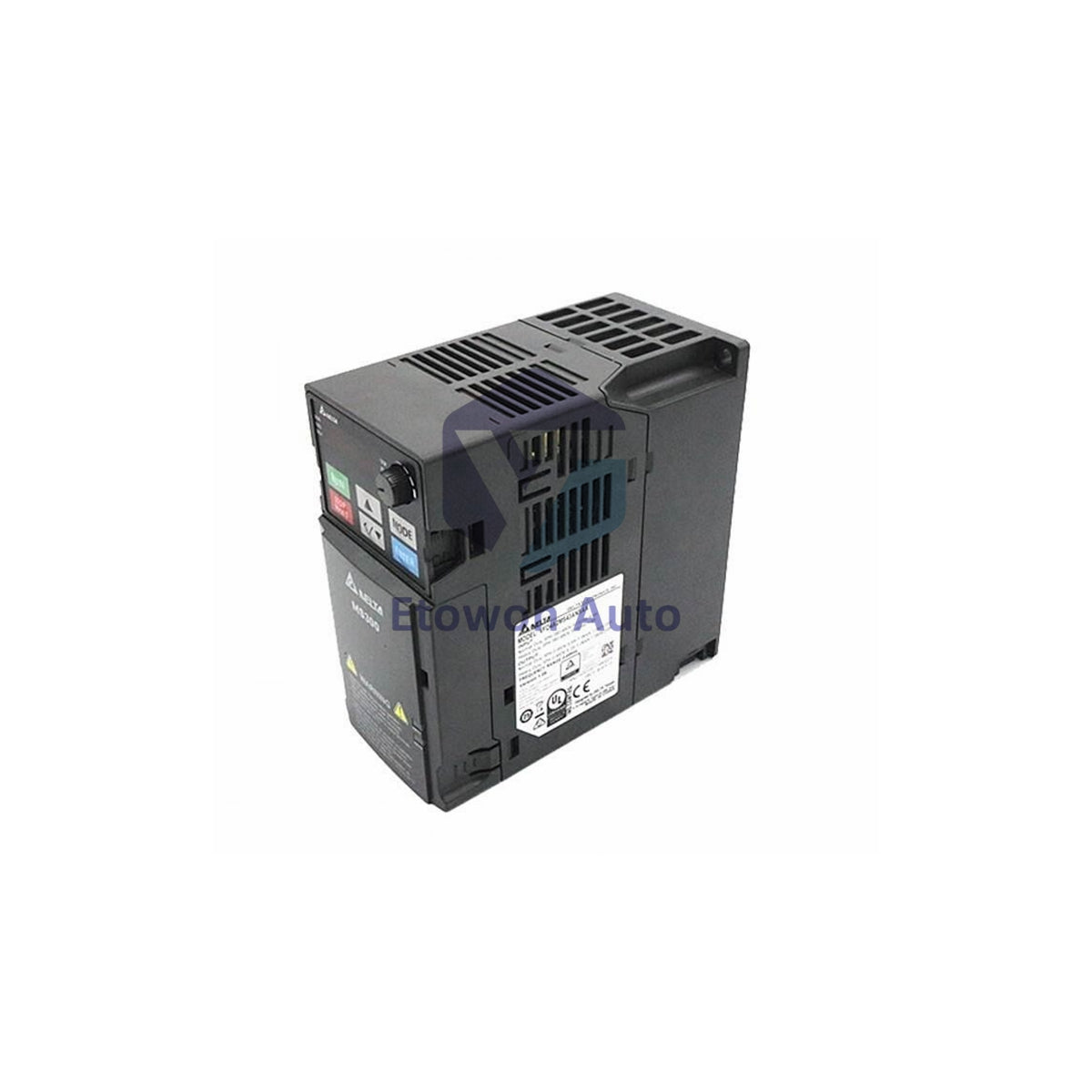

Delta MS300 VFD32AMS43EFSAA 32A 480V Standard Compact Drive

Product Overview

The Delta VFD32AMS43EFSAA is a part of the versatile MS300 series, representing Delta’s latest generation of high-performance, standard compact vector control drives. Designed for 480V three-phase industrial environments, this VFD delivers a steady 15 kW (20 HP) output. With a net weight of approximately 4.10 kg (9.04 lbs), the VFD32AMS43EFSAA provides a power-dense solution for manufacturers, combining a rated output current of 32 A with advanced control logic to handle a wide range of induction and permanent magnet motor applications.

Core Technical Advantages

Efficiency and reliability are the hallmarks of the VFD32AMS43EFSAA. It features a remarkably low standby power loss of just 11 W, significantly reducing energy costs during idle periods. The drive is designed to operate in ambient temperatures up to 40 °C without derating, ensuring consistent performance in standard factory conditions. Furthermore, its advanced thermal management system handles power losses efficiently; even at 90% frequency and 100% load, the relative power loss is kept at a minimal 1.7%, translating to cooler operation and extended component lifespan.

Technical Specifications

Efficiency & Load Profile

The VFD32AMS43EFSAA is engineered for high-efficiency operation across various speed and torque profiles. Below is a detailed look at the power loss characteristics at different operating points:

• Full Load (100% Current): Power loss ranges from 324.6 W at 0% frequency to 411.9 W at 90% frequency.
• Partial Load (50% Current): At half-load, the drive maintains excellent efficiency, with losses dropping to approximately 210.6 W at 0% speed.
• Low Load (25% Current): Even at minimal loads, the drive maintains a relative power loss of only 0.7%, showcasing its optimized internal power electronics.

Installation & Engineering Guide

When installing the VFD32AMS43EFSAA, ensure proper vertical mounting to allow the integrated cooling fans to circulate air effectively. The drive requires a stable 380-480V 3-phase input and should be protected by appropriately rated fast-acting fuses or a circuit breaker. For applications requiring high precision, the MS300 series supports both Open Loop and Closed Loop control options. The E-type frame provides integrated EMC filters, reducing electromagnetic interference without the need for additional external components, making it a "clean" solution for modern industrial grids.

Engineering Advantages

The Delta MS300 series offers significant advantages in terms of connectivity and safety. The VFD32AMS43EFSAA supports a variety of communication protocols and includes a built-in USB port for fast parameter copying and firmware updates. Its ability to maintain high torque at low speeds via sensorless vector control makes it ideal for conveyors, extruders, and pump applications. Furthermore, the compact design helps reduce the overall footprint of your control cabinet, allowing for higher density installations in space-constrained factory environments.

Technical FAQs

Q1: What is the benefit of the low standby loss on the VFD32AMS43EFSAA?
A1: The 11W standby loss ensures that energy consumption is minimized whenever the motor is not running, which is particularly beneficial in intermittent duty cycles where the drive remains powered but idle.

Q2: Can this drive handle 500V systems?
A2: No, the VFD32AMS43EFSAA is rated for a maximum supply voltage of 480V AC. Operating above this range may damage the internal capacitor bank and power modules.

Q3: Is this drive suitable for heavy-duty starting?
A3: Yes, the MS300 series is built to handle standard heavy-duty applications, providing high starting torque and excellent overload capacity to get inertia-heavy loads moving quickly.
