Bently Nevada 330505-01-02-00 Low Frequency Velocity Sensor

Product Overview

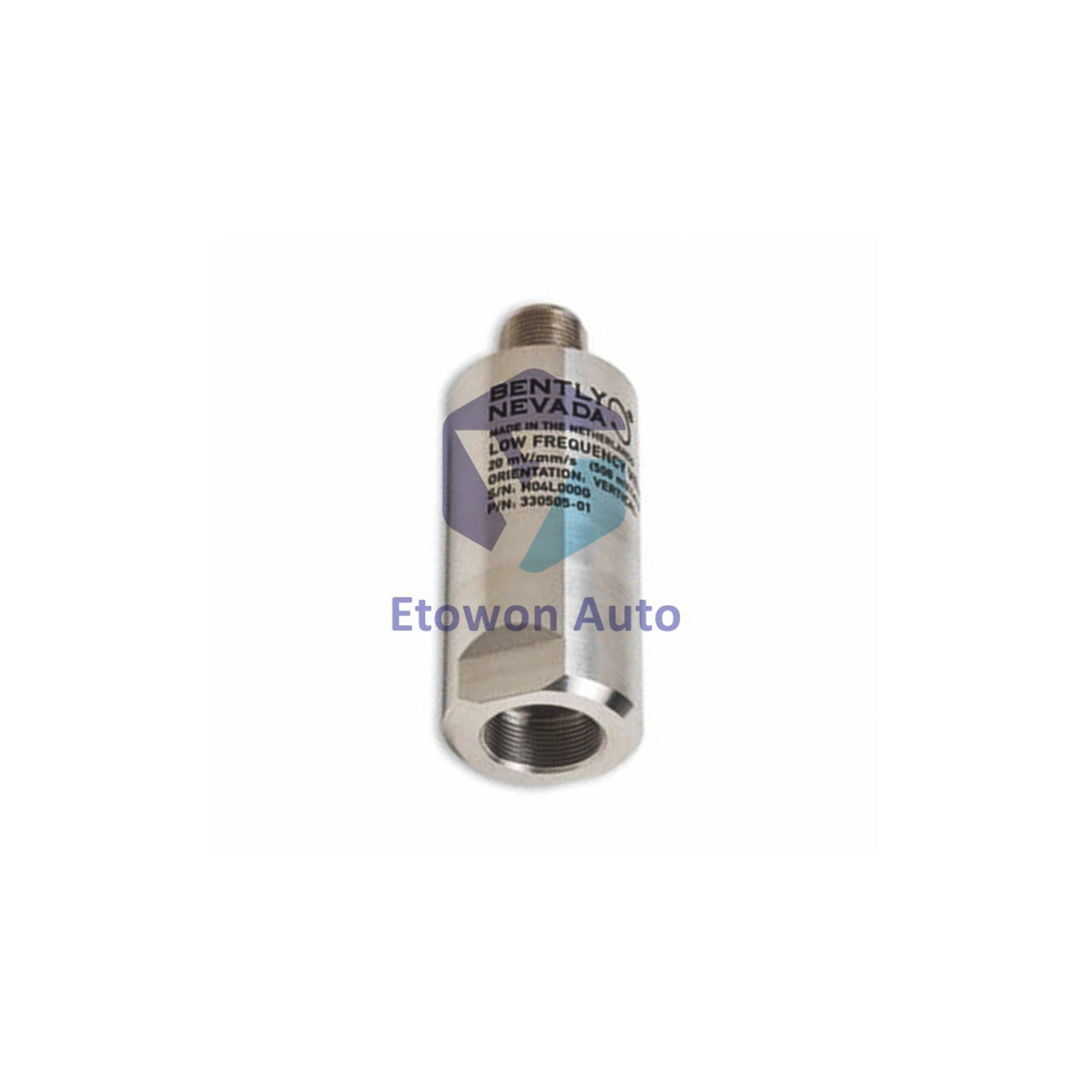

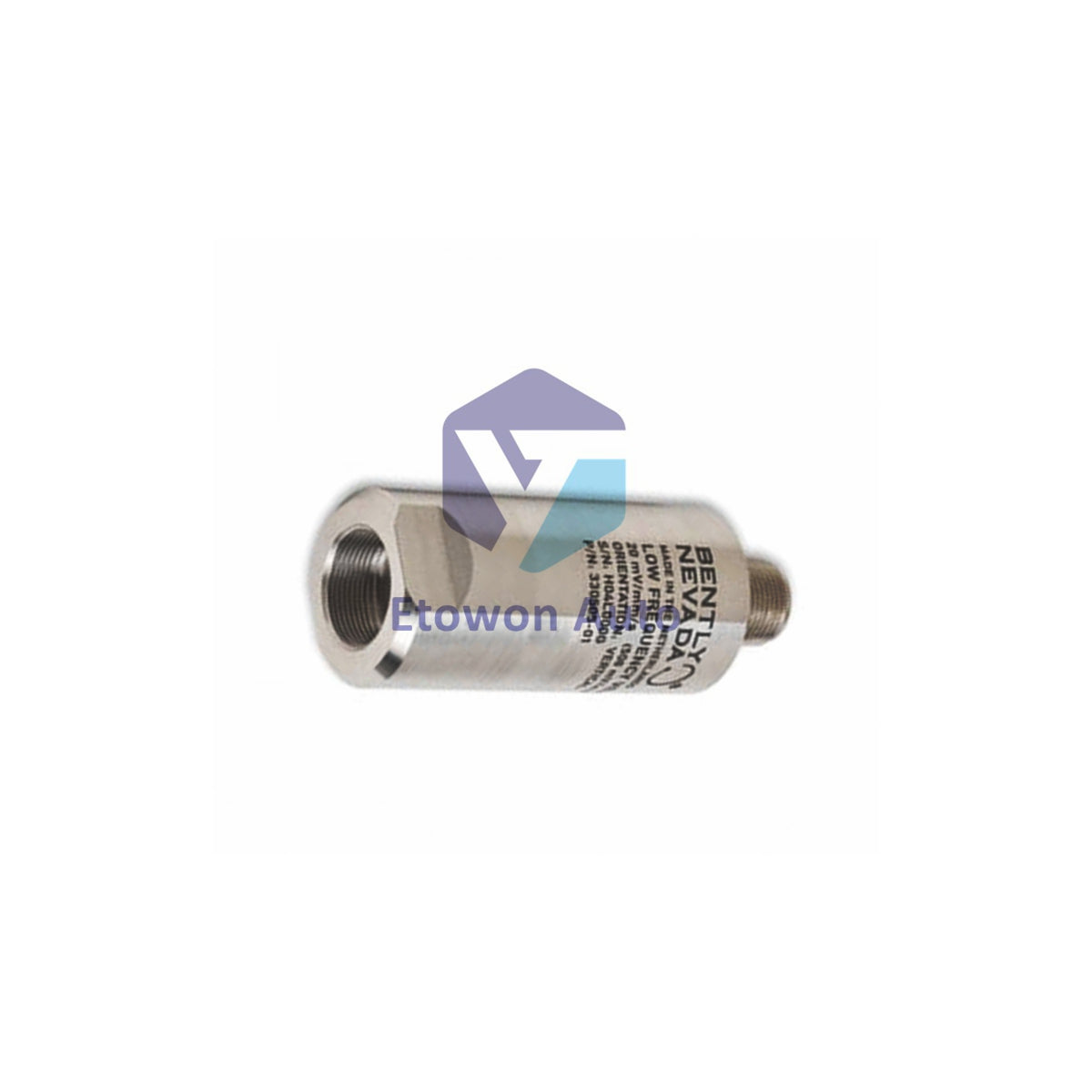

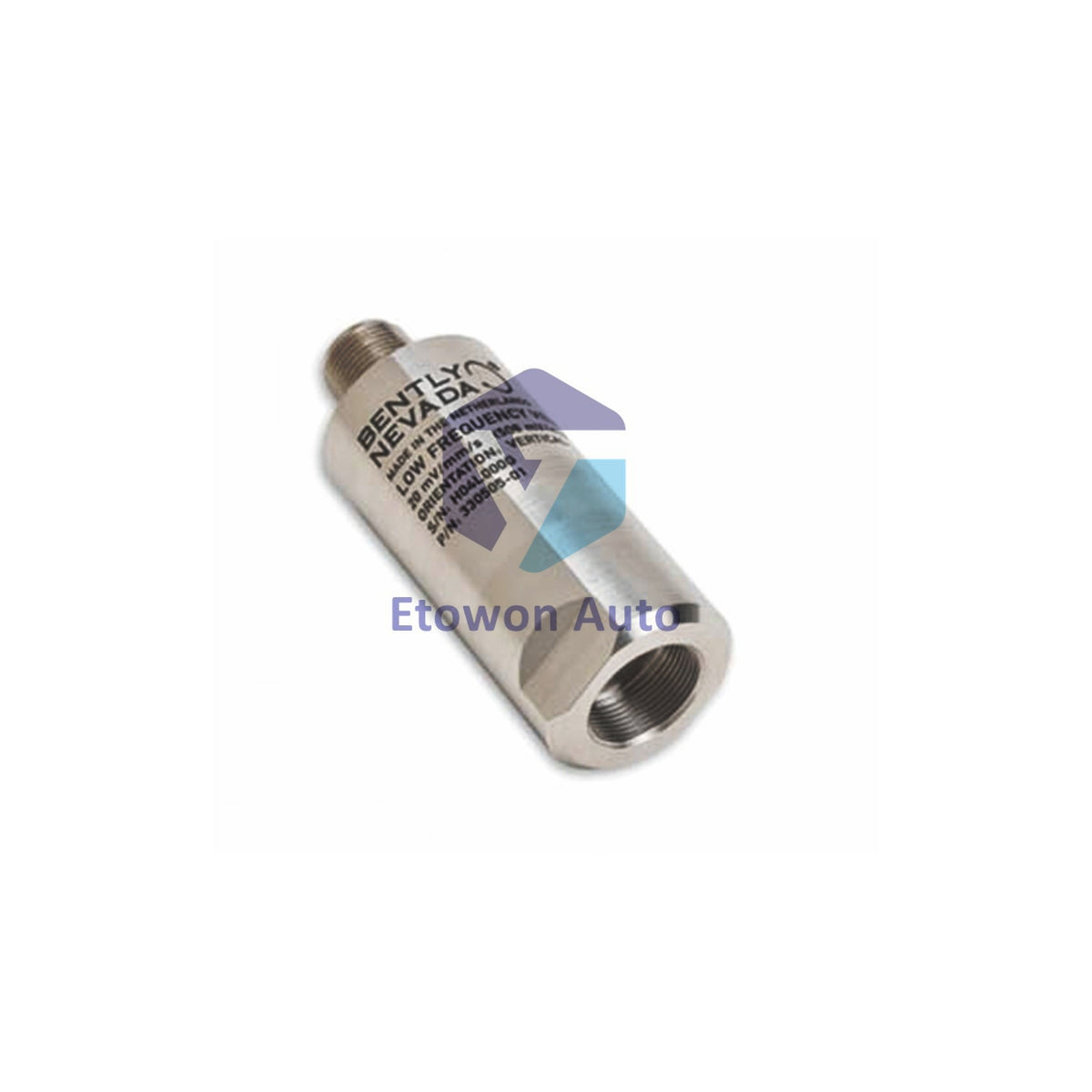

The 330505-01-02-00 is a specialized low-frequency velocity sensor engineered by Bently Nevada for monitoring slow-speed industrial machinery. Unlike standard seismic sensors, this transducer is optimized for applications like hydroelectric turbines or large cooling fans, where detecting vibrations at frequencies as low as 0.5 Hz is vital for safety. By utilizing advanced internal sensing technology, it delivers high-resolution casing velocity data, enabling maintenance teams to identify mechanical imbalances or structural resonances before they cause catastrophic equipment failure.

Technical Configuration

The 330505-01-02-00 features a precise mechanical build designed for vertical integration. The suffix "-01" indicates a 0° vertical mounting orientation (±10°), ensuring accurate sensitivity along the machine's primary axis of movement. This specific model utilizes a 3/8-24 UNF-2B internal mounting thread and comes without an external adapter (-00 option). Housed in 300-series stainless steel with a hermetically sealed 2-pin Mil-C-5015 connector, the hardware is designed to maintain zero signal degradation over cable lengths reaching up to 305 meters when connected to Bently Nevada 3500/46M monitors.

Technical Specifications

Installation & Maintenance Guide

To ensure peak performance of the 330505-01-02-00, the sensor must be rigidly mounted to the target surface with a maximum torque of 46 kg·cm. The mounting surface should be flat and clean to prevent signal attenuation at higher frequencies. As a vertical sensor (-01), it must stay within ±10° of the vertical axis to maintain calibration. Use shielded cabling to protect the low-frequency signal from electromagnetic interference (EMI), especially when operating near large motors or high-voltage switchgear.

Engineering Advantages

The 330505-01-02-00 stands out for its exceptional amplitude linearity (±3%) and shock survivability of up to 100g. Its hermetically sealed 300-series stainless steel case allows for continuous operation in 100% relative humidity environments (non-submerged). This durability, combined with the ability to transmit data over 305 meters without signal loss, makes it the industry standard for predictive maintenance programs in hydroelectric plants and wastewater treatment facilities where remote monitoring is required.

Technical FAQs

Q1: Why is a low-frequency response of 0.5 Hz important?
A1: Slow-turning machines like hydro turbines rotate at low RPMs; standard sensors often lose sensitivity at these speeds, whereas this sensor captures the fundamental vibration frequencies accurately.

Q2: What is the "No Adapter" (-00) option for?
A2: This option is intended for installations where the machine already has a compatible 3/8-24 UNF-2B mounting stud, allowing for a direct and more rigid mechanical connection.

Q3: How is the sensor polarity defined?
A3: Pin A becomes positive relative to Pin B when the velocity is applied from the base toward the top of the transducer, facilitating correct phase-angle measurement for balancing.
