330104-00-24-05-02-00

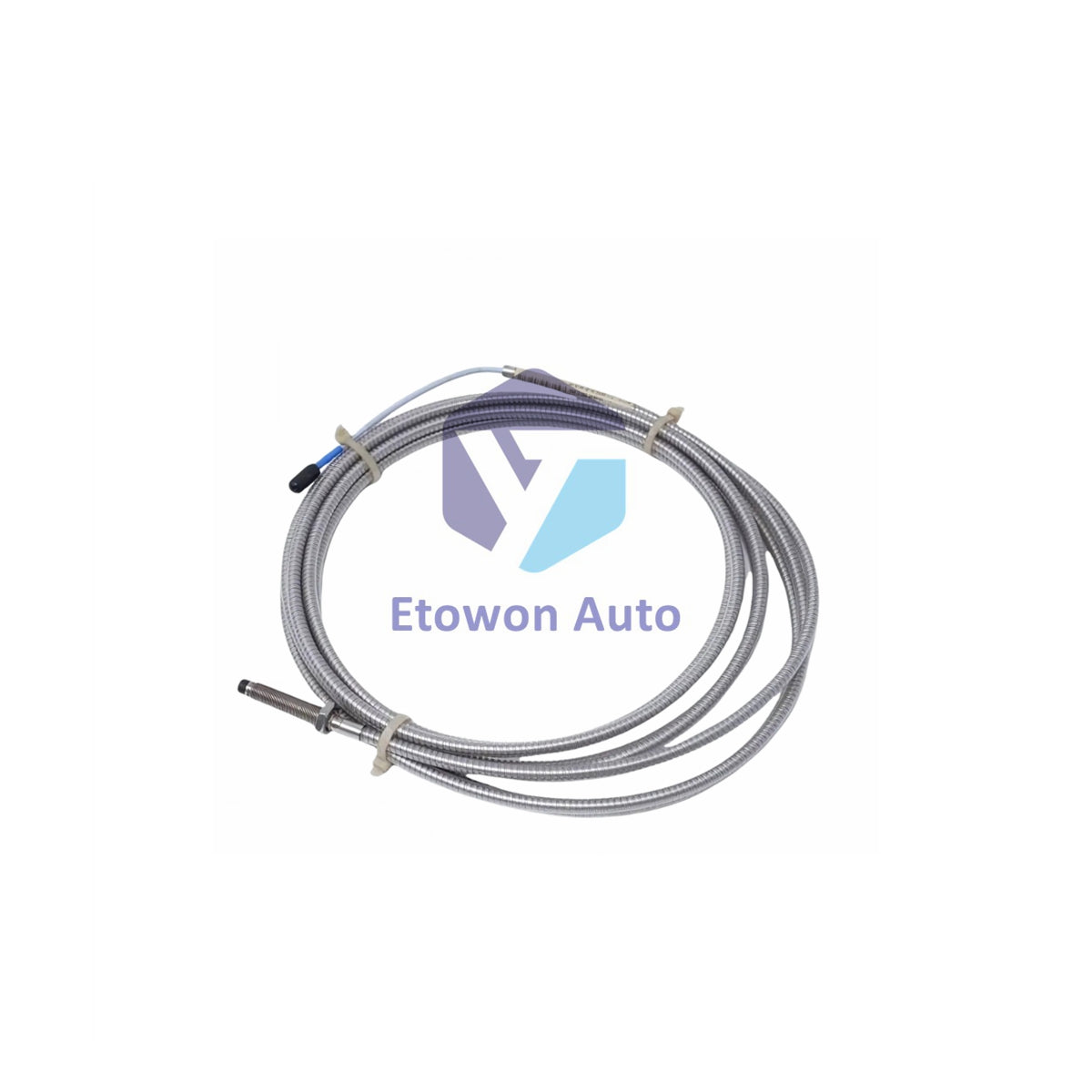

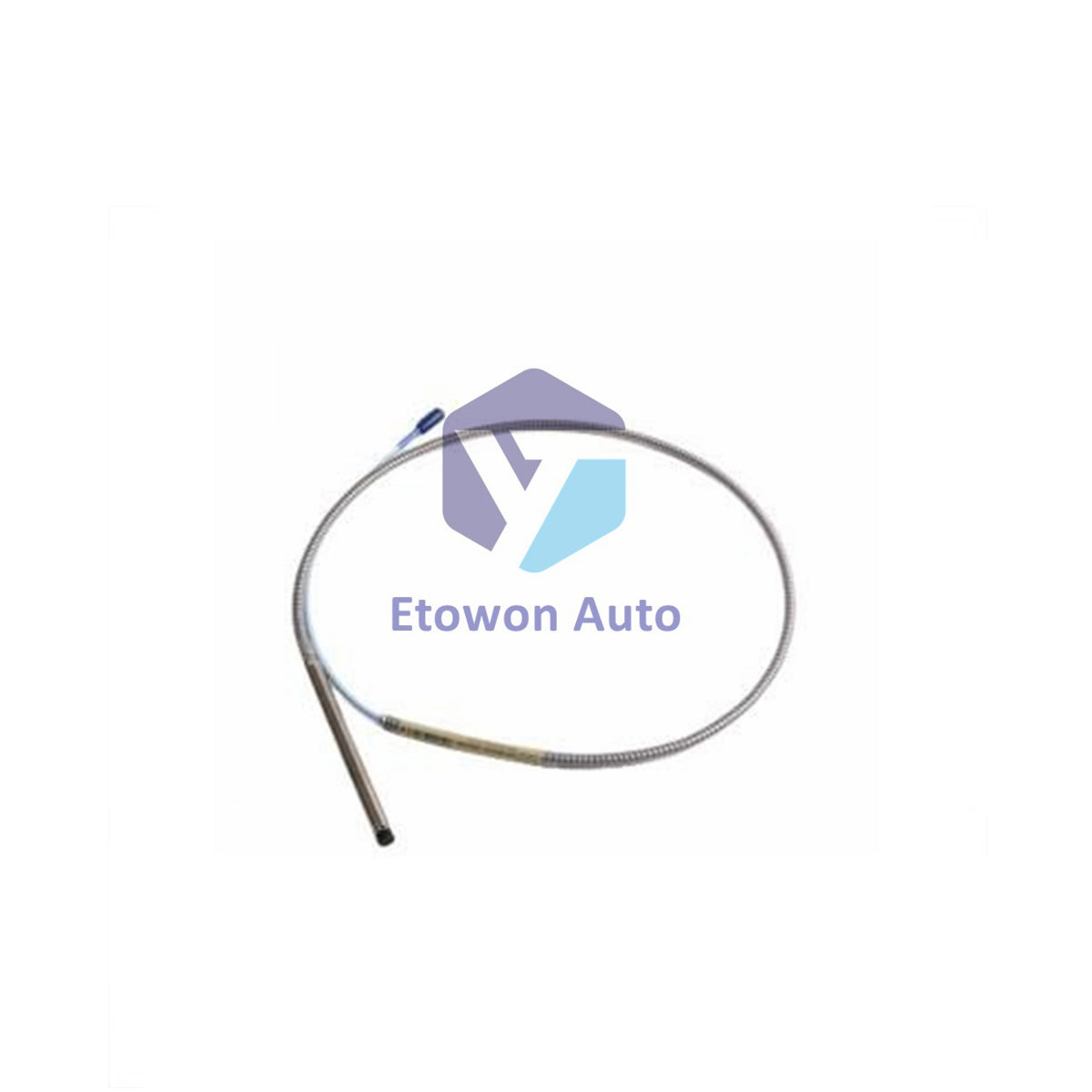

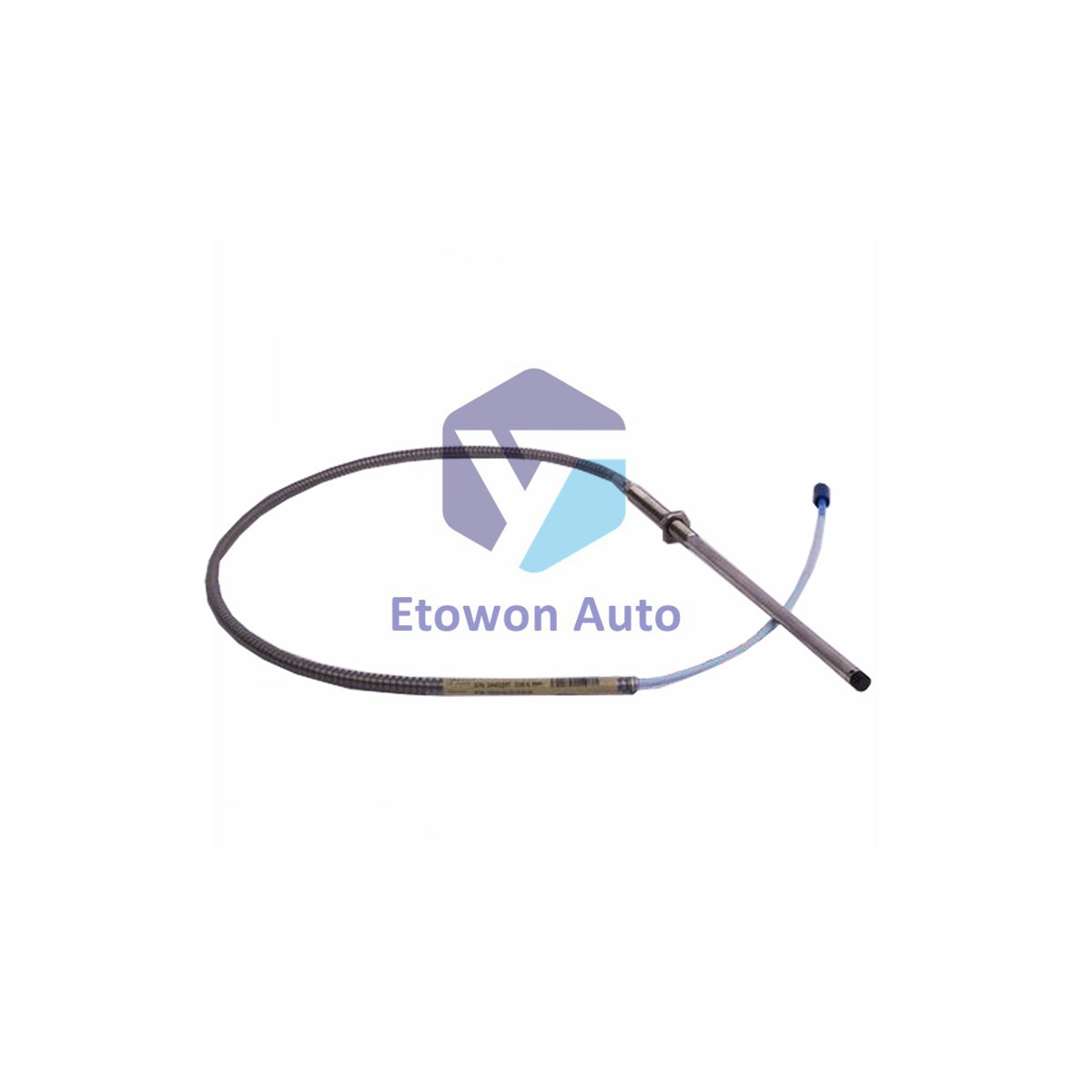

330104-00-24-05-02-00 Bently Nevada 3300 XL Probe

På lager (23 enheter), klar til å sendes

  • Manufacturer: Bently Nevada

  • Product No.: 330104-00-24-05-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 dagers returrett · 12 måneders garanti
  • Rask levering
  • 24/7 kundestøtte
  • Kvalitetssikring

Beskrivelse

Product Overview

The Bently Nevada 330104-00-24-05-02-00 is a high-precision 3300 XL 8mm proximity probe designed for critical machinery vibration and position monitoring. Featuring an M10x1 threaded case and integrated stainless steel armor, this sensor provides superior physical protection in demanding industrial environments. It utilizes advanced eddy current technology to measure non-contacting displacement, ensuring reliable data for turbines, compressors, and motors. This specific configuration includes a Viton® O-ring, enabling it to withstand significant differential pressure in sealed applications.

Technical Configuration

This 330104 model is built with high-performance materials for long-term industrial stability:

  • Full Model: 330104-00-24-05-02-00
  • Thread Specification: M10x1 metric thread for standard industrial mounting.
  • Unthreaded Length (00): 0 mm (flush mount configuration).
  • Case Length (24): 240 mm overall case length for deep-reach installation.
  • Cable Length (05): 0.5 meter (1.6 feet) integrated lead cable.
  • Armor Option (02): Includes high-strength stainless steel armor for cable protection.
  • Sealing: Integrated Viton® O-ring rated for 35 bar (approx. 500 psi) differential pressure.

Technical Specifications

Parameter Specification Detail
Probe Tip Diameter 8 mm
Product Weight Approx. 320 g (Depends on armor length)
Probe DC Resistance 7.45 Ω ± 0.50 Ω (for 0.5m cable)
Operating Temp Range -40°C to +125°C (-40°F to +257°F)
Output Resistance 50 Ω ± 5%
Material (Tip/Case) PPS / AISI 303/304 Stainless Steel
Response Time 2 μs (Typical)

Installation & Maintenance

When installing the 330104-00-24-05-02-00, ensure the M10x1 thread is properly aligned to avoid cross-threading. The integrated armor provides high resistance to abrasion, but care should still be taken not to exceed the minimum bend radius of the FEP-insulated cable. The ClickLoc™ connector is rated for over 500 mating cycles; ensure it is fully clicked into place to maintain the IP67 sealing. For applications involving pressure, verify the Viton® O-ring is clean and properly seated to maintain the 35 bar pressure rating.

Engineering Advantages

The 3300 XL 8mm system offers industry-leading Environmental Resilience, with a vibration resistance rating of 10g RMS. The use of Polyphenylene Sulfide (PPS) for the probe tip ensures excellent chemical resistance and a V-0 flammability rating. With a linear range of ±1.5mm from the null point, this probe provides the high-fidelity signal needed for predictive maintenance programs. Furthermore, its NIST-certified calibration traceability ensures that measurements are accurate and consistent with international standards.

Technical FAQs

Q1: What is the benefit of the armor jacket (Option 02)?
A1: The stainless steel armor prevents mechanical damage to the cable from sharp edges, flying debris, or accidental crushing during installation and operation.

Q2: Can this probe be used with non-steel targets?
A2: While calibrated for AISI 4140 steel, it can be used with other metals; however, recalibration of the Proximitor sensor would be required to maintain accurate displacement readings.

Q3: How does the Viton® O-ring affect installation?
A3: It allows the probe to be mounted directly into pressurized environments (up to 35 bar) without additional external sealing, provided the mounting hole is machined to the correct finish and tolerance.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 8 mm Proximity Probe Proximity Probe
