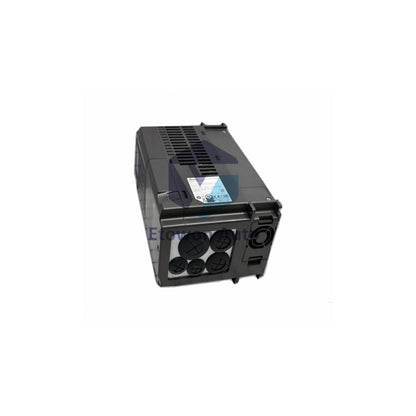

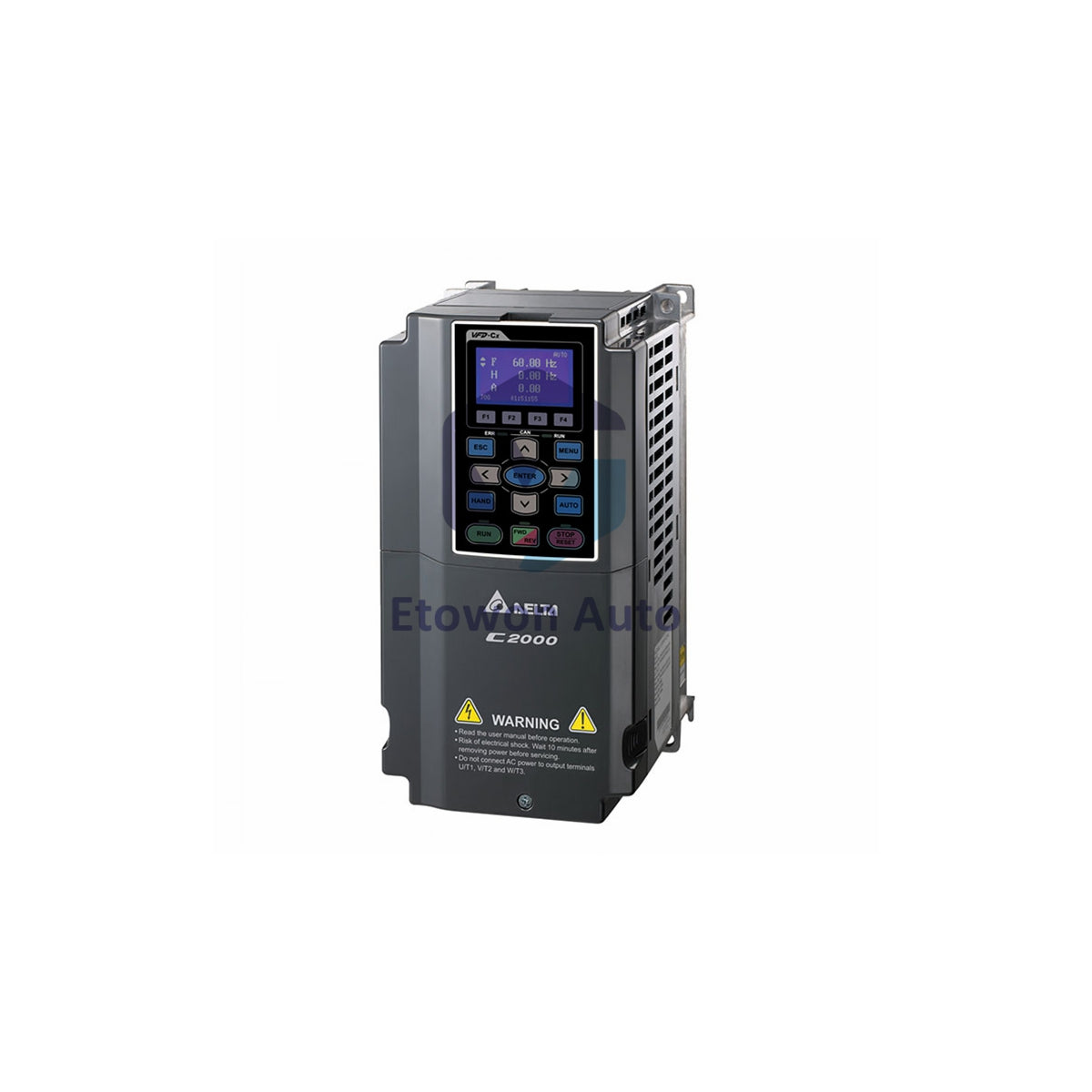

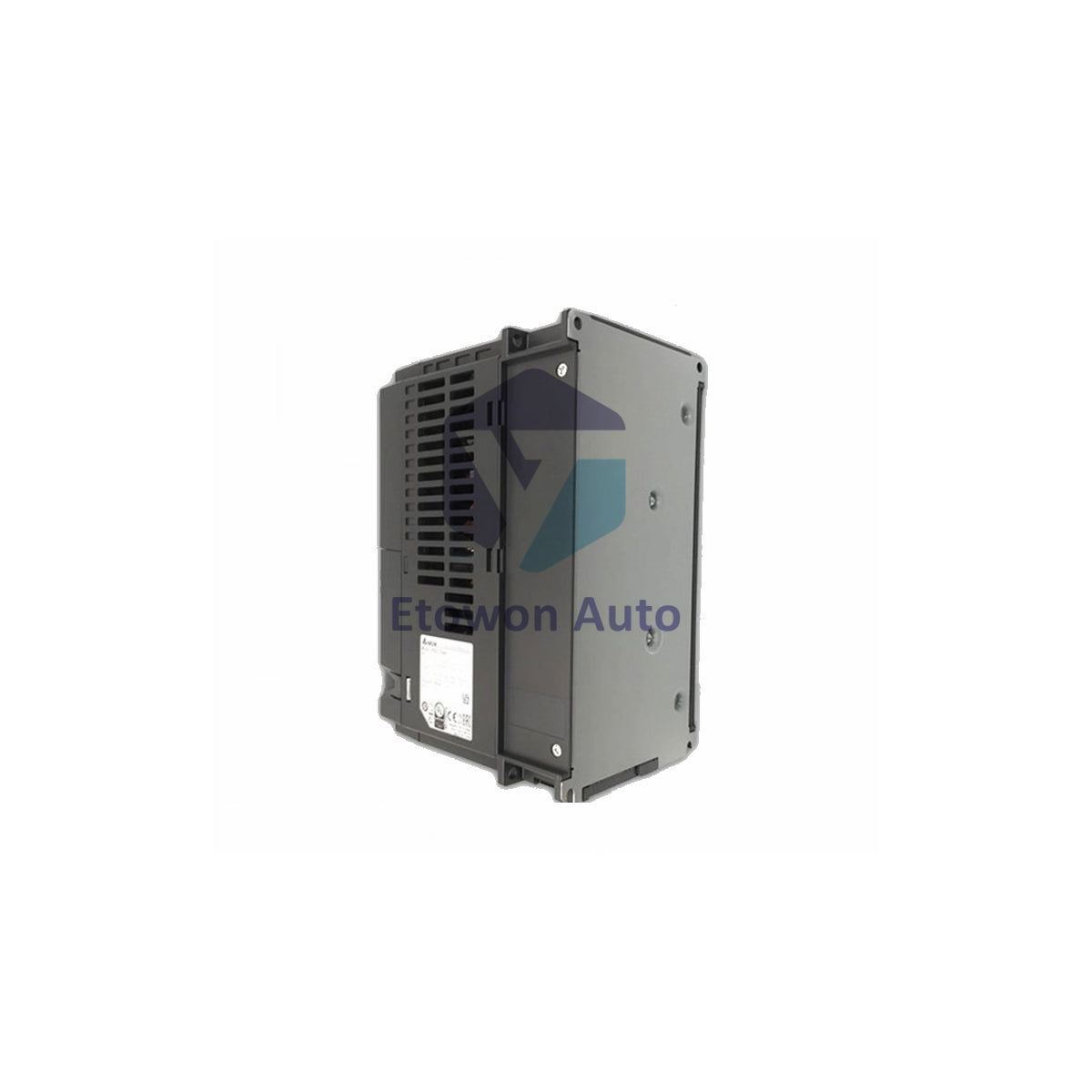

Delta VFD022C53A-21 C2000 Series Variable Frequency Drive

The VFD022C53A-21 from Delta's C2000 Series is engineered for higher voltage applications. This reliable drive delivers precise control for 3-phase motors, making it an ideal solution for your 2.2 kilowatt industrial systems.

Core Technical Specifications

• Brand & Manufacturer: Delta
• Model: VFD022C53A-21
• Series: C2000 Series
• Input Power: 575 Volts, 3-Phase
• Motor Power: 3 Horsepower (2.2 Kilowatts)
• Light Duty Current: 4.3 Amps
• Normal Duty Current: 3.6 Amps
• Heavy Duty Current: 3.0 Amps
• Frame Size: A
• IP Rating: IP20 (Protected against touch by fingers and solid objects larger than 12.5mm).
• Built-in Braking Chopper: Yes - Facilitates controlled deceleration and dynamic braking.
• Built-in EMC Filter: No
• Built-in DC Reactor: No
• Built-in CANopen Card: No

Physical Dimensions & Weight

• Weight: 6.6 lbs (3.0 kg)
• Dimensions (W x H x D): 5.12 in x 9.84 in x 6.69 in
• Compact Footprint: The Frame Size A design ensures easy integration into standard industrial control panels, saving valuable space.

Installation & Setup Guide

• Always disconnect and lock out all input power before handling or wiring the drive.
• Confirm your facility's supply voltage is compatible with the drive's 575V 3-Phase requirement.
• Mount the unit on a vertical, flat, and vibration-free surface to ensure optimal heat dissipation.
• Select the correct cable gauge based on the applicable duty current rating for your specific application.
• Connect an external braking resistor to the built-in chopper terminals if fast stopping is required.

Packaging & Shipping Information

• Packaging List: One Delta VFD022C53A-21 drive unit, comprehensive user manual, and mounting accessories.
• We use robust, protective packaging to safeguard the product during transit.
• All orders ship via trusted courier services: FedEx, UPS, or DHL.
• Tracking details are provided immediately after your order leaves our warehouse.

Frequently Asked Questions (FAQ)

What do the different duty current ratings (Light, Normal, Heavy) mean?

• These ratings define the drive's output capacity for different load types. Light Duty (4.3A) suits easy starts, Normal Duty (3.6A) fits most applications, and Heavy Duty (3.0A) is for high-starting torque loads. Choose based on your motor's actual demand.

Can I use this drive in a 480V system?

• No, the VFD022C53A-21 is specifically designed for a 575V, 3-Phase input power supply. Using it on a 480V system is not recommended and could lead to improper operation or damage.

What is the purpose of the built-in braking chopper?

• The built-in braking chopper manages regenerative energy from the motor during deceleration. By connecting an external resistor, it allows for faster, controlled stopping and prevents drive faults.
