SED4D-06

Yokogawa SED4D-06 Digital Terminal Board | SIL3 Rated

In stock (12 units), ready to be shipped

  • Manufacturer: Yokogawa

  • Product No.: SED4D-06

  • Product Type: Digital Terminal Board

  • Product Origin: SG

  • Payment:T/T, Western Union

  • Weight: 1500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

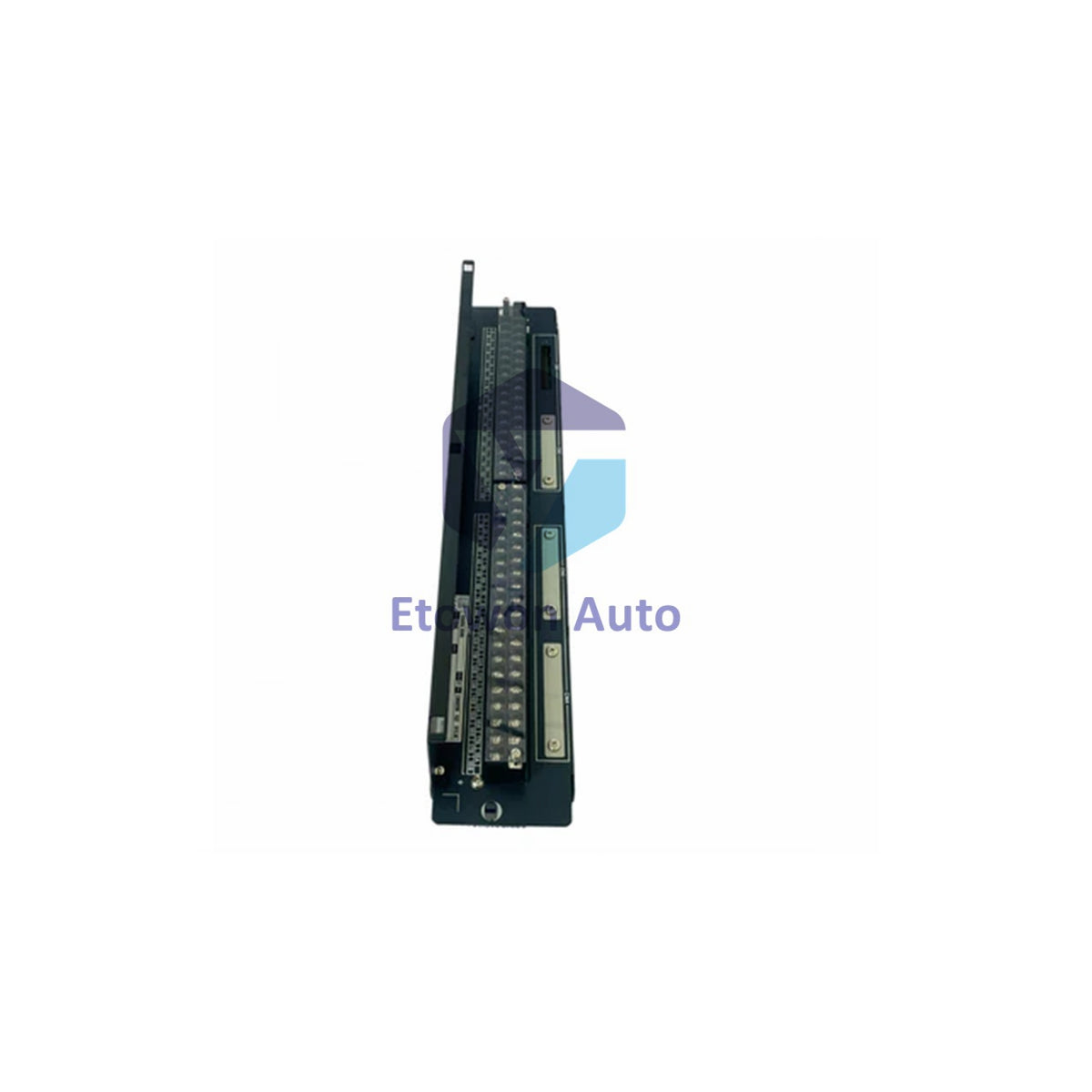

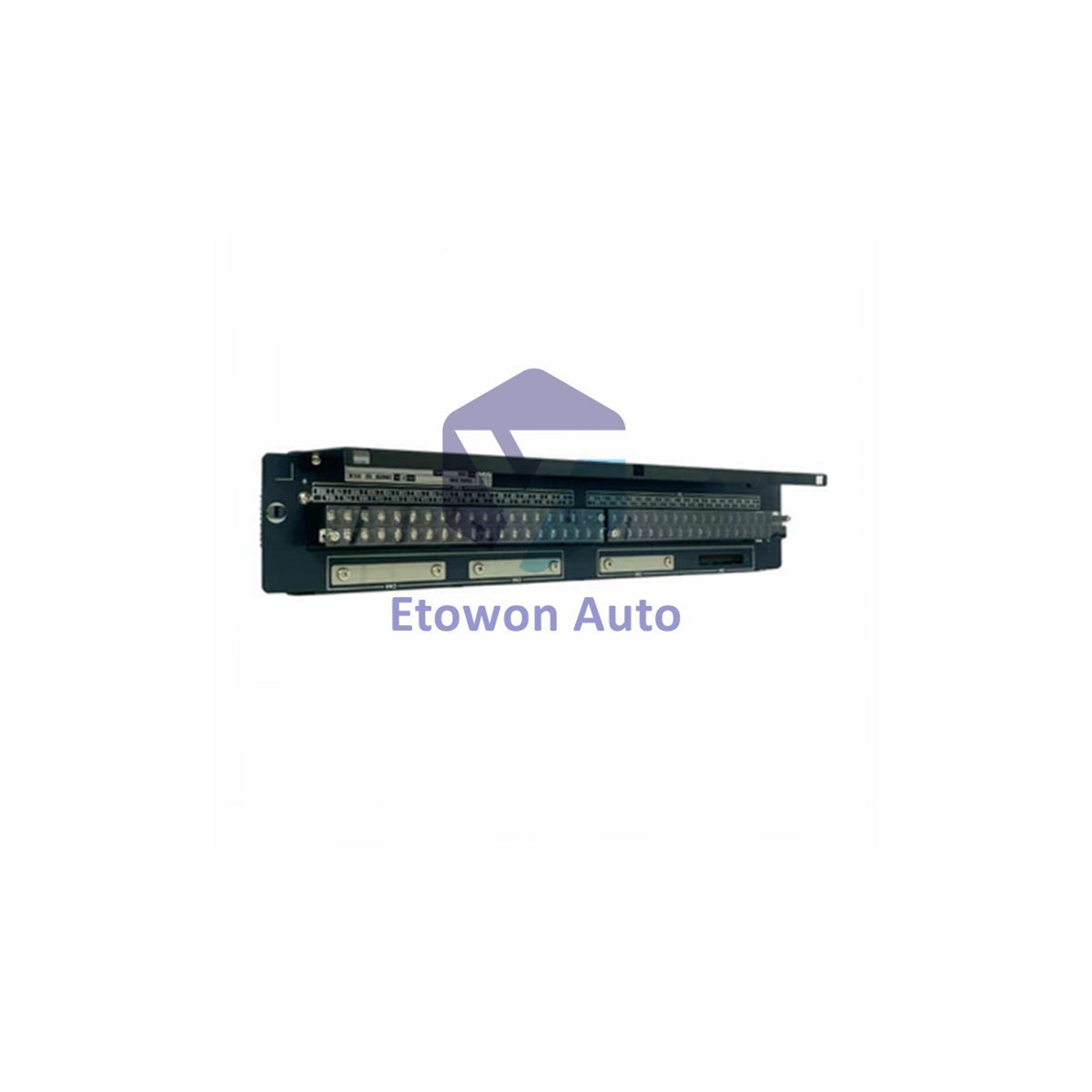

Yokogawa SED4D-06 Digital Terminal Board

The Yokogawa SED4D-06 provides termination for 16x2 digital signals in single or dual-redundant configurations.

Board Features

  • Brand Model: Yokogawa SED4D-06 Digital Terminal Board
  • Channel Configuration: 16 channels x 2 arrangement
  • Safety Rating: SIL3 certified for critical applications
  • Redundancy: Single and dual-redundant configuration options
  • Voltage Protection: 500 V AC withstand for 1 minute
  • Insulation: 100 MΩ minimum at 500 V DC

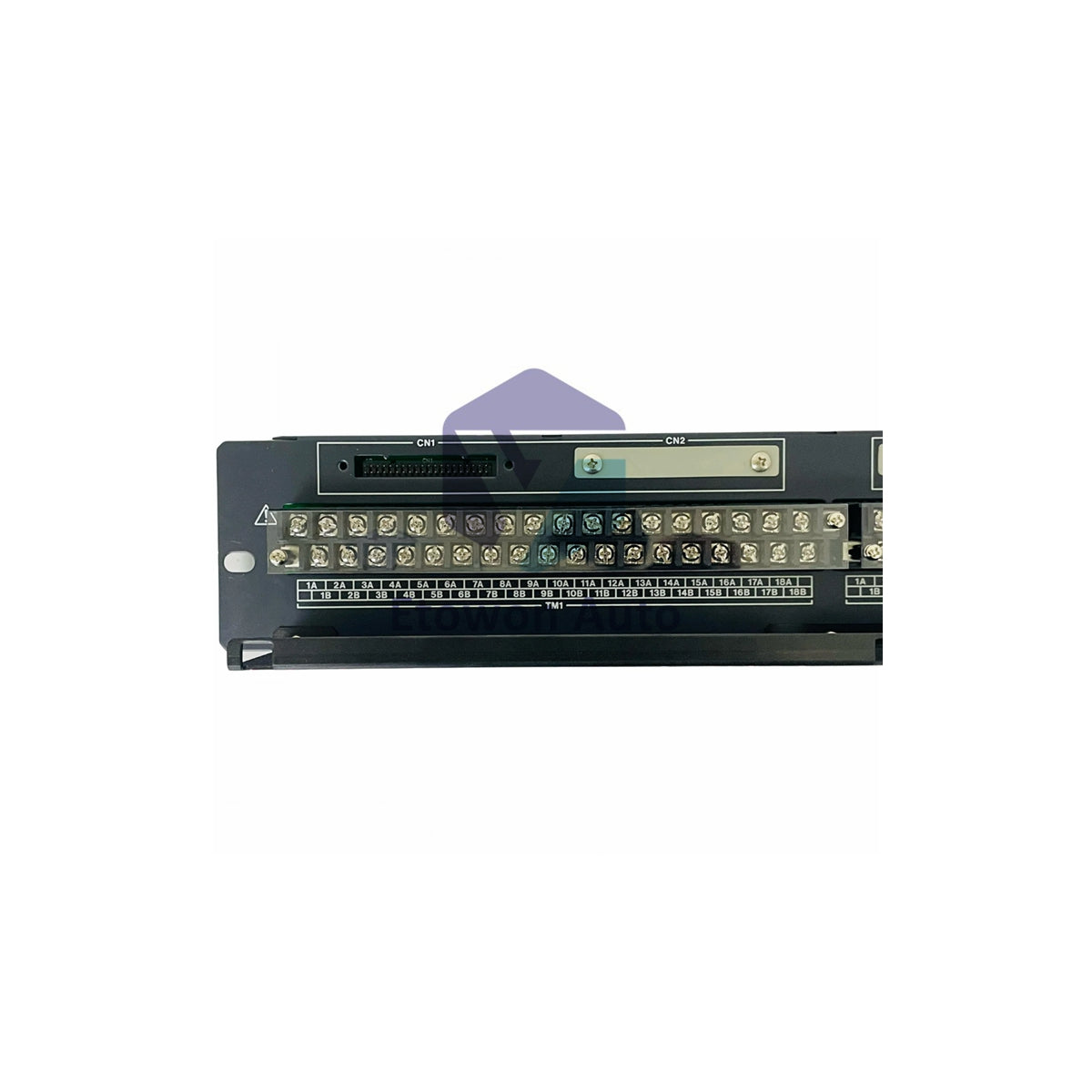

  • Terminal Type: M4 screw terminals
  • Compliance: ISA Standard G3 with no explosion protection

Technical Details

  • Board Weight: 1.5 kg total weight
  • Signal Type: Digital signal termination only
  • Cable Compatibility: AKB331 connection cable
  • Surge Protection: Without surge absorber (suffix code 0)
  • Mounting: Standard industrial panel mounting
  • Application: Safety instrumented systems
  • Environmental: Standard industrial conditions
  • Certification: ISA G3 environmental compliance

Setup Guide

  • Connect AKB331 cables to designated terminals
  • Configure for single or dual-redundant operation
  • Secure connections with M4 screw terminals
  • Verify 100 MΩ insulation resistance before operation
  • Install in ISA G3 compliant environments only

Package Contents

  • One SED4D-06 Digital Terminal Board unit
  • Terminal screws and mounting accessories
  • Protective packaging for safe transit
  • Shipping via FedEx, UPS, or DHL services

Common Questions

  • What channel configuration? 16 channels x 2 arrangement
  • Safety certification? SIL3 rated for safety systems
  • Voltage protection level? 500V AC withstand for 1 minute
