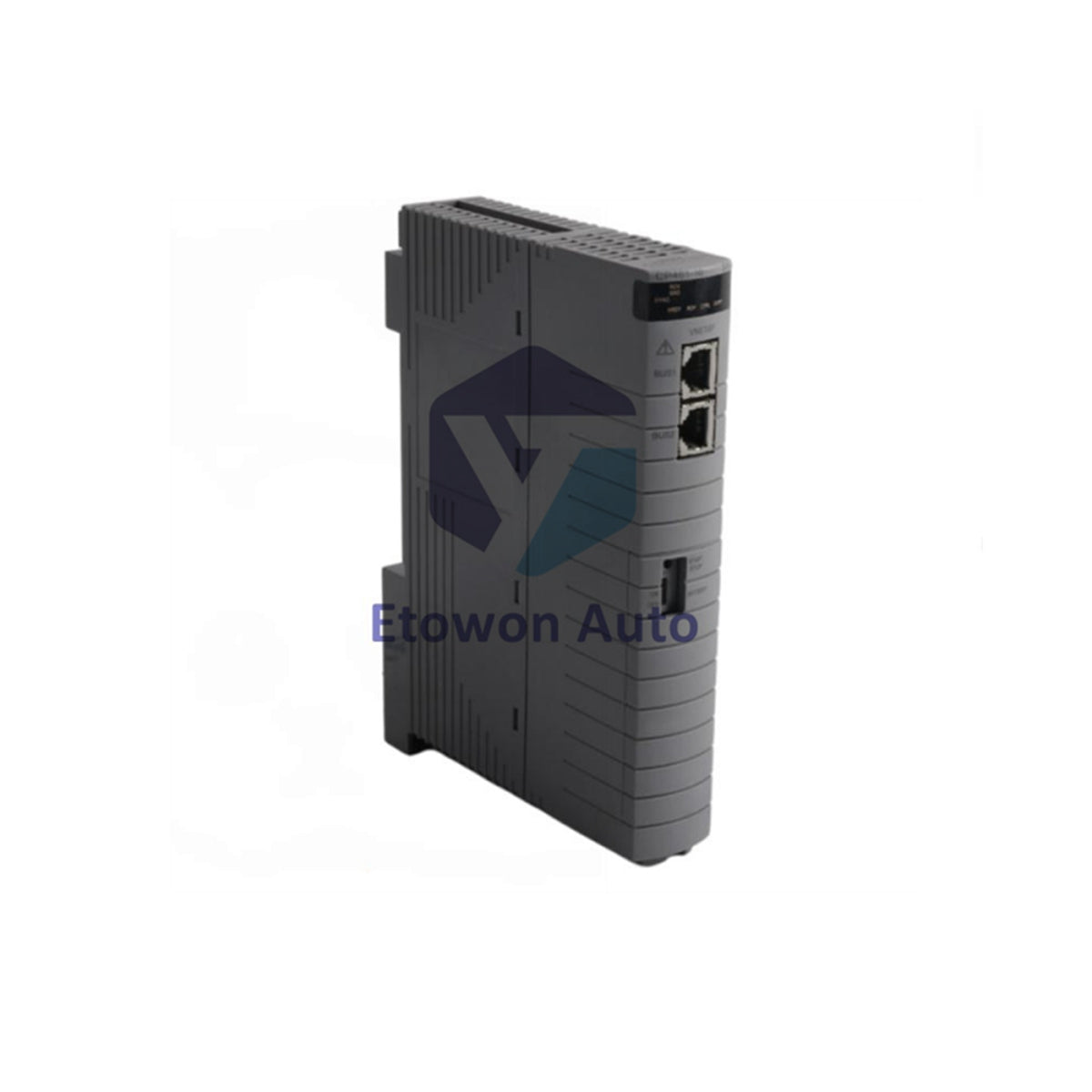

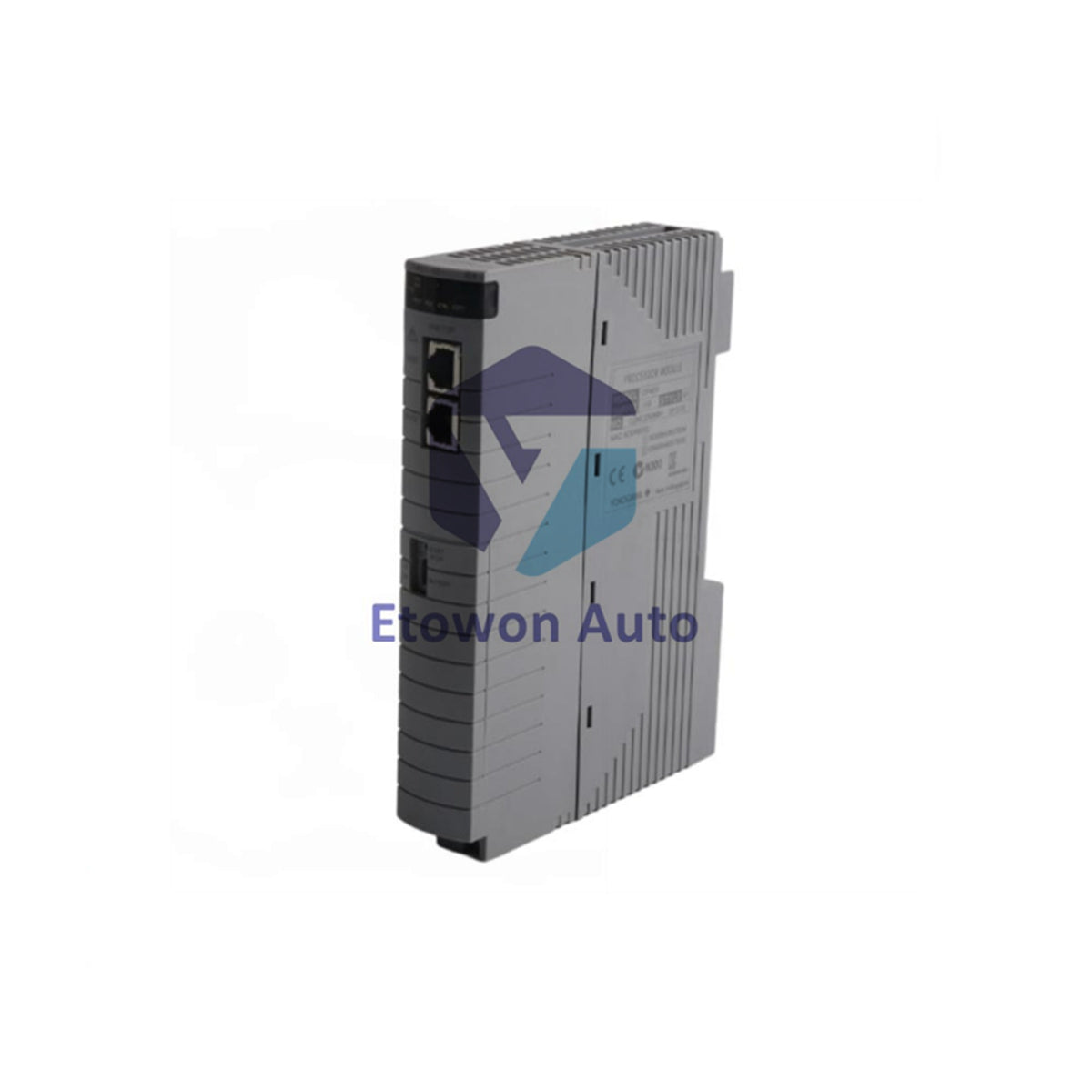

Yokogawa CP461-50 Processor Module

Yokogawa CP461-50 Processor Module

The Yokogawa CP461-50 is a processor module designed for the AFV300 and AFV400 systems. This unit serves as a direct replacement for the older CP461-10 model.

Technical Specifications

• Brand & Model: Yokogawa CP461-50
• Product Type: Processor Module
• Compatible Systems: AFV300 and AFV400 series
• Configuration: Supports dual-redundant setup (2 modules)
• I/O Capacity: Maximum 8 I/O modules (non-standard)

Physical Dimensions

• Dimensions: 15.2 cm x 5.1 cm x 20.3 cm (D x W x H)
• Weight: 0.7 kg
• Protection Type: Standard type (no explosion protection)
• Module Class: Basic type configuration

System Features

• Direct replacement for legacy CP461-10 processor module
• Enables high-availability dual-redundant configurations
• Provides processing power for control system operations
• Designed for industrial automation environments

Installation & Compatibility

• Install in AFV300 or AFV400 system chassis
• Use two modules for redundant configuration
• Connect up to eight compatible I/O modules
• Ensure proper ventilation and mounting

Frequently Asked Questions

• What does this module replace? It replaces the older CP461-10 model.
• What systems does it work with? AFV300 and AFV400 series.
• How many I/O modules can it handle? Maximum of 8 modules.
