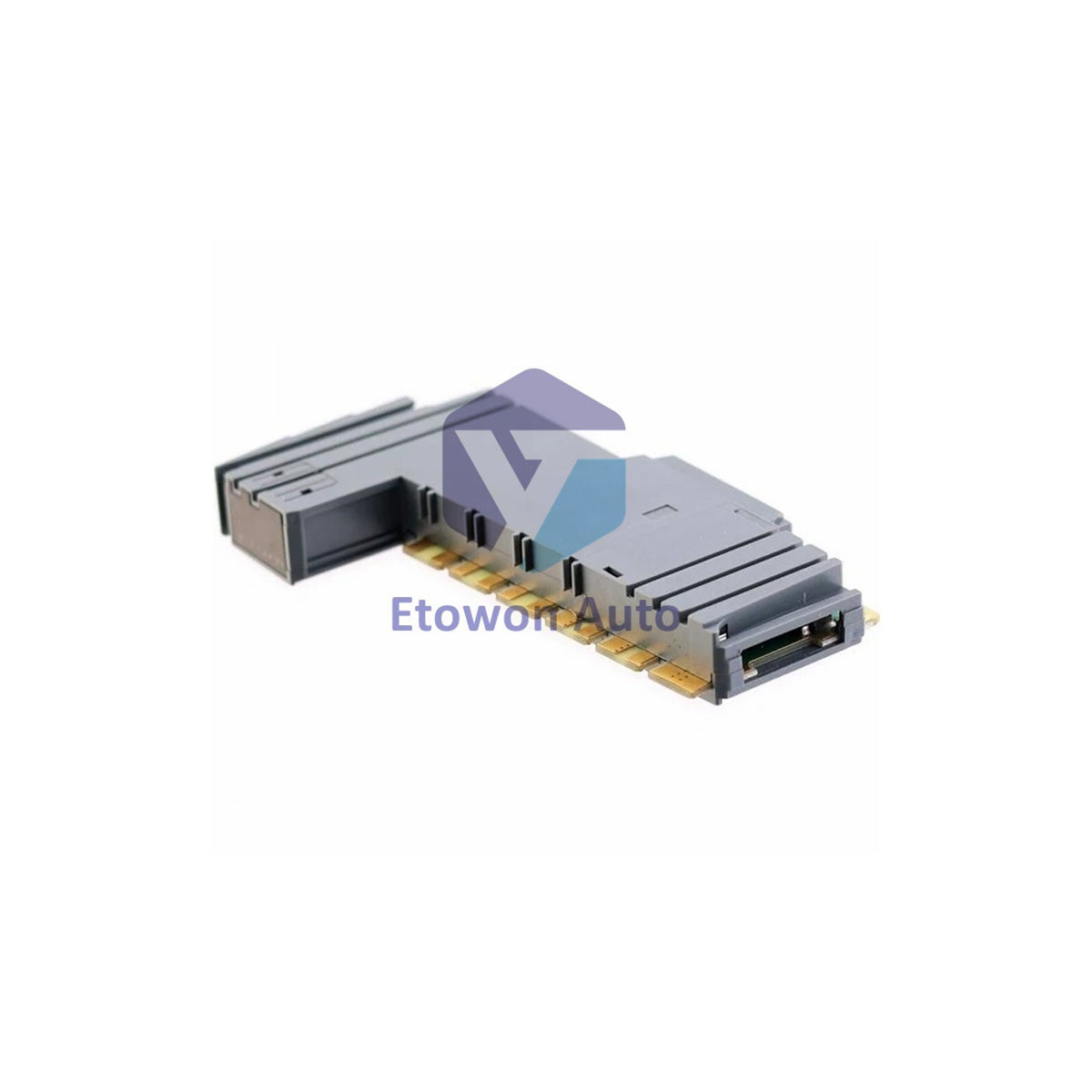

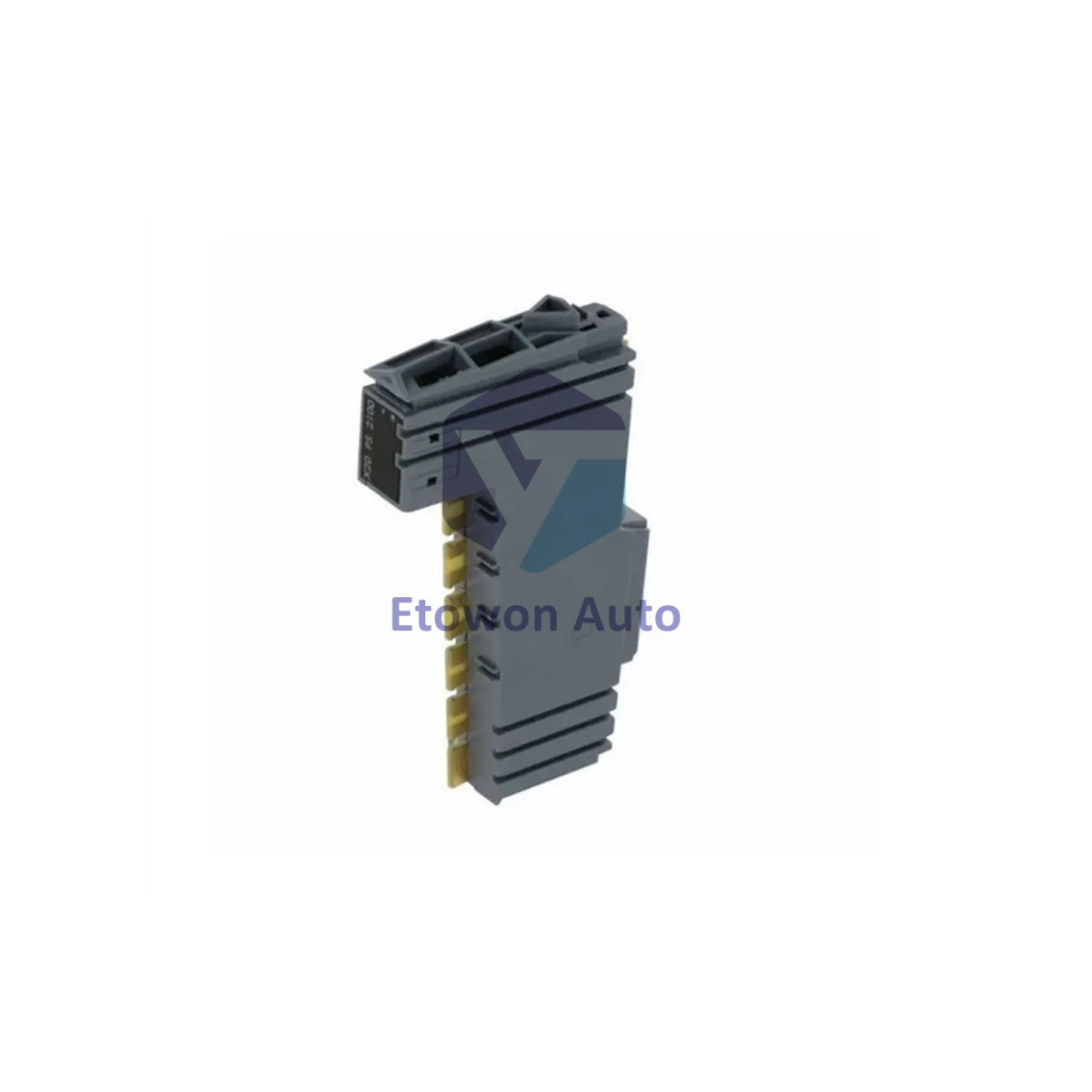

X20DO4633 B&R | Zero-Cross Triac Module

X20DO4633 AC Digital Output Module

B&R X20DO4633 delivers four triac outputs with advanced AC control. Each channel handles 48 to 240 VAC at 50 or 60 Hz. Phase-angle control enables precise power regulation. Zero-cross detection reduces switching stress. Open-circuit detection for each channel. Negative half-waves can switch off. Integrated snubber circuits. OSP and frequency modes included. Direct L and N supply.

Technical Specifications

• Outputs: 4 triac with phase-angle control
• Voltage Range: 48 to 240 VAC
• Frequency: 50 Hz or 60 Hz
• Protection: Integrated snubber circuit on each output
• Control Modes: Phase-angle control, zero-cross detection
• Diagnostics: Open-circuit detection per channel
• Switching: Negative half-waves can switch off
• Special Modes: OSP mode, frequency mode
• Connection: 2-wire, 240 V coding, L switching
• Supply: L and N fed directly to module
• Temperature: -25 to 60°C horizontal, -25 to 50°C vertical
• Certifications: CE, UL, ATEX Zone 2, DNV, CCS, LR, KR, ABS, BV

Package Contents

• 1x X20DO4633 digital output module
• Quick start guide
• Shipping via FedEx, UPS, DHL
• Terminal block sold separately

FAQ

Q: What is open-circuit detection useful for?

It identifies broken wires or failed loads for faster troubleshooting.

Q: Can X20DO4633 control inductive loads?

Yes. Integrated snubber circuits protect against voltage spikes from inductives.

Q: What is the difference between phase-angle and zero-cross?

Phase-angle adjusts power continuously; zero-cross switches at voltage zero to reduce noise.
