VFD037C53A-21

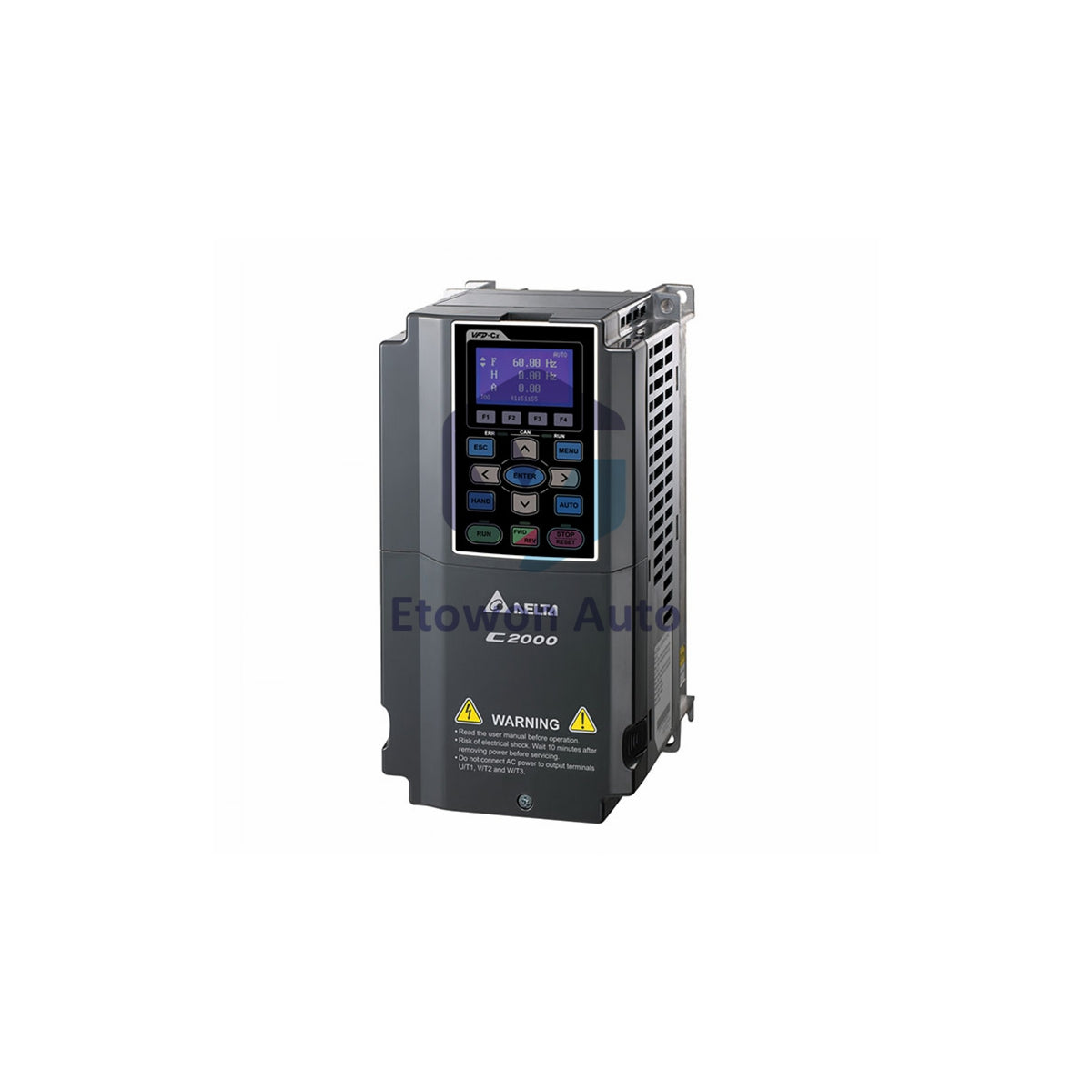

VFD037C53A-21 Delta AC Drive 6.7A Light Duty 599Hz

In stock (11 units), ready to be shipped

  • Manufacturer: Delta

  • Product No.: VFD037C53A-21

  • Product Type: AC Drive

  • Product Origin: CN

  • Payment:T/T, Western Union

  • Weight: 3000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Delta VFD037C53A-21 C2000 Series AC Drive

Delta VFD037C53A-21 C2000 Series AC drive. 5 HP, 3.7 kW, 575V 3-phase input. Heavy duty 4.6A, normal duty 5.5A, light duty 6.7A. Built-in braking chopper, IP20 enclosure, Frame Size A.

Key Specifications

  • Model: VFD037C53A-21
  • Series: C2000
  • Input Voltage: 575V AC, 3-phase
  • Horsepower: 5 HP
  • Power Rating: 3.7 kW
  • Light Duty Amps: 6.7 A
  • Normal Duty Amps: 5.5 A
  • Heavy Duty Amps: 4.6 A
  • Frame Size: A
  • IP Rating: IP20
  • Built-in EMC Filter: No
  • Built-in Braking Chopper: Yes
  • Built-in DC Reactor: No
  • Built-in CANopen Card: No
  • Weight: 6.6 lbs (3.0 kg)

Dimensions

  • Width: 5.12 inches (130 mm)
  • Height: 9.84 inches (250 mm)
  • Depth: 6.69 inches (170 mm)

Additional Specifications

  • Output Frequency Range: 0-599 Hz
  • Carrier Frequency: 2-15 kHz adjustable
  • Overload Capacity (HD): 150% for 60 seconds
  • Overload Capacity (ND): 120% for 60 seconds
  • Control Methods: V/Hz, Sensorless Vector, PM Motor Control
  • Built-in Communication: RS-485 Modbus
  • Protection Features: Overvoltage, undervoltage, overload, overheat, short circuit
  • Cooling Method: Built-in fan
  • Mounting: Panel mount / DIN rail mountable

Features

  • Compact Frame A size for space-saving installation
  • IP20 enclosure for indoor applications
  • Wide frequency range 0-599 Hz
  • Multiple control modes: V/Hz, Sensorless Vector, PM motor
  • Built-in RS-485 Modbus communication
  • Built-in braking chopper for dynamic braking
  • Suitable for light, normal, and heavy duty applications
  • 575V 3-phase input for specialized industrial applications

Package Contents

  • VFD037C53A-21 AC drive
  • Documentation
  • Shipping: FedEx, UPS, DHL
  • 12-month warranty

FAQ

Q: Power and voltage rating?
A: 5 HP, 3.7 kW, 575V 3-phase input. Heavy duty 4.6A, normal duty 5.5A, light duty 6.7A, 0-599Hz output.

Q: Control methods?
A: V/Hz, Sensorless Vector, and PM Motor Control with built-in RS-485 Modbus. Built-in braking chopper included.

Q: Weight and dimensions?
A: 6.6 lbs (3.0 kg), 5.12 x 9.84 x 6.69 inches. IP20 enclosure, Frame A size. 575V 3-phase input.
