TSXDSY32T2K

TSXDSY32T2K Schneider 32 Output Module 24V 0.1A 1.2ms

In stock (15 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: TSXDSY32T2K

  • Product Type: Output Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

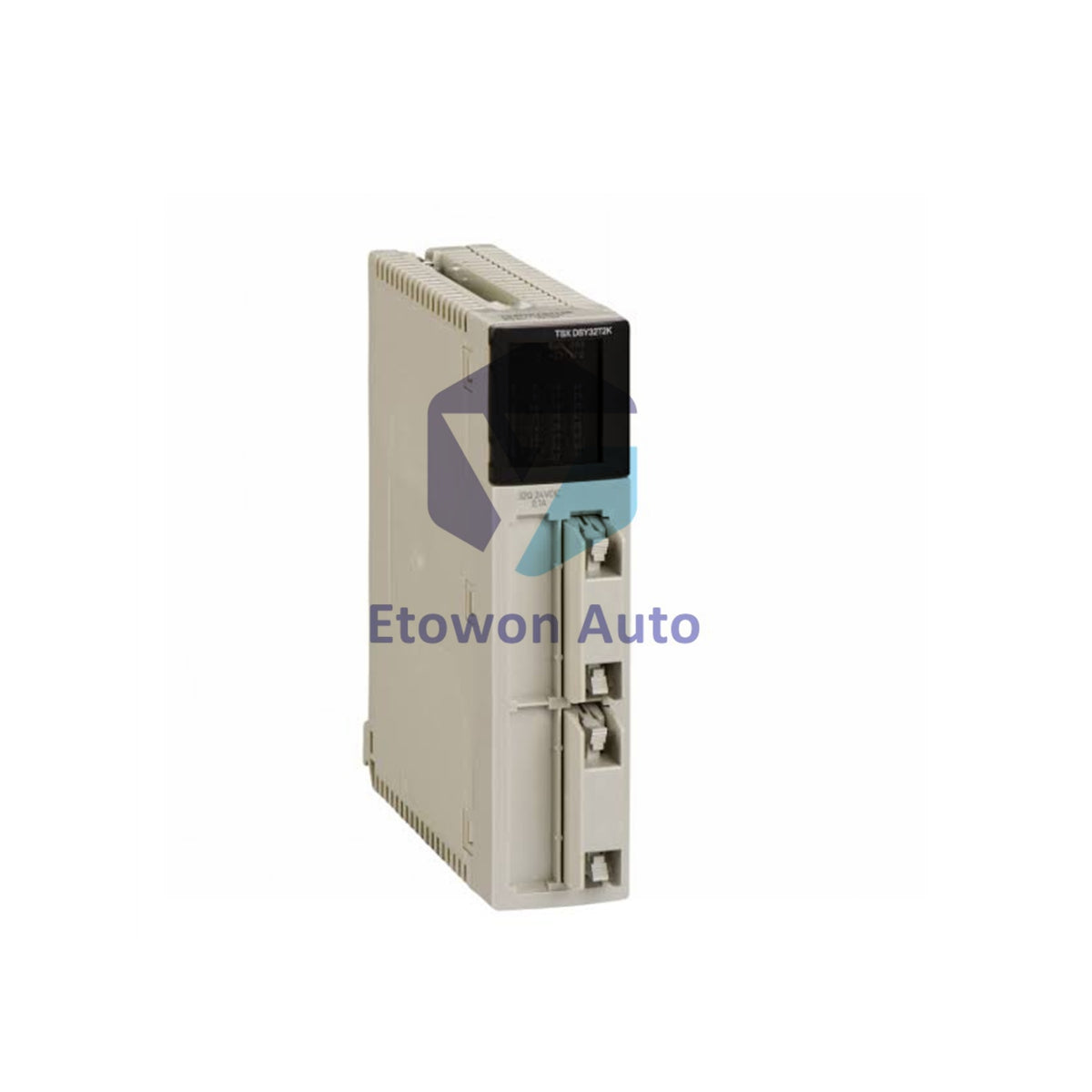

Schneider Electric TSXDSY32T2K TSX Micro PLC Discrete Output Module

Schneider Electric TSXDSY32T2K is a discrete output module for TSX Micro PLCs with 32 solid-state protected outputs. Features 24V DC positive voltage, 0.1A per channel, 1.2ms response time, and automatic overload/short-circuit protection.

Key Specifications

Parameter Value
Part Number TSXDSY32T2K
Series TSX Micro PLC
Product Type Discrete Output Module
Output Count 32
Output Type Solid state protected
Output Voltage 24V DC positive (19-30V)
Current per Channel 0.1A
Max Current per Module 3.2A
Response Time 1.2ms
Residual Voltage Less than 1.5V
Leakage Current Less than 0.1mA at 30V
Load Impedance > 220Ω at state 1
Weight 0.3 kg (0.7 lb)

Protection Features

  • Output Overvoltage Protection: By transil diode
  • Reverse Polarity Protection: Reverse mounted diode
  • Output Overload Protection: Automatic trip
  • Short-Circuit Protection: Automatic trip
  • Paralleling of outputs: Up to 3 maximum

Environmental Specifications

Parameter Value
Operating Temperature 0°C to +60°C (32°F to 140°F)
Storage Temperature -25°C to +70°C (-13°F to 158°F)
Humidity (Operation) 10-95% non-condensing
Protection Class IP20
Pollution Degree 2

Certifications

  • CE Marked (73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC)
  • UL 508
  • CSA C22.2 No 142, No 213 (Class I Division 2 Groups A, B, C, D)
  • IEC 61131-2
  • ABS, RINA, GL, DNV, RMRS, LR, BV

Electrical Connection

  • 2 connectors HE-10
  • Current consumption: 140 mA at 5V DC
  • Dielectric strength: 1500V 50/60Hz for 60s
  • Isolation resistance: > 10MΩ at 500V
  • Power dissipation: (1.6W + 0.1W x number of outputs)

FAQs

Q1: How many outputs does the TSXDSY32T2K have?
A1: 32 discrete solid-state protected outputs.

Q2: What is the current per channel?
A2: 0.1A with maximum 3.2A per module.

Q3: What is the response time?
A3: 1.2ms for responsive control.
