TSXDMZ28DR

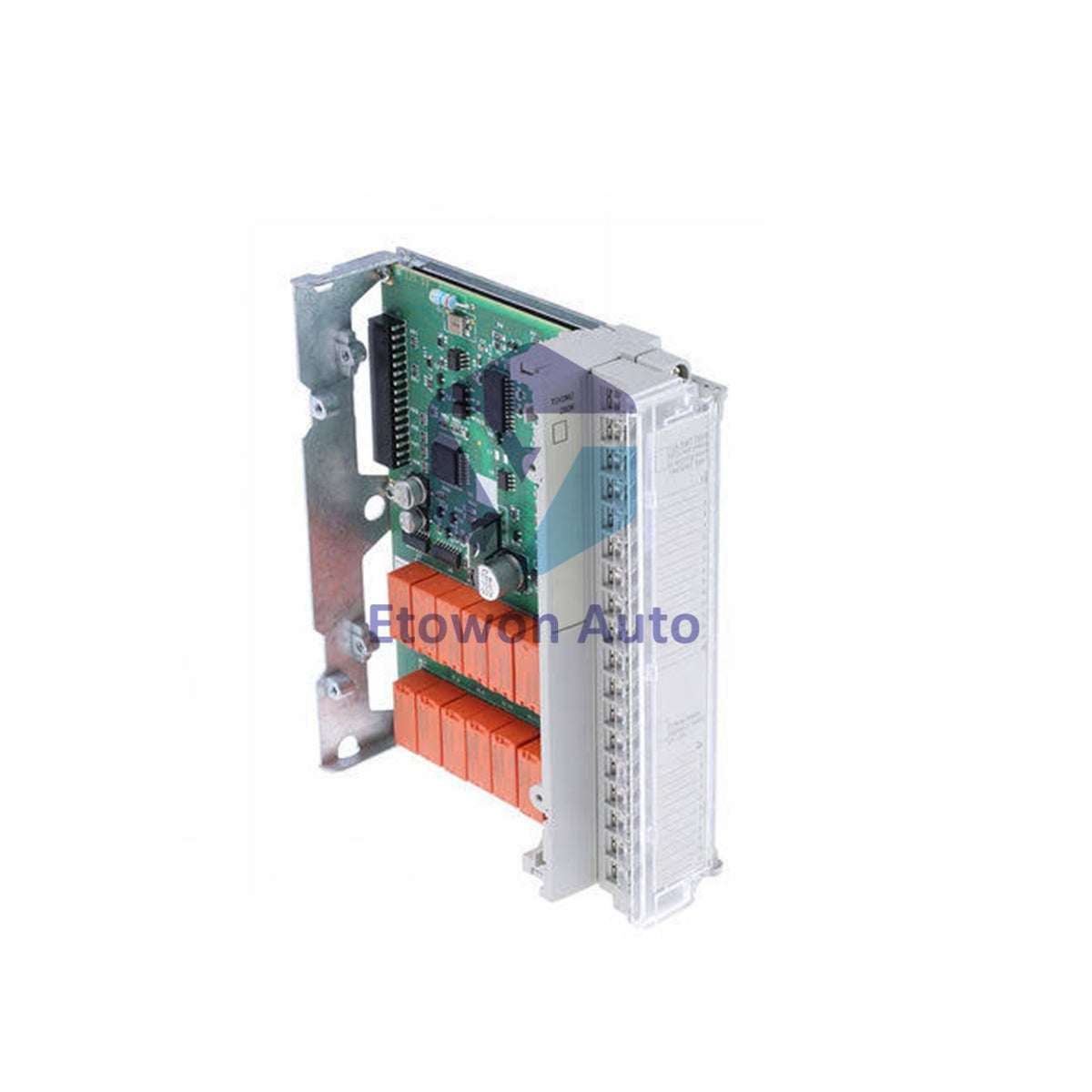

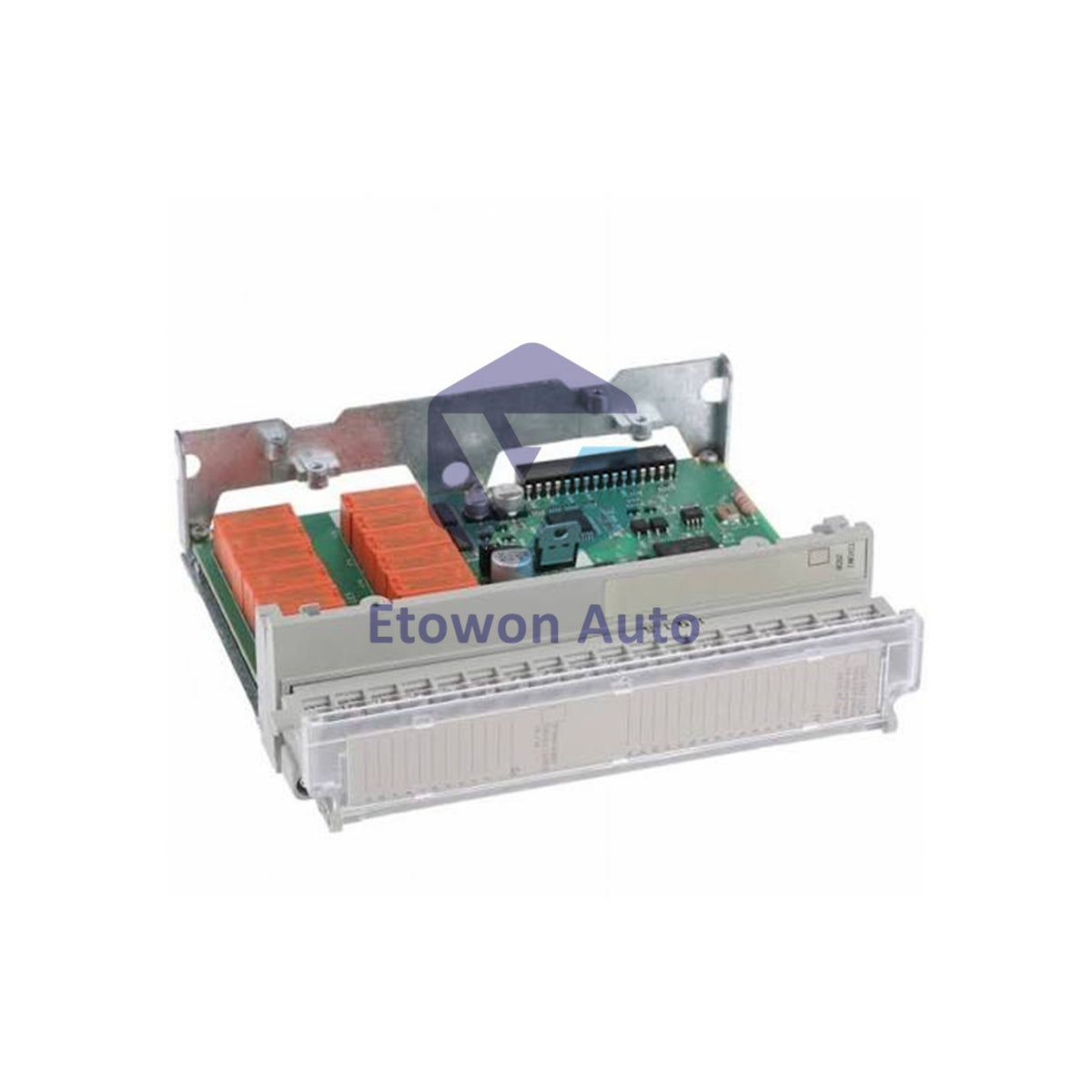

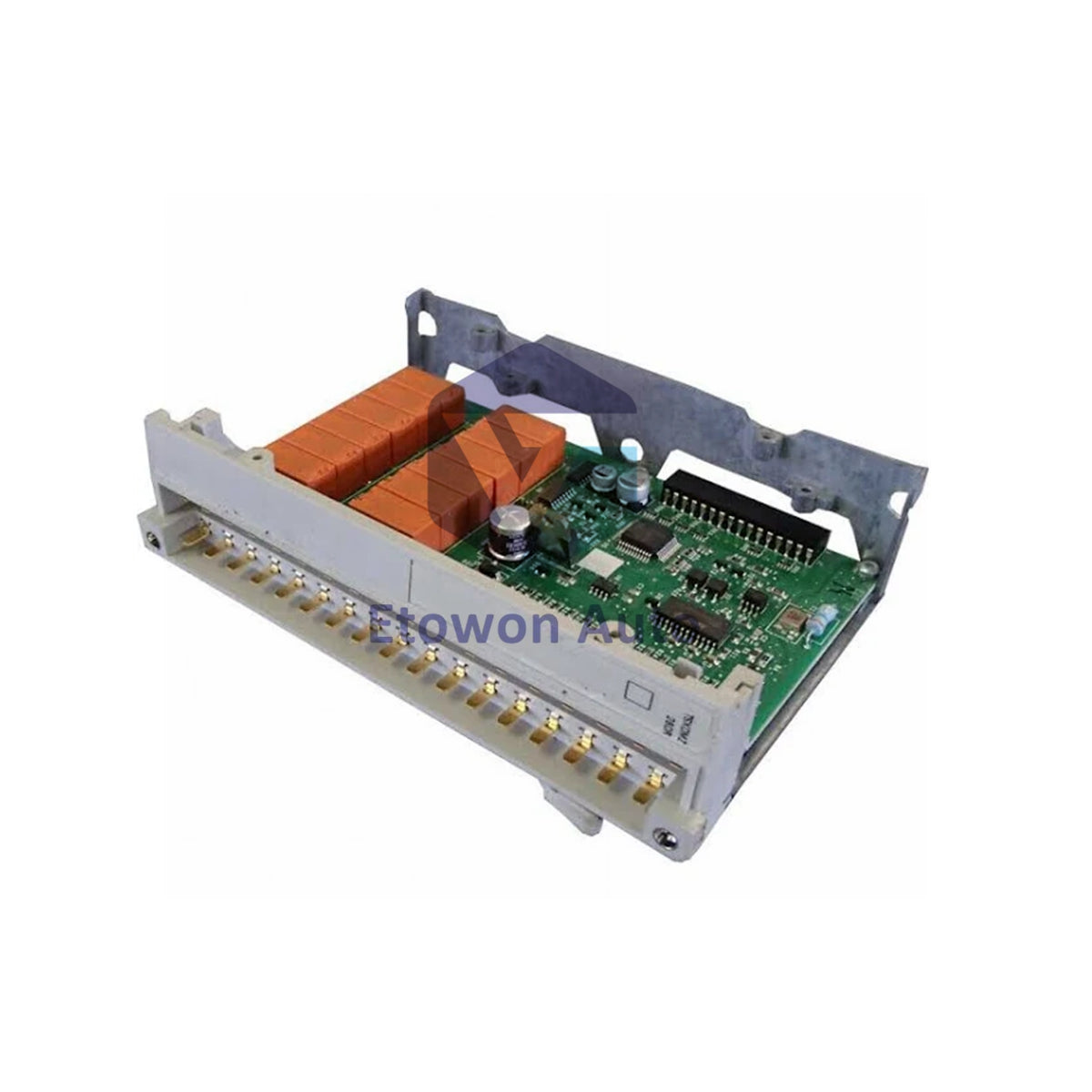

Schneider TSXDMZ28DR Discrete Relay I/O Base | 16 Inputs TSX Micro

In stock (14 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: TSXDMZ28DR

  • Product Type: I/O Base

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Schneider Electric TSXDMZ28DR is a discrete relay I/O base for the Modicon TSX Micro platform. It provides 16 screw terminal inputs with 24V DC negative logic and supports AC/DC outputs from 10 to 264V. Isolation voltage is rated at 1500V for robust field protection.

Core Functionality

The TSXDMZ28DR interfaces 2-wire or 3-wire proximity sensors to the TSX Micro PLC. It features NO relay contacts, resistive load handling, and fast response times (0.1-7.5ms inputs, ≤10ms outputs). Power dissipation is 4.5W with current consumption of 160mA positive and 131mA negative.

Technical Specifications

Parameter Value
Part Number TSXDMZ28DR
Discrete Inputs 16 (screw terminals)
Input Voltage 24V DC (negative logic)
Input Current 9 mA
Input Impedance 4Ω
State 0 / State 1 Current ≤1.5mA / ≥2.5mA
Output Voltage Limits 10-34V DC / 19-264V AC
Contact Type Normally Open (NO)
Input Response Time 0.1-7.5 ms
Output Response Time ≤10 ms
Isolation Voltage 1500V (1 second)
Power Dissipation 4.5W
Current Consumption 160mA (+) / 131mA (-)
Weight 0.45 kg (1.0 lbs)
Thermal Current (Ith) 3A
Standards IEC 1131-2 Type 1

Compatibility

The TSXDMZ28DR supports 2-wire and 3-wire proximity sensors. It mounts directly in the TSX Micro PLC rack with 16 screw terminal blocks for secure field wiring.

Installation Guide

Mount in the TSX Micro rack and connect 24V DC power observing negative logic polarity. Wire sensors to the 16 terminals. Keep output loads within voltage limits (10-34V DC or 19-264V AC) and 3A thermal current rating.

Engineering Advantages

The TSXDMZ28DR delivers fast 0.1-7.5ms input response for high-speed control. 1500V isolation protects the PLC backplane. Wide output range supports both AC and DC loads. At 0.45 kg (1.0 lbs), it reduces chassis loading and simplifies installation.

Technical FAQs

Q1: Sensor compatibility?
A1: Supports 2-wire and 3-wire proximity sensors with 24V DC negative logic. Sensor must deliver ≥2.5mA at state 1.

Q2: Output voltage range?
A2: 10-34V DC or 19-264V AC. Max 3A per point resistive.

Q3: Response time?
A3: Inputs 0.1-7.5ms (ON/OFF). Outputs ≤10ms.
