140XCA10206

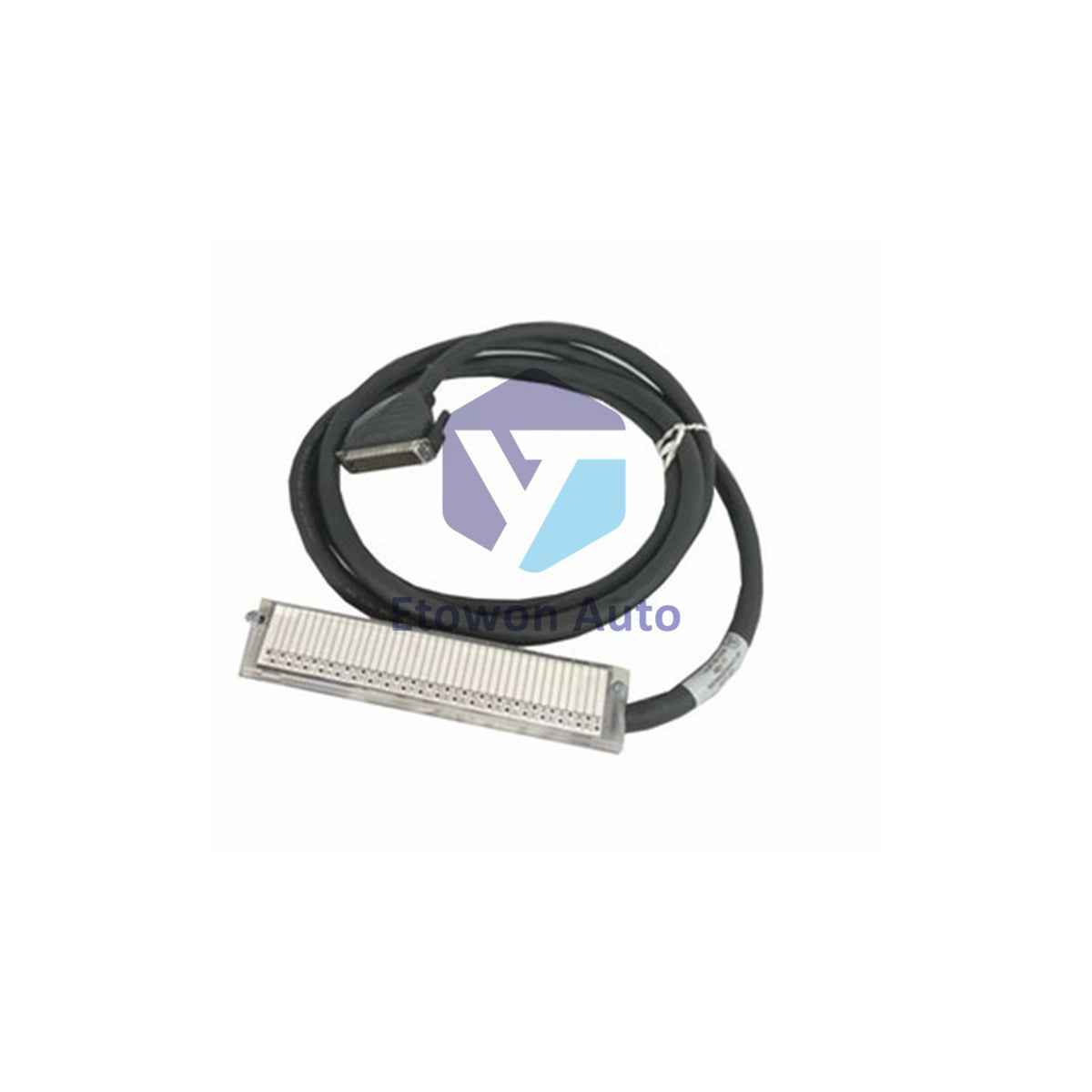

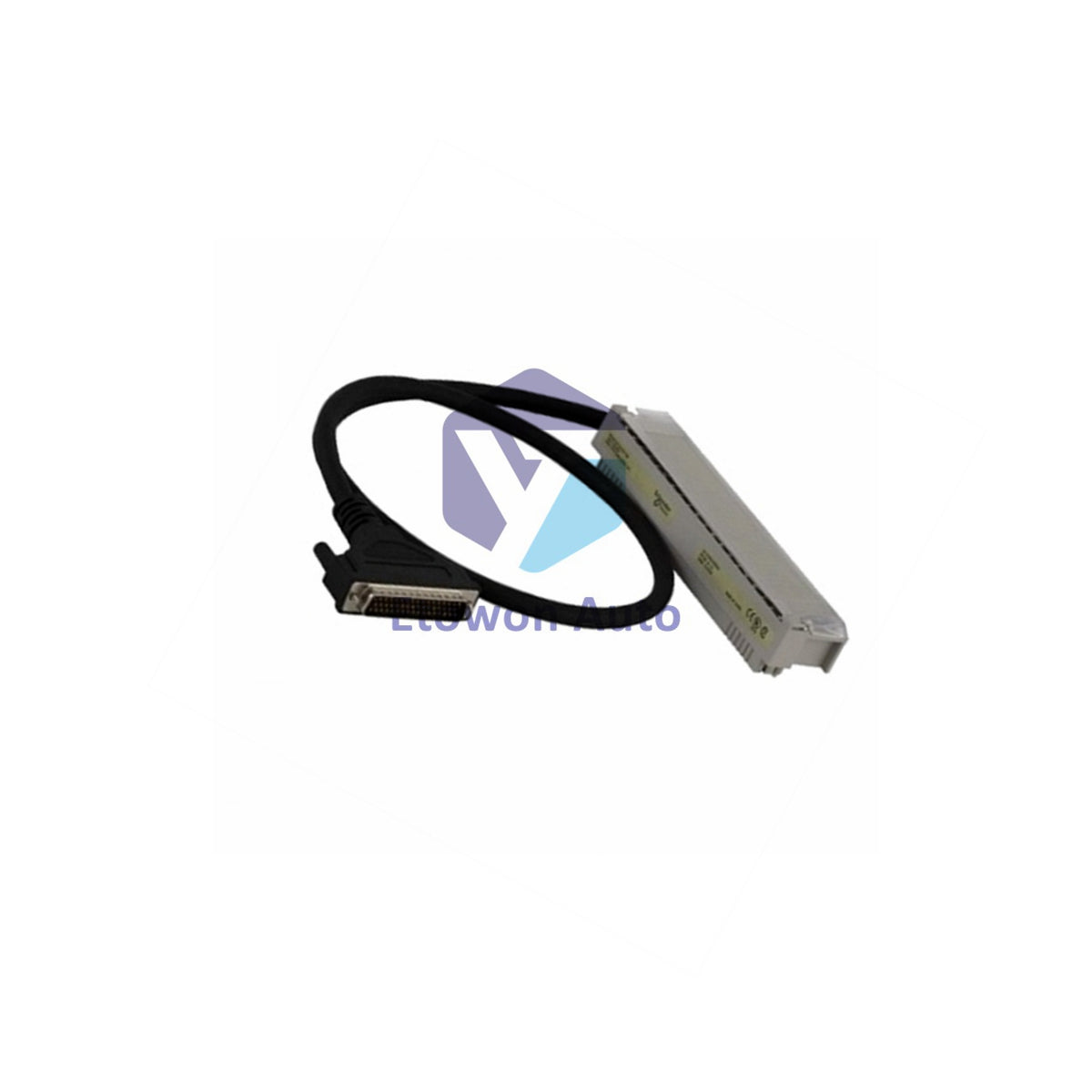

Schneider 140XCA10206 D-Sub 6ft Cable

In stock (20 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: 140XCA10206

  • Product Type: Cable

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Modicon Quantum 140XCA10206 D-Sub Pigtail Cable 6ft

The 140XCA10206 is a CableFast system cable from the Modicon Quantum automation platform, now part of Schneider Electric. This power cable features a 50-pin D-Sub connector on one end and 40 color-coded pigtail leads on the other. It provides a high-power connection for Quantum modules requiring field wiring.

Technical specifications

  • Brand: Modicon / Schneider Electric
  • Model: 140XCA10206
  • Series: Modicon Quantum
  • Accessory type: CableFast system cable
  • Category: Connection accessories
  • Cable length: 5.9 ft (1.8 m)
  • Power type: High
  • Cable type: Pigtail with 40 leads
  • Connector: 1 x SUB-D, 50 pins
  • Wire leads: 40 color coded pigtails
  • Color: Black

Compatibility

  • Designed for Quantum modules requiring high-power connections.
  • Works with CableFast system for simplified field wiring.
  • Connects to 50-pin D-Sub ports on Quantum I/O modules.
  • Reduces wiring errors with color-coded leads.

Wiring details

  • One end: 50-pin female D-Sub connector.
  • Other end: 40 individually color-coded pigtail wires.
  • Pigtails allow direct termination to terminal blocks.
  • High-power rating suits motor starters and large loads.
  • Black jacket provides industrial protection.

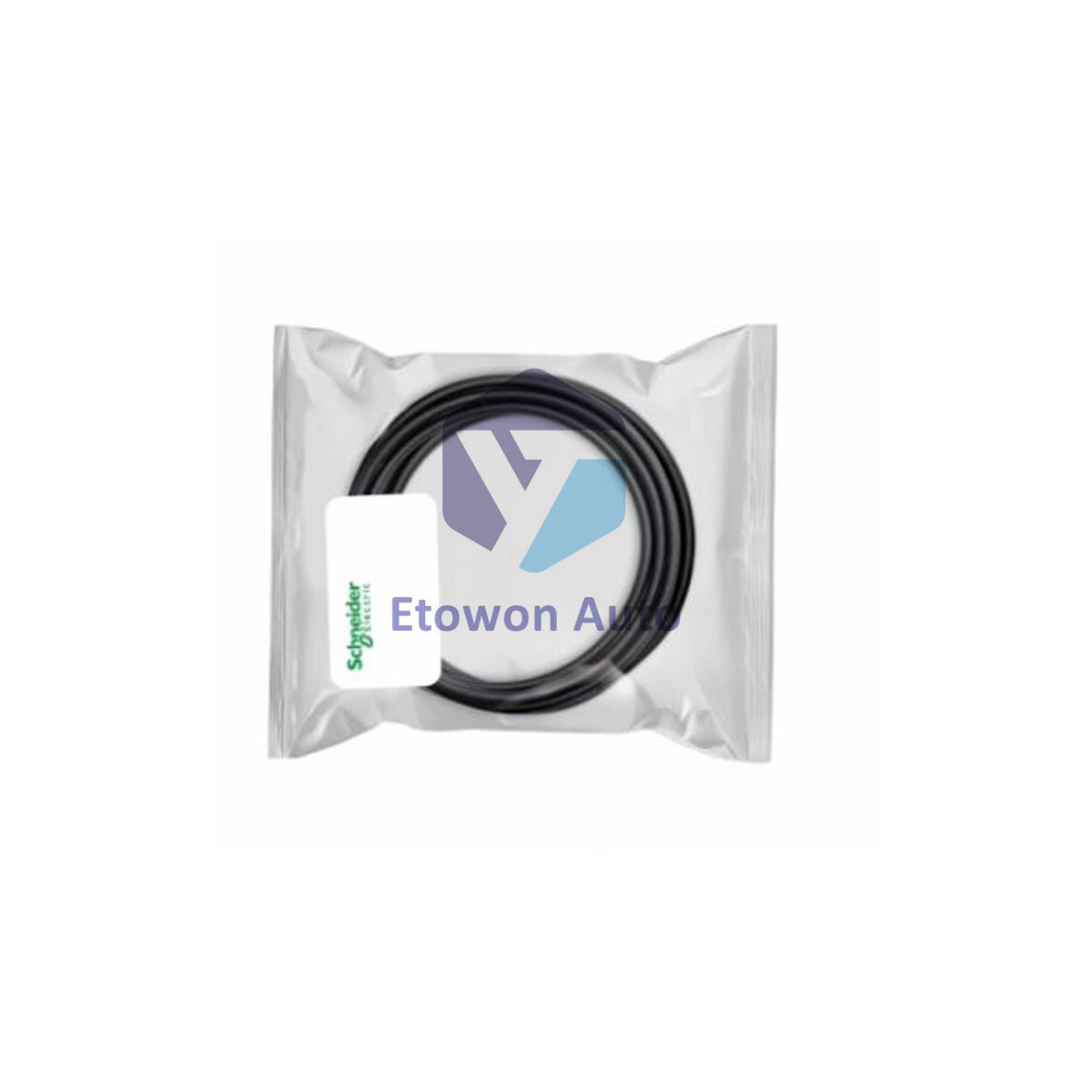

Package contents & shipping

  • One 140XCA10206 D-Sub pigtail cable.
  • Length: 6 ft (1.8 m) ready for installation.
  • Ships via FedEx, UPS, or DHL with tracking.
  • Anti-static packaging provided.

FAQ

1. What modules work with 140XCA10206?
Any Quantum I/O module with a 50-pin D-Sub connector requiring high-power field wiring.

2. How do I connect the pigtail ends?
Terminate each color-coded lead to your terminal block. Follow module wiring diagram for pin assignments.

3. Can I cut and extend the pigtails?
Yes, leads are standard wire. Extend using proper gauge and insulation for your current rating.
