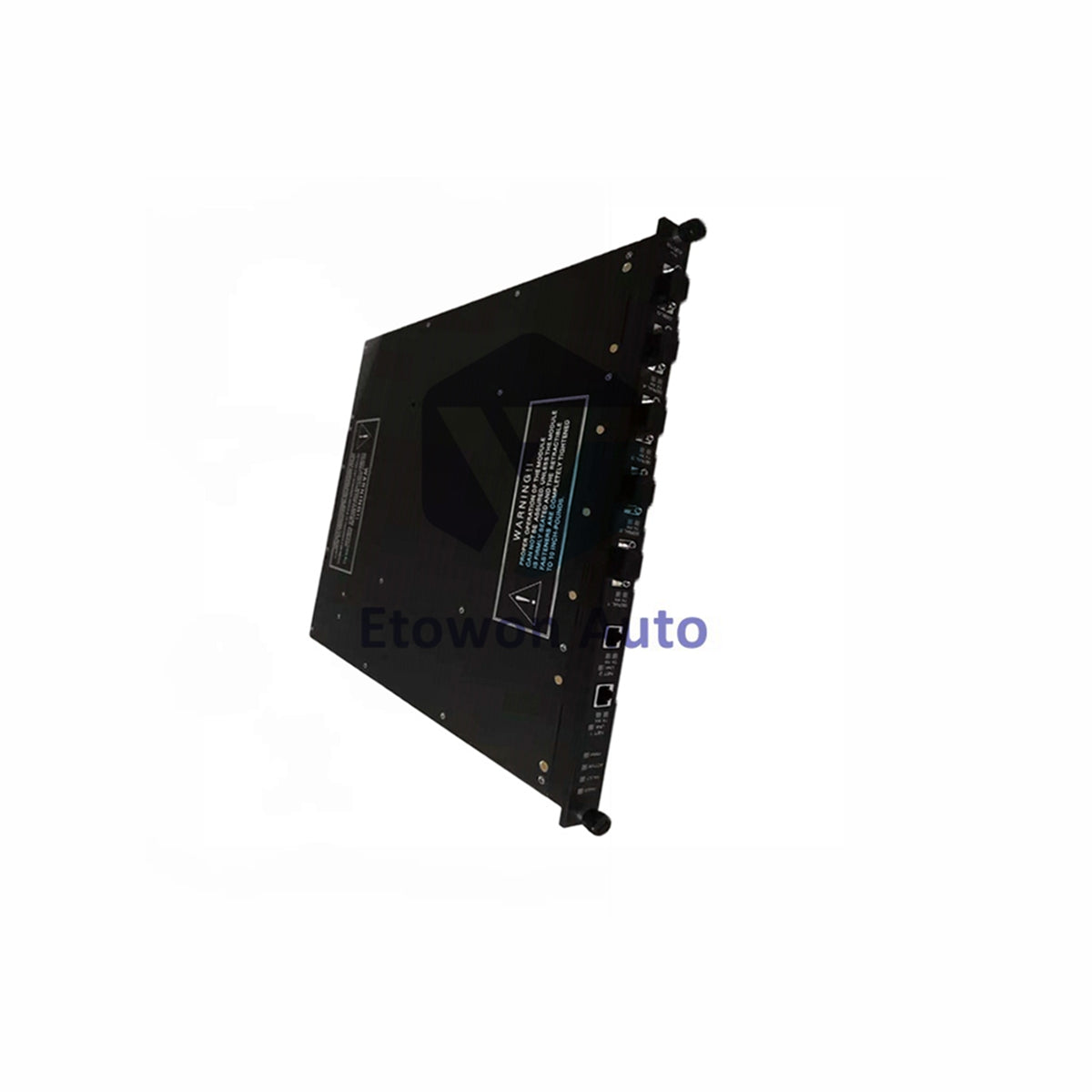

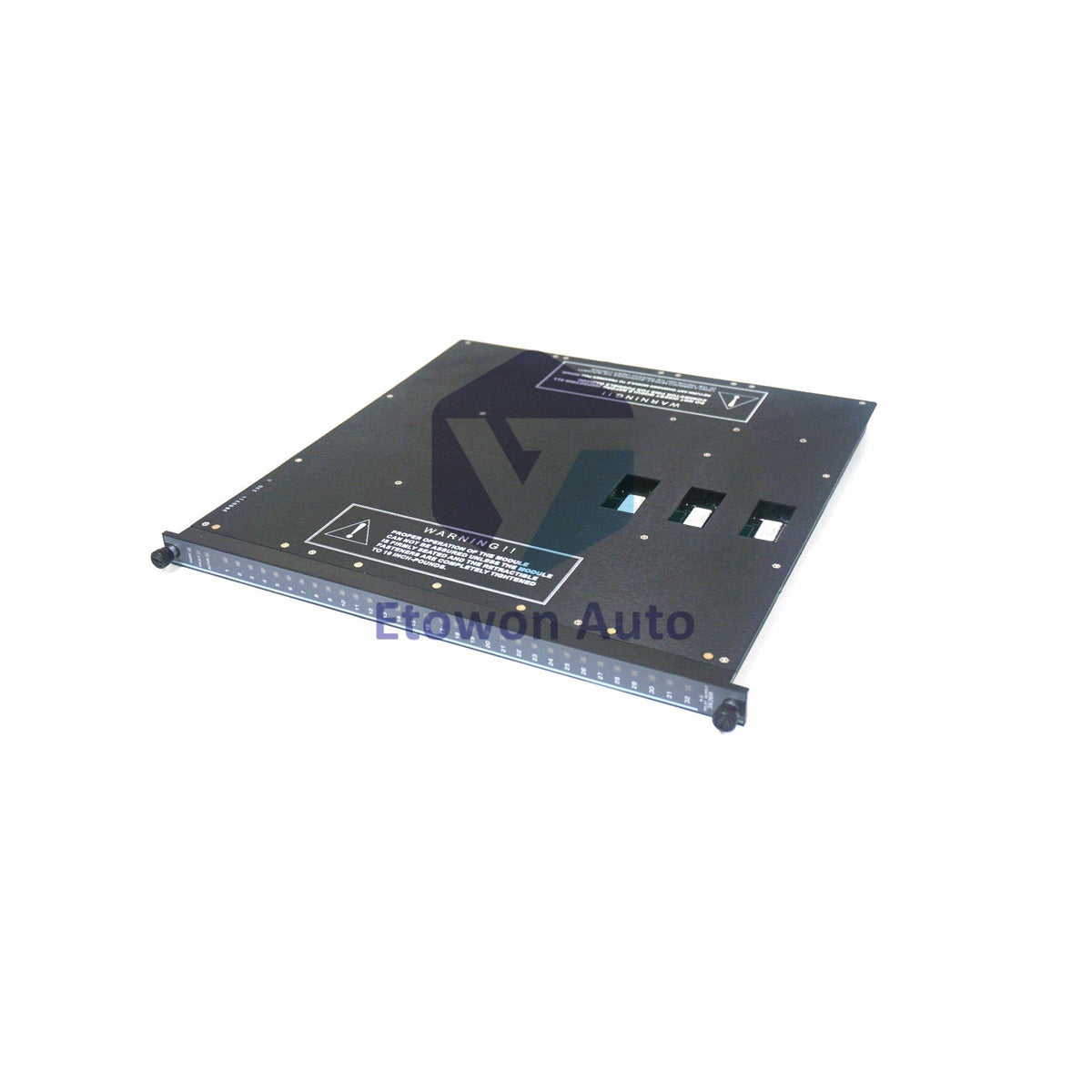

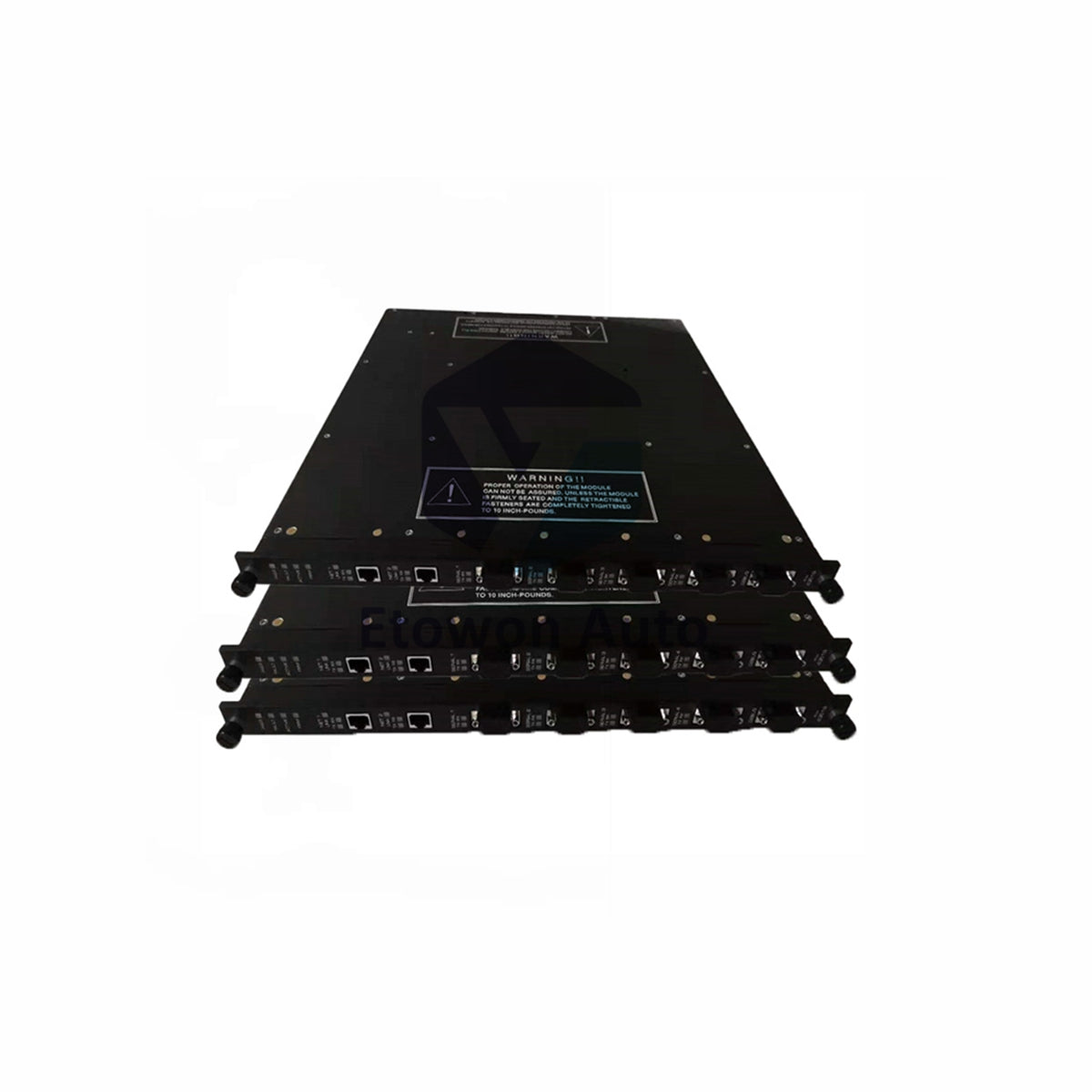

Invensys Triconex 4351B Communication Module | Tricon Controller

Product Overview

The Invensys Triconex 4351B is a high-performance Tricon Communication Module designed for industrial control systems. This robust module ensures reliable data exchange in demanding operational environments while maintaining seamless integration capabilities.

Key Technical Specifications

• Model: 4351B Communication Module from Invensys Triconex
• Dimensions: 16 cm x 16 cm x 12 cm with 0.8 kg weight
• Serial Ports: 4 isolated ports supporting up to 115.2 Kbps each
• Ethernet Ports: 2 ports (10/100 Mbps copper and 100 Mbps fiber)
• Port Isolation: 500 VDC for enhanced noise immunity
• Supported Systems: Tricon v10.0 or later versions

Communication Capabilities

• Protocol Support: Modbus, TCP/IP, ICMP, SNTP, and Peer-to-Peer UDP/IP
• Communication Modes: Modbus master/slave, Trimble GPS interface
• Network Features: IP Multicast support and time synchronization
• Special Features: Dedicated debug port for Triconex service use
• Advanced Options: Embedded OPC server available for models 4353 and 4354

Frequently Asked Questions

• What systems support the 4351B module? Tricon v10.0 or later
• How many serial ports does it have? Four isolated serial ports
• What Ethernet speeds are supported? 10/100 Mbps copper and 100 Mbps fiber
• Is port isolation provided? Yes, 500 VDC isolation standard
• What protocols are supported? Modbus, TCP/IP, and multiple industrial protocols
