Honeywell FS-PDC-CPSET Power Distribution Cable Set

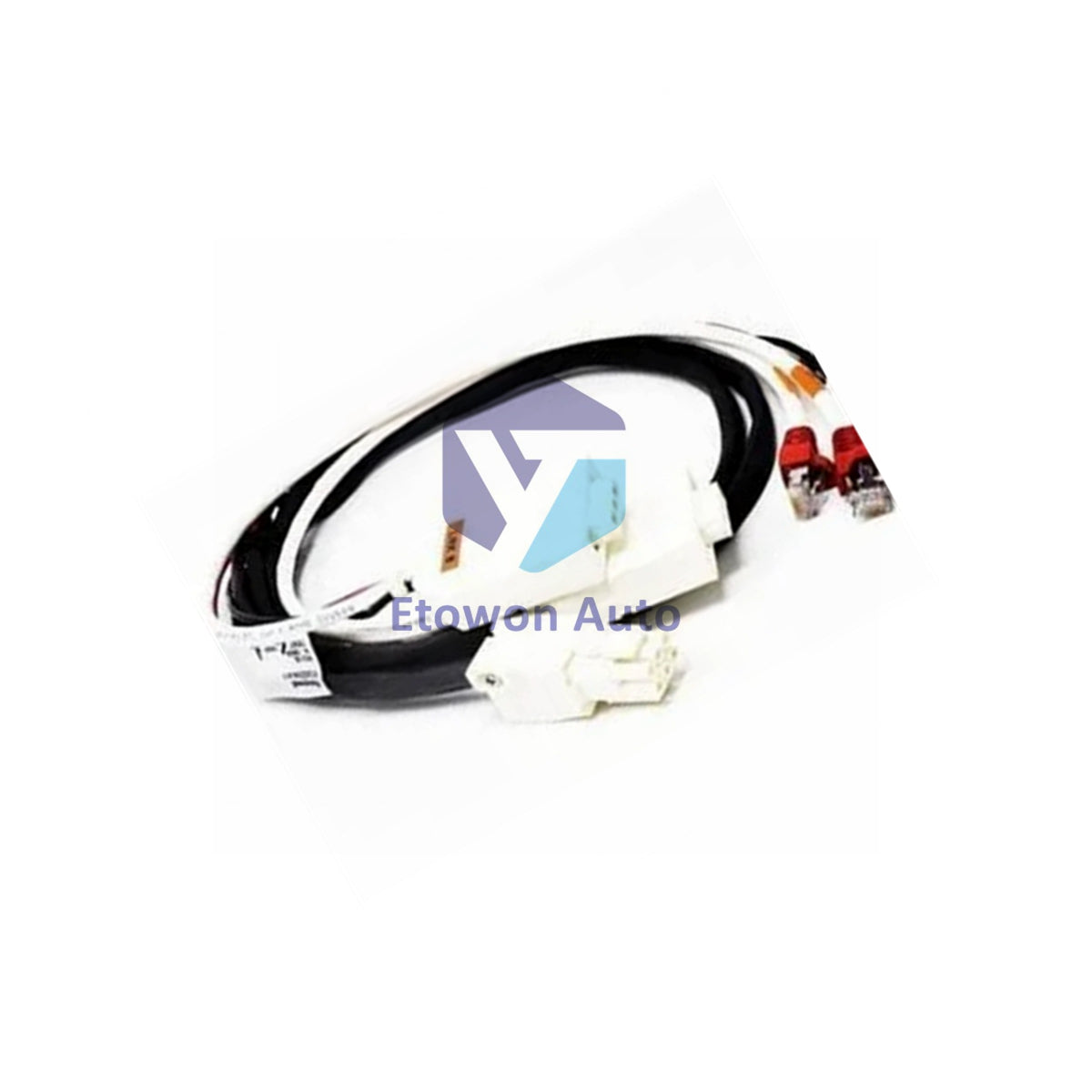

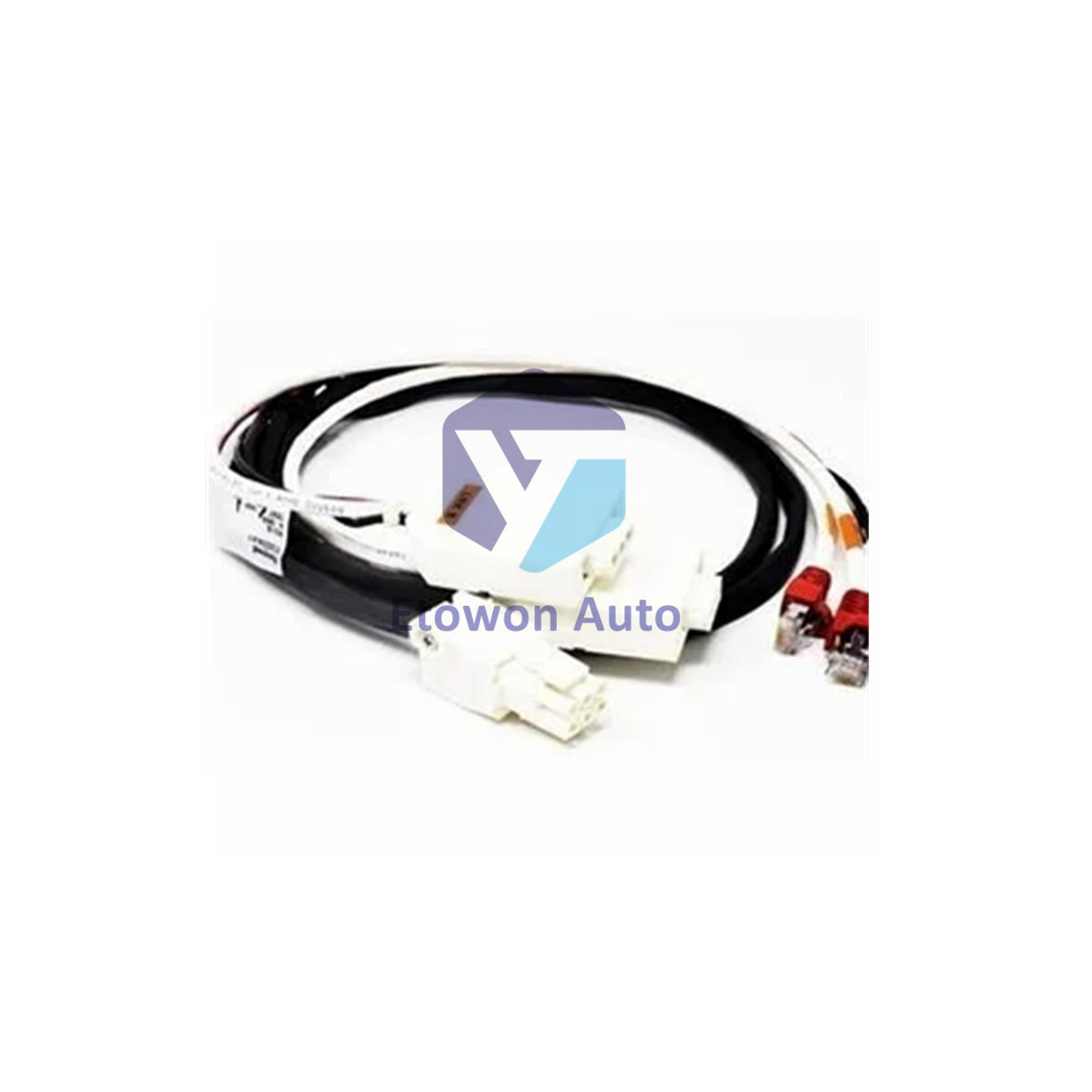

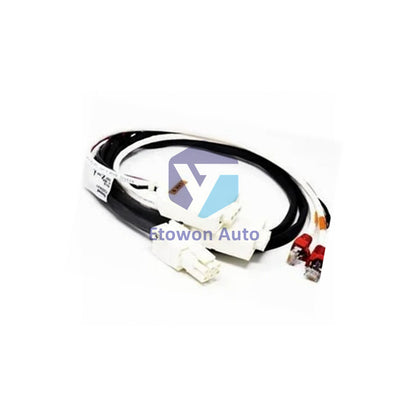

The Honeywell FS-PDC-CPSET cable set delivers 24V DC power from an MB0001 bus bar to your Controller chassis. It includes two cables for dual Control Processors.

Technical Specifications

• Brand & Model: Honeywell, FS-PDC-CPSET
• Voltage: 24V DC
• Cable Type: CC600 2 x 2.5 mm²
• Cable 1: FS-PDC-CP24-1 - 54 cm (21.26 in)
• Cable 2: FS-PDC-CP24-2 - 77 cm (30.31 in)
• Bus Bar Connector: 2-pole D-TAB-200-STR (Squeeze-To-Release)
• Controller Connector: 2-pole Mate-n-Lock
• Approvals: UL, CSA

Installation & Packaging

• Installation: Connect STR end to MB0001 bus bar. Plug Mate-n-Lock end into Control Processor. Ensure secure connections.
• Packaging: Includes one FS-PDC-CPSET kit with two power cables. Ships via FedEx, UPS, or DHL.

FAQ

• Q: Why two cable lengths?
  A: The FS-PDC-CPSET provides 54 cm and 77 cm cables for flexible routing to Control Processors at different distances.
• Q: Compatible with other bus bars?
  A: Designed specifically for the MB0001 24V DC bus bar system.
• Q: How to disconnect?
  A: Squeeze release tabs on the D-TAB-200-STR connector and pull from bus bar.
