FC-MCAR-01

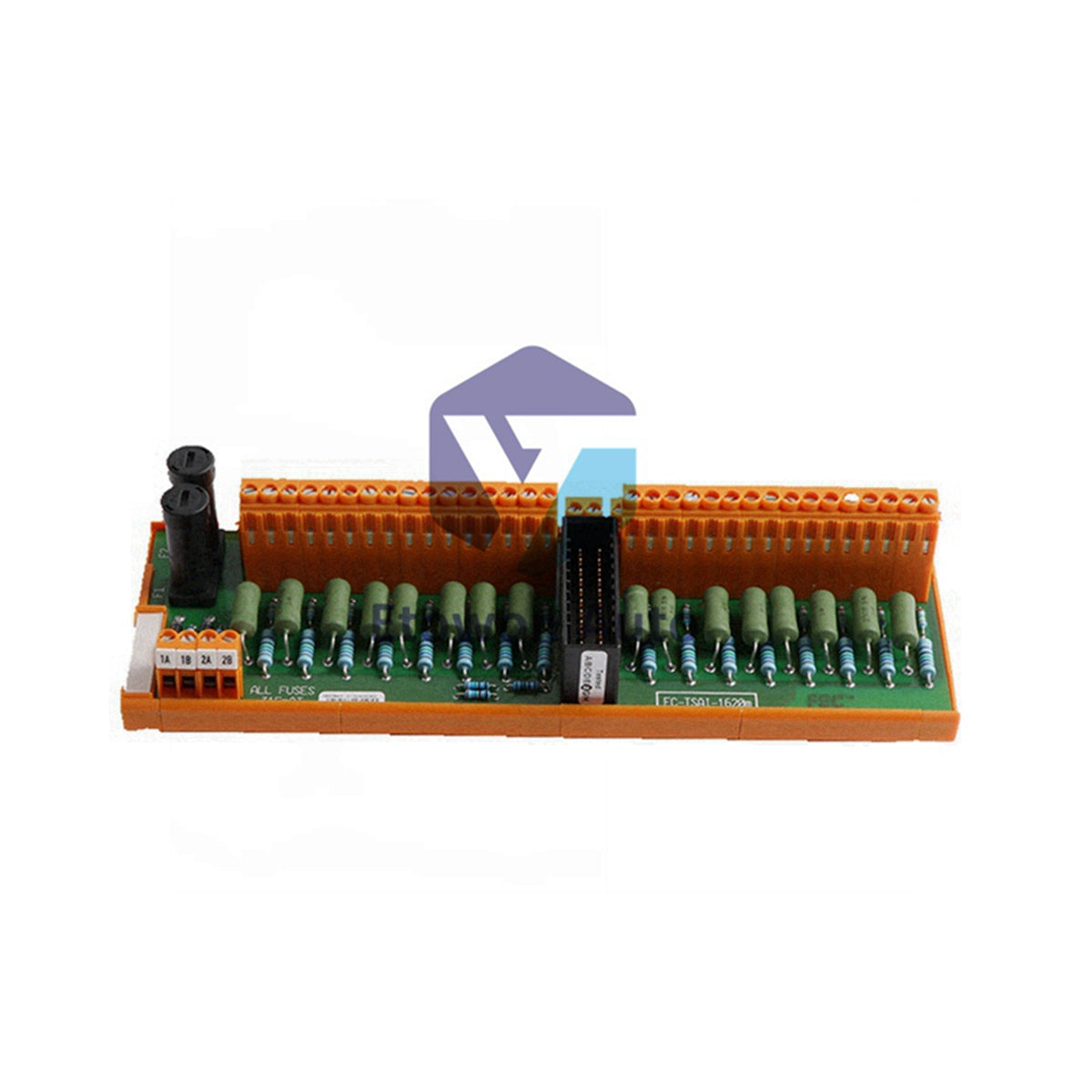

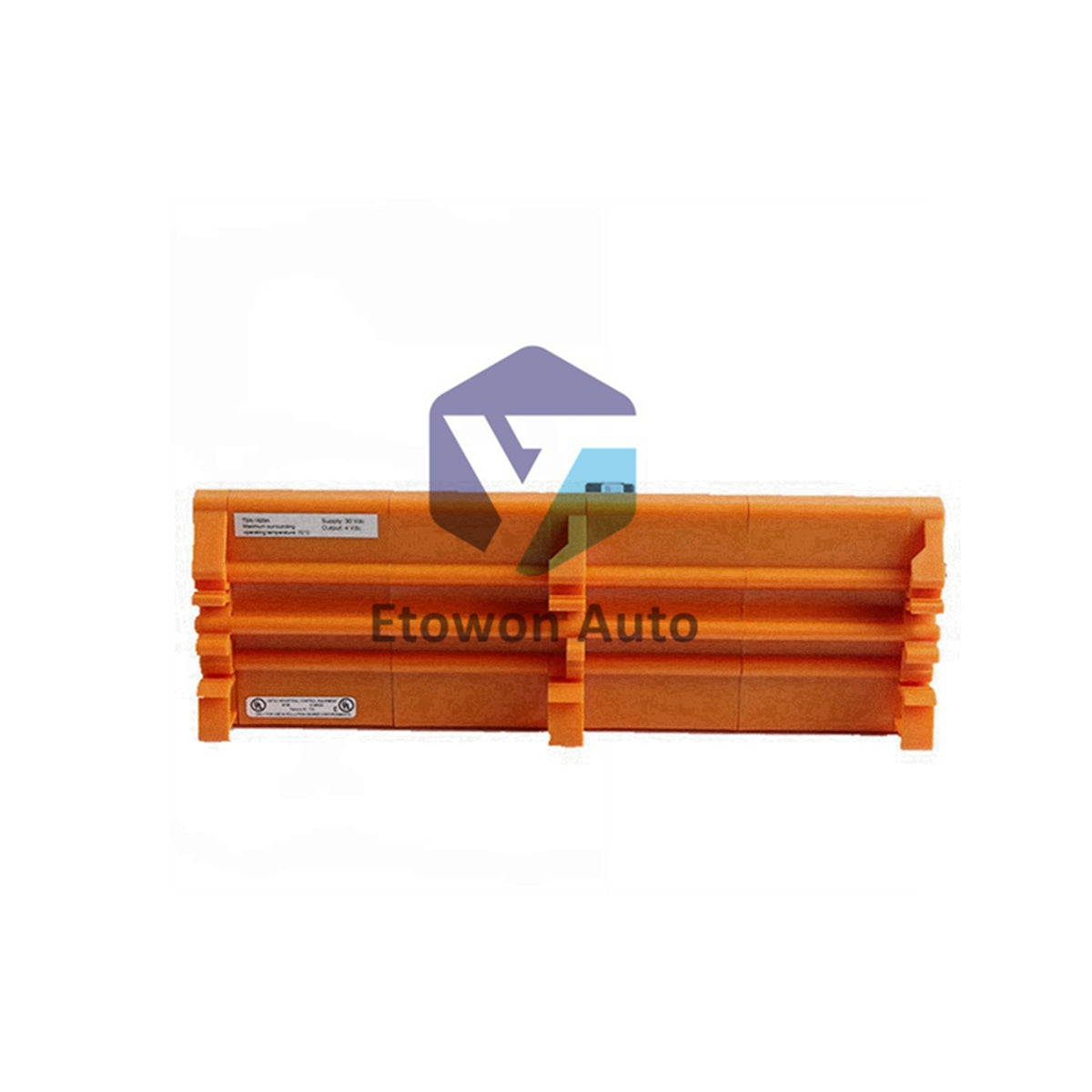

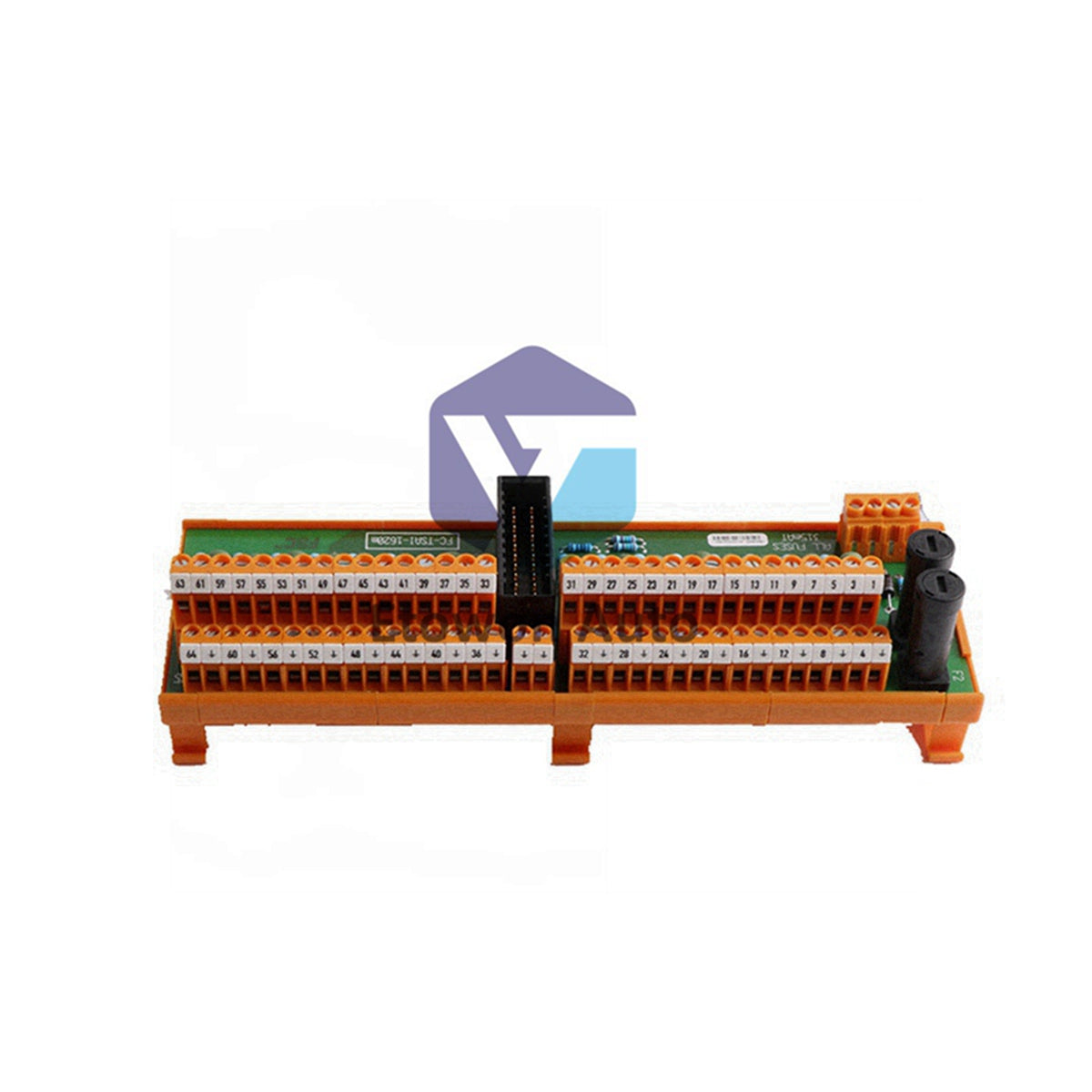

Honeywell FC-MCAR-01 Carrier for IOTA-R24

In stock (14 units), ready to be shipped

  • Manufacturer: Honeywell

  • Product No.: FC-MCAR-01

  • Product Type: Assembly Carrier

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Mounting Carrier for IOTA-R24 Assembly

The Honeywell FC-MCAR-01 is a mounting carrier designed to hold one IOTA-R24 assembly. This carrier screws onto any flat surface and provides integrated power distribution. It includes two power rails and a ground rail with multiple connection points.

Carrier Components

  • Metal profile for structural rigidity
  • Plastic cover plate for protection
  • Ground rail with 16 ground connection screws for flexible grounding
  • Two power rails with M5 holes (+24V and 0V)
  • Four mounting holes (6.35 mm diameter)

Technical Specifications

  • Brand: Honeywell
  • Model: FC-MCAR-01
  • Approvals: CE, UL
  • Operating temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage temperature: -40°C to +85°C (-40°F to +185°F)
  • Relative humidity: 10-95% non-condensing
  • Pollution degree: 2 or better

Power Supply Specifications

  • Voltage: 24V DC, range -15% to +30%
  • Supply current: None (passive carrier)
  • Supply rail current: 40 A maximum

Connection Points

  • 24V supply connections: 2 x M5 threaded holes
  • Ground connections: 16 x M5 screws on ground rail
  • Ample connection points for field wiring

Physical Dimensions

  • Height: 32 mm (2.52 in)
  • Width: 145.6 mm (5.73 in)
  • Depth: 478 mm (18.8 in)
  • Weight: 1.1 kg (2.4 lbs)
  • Four mounting holes (6.35 mm diameter) for secure installation

Installation & Packaging

  • Screws onto any flat surface
  • Accepts one IOTA-R24 assembly
  • Includes metal profile, plastic cover, ground rail, and power rails
  • Ready for field wiring termination
  • Shipping: FedEx, UPS, DHL worldwide

FAQ

  • Q: What mounts onto the MCAR-01 carrier?
    A: The MCAR-01 carries one IOTA-R24 assembly. It provides mechanical support and power distribution for the assembly.
  • Q: How do I connect power to this carrier?
    A: Use the two M5 threaded holes for +24V and 0V connections. The rails support up to 40 A total current.
  • Q: What is the ground rail for?
    A: The ground rail provides 16 M5 screw terminals for field device grounding. This simplifies wiring and ensures proper grounding.
