FC-IOTA-R24

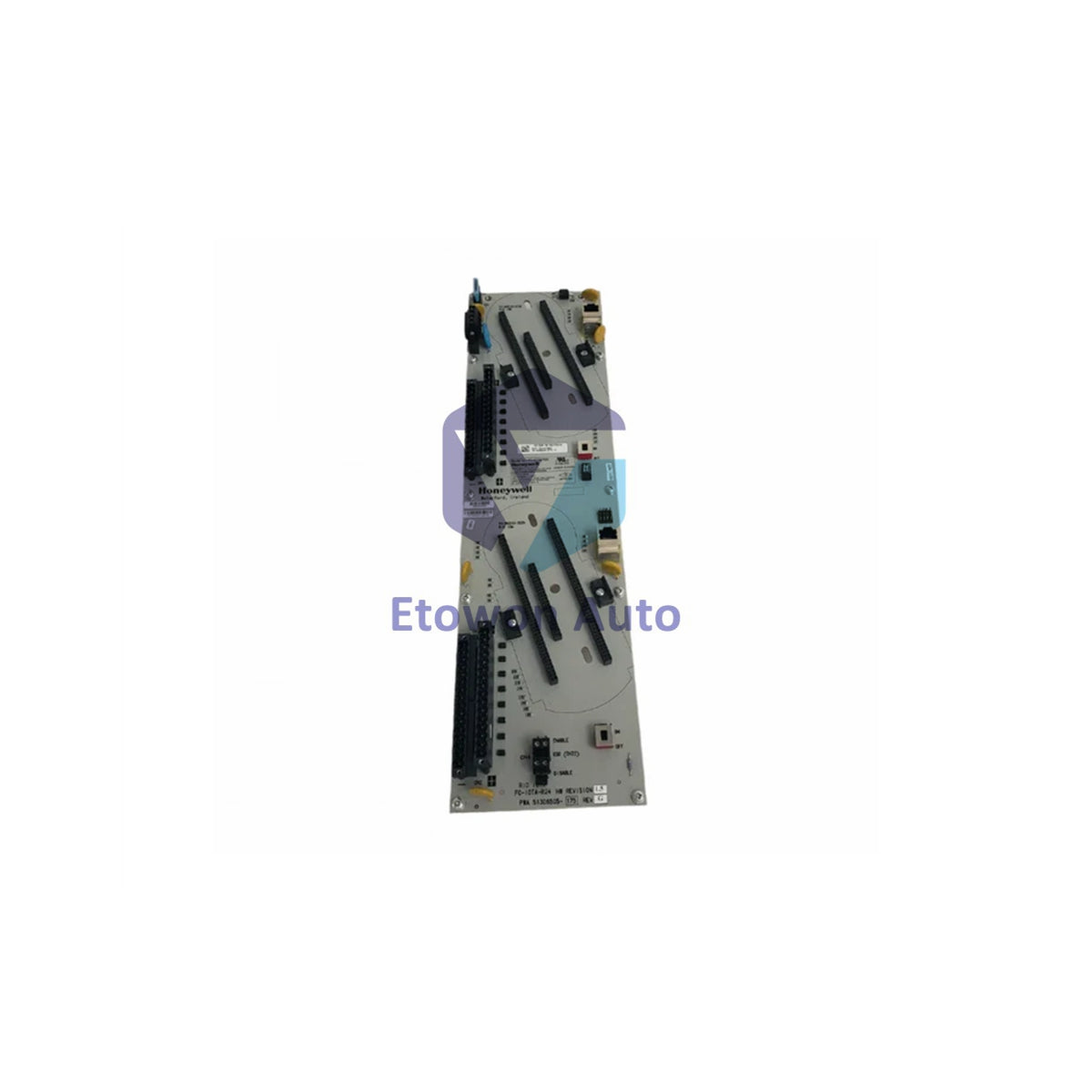

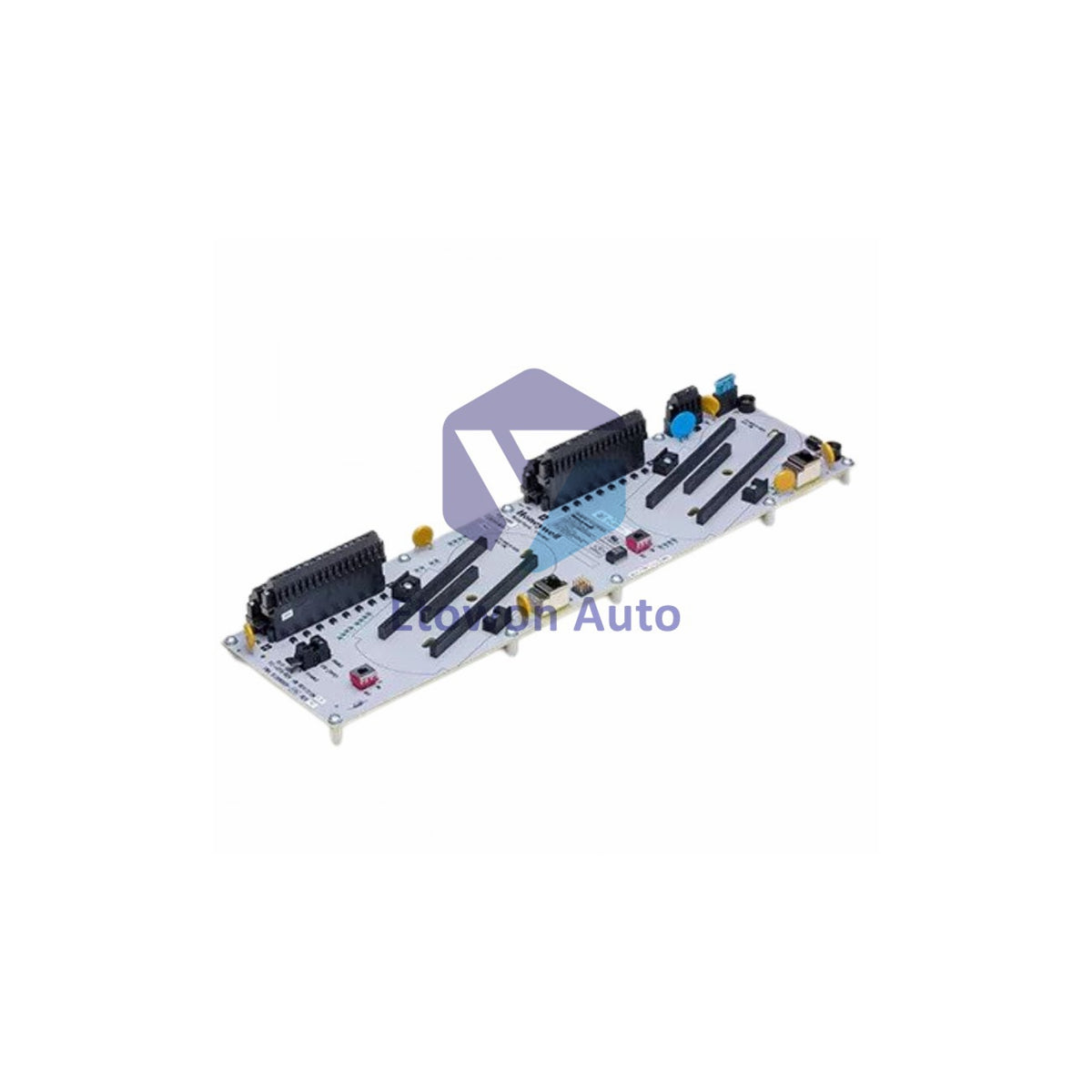

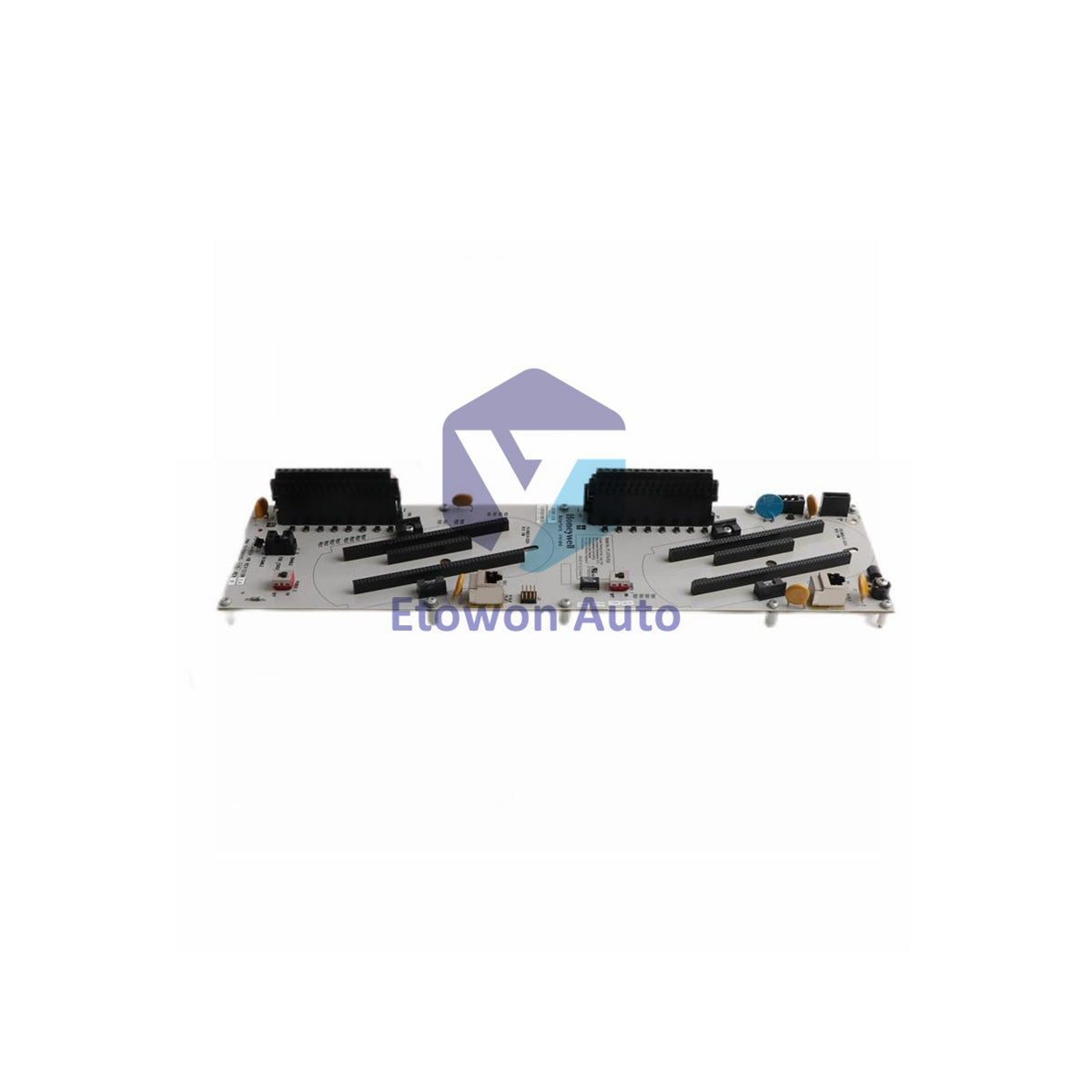

Honeywell FC-IOTA-R24 Redundant IOTA

In stock (14 units), ready to be shipped

  • Manufacturer: Honeywell

  • Product No.: FC-IOTA-R24

  • Product Type: I/O Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 570g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Honeywell FC-IOTA-R24 Redundant IO Termination Assembly

The Honeywell FC-IOTA-R24 is a Redundant IO Termination Assembly. It supports two redundant RUSIO-3224 or RUSLS-3224 modules. This assembly enables SIL 3 safety applications per IEC 61508/61511. It provides reliable connectivity for critical processes.

Key Features

  • Redundancy: Supports two redundant modules for SIL 3 safety.
  • Channel Capacity: 32 universal IO connections via CN1 and CN2.
  • Ethernet Comms: Two RJ45 ports for 100MB RIOLA and RIOLB.
  • Module Control: Independent POWER 1 and POWER 2 switches for module A and B.
  • Approvals: CE, UL, and TÜV certified.

Technical Specifications

  • Model: Honeywell FC-IOTA-R24 Redundant IOTA.
  • Temperature (Operating): -40°C to +70°C.
  • Temperature (Storage): -40°C to +85°C.
  • Humidity: 10% to 95% non-condensing.
  • Pollution Degree: 2 or better.

Power & Protection

  • Supply Voltage: 24V DC (-15% to +30%).
  • Max Load: 10 A maximum supply load.
  • Polarity Protection: Parallel diode prevents reverse damage.
  • Fuse: 15 A blade type (5x19 mm).
  • Fuse Manufacturer: Littelfuse PN 0287015.PXS.

Connectivity Details

  • IO Channels: 32 universal connections (CN1 and CN2).
  • V+ Connections: 4 identical terminals for active AI devices (CN3).
  • Ethernet: Two RJ45 ports. Supports 100MB RIOLA and RIOLB.
  • Power Input: 24V screw terminal connection.

Module Configuration

  • Module Positions: Top module is A. Bottom module is B.
  • Independent Control: POWER 1 switch controls module A. POWER 2 controls module B.

Physical Dimensions

  • Height: 64 mm.
  • Width: 120.7 mm.
  • Depth: 443.2 mm.
  • Weight: 0.57 kg.

Package & Shipping

  • Includes: Honeywell FC-IOTA-R24 assembly. Terminal blocks. Documentation.
  • Shipping: Via FedEx, UPS, or DHL worldwide.

FAQ

  • What modules work with this IOTA?
    It supports redundant RUSIO-3224 or RUSLS-3224 modules. Use two for SIL 3 applications.
  • How do I control each module independently?
    Use POWER 1 switch for top module A. Use POWER 2 switch for bottom module B.
  • What fuse does it use?
    It uses a 15A blade fuse (5x19 mm). Littelfuse part number 0287015.PXS is the exact match.

Order Honeywell FC-IOTA-R24 today. Fast global shipping. Reliable redundant IO termination.
