CC-TAIN01

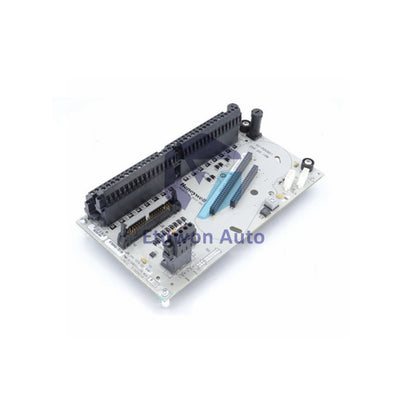

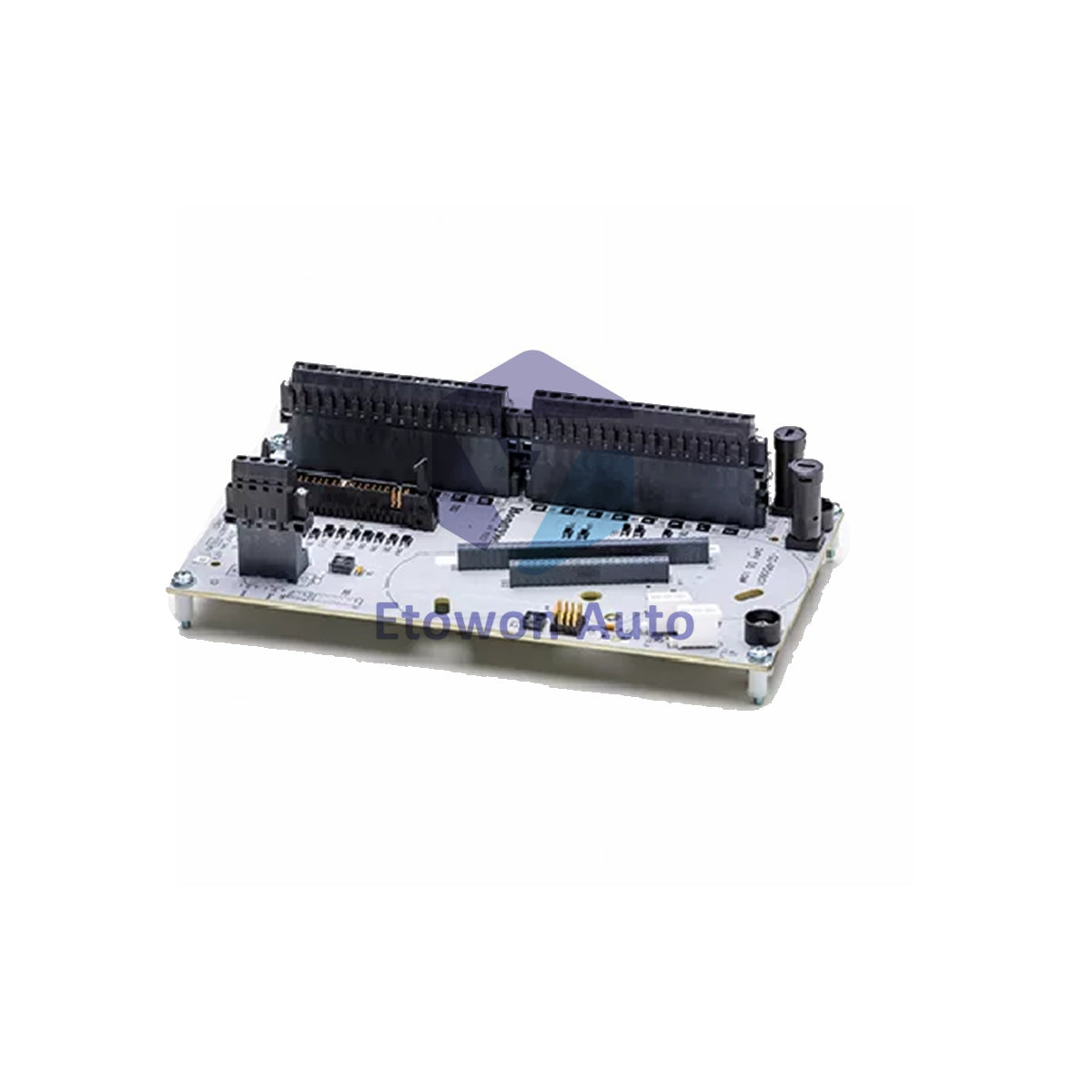

Honeywell CC-TAIN01 8-Channel Analog Input Module

In stock (13 units), ready to be shipped

  • Manufacturer: Honeywell

  • Product No.: CC-TAIN01

  • Product Type: Analog Input IOTA

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Honeywell CC-TAIN01: Precision Analog Input Module

The Honeywell CC-TAIN01 delivers accurate analog signal acquisition for industrial control systems.

Technical Specifications

  • Brand: Honeywell
  • Model: CC-TAIN01
  • Part Number: CC-TAIN01
  • Type: Analog Input Module
  • Condition: New & Original in Factory Packing
  • Warranty: 12 Months Factory Warranty
  • Input Channels: 8 differential or 16 single-ended
  • Input Types: 4-20mA, 0-20mA, 0-10V, ±10V, 0-5V, thermocouple, RTD
  • Resolution: 16-bit ADC
  • Accuracy: ±0.1% of span typical
  • Sampling Rate: 100ms per channel
  • Input Impedance: >10MΩ (voltage), 250Ω (current)
  • Power Supply: 24V DC (20.4 to 28.8V range)
  • Power Consumption: 5W typical
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -55°C to +85°C
  • Humidity: 5% to 95% non-condensing
  • Isolation: 1500V channel-to-channel and field-to-logic
  • EMC Compliance: IEC 61000-6-2, IEC 61000-6-4
  • Weight: 0.8kg (1.76 lbs)
  • Dimensions: 140mm x 100mm x 45mm
  • Terminals: Removable screw terminal blocks, 12-24 AWG
  • LED Indicators: Power, communication, input status
  • Mounting: 35mm DIN rail
  • Protection: Overvoltage and reverse polarity

Supported Input Types

  • Current: 4-20mA, 0-20mA
  • Voltage: 0-10V, ±10V, 0-5V, ±5V, 0-100mV
  • Thermocouple: Types J, K, T, E, R, S, B, N
  • RTD: PT100, PT500, PT1000, Ni100 (2/3/4-wire)
  • Resistance: 0 to 4000Ω
  • Millivolt: ±50mV, ±100mV, ±500mV

Frequently Asked Questions

Q: What is the difference between differential and single-ended mode on CC-TAIN01?

A: Differential mode uses two wires per signal for better noise rejection. Single-ended mode shares a common ground and offers more channels. Choose based on your signal quality needs.

Q: Can the CC-TAIN01 read thermocouples directly without external signal conditioners?

A: Yes, the CC-TAIN01 includes built-in cold junction compensation. Connect thermocouples directly to input terminals and select the correct type in software.

Q: Is the 12-month warranty valid worldwide?

A: Yes, the factory warranty covers defects in materials and workmanship for 12 months from delivery. It applies globally with proof of purchase from authorized distributors.
