IC660TBD022

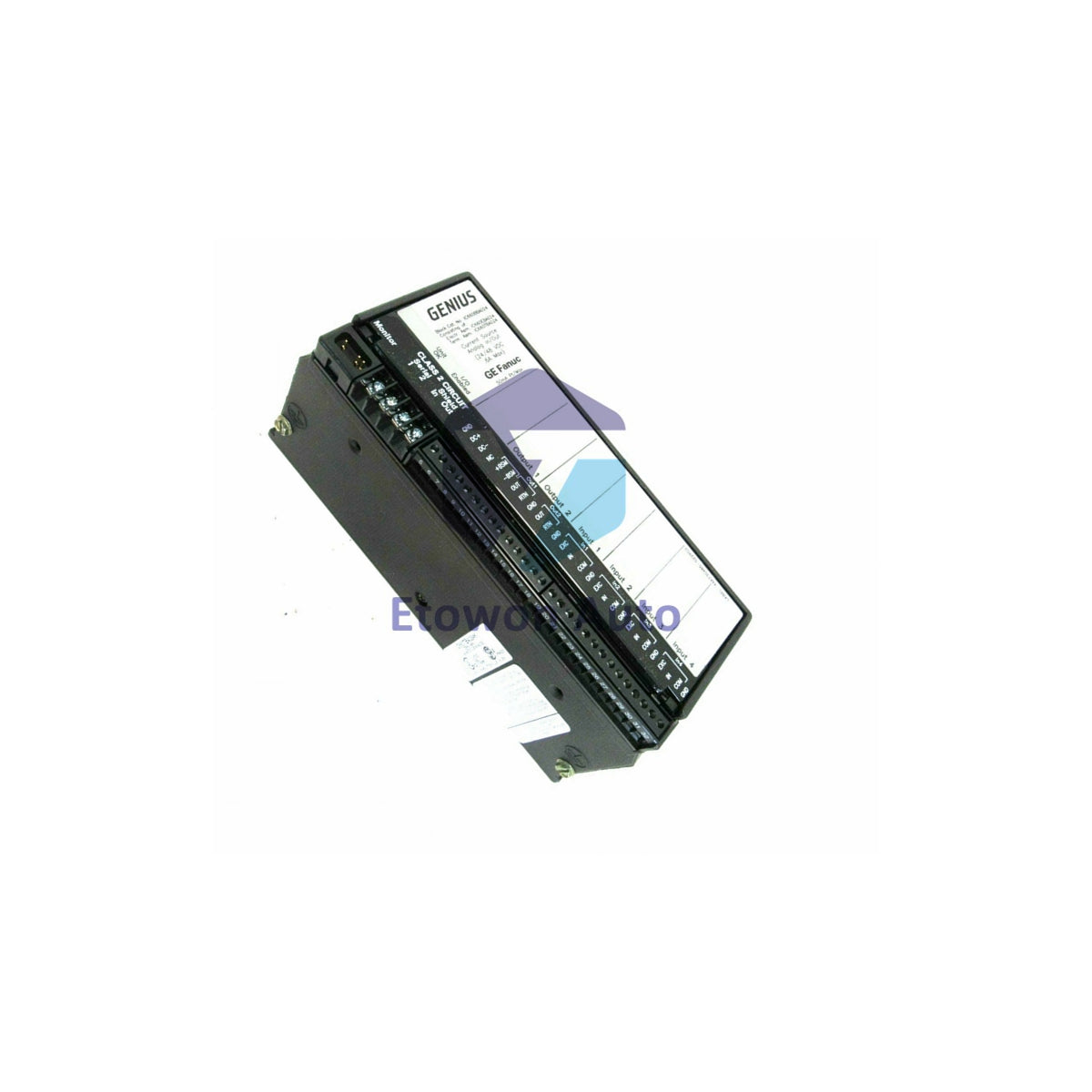

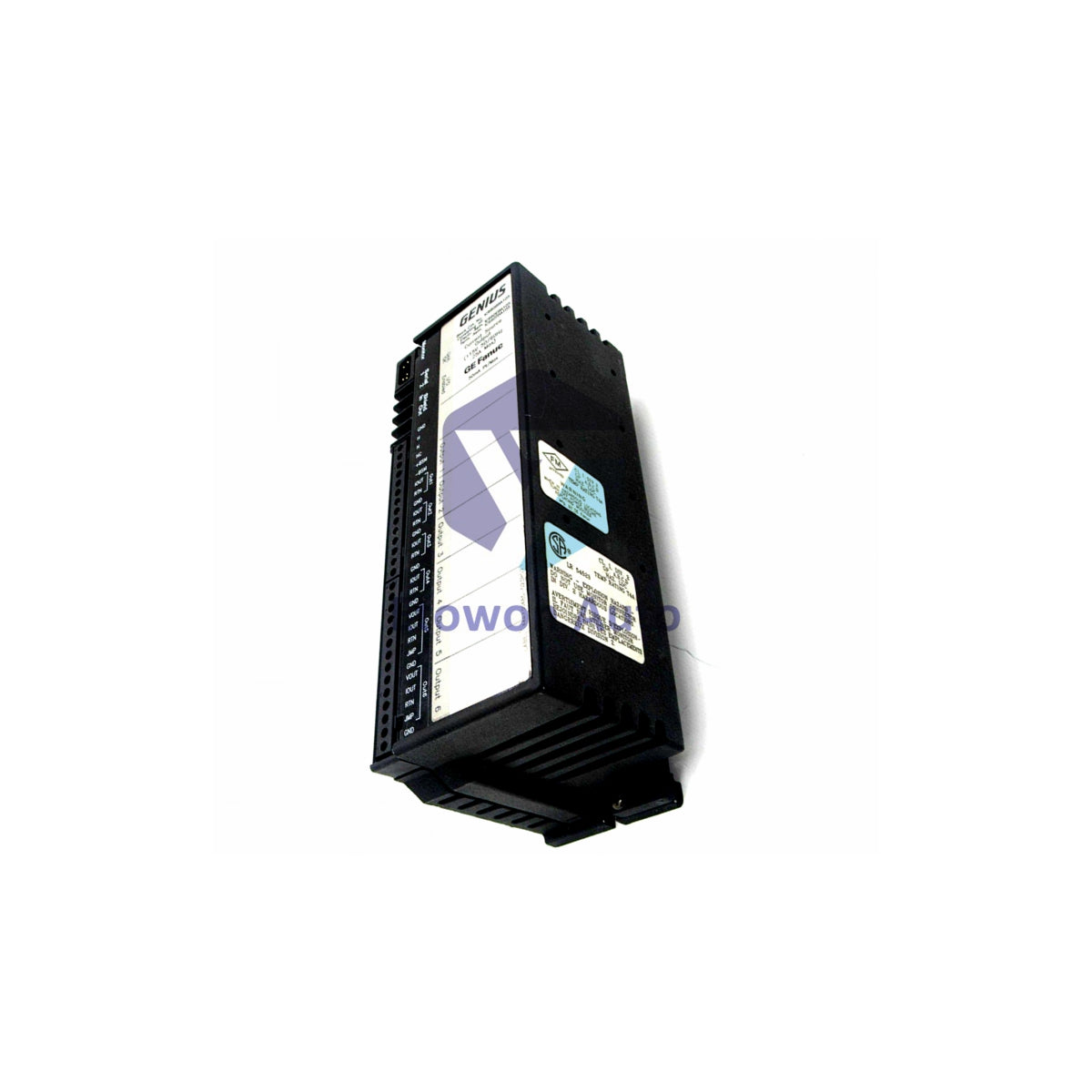

General Electric IC660TBD022 Terminal Assembly 24V 16 Circuit

In stock (12 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660TBD022

  • Product Type: Terminal Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC660TBD022 Genius Terminal Assembly 16 I-O 24V DC

The GE Fanuc IC660TBD022 is a Genius I-O terminal with 16 discrete I-O circuits. Rated 24V DC, operating range 18-30V DC. Screw terminals accept AWG #22 wire. Weight: 1.8 kg. Includes automatic diagnostics.

Key Specifications

  • Part Number: IC660TBD022.
  • Brand: GE Fanuc.
  • Series: Genius I-O.
  • Block Type: 16 discrete input/output circuits.
  • Rated Voltage: 24V DC.
  • Operating Voltage: 18-30V DC.
  • Ripple: 10% max.
  • Dropout Time: 10ms DC.
  • Heat Dissipation: 68.8W max (16 outputs at 2A).
  • Block Isolation: 1500V for 1 minute.
  • Analog Inputs: 6 circuits, 0.1% accuracy.
  • Current Threshold: Triggers below 2mA.
  • Wire Size: AWG #22 min, terminals 0.27" max width.
  • Dimensions: 224 x 88 x 100 mm (8.8 x 3.5 x 3.9 in).
  • Weight: 1.8 kg (4 lbs).
  • Operating Temp: 0 to 60°C (32 to 140°F).
  • Storage Temp: -40 to 100°C (-40 to 212°F).
  • Humidity: 5-95% non-condensing.

Features

  • Diagnostics: Open wire, no-load, overload, short circuit.
  • Fault reporting: Customizable per circuit.
  • LED indicators: At I-O block for status.
  • Keying: Electrical and mechanical for compatibility.
  • Power options: 93-132V AC or 105-145V DC supported.
  • Frequency: 47-63 Hz.

FAQs

I-O count on IC660TBD022?

16 discrete I-O circuits plus 6 analog inputs.

Power requirement?

24V DC rated, 18-30V operating, 68.8W max.

Weight?

1.8 kg (4 pounds).
