IC660TBA106

General Electric IC660TBA106 Terminal Assembly 32 Screw

In stock (16 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660TBA106

  • Product Type: Terminal Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

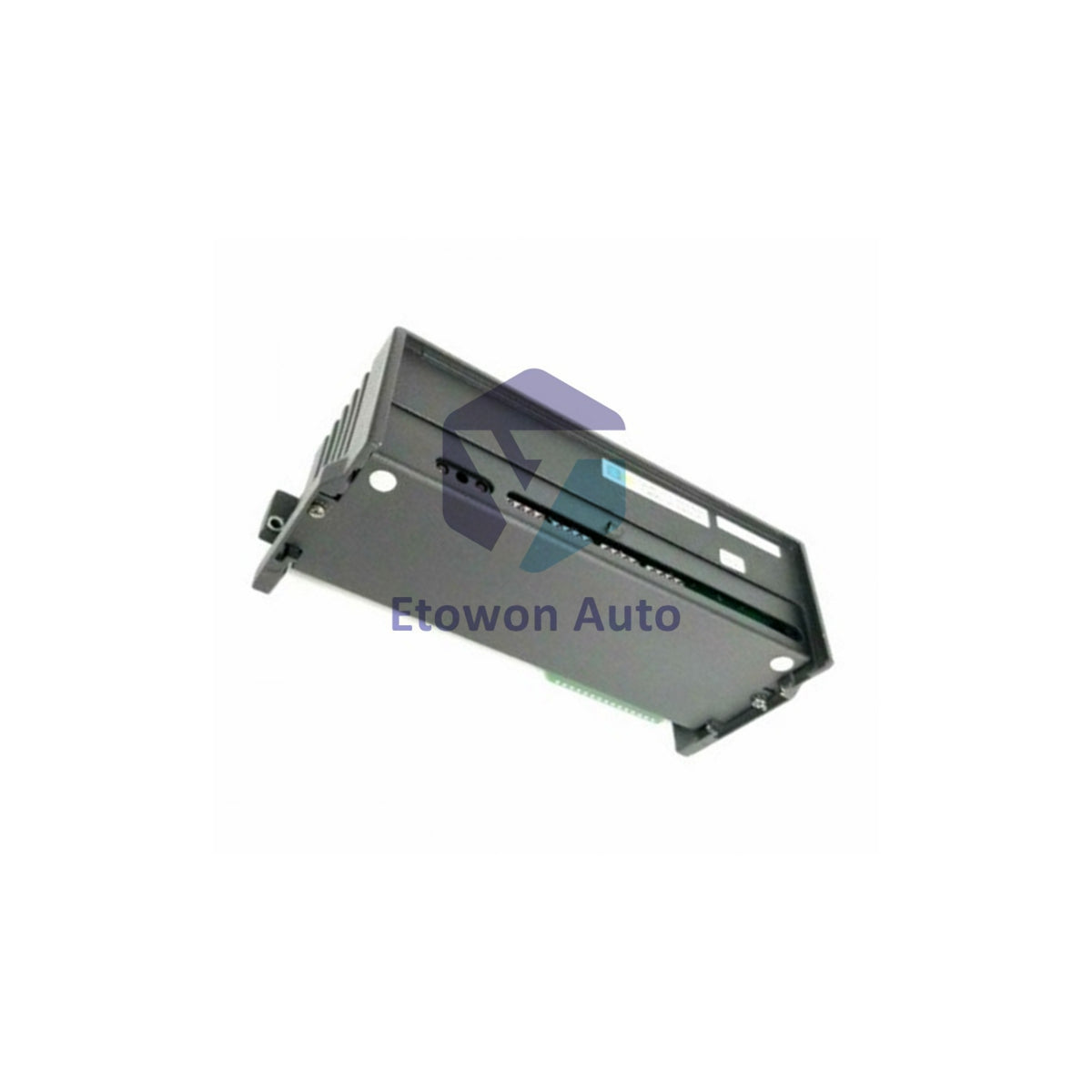

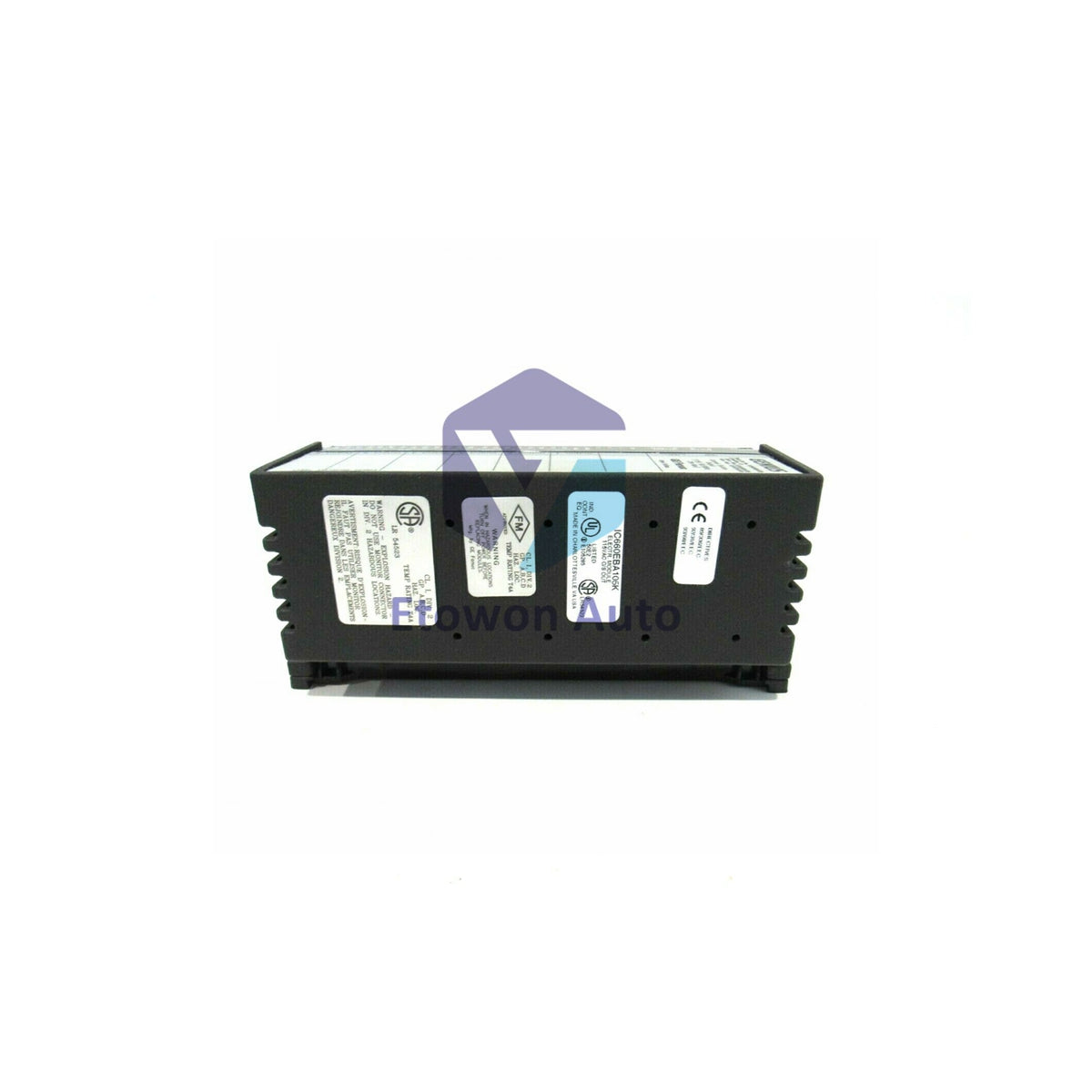

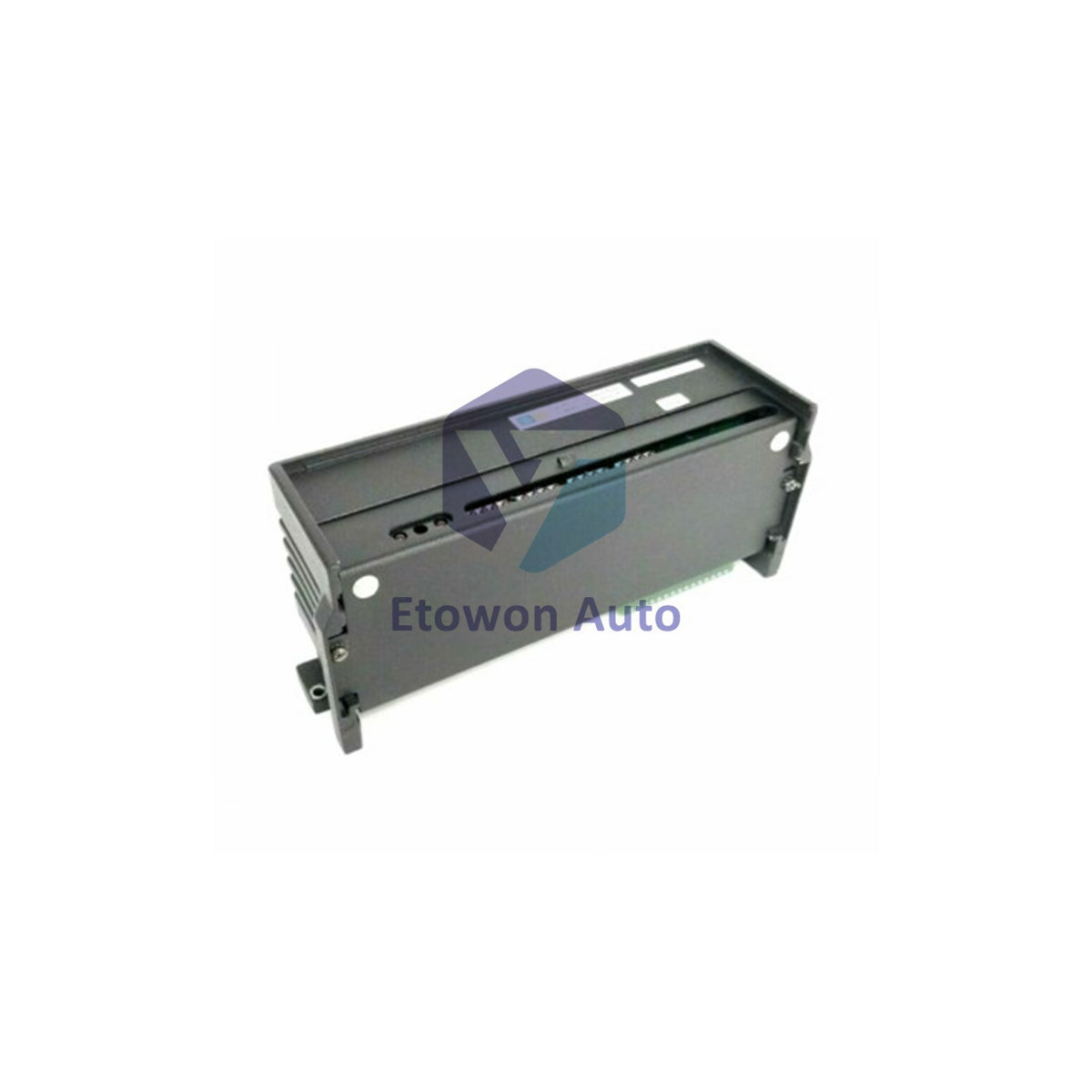

GE Fanuc IC660TBA106 Genius Terminal Assembly with 6 Analog Inputs

The GE Fanuc IC660TBA106 is a Genius I-O box-style terminal assembly with 32 screw terminals. Features 6 analog input circuits with 4-20mA current range. Rated for 115V AC and 125V DC operation. Power supply range 93-132V AC or 105-145V DC. Weight: 1.8 kg.

Key Specifications

  • Part Number: IC660TBA106.
  • Brand: GE Fanuc (General Electric).
  • Series: Genius I-O.
  • Block Type: Six analog input circuits.
  • Terminals: 32 screw-type terminals.
  • Rated Voltage: 115V AC / 125V DC.
  • Power Supply Range: 93-132V AC, 105-145V DC.
  • Maximum Current: 250mA AC / 140mA DC.
  • Frequency/Ripple: 47-63 Hz / 10% max ripple.
  • Dropout Time: 1 cycle AC / 10ms DC.
  • Heat Dissipation: 12W maximum.
  • Block Isolation: 1500V for 1 minute.
  • Group Isolation: 1500V RMS.
  • Input Signal Range: 4-20mA current.
  • Overrange Capacity: 0-25mA.
  • Input Conversion Time: 16.6 to 400 milliseconds.
  • Input Impedance: 100 Ohms.
  • Noise Rejection: -45dB at 50-60 Hz.
  • Dimensions: 224 x 88 x 100 mm (8.8 x 3.5 x 3.9 inches).
  • Weight: 1.8 kg (4 pounds).
  • Operating Temperature: 0 to 60°C (32 to 140°F).
  • Storage Temperature: -40 to 100°C (-40 to 212°F).
  • Humidity: 5-95% non-condensing.

FAQs

How many inputs does IC660TBA106 have?

6 analog input circuits with 4-20mA current range.

What is the power requirement?

93-132V AC or 105-145V DC with 12W maximum dissipation.

What is the weight?

1.8 kg (4 pounds) with 32 screw terminals.
