IC200MDL930

General Electric IC200MDL930 | Relay Output Module

In stock (23 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC200MDL930

  • Product Type: Relay Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

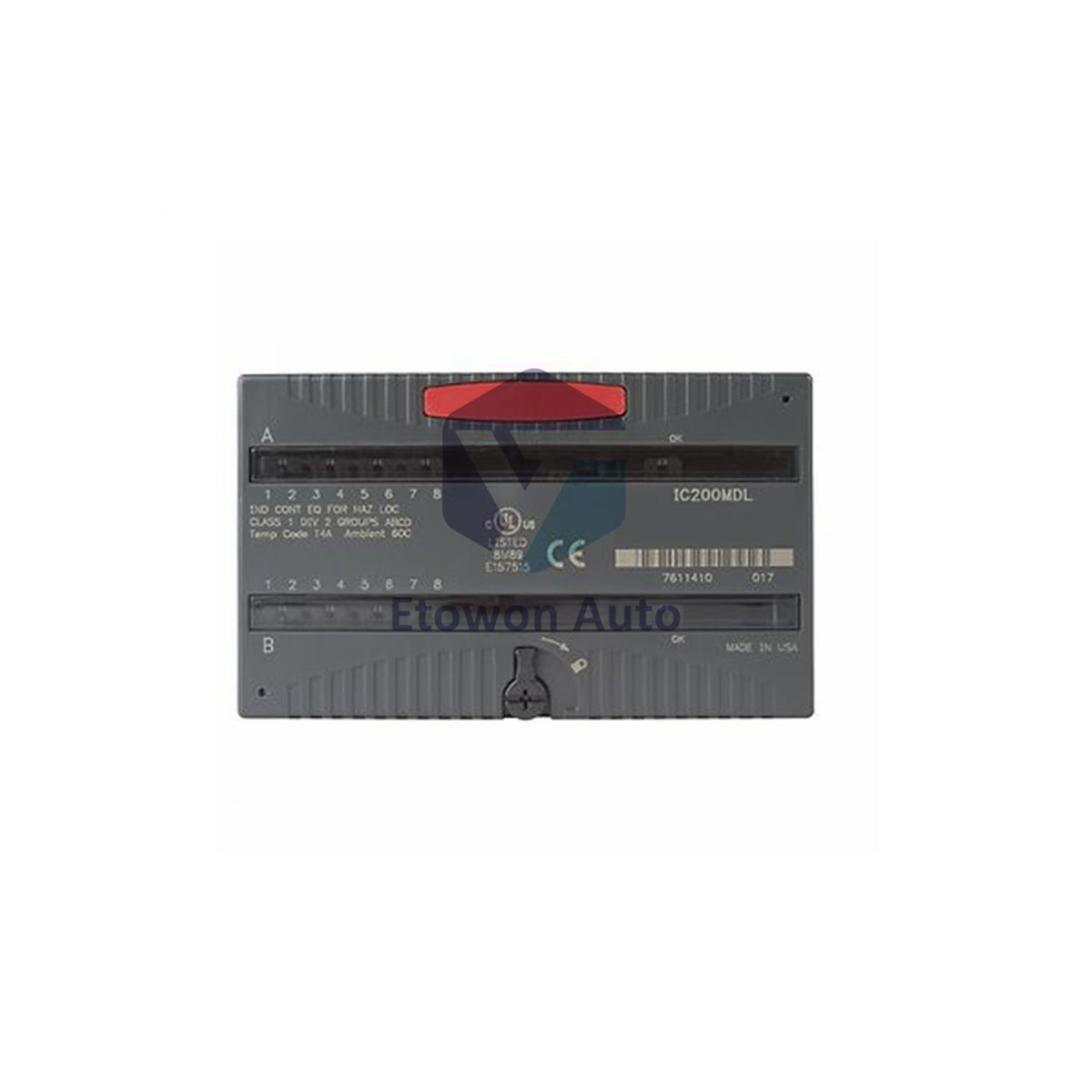

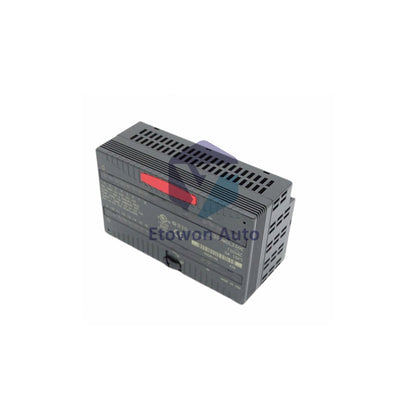

General Electric IC200MDL930 Versamax Relay Output Module

The General Electric IC200MDL930 is an 8-point relay output module for Versamax I/O systems. Features 8 individually isolated Normally Open (Form A) contacts.

Key specifications

  • Brand: General Electric / Emerson Automation
  • Series: Versamax
  • Part number: IC200MDL930
  • Points: 8 relay outputs
  • Contact form: Normally Open (Form A)
  • Relay type: Fixed coil, moving armature
  • Contact material: Silver alloy
  • Weight: 0.45 kg (approx)

Voltage & current ratings

  • DC voltage range: 0 to 125V DC (5/24/125V nominal)
  • AC voltage range: 0 to 265V AC at 47-63Hz (120/240V nominal)
  • Current rating (AC): 2.0A max for 5-265V AC (resistive)
  • Current rating (DC 5-30V): 2.0A max (resistive)
  • Current rating (DC 31-125V): 0.2A max (resistive)
  • Minimum current: 10mA per point

Response & power

  • Response time: 10 ms max (on/off)
  • Switching frequency: 20 cycles per minute (inductive loads)
  • Backplane current: 243 mA typical, 435 mA max
  • Isolation: 250V AC continuous, 1500V AC for 1 minute
  • Output grouping: Individually isolated

FAQ

What loads are compatible?

AC loads up to 265V and DC loads up to 125V.

What is the response time?

10 ms maximum for both on and off transitions.

Does it have internal fuses?

No. Use external suppression for inductive loads.
