IC698CHS109

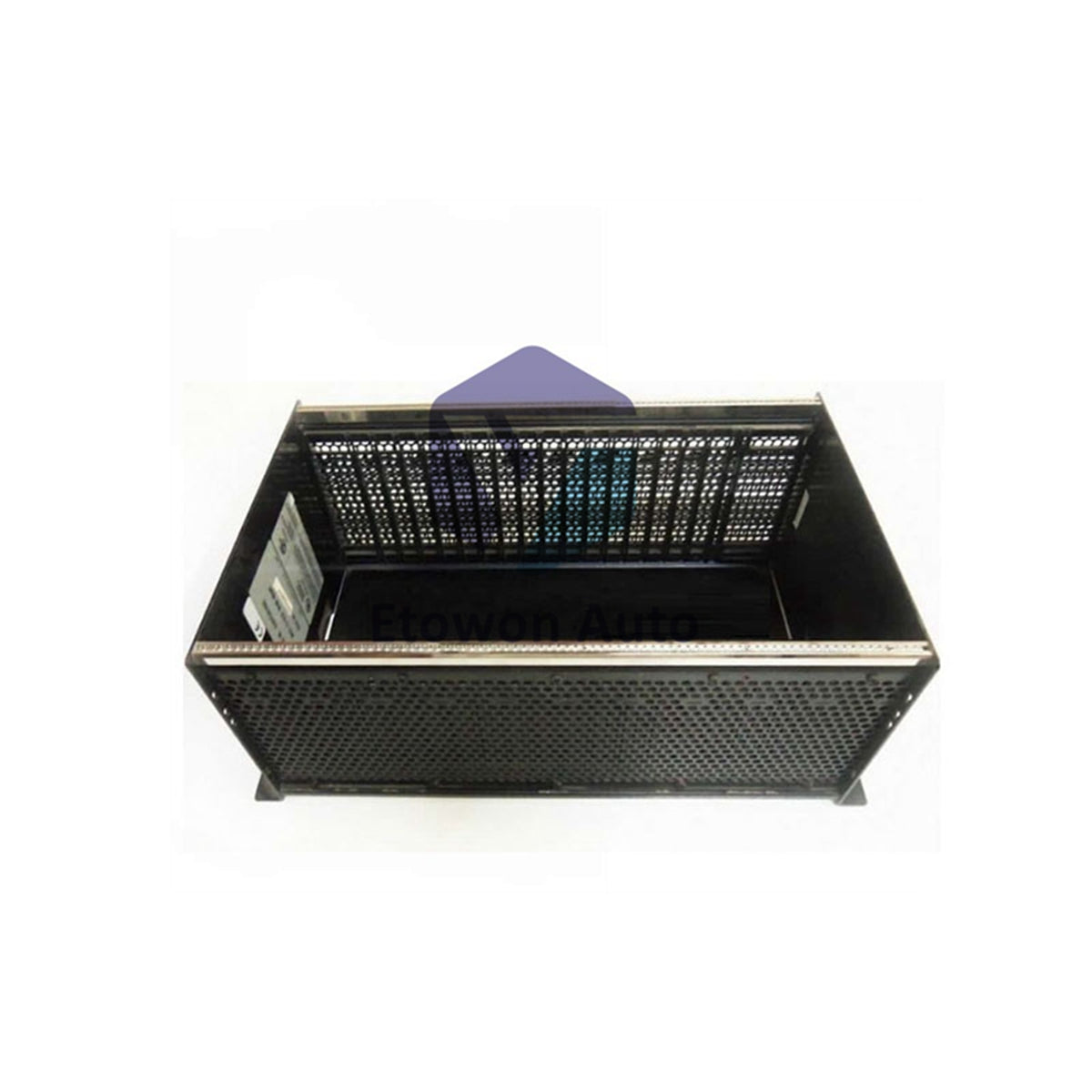

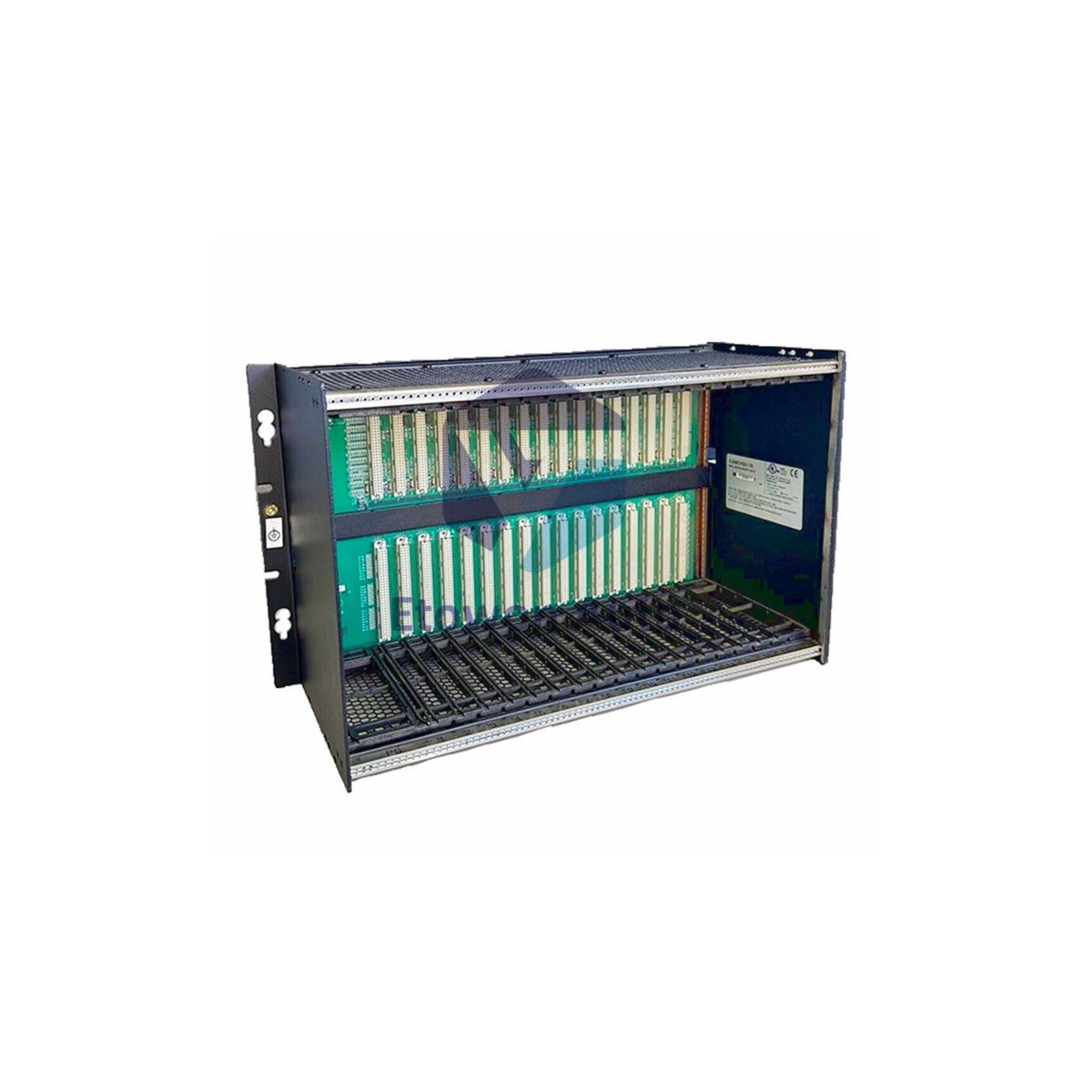

GE Fanuc IC698CHS109 9-Slot Front Mount I/O Rack Rx7i System

In stock (21 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC698CHS109

  • Product Type: Rack

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 5000g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC698CHS109 Rx7i PACsystem 9-Slot I/O Rack

The GE Fanuc IC698CHS109 is a 9-slot front-mounted I/O rack for the Rx7i PACsystem. This rack features a high-speed VME64 backplane and supports all Rx7i CPUs, Series 90-70 I/O, and VME-compatible modules.

Key Features

  • 9-slot front-mounted I/O rack for flexible installation
  • VME64 backplane system - 4x faster than standard VME
  • Software configurable with no DIP switches or jumpers needed
  • Supports Rx7i CPUs, Series 90-70 I/O, and VME modules
  • Automated daisy-chain interrupt and bus grant signals

Technical Specifications

  • Brand & Model: GE Fanuc IC698CHS109
  • System Series: Rx7i PACsystem
  • Rack Type: 9-slot I/O rack
  • I/O Capacity: 9 I/O slots total
  • Backplane: High-speed VME64 architecture
  • Power Supply: 350 Watts required
  • Mounting Type: Front-mounted installation

Power Specifications

  • Current Rating 5VDC: 60 Amps at 5.0 Volts DC
  • Current Rating 12VDC: 12 Amps at 12 Volts DC
  • Operating Voltage: 5 to 12 Volts DC range
  • Power Support: Designed for plug-in Rx7i power supplies

Slot Configuration

  • Slots 1-8: 20.3mm width for single-slot modules
  • Slot 9: 40.5mm width for double-width modules
  • Slot 0: 61mm width for power supply module
  • Module Support: 7 single-width or 4 double-width modules
  • Mixed Configuration: Combination of single/double-width modules

Physical Specifications

  • Dimensions: 283 × 320 × 190 mm
  • Enclosure Requirement: IP54 or higher rated enclosure
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Cooling Option: Optional fan assembly available
  • Backplane Connector: J2 connector for high-speed data transfer

Packaging & Shipping

  • Includes 9-slot I/O rack unit
  • Ships via FedEx, UPS, or DHL

FAQ

How many I/O slots does the IC698CHS109 provide?

  • The IC698CHS109 provides 9 I/O slots that can support 7 single-width modules, 4 double-width modules, or a combination of both.

What is special about the VME64 backplane?

  • The VME64 backplane offers four times the speed of standard VME systems and supports high-speed data transfers of up to 64 bits per cycle.

What power supply is required for this rack?

  • It requires a 350W power supply and provides current ratings of 60A at 5VDC and 12A at 12VDC for comprehensive system power.
