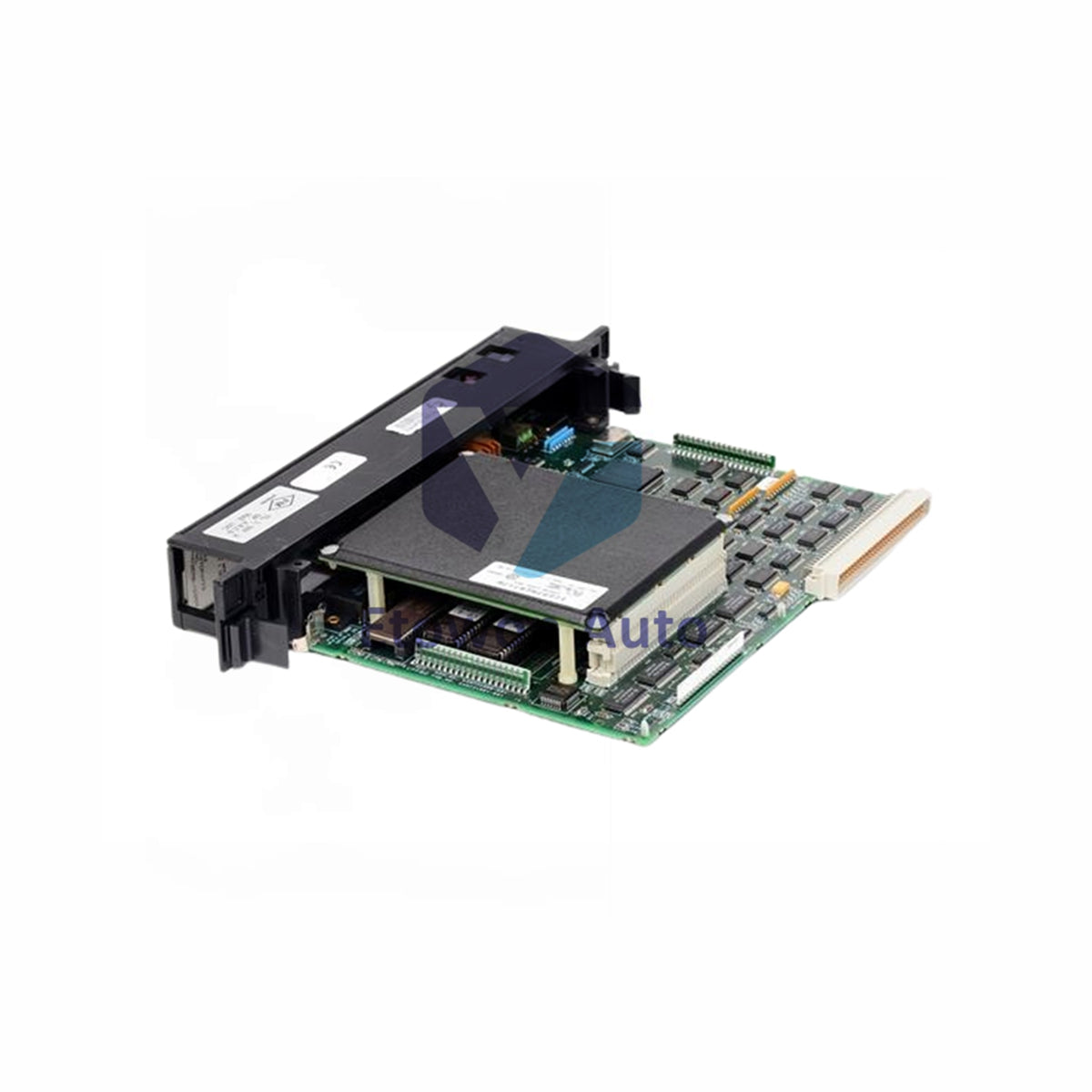

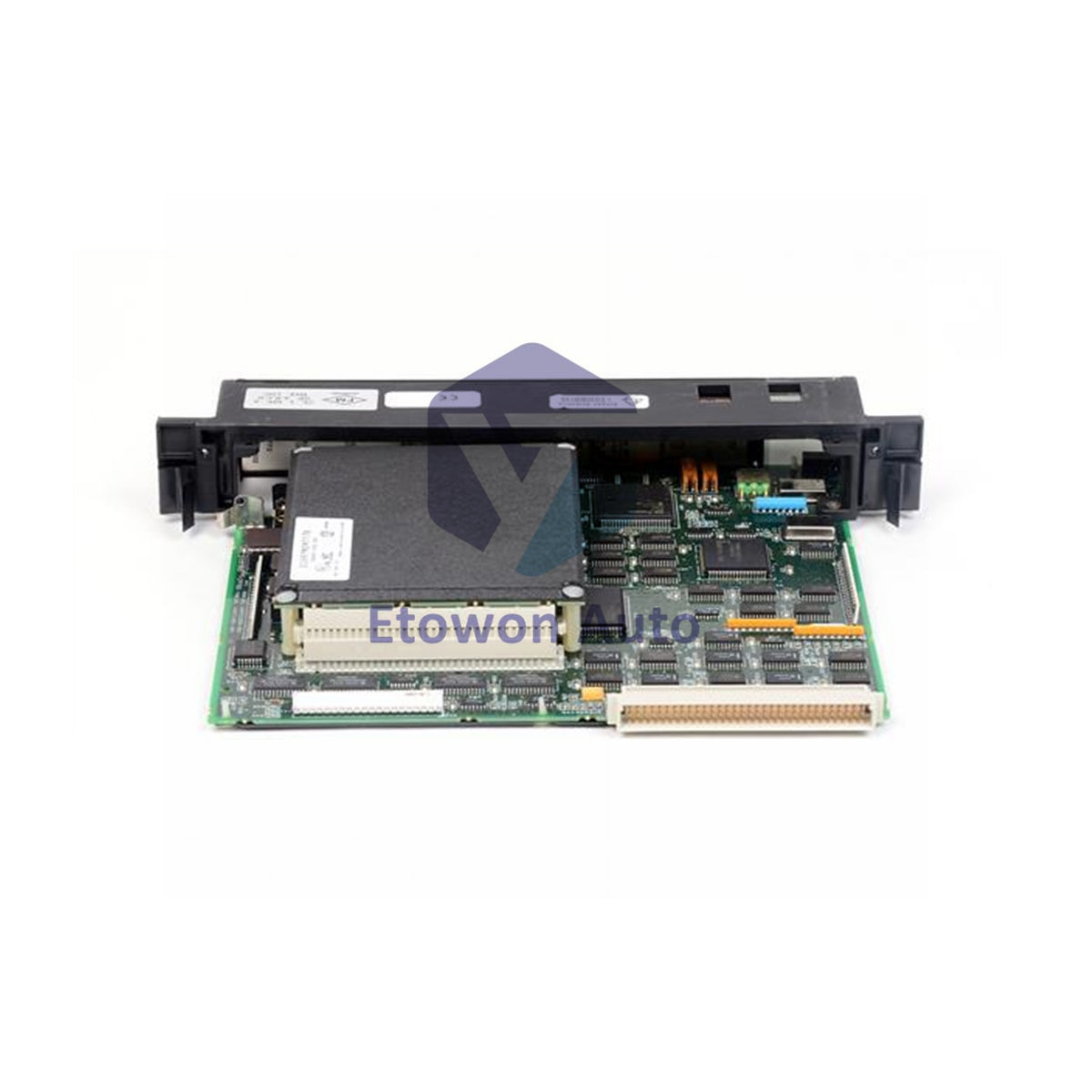

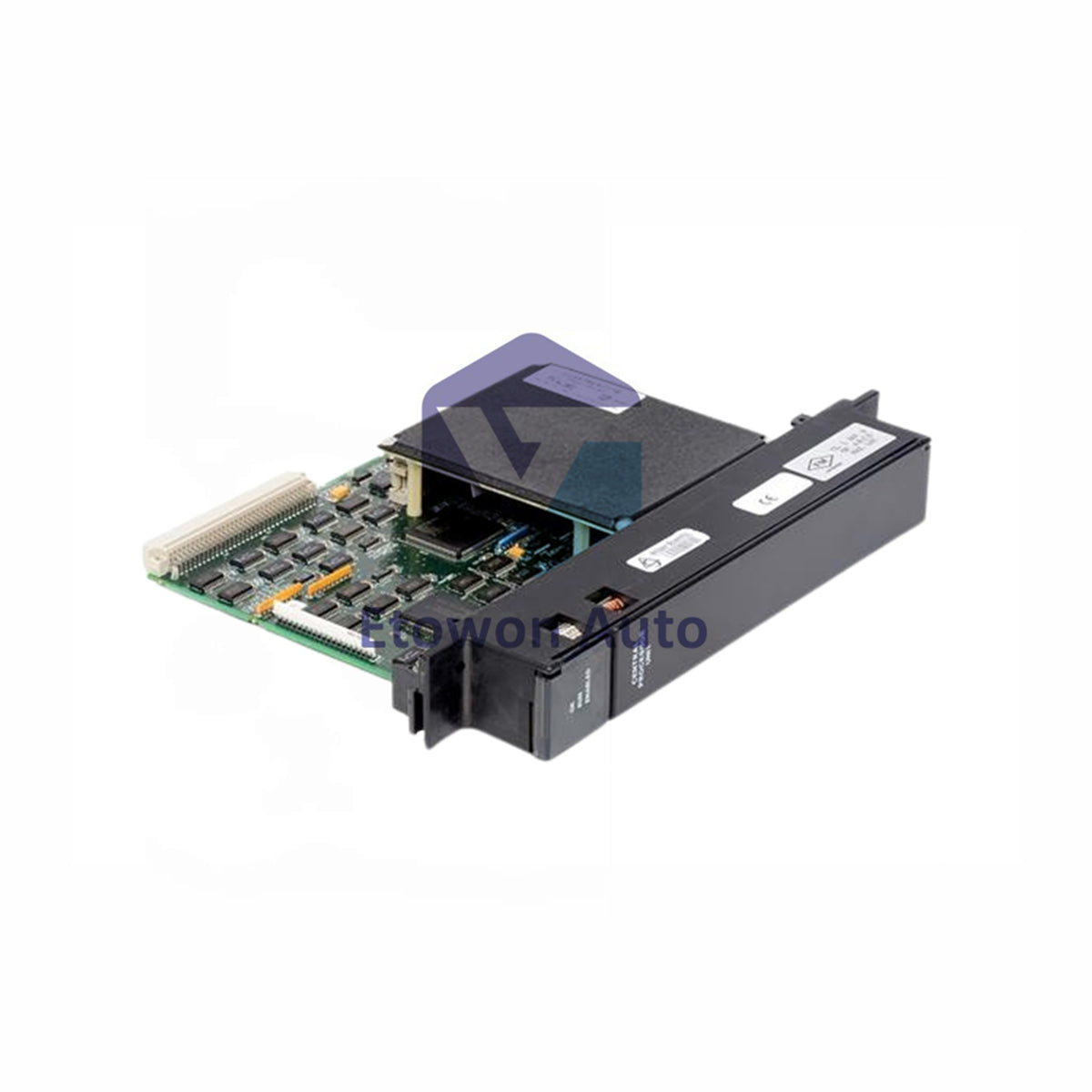

IC697CPU780

GE Fanuc IC697CPU780 CPU Redundancy 80386DX 16MHz 0.4µs

In stock (14 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC697CPU780

  • Product Type: CPU Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC697CPU780 Redundant Ready CPU Module

Product Overview

GE Fanuc IC697CPU780 is a redundant ready CPU module for Series 90-70 PLC. Features 80386DX microprocessor at 16 MHz. Boolean execution speed 0.4 µs per instruction. Supports automatic CPU synchronization with bumpless switching. One-scan transfer time under 20 ms. Module power consumption 8 W. Weight 0.7 kg.

Technical Specifications

Parameter Value
Brand GE Fanuc
Part Number IC697CPU780
Series Series 90-70
Processor 80386DX @ 16 MHz
Boolean Execution Speed 0.4 µs per instruction
Discrete I/O Memory 12 KB
Analog I/O Memory 8 KB
System Memory 128 KB / 256 KB / 512 KB (non-volatile flash)
Maximum Program Steps 60,000 steps
Battery Type IC697ACC701 lithium cell
Battery Shelf Life 1 year
Data Retention (no power) Up to 6 months
MTBF 100,000 hours
Power Consumption 8 W
Current Draw 1.6 A at 5 V DC
Operating Temperature -20°C to +60°C
Communication Port RS-485 serial (15 pin D connector)
LED Indicators Module OK, RUN, Outputs Enabled, Memory Protect
Redundancy Automatic CPU sync, bumpless switching, ≤20 ms transfer
Weight 0.7 kg

Key Features

  • Redundant ready CPU with automatic synchronization
  • Bumpless switching for continuous operation
  • One-scan transfer under 20 ms extension
  • 80386DX processor at 16 MHz
  • 0.4 µs boolean execution speed
  • 60,000 maximum program steps
  • Non-volatile flash memory options up to 512 KB
  • Battery backed memory retention up to 6 months
  • 4 LED indicators for module status
  • RS-485 serial communication

FAQs

Q1: What processor and speed does IC697CPU780 use?
A1: 80386DX microprocessor at 16 MHz with 0.4 µs boolean execution.

Q2: What redundancy features are supported?
A2: Automatic CPU synchronization, bumpless switching, one-scan transfer under 20 ms.

Q3: What is the power consumption and weight?
A3: 8 W power consumption, 1.6 A at 5 V DC. Weight 0.7 kg.
