IC694MDL916

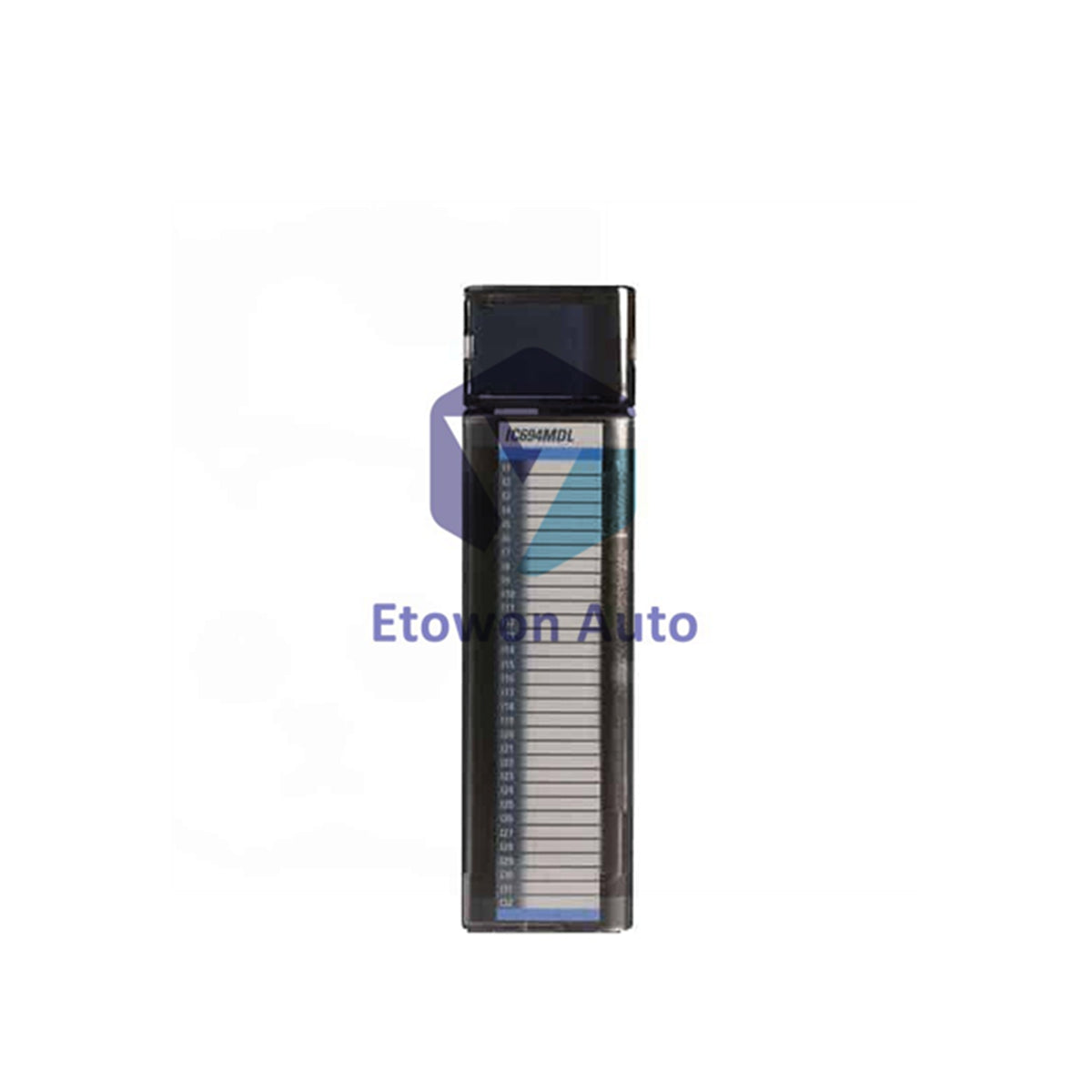

GE Fanuc IC694MDL916 Relay Output Module

In stock (22 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC694MDL916

  • Product Type: Relay Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

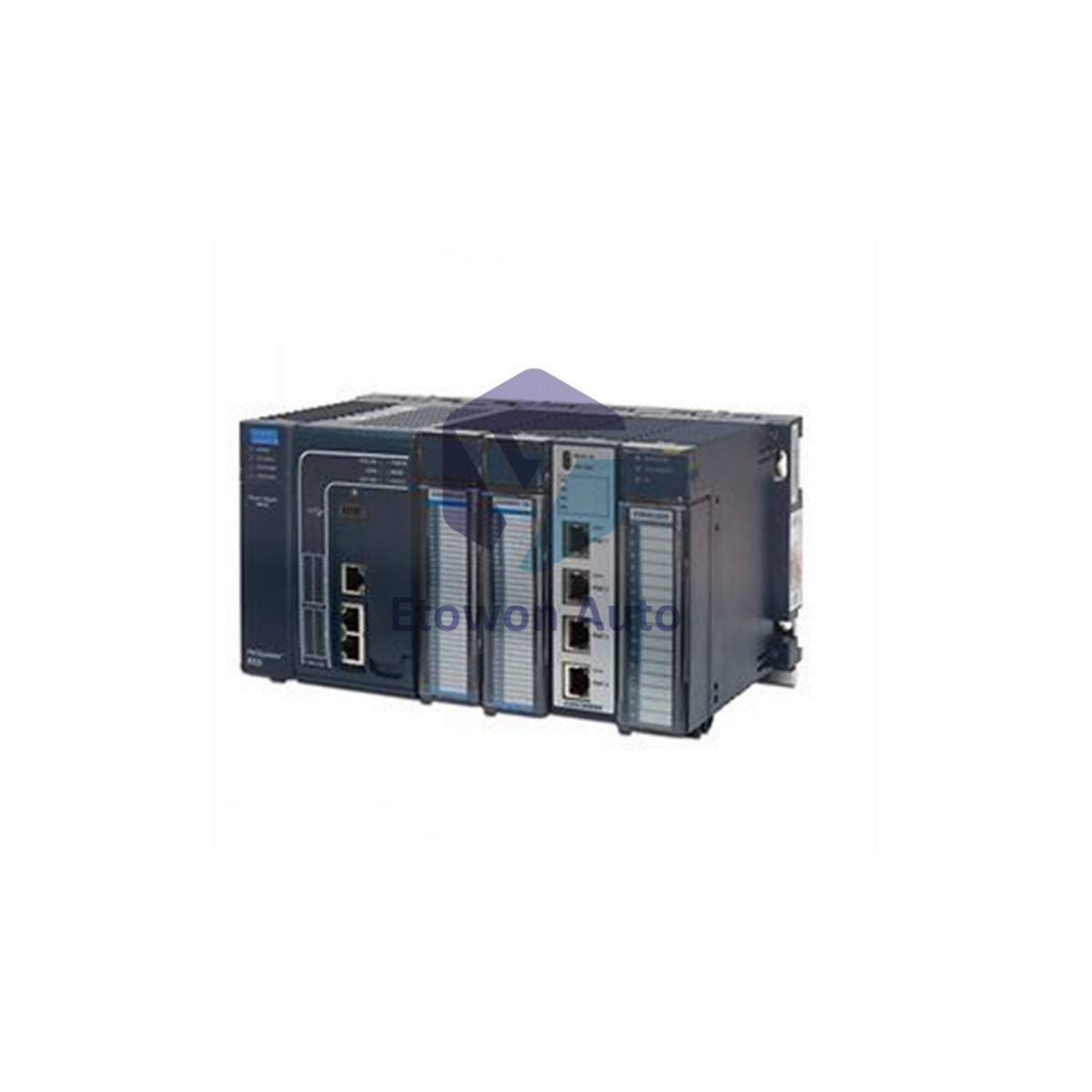

GE Fanuc IC694MDL916 PACSystem RX3i Relay Output Module

GE Fanuc IC694MDL916 PACSystem RX3i relay output module. 16 individually isolated Form A (Normally Open) outputs. 0-125 VDC and 5-250 VAC range, 4A max current, 10ms response.

Key Specifications

  • Model: IC694MDL916
  • Brand: GE Fanuc (Emerson Automation)
  • Series: PACSystem RX3i
  • Type: Relay output module, Form A (N.O.) contacts
  • Output Channels: 16 individually isolated
  • AC Voltage Range: 5-250 VAC (47-63 Hz), nominal 120-240 VAC
  • DC Voltage Range: 0-125 VDC, nominal 5/24/125 VDC
  • Maximum Output Current: 4A for 5-250 VAC (resistive), 4A for 5-30 VDC (resistive), 200mA for 125 VDC, 2A pilot duty/lamp load
  • Minimum Output Current: 10 mA per point
  • Response Time: 10 ms maximum (on and off)
  • Switching Frequency: 20 cycles per minute maximum
  • Backplane Current Draw: 300 mA at 5V DC, 150 mA at 24V DC (all outputs ON)
  • Weight: 0.6 kg (1.32 lbs)

FAQ

Q: Output configuration?
A: 16 individually isolated Form A (N.O.) relay outputs. Dry contacts allow any combination of AC/DC voltages per channel: 5-250 VAC or 0-125 VDC.

Q: Current and contact life?
A: 4A max for resistive loads, 2A for pilot/lamp duty, 200mA for 125VDC. Contact life ranges from 200,000 to 1,000,000 operations depending on load.

Q: Power and weight?
A: 300mA backplane draw at 5V DC, 150mA at 24V DC. Weight 0.6kg. Requires external user-supplied power. Compatible with IC694TBB032/TBS032/TBB132/TBS132 terminal blocks.
