IC660TSD100

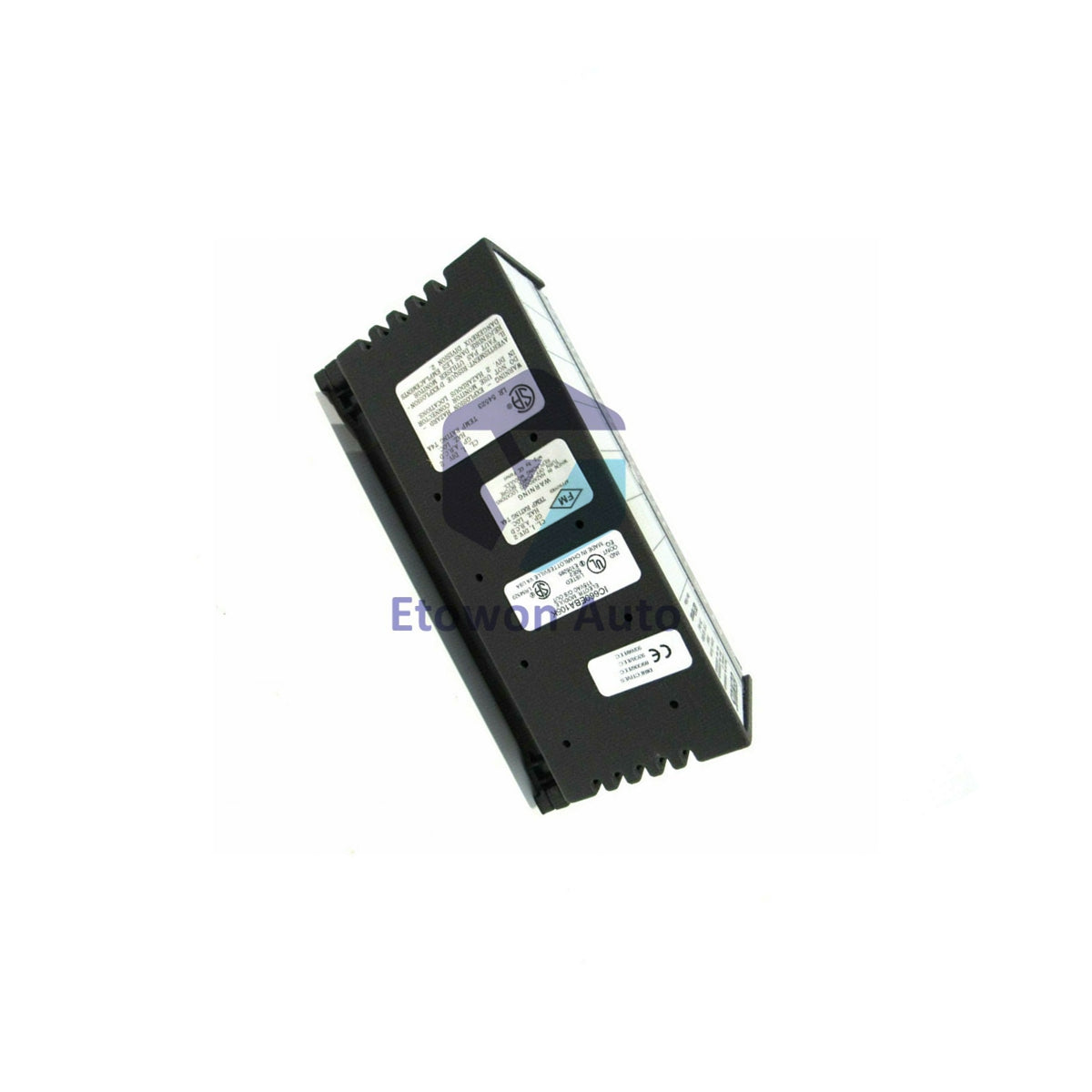

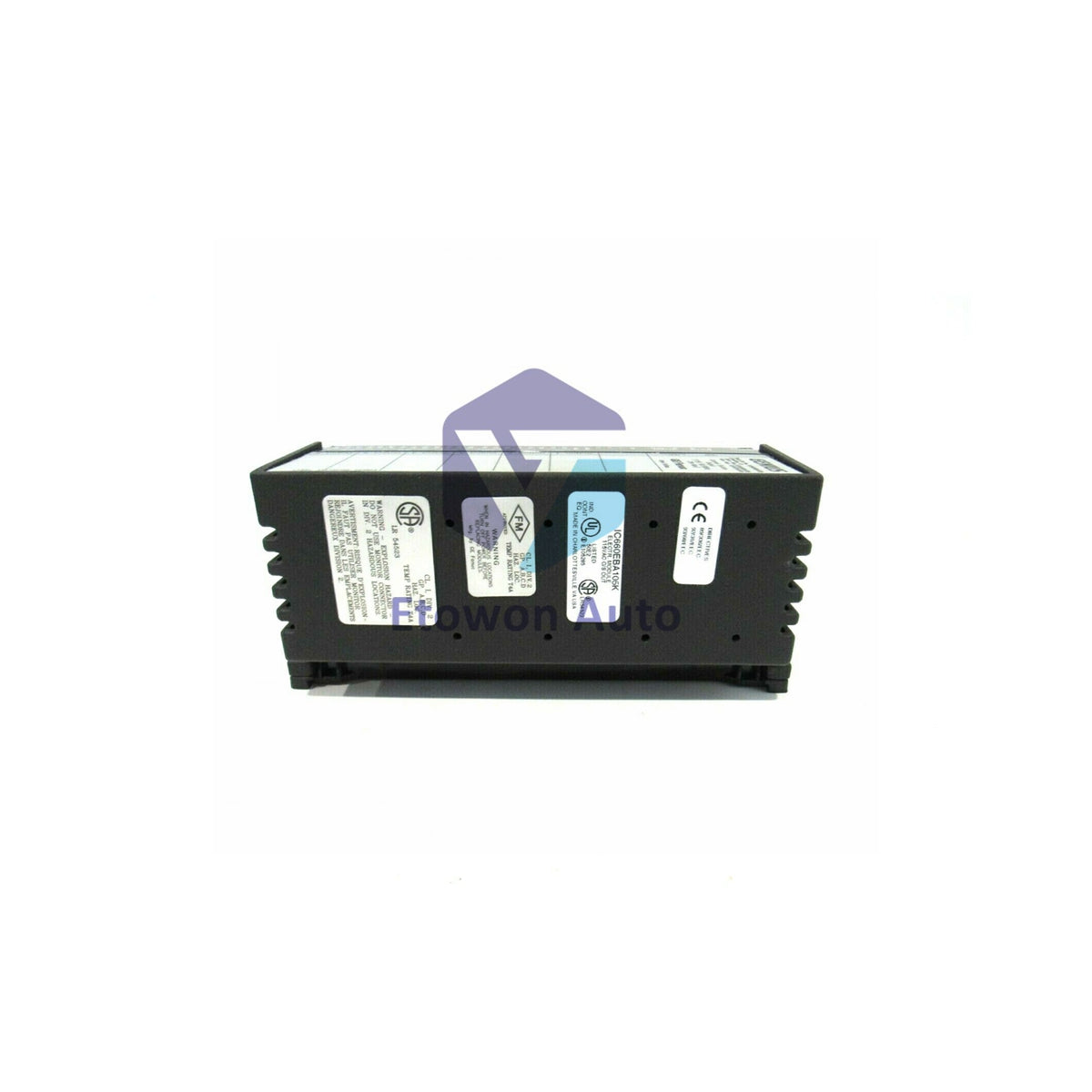

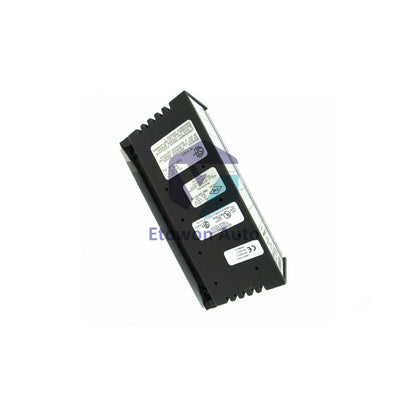

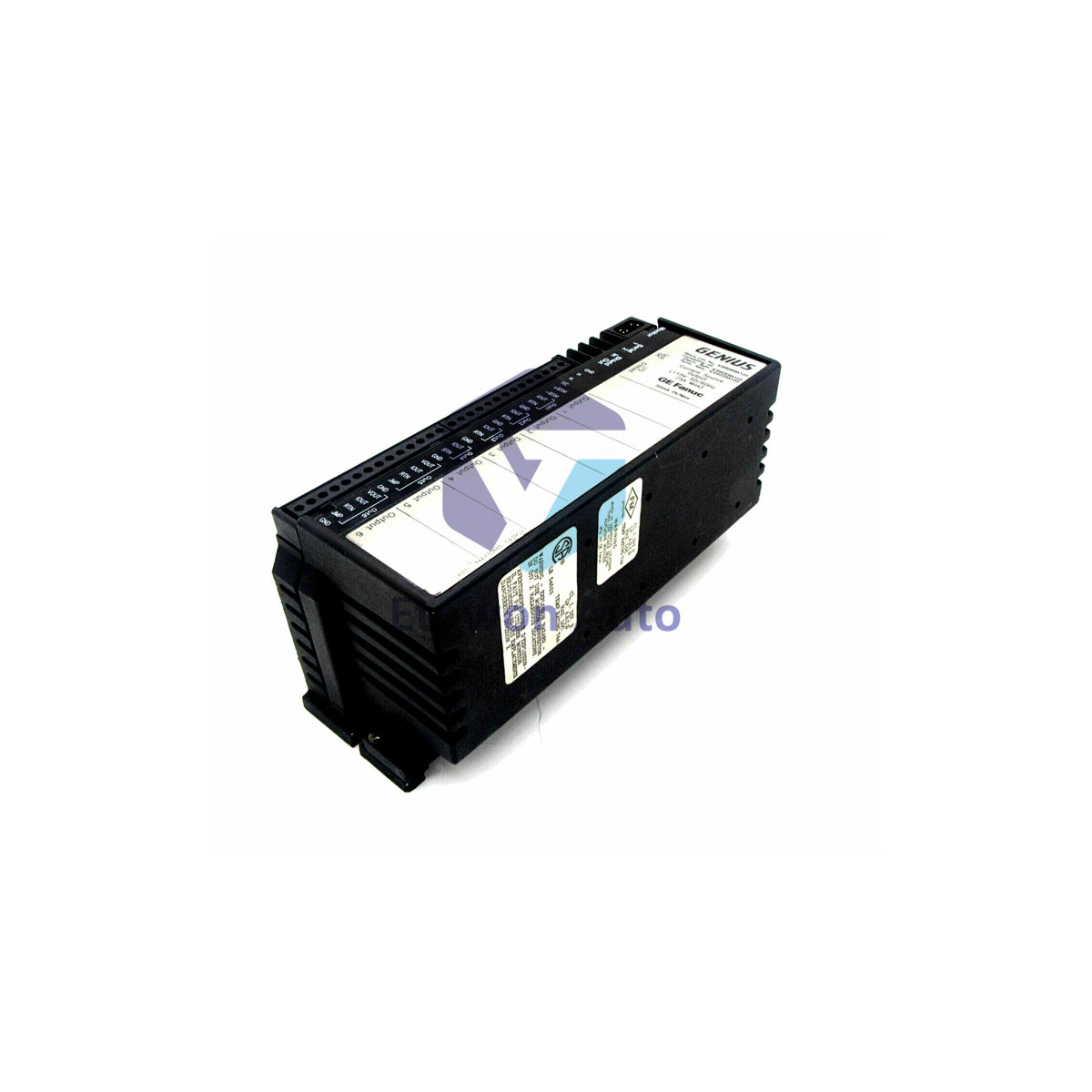

GE Fanuc IC660TSD100 Genius I/O Terminal Assembly 8 Circuit

In stock (16 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660TSD100

  • Product Type: I/O Block

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 740g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC660TSD100 8-Circuit AC Terminal Assembly

The IC660TSD100 from GE Fanuc is an AC terminal assembly designed for the IC660BBD100 and IC660BBD101 I/O blocks. It provides 8 independent screw-type connection points for field wiring.

Technical Specifications

  • Brand: GE Fanuc
  • Model: IC660TSD100
  • Series: Genius I-O
  • Compatible I/O Blocks: IC660BBD100, IC660BBD101
  • Circuits: 8 independent points
  • Voltage: 93-132 VAC (115 VAC nominal)
  • Frequency: 47 to 63 Hz
  • Output Current: 2 amps RMS per circuit
  • Inrush Current: 25 amps peak
  • Block Output Current: 15 amps at 35°C, 35 amps at 60°C
  • Minimum Load: 25 mA resistive, 40 mA inductive
  • Operating Temperature: 32 to 140°F (0 to 60°C)
  • Storage Temperature: -40 to 212°F (-40 to 100°C)
  • Isolation Rating: 1500V block-to-block
  • Heat Dissipation: 16W (8 inputs) to 43.5W (8 outputs at 2A)
  • Dimensions: 8.8 x 3.5 x 3.9 inches
  • Weight: Approximately 4 lbs

Package Contents

  • 1x GE Fanuc IC660TSD100 Terminal Assembly
  • Installation reference guide

Shipping via FedEx, UPS, or DHL.

FAQs

  • Which I/O blocks work with this terminal?
    The IC660BBD100 and IC660BBD101 115VAC 8-circuit I/O blocks.
  • What is the advantage of EEPROM storage?
    It stores block configuration on the terminal, so replacing electronics requires no reconfiguration.
  • What is the maximum output current per circuit?
    2 amps RMS steady state, with 25 amp peak inrush capability.
