IC660TSD020

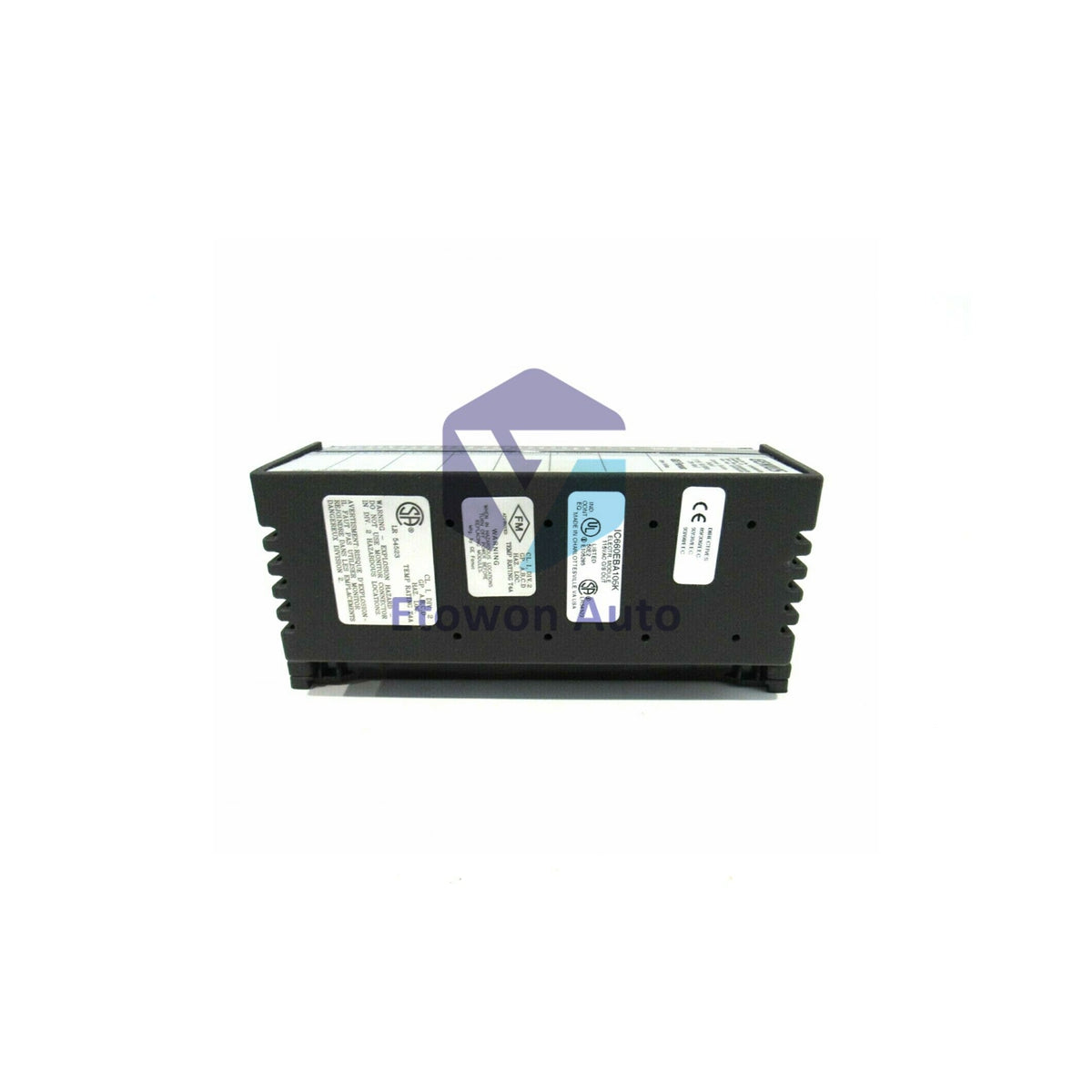

GE Fanuc IC660TSD020 Field Wiring Terminal Base Unit

In stock (16 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC660TSD020

  • Product Type: I/O Block

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 740g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

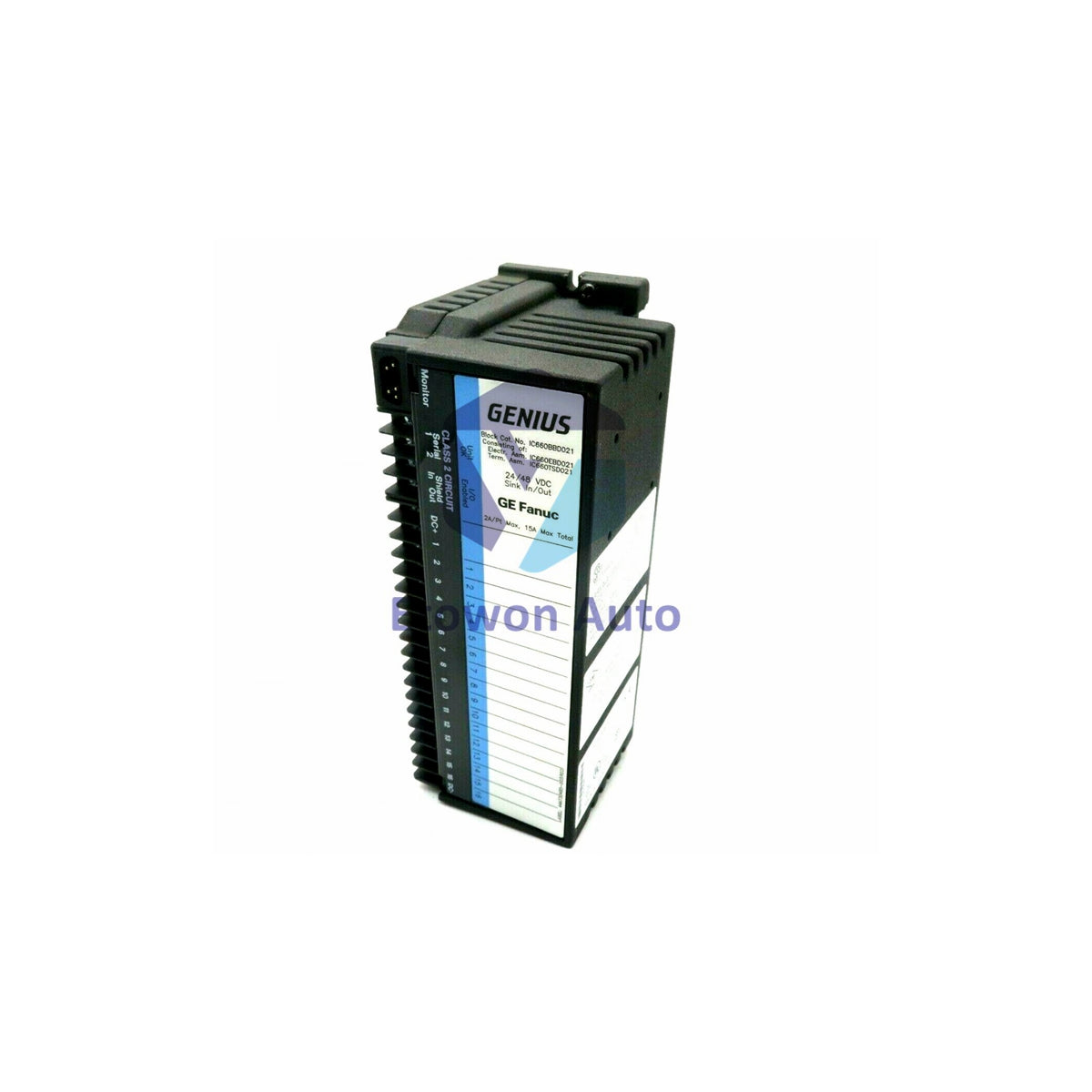

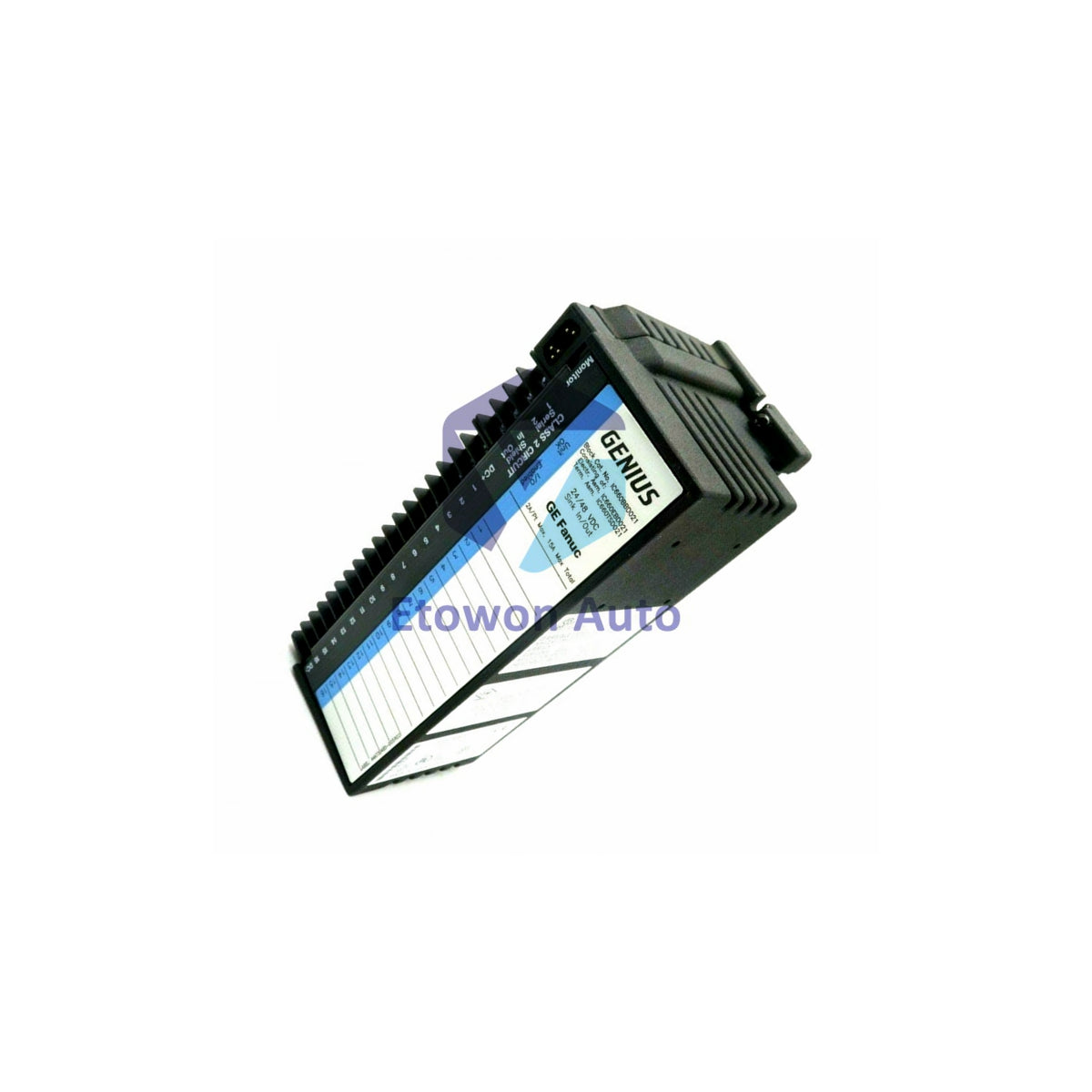

GE Fanuc IC660TSD020 16-Circuit DC Terminal Assembly

The IC660TSD020 from GE Fanuc is a DC-powered terminal assembly for the IC660BBD020 source/sink I/O block. It provides 16 independent screw-type connection points for sensors, actuators, relays, and switches.

Technical Specifications

  • Brand: GE Fanuc
  • Model: IC660TSD020
  • Series: Genius I-O
  • Circuits: 16 independent points
  • Voltage Range: 18 to 56 VDC (24-48 VDC nominal)
  • Output Current: 2 amps per point steady state
  • Inrush Current: 10 amps maximum
  • Operating Temperature: 0 to 60°C
  • Dimensions: 64 x 124 x 102 mm
  • Weight: 740 grams
  • Heat Dissipation: 68.8 watts at full load
  • Input Impedance: 5.6 kiloohms
  • Input Processing: 1.7 milliseconds

Electrical Ratings

  • Single-Source Voltage: 18-56 VDC
  • Steady State Current: 2 amps per circuit
  • Inrush Current: 10 amps maximum
  • Block Output Current: 15 amps at 35°C
  • Minimum Load: 50 milliamps with no load enabled
  • Power Requirement: 150 mA typical, 300 mA maximum

Package Contents

  • 1x GE Fanuc IC660TSD020 Terminal Assembly
  • Installation reference guide

Shipping via FedEx, UPS, or DHL.

FAQs

  • Which I/O block works with this terminal?
    The IC660BBD020 16-circuit source/sink DC I/O block.
  • What electronics assembly is compatible?
    The IC660EBD020 electronics assembly mates with this terminal.
  • What is the maximum current per point?
    2 amps steady state, with 10 amps inrush capability.
