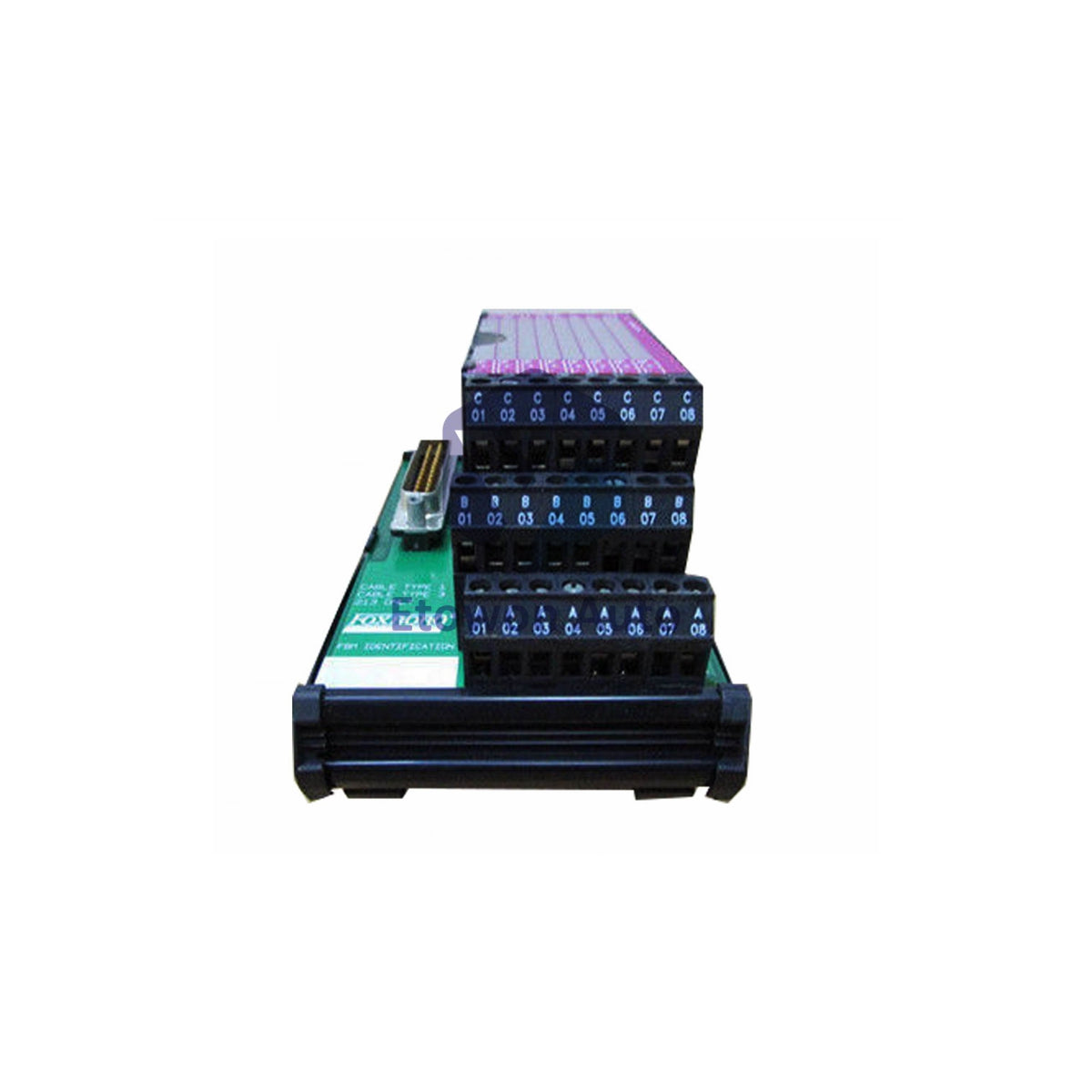

Foxboro FBM230 Modbus Master Driver Module

Foxboro FBM230 Modbus Master Serial and TCP/IP Driver Module

The Foxboro FBM230 by Schneider Electric is a Modbus Master driver module for serial and TCP/IP networks. It features four configurable ports supporting RS-232, RS-422, or RS-485 standards.

Technical Specifications

• Brand & Model: Foxboro by Schneider Electric FBM230
• Product Type: Modbus Master Driver (Serial and TCP/IP)
• Ports: 4 configurable ports
• Interface Standards: RS-232, RS-422, RS-485 (selectable per port)
• Supported Protocols: Modbus RTU, Modbus ASCII, Modbus/TCP
• Data Format: Configurable big endian or little endian
• Shipping Weight: 3 kg

Key Features

• Multi-Protocol Support: Handles Modbus RTU, ASCII, and TCP/IP devices
• Flexible Serial Interfaces: Each port configures for RS-232, RS-422, or RS-485
• Endian Configuration: Accepts big endian or little endian data formats
• Four Independent Ports: Connect multiple Modbus devices simultaneously
• Integrated Driver: Direct Modbus master functionality without external converters

Protocol Support Details

• Modbus RTU: Binary serial communication for efficient data transfer
• Modbus ASCII: Text-based serial communication for readability
• Modbus/TCP: Ethernet-based communication for network integration
• Data Handling: Configurable byte order for compatibility with various devices

System Integration

• Compatibility: Designed for Foxboro distributed control systems (DCS)
• Device Connectivity: Connect PLCs, drives, meters, and other Modbus devices
• Network Flexibility: Mix serial and Ethernet devices on same module

Package Contents

• 1 x Foxboro FBM230 Modbus Master Driver Module
• Documentation and configuration guides

Shipping

• Weight: 3 kg (packaged for shipment)
• Packaging: Anti-static protection
• Carriers: FedEx, UPS, DHL

FAQs

• What types of Modbus devices work with the FBM230?
  The FBM230 connects to any Modbus RTU, ASCII, or TCP/IP slave device including PLCs, flow computers, and power monitors.
• Can I use different protocols on each port?
  Yes. Each of the four ports independently configures for RS-232, RS-422, or RS-485 with your choice of Modbus RTU or ASCII.
• What does big endian/little endian configuration mean?
  Different devices store data bytes in different orders. The FBM230 lets you match the format your connected devices require for correct data interpretation.
