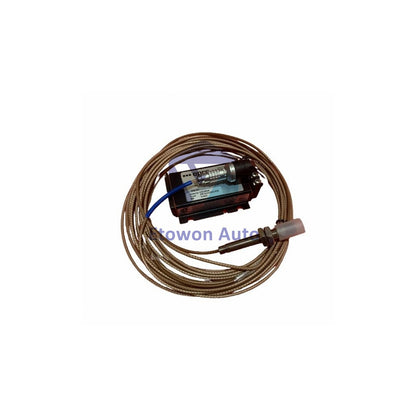

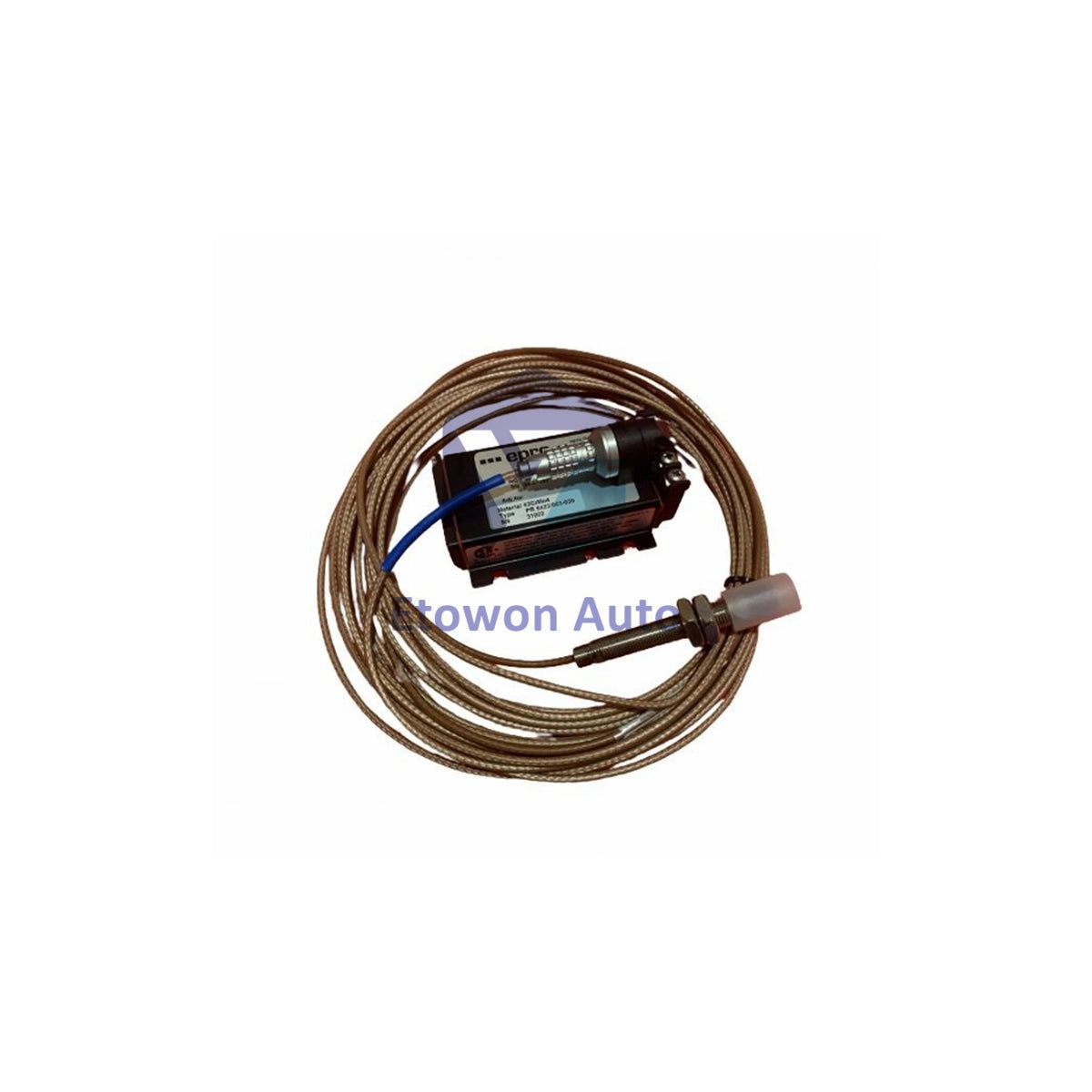

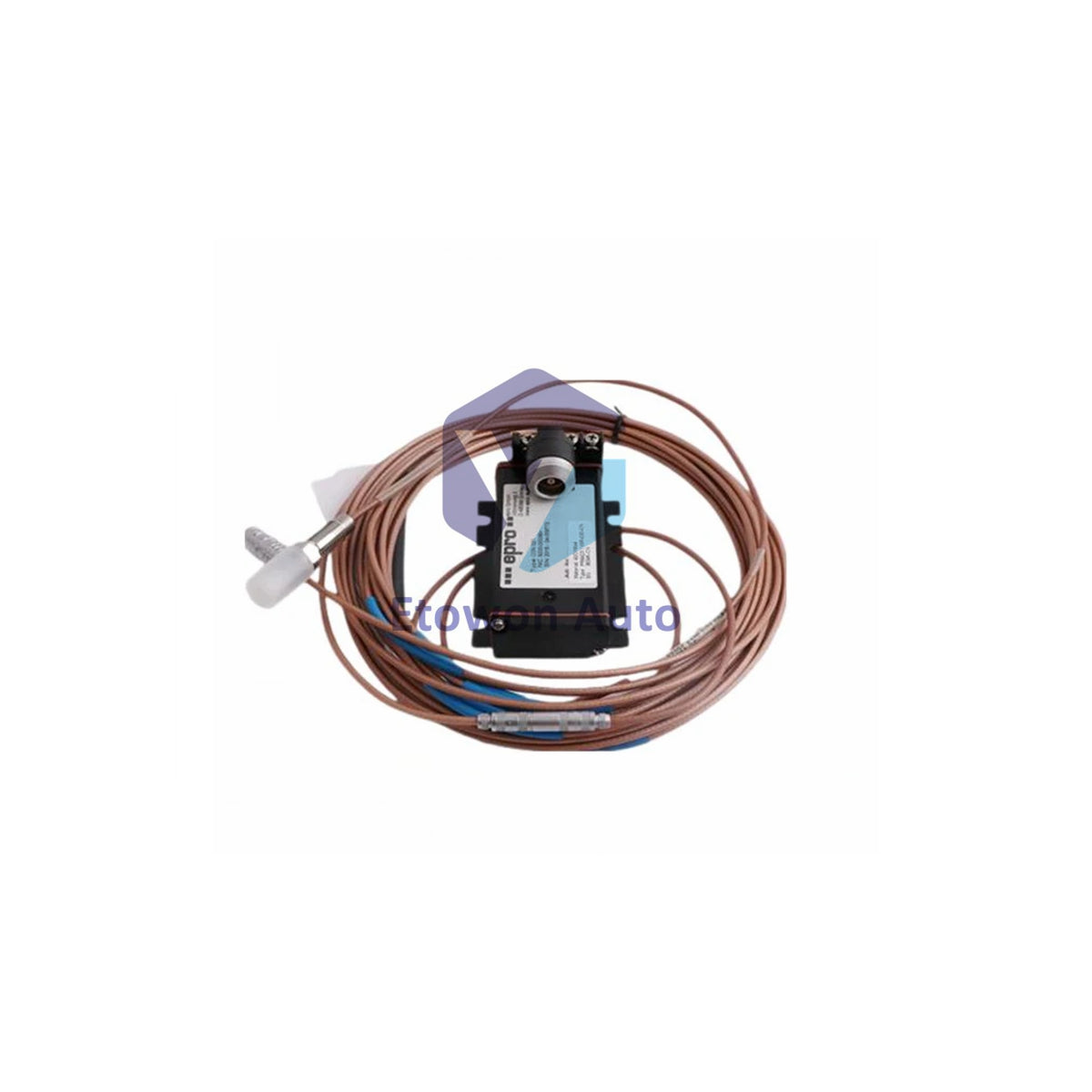

Emerson EPRO PR6423/00R-010-CN CON021 Eddy Current Sensor

Product Overview

The Emerson PR6423/00R-010-CN CON021 is a radiation resistant eddy current sensor for critical industrial applications. It delivers high-precision displacement measurement in challenging environments.

Technical Specifications

• Brand: Emerson (Epro series)
• Model: PR6423/00R-010-CN CON021
• Sensor Tip: Epoxy Resin for enhanced durability
• Case Construction: Stainless Steel with EPDM O-Ring seal
• Cable Jacket: Robust Polyolefine material
• Operating Temperature: -35°C to +80°C (-31°F to 176°F)
• Radiation Resistance (Sensor & 1m cable): 80Mrad
• Radiation Resistance (Extension cable & converter): 0.1Mrad
• Service Life (Neutron radiation): 18.26 years at 0.5Sv/h
• Service Life (Beta/Gamma radiation): 183 years at 0.5Sv/h
• Certification Note: This model has no hazardous area certification
• Weight: 0.5kg approx

Key Features

• Radiation hardened design for nuclear applications
• Epoxy resin sensor tip provides exceptional durability
• Stainless steel case with EPDM seal for environmental protection
• Polyolefine cable jacket resists radiation and harsh conditions
• Wide temperature range from -35°C to +80°C
• Extended service life in high radiation environments

Radiation Resistance Details

• Sensor and 1m integral cable: 80Mrad total dose tolerance
• Extension cables and CON021 converter: 0.1Mrad tolerance
• Neutron radiation service life: 18.26 years at 0.5Sv/h
• Beta/Gamma radiation service life: 183 years at 0.5Sv/h
• Designed for nuclear power plant instrumentation

Package Contents

• 1x PR6423/00R-010-CN CON021 eddy current sensor
• 1m integral cable (radiation resistant)
• Factory packaging with seal
• Manufacturer warranty documentation

Important Note

• This model has no hazardous area certification
• Not approved for explosive atmospheres
• Designed specifically for radiation resistance

Warranty & Support

• Full manufacturer warranty included
• New and original factory packaging
• Technical support available

FAQ

Q: What makes the PR6423/00R-010-CN different from standard PR6423 sensors?

A: This "R" version features radiation-resistant materials including epoxy resin tip and polyolefine cable. It withstands 80Mrad total dose for nuclear applications.

Q: Can I use this sensor in hazardous explosive environments?

A: No. This model has no hazardous area certification. It is designed specifically for radiation resistance, not explosive atmospheres.

Q: What is the expected service life in a nuclear facility?

A: At 0.5Sv/h radiation, neutron exposure gives 18.26 years service life. Beta/gamma exposure gives 183 years service life for the sensor and 1m cable.

Download

Access Detailed Product Specifications PDF
