Emerson A6312/06 Speed Monitor | 20kHz Frequency Range

Product Overview

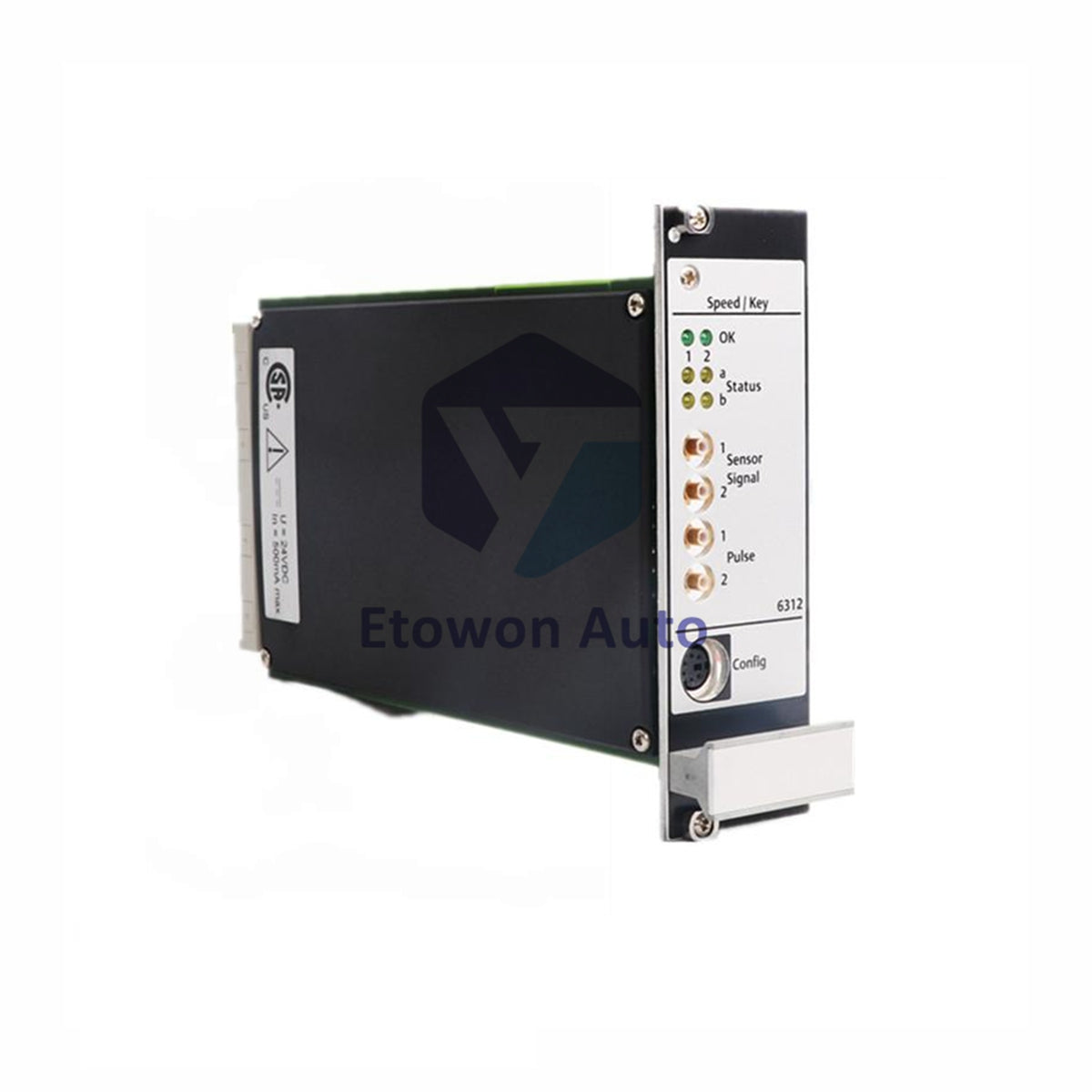

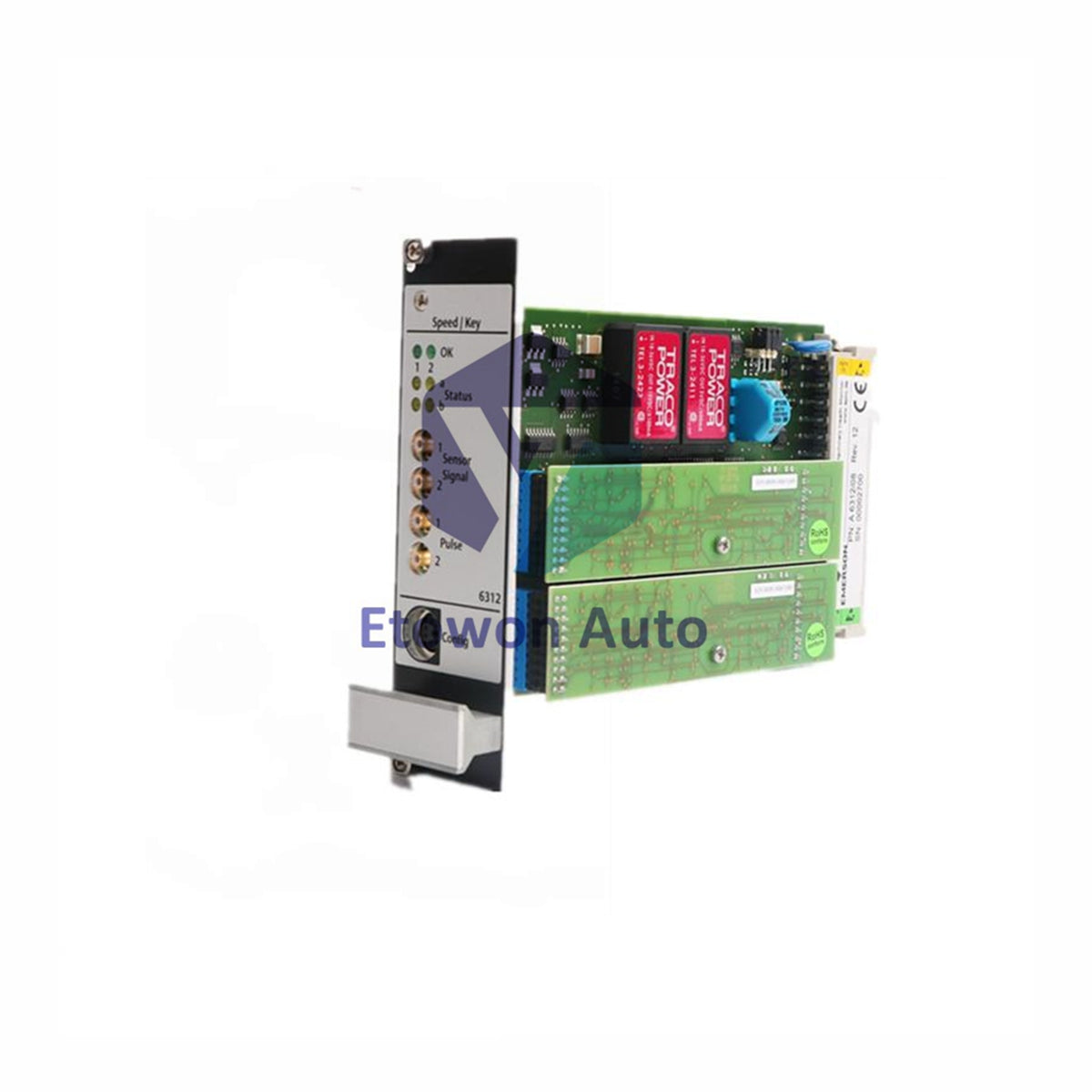

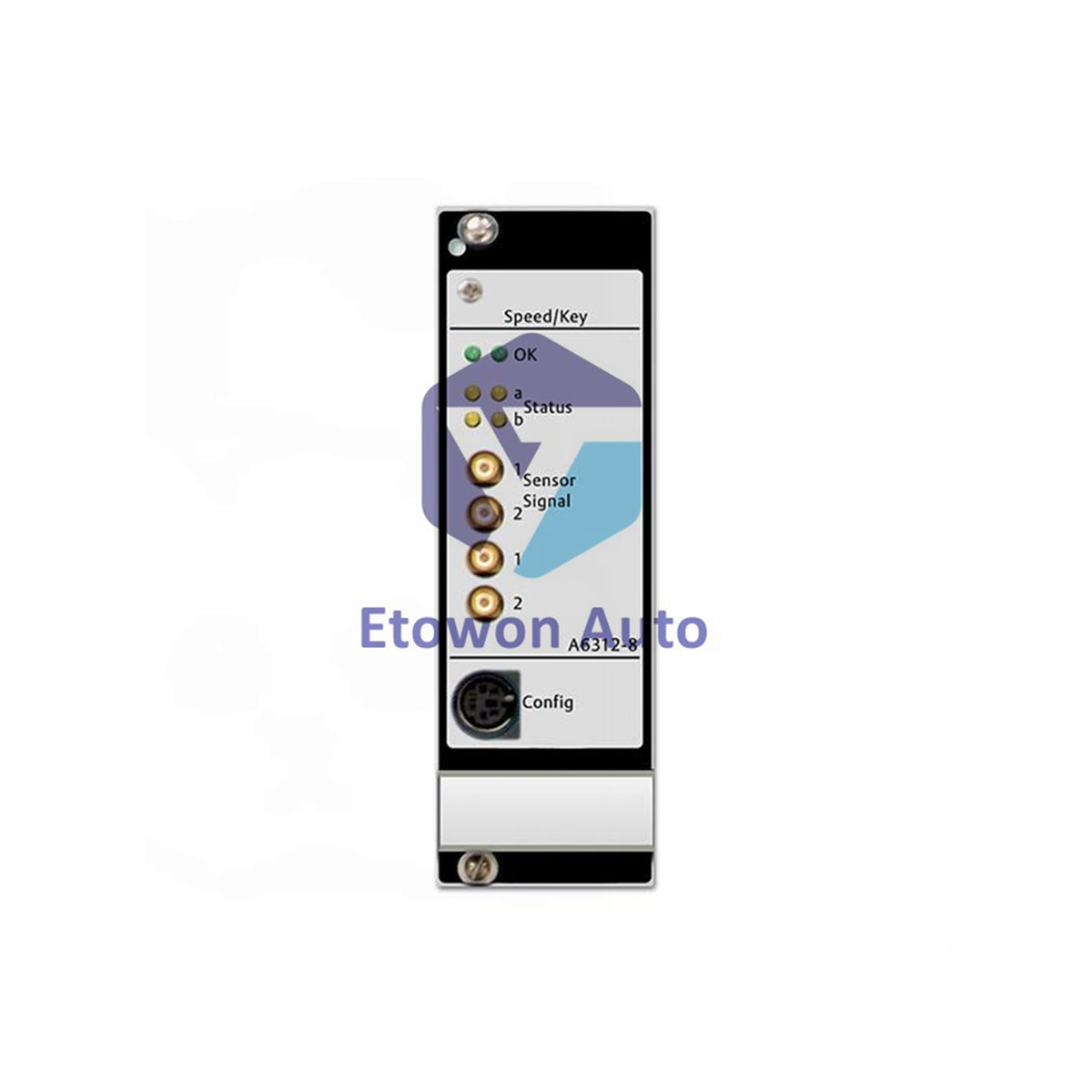

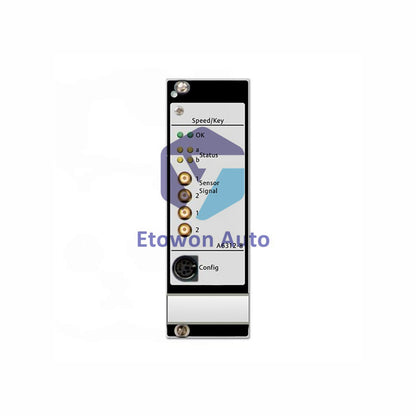

The Emerson A6312/06 is a speed and key monitor for industrial systems. This A6312/06 module delivers precise rotational measurements. It provides reliable data for machinery protection and control.

Technical Specifications

• Brand & Model: Emerson A6312/06 monitor module
• Input Voltage: 0 to ±27.3 VDC input range
• Frequency Range: 0-20,000 Hz (65,535 RPM)
• Measurement Accuracy: ±1% of full scale
• Response Time: Configurable from 0 to 10 seconds
• Output Signal: 0-20 kHz pulse per channel
• Operating Temperature: 0°C to 65°C range
• Physical Dimensions: 30×128.4×160mm (W×H×D)

Performance Features

• High Accuracy: ±1% full scale measurement precision
• Wide Frequency Range: 0-20kHz for various speed applications
• Flexible Response: Adjustable 0-10 second response time
• Standard Output: 0-20kHz pulse signal compatibility
• Temperature Tolerance: Reliable 0°C to 65°C operation
• Compact Design: Space-efficient DIN rail mounting

Documentation Download

Download Complete Product Specifications PDF

FAQ

• What does this monitor measure?
• It measures rotational speed and keyphasor signals for machinery.
• What is the accuracy of the A6312/06?
• This module provides ±1% full scale measurement accuracy.
• How do I install this monitor?
• Use simple DIN rail mounting with the provided hardware.
