VFD037CB23A-21

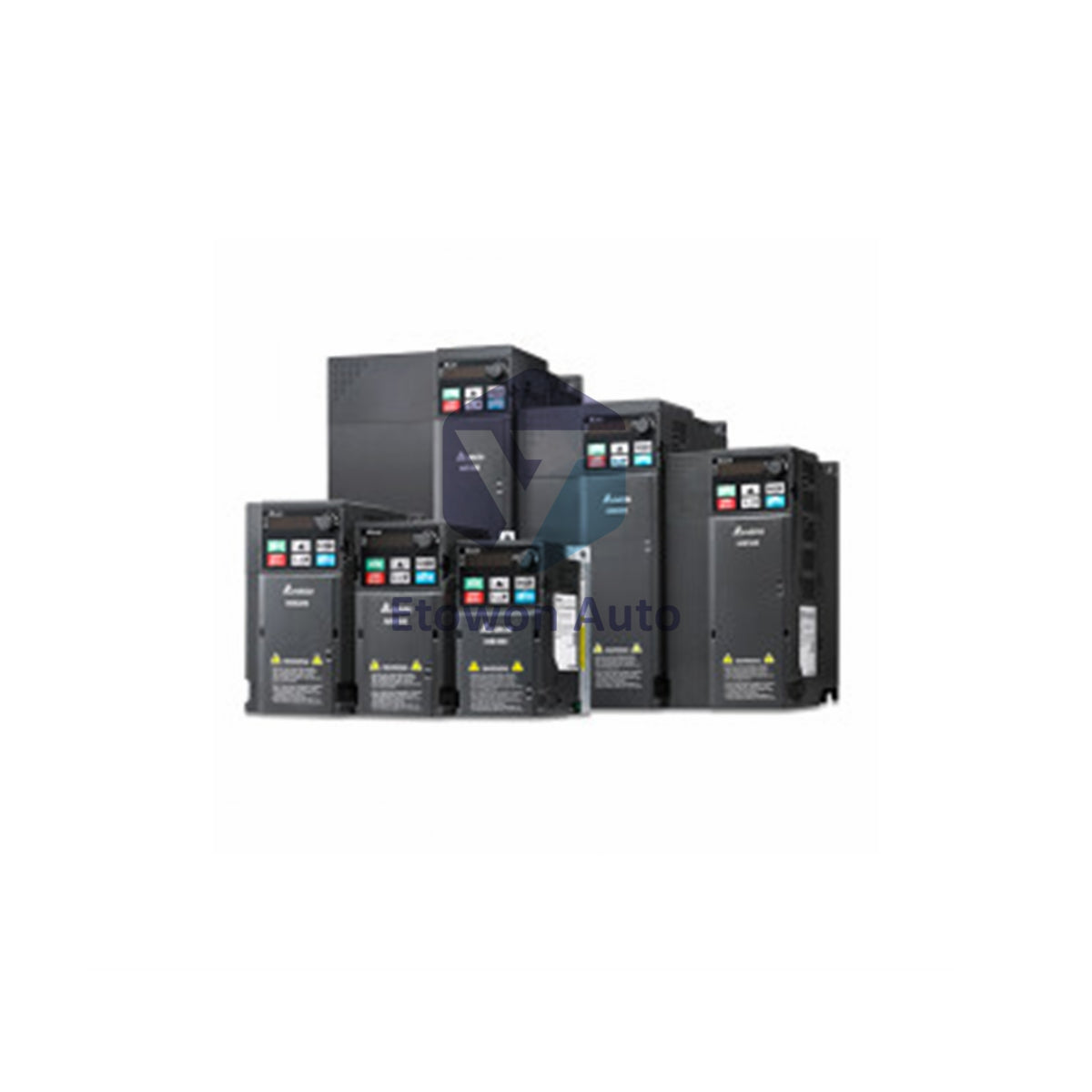

Delta VFD037CB23A-21 VFD-C200 5HP 230V 3PH Drive

In stock (11 units), ready to be shipped

  • Manufacturer: Delta

  • Product No.: VFD037CB23A-21

  • Product Type: AC Drive

  • Product Origin: CN

  • Payment:T/T, Western Union

  • Weight: 2900g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Delta VFD037CB23A-21 VFD-C200 Series Drive 5 HP 230V

The Delta VFD037CB23A-21 is a VFD-C200 series intelligent drive. It delivers 5 HP at 230V three phase input. This unit provides 3.75 KW output power with 16A capacity. It includes built-in PLC functions and versatile control modes.

Model and Series

  • Model Name: VFD037CB23A-21
  • Series: VFD-C200 Series
  • Frame Size: Frame A supports wall mounted installation

Electrical Specifications

  • Input Voltage: 230 V, 3 Phase
  • Horsepower: 5 HP
  • Kilowatts: 3.75 KW
  • Output Current: 16 A
  • Built-in Brake Chopper: Yes

Built-in Features

  • PLC Function: Built-in PLC with 5,000 steps capacity
  • Communication Protocols: MODBUS RS-485 and CANopen (Slave)
  • Motor Control: Supports open loop control of permanent motors (PM Sensorless)

High Speed I/O

  • High Speed Inputs: Two pulse input terminals MI7 and MI8 up to 33kHz
  • High Speed Outputs: Two pulse output terminals DFM1 and DFM2 up to 33kHz

Environmental Protection

  • PCB Coating: New coating meets IEC 60721-3-3 class 3C2
  • Thermal Design: Strengthened for harsh environment applications
  • Anti-dust Design: Provides comprehensive protection

Operator Interface

  • Keypad: High-brightness LED keypad
  • Cable Compatibility: Shares extension cable with VFD-E/M/B Series for maximum operation distance

Package and Shipping

  • Includes: Delta VFD037CB23A-21 drive. Documentation included.
  • Shipping: Via FedEx, UPS, or DHL worldwide.

FAQ

  • What control modes does this drive support?
    It supports intelligent vector control and open loop control for permanent magnet motors.
  • Does it have built-in communication protocols?
    Yes. It includes MODBUS RS-485 and CANopen slave capabilities.
  • Can it handle harsh environments?
    Yes. It features PCB coating per class 3C2 and strengthened thermal design for dust protection.
  • What are the high speed I/O capabilities?
    It has two 33kHz pulse inputs and two 33kHz pulse outputs for precise control.
