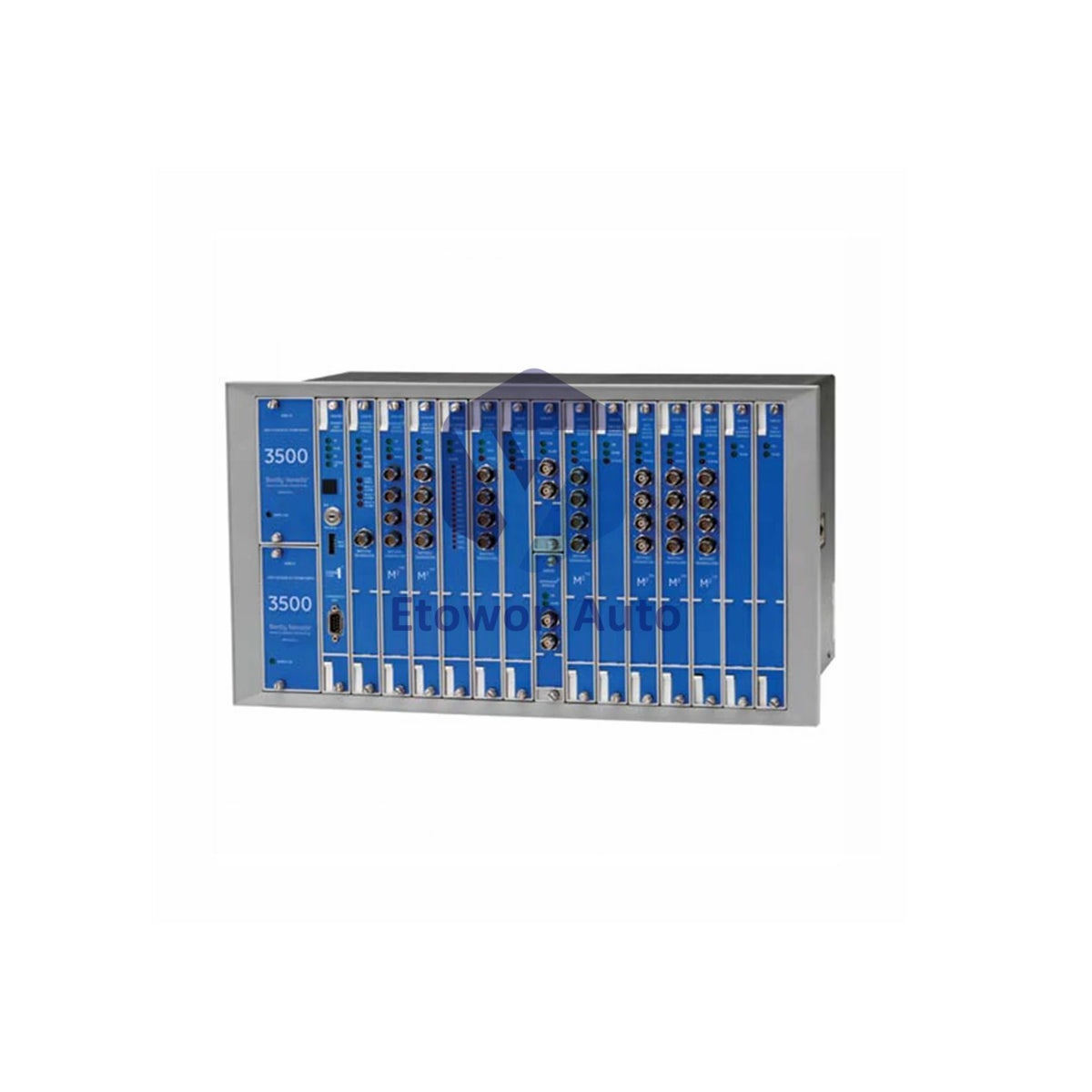

Bently Nevada 3500/61-01-00 Temperature Monitor Recorder Output

Bently Nevada 3500/61-01-00 Temperature Monitor

Bently Nevada 3500/61-01-00 provides temperature monitoring with recorder outputs. This 3500 series module accepts 1 to 6 RTD or thermocouple transducer signals.

Key Features

• 1 to 6 channel RTD/TC input for flexible temperature monitoring configurations
• 4-20mA recorder outputs proportional to monitor full-scale values
• Supports Type E, J, K, T thermocouples and platinum, nickel, copper RTDs
• User-configurable Alert and Danger setpoints from 0-100% of full-scale
• Programmable alarm delays: 1-60 seconds for Alert, 0.5-60 seconds for Danger
• Power consumption: 9 watts nominal
• Operating temperature: -30°C to +65°C
• Weight: 0.91 kg (2.0 lb)

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/61-01-00
• Product type: Temperature Monitor with Recorder Outputs
• I/O module type: RTD/TC Non-isolated I/O Module Internal Terminations
• Input impedance: 10 MΩ per lead
• Recorder output: 4-20 mA, 0-600 Ω load, 0-12 Vdc compliance
• Resolution: 0.3662 µA per bit, ±0.15% error at 25°C
• RTD current source: 925 ±15 µA at 25°C
• Cold junction accuracy: ±1°C at 25°C
• Alarm accuracy: ±0.13% of desired value
• Operating temperature: -30°C to +65°C
• Storage temperature: -40°C to +85°C
• Monitor dimensions: 241.3 × 24.4 × 241.8 mm
• Monitor weight: 0.91 kg
• I/O module weight: 0.45 kg
• Rack space: 1 full-height front slot, 1 full-height rear slot
• Country of origin: Made in U.S.A.

FAQ

• What is 3500/61-01-00?
  Bently Nevada temperature monitor with recorder outputs. Accepts 1-6 RTD/TC inputs, 9W power, 0.91kg. Made in U.S.A.
• What sensor types does it support?
  Supports Type E, J, K, T thermocouples and platinum, nickel, copper RTDs. Resolution 1°C or 1°F.
• What are the recorder output specifications?
  4-20 mA outputs proportional to full-scale. Load range 0-600 Ω with 0-12 Vdc compliance. Short circuits do not affect monitor operation.
