22A-A4P5N104

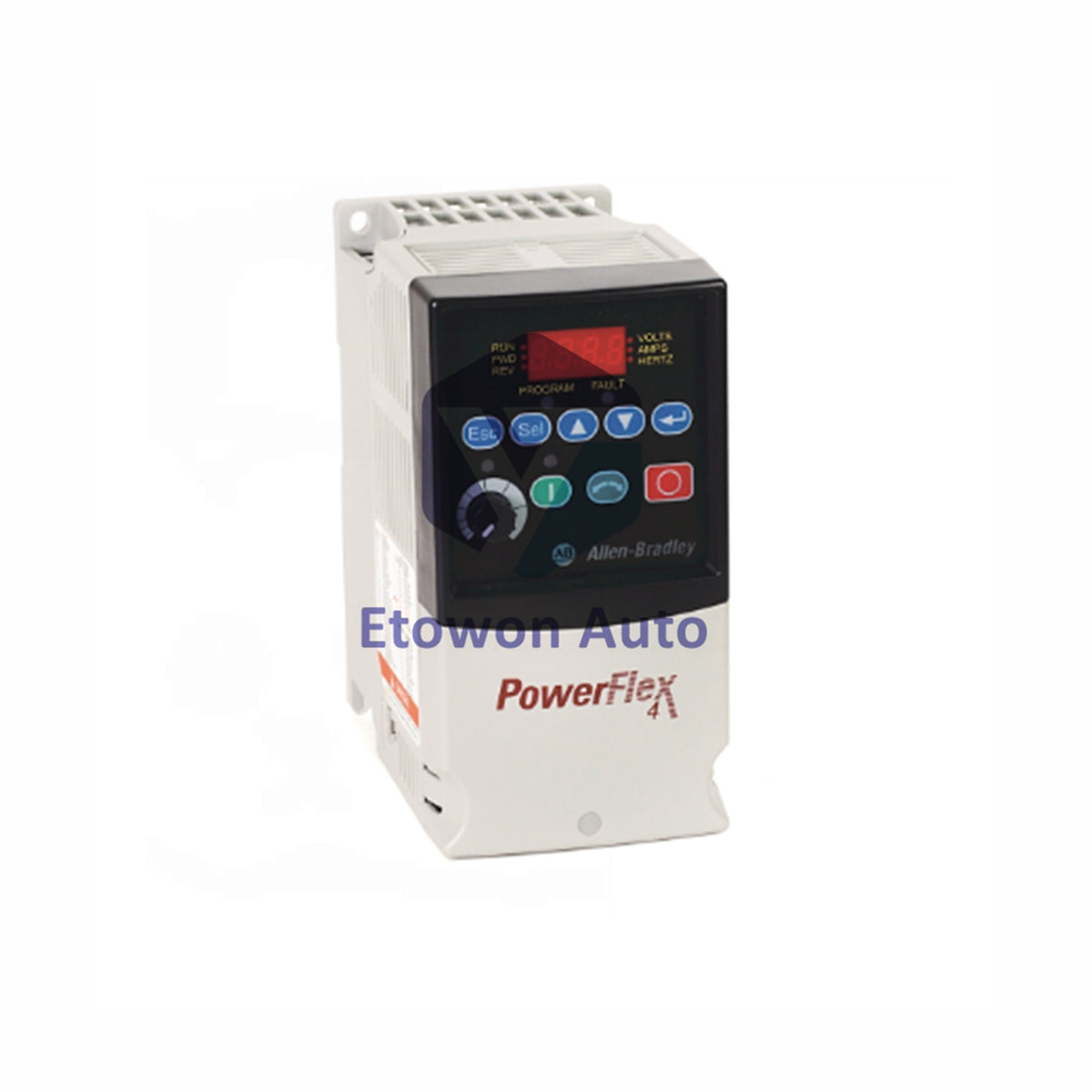

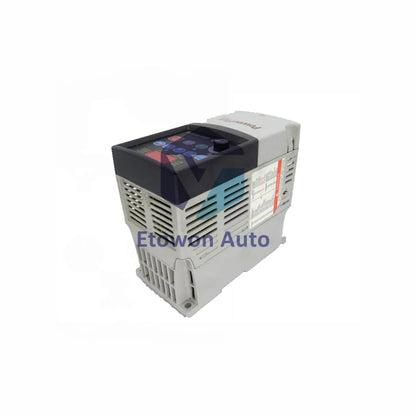

Allen-Bradley PowerFlex 4 22A-V4P5N104 Drive

In stock (18 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22A-A4P5N104

  • Product Type: PowerFlex 4 Compact Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2200g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley PowerFlex 4 Compact Drive 0.75kW

Experience precise single-phase motor control with advanced analog inputs designed for industrial automation applications.

Product Identification

  • Brand: Allen-Bradley
  • Model: 22A-V4P5N104
  • Series: PowerFlex 4
  • Type: Adjustable Frequency Drive

Electrical Specifications

  • Input Power: 1-Phase 200-240V AC
  • Output Power: 0.75kW (1HP)
  • Output Current: 4.5A
  • Frequency Range: 0-400Hz adjustable
  • Analog Inputs: 4-20mA (250Ω), 0-10V (100kΩ)
  • Control Accuracy: ±0.5% speed regulation

Physical Specifications

  • Dimensions: 100×180×136mm (3.94×7.09×5.35in)
  • Weight: 2.2kg (4.9lb)
  • Enclosure Rating: IP20 open type
  • Cooling Method: Natural convection
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)

Performance Features

  • 5ms fast response time
  • Built-in PID controller
  • Motor overload protection
  • 150% overload capacity for 60 seconds
  • Auto-tuning capability
  • Multiple preset speeds

Installation Requirements

  • Panel or DIN rail mounting options
  • 50mm minimum clearance required
  • Standard screwdriver for installation
  • Front access terminals for easy wiring
  • Vertical mounting orientation recommended

Certifications & Compliance

  • CE Certified
  • UL Listed
  • cULus Approved
  • RoHS Compliant
  • EMC Directive Compliant

Packaging Contents

  • Allen-Bradley 22A-V4P5N104 Drive Unit
  • Installation Manual
  • Quick Start Guide
  • Warranty Documentation

Warranty & Support

  • 12-Month Manufacturer Warranty
  • 24/7 Technical Support Available
  • Immediate Shipping from Stock
  • Carrier Options: FedEx, UPS, DHL
  • Online Technical Resources

Industrial Applications

  • Small Packaging Machinery
  • Laboratory Equipment Control
  • Medical Device Systems
  • Precision Conveyor Systems
  • Ventilation Control Systems
  • Process Control Applications

Frequently Asked Questions

  • What input voltage does this drive require?
    Single-phase 200-240V AC power supply.
  • Does it include analog inputs?
    Yes, both 4-20mA and 0-10V analog inputs are standard.
  • What is the warranty period?
    12-month manufacturer warranty is included.
