22D-B012F104

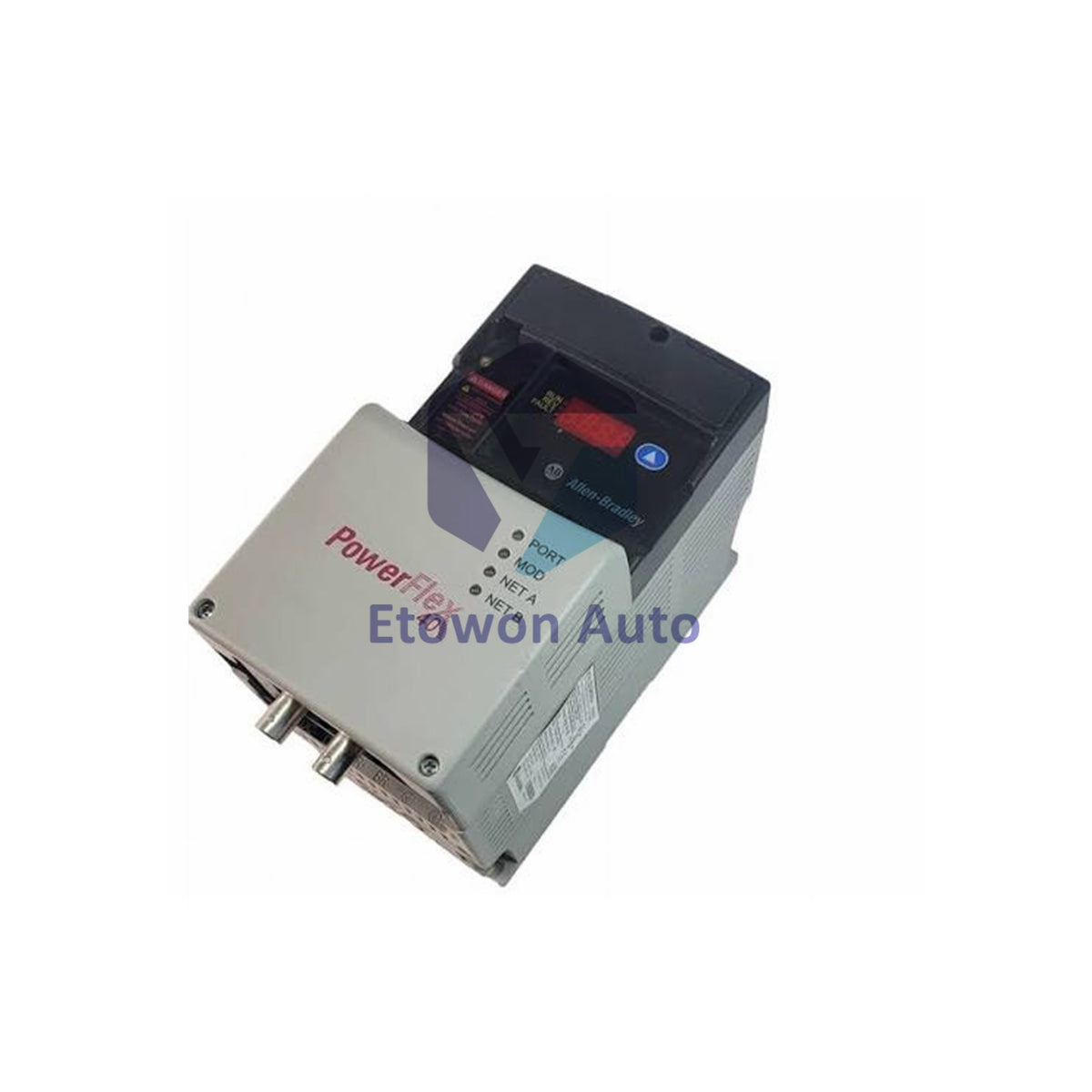

Allen-Bradley 22D-B012F104 PowerFlex 40P 3HP 12A Drive

In stock (12 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22D-B012F104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley 22D-B012F104 PowerFlex 40P AC Drive

Allen-Bradley 22D-B012F104 is a PowerFlex 40P series AC drive delivering 3 HP (2.2 kW) at 12A output. Features V/Hz, sensorless vector, and PWM control methods with built-in PID controller. Flange mount design.

Key Specifications

Parameter Value
Catalog No. 22D-B012F104
Input Voltage 208-240V AC, 3-Phase
Output Current 12A
Power 3 HP (2.2 kW)
Control Methods V/Hz, Sensorless Vector, PWM
Frame Size Size B
Mounting Flange (IP20/NEMA Open)
Weight 1.8 kg (4.0 lb)

Dimensions

Parameter Value
Height 125 mm
Width 204 mm
Depth 113 mm

Motor Control Features

  • Built-in PID controller
  • Auto-tune motor adaptation
  • Electronic motor overload protection
  • 6kV transient voltage protection
  • Ground fault detection
  • Dynamic braking

Display & Indicators

  • 4-digit LCD display
  • Reset button
  • Run/Fault/Reverse status LEDs
  • Quick-start programming

Environmental Ratings

Parameter Value
Operating Temp -10°C to +50°C
Storage Temp -40°C to +70°C
Humidity 0-95% non-condensing
Altitude 1000m max without derating

Protection Features

  • Overcurrent protection
  • Overvoltage/undervoltage protection
  • Phase loss detection
  • Motor stall prevention
  • Dynamic braking

Installation Notes

  • Requires 35mm DIN rail or panel flange mount
  • Maintain 50mm clearance for ventilation
  • Use copper conductors only
  • Torque terminals to 1.2 N·m
  • EMC filter not included (optional)

FAQs

Q1: What is the output power rating?
A1: 3 HP (2.2 kW) with 12A output current.

Q2: What control methods does this drive support?
A2: V/Hz, Sensorless Vector, and PWM control.

Q3: What are the mounting options?
A3: Flange mount (IP20/NEMA Open) or 35mm DIN rail.

Product Resources

📄 Download PDF
🏷️ Tags: AC Drive

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.

 View Product Details
