22C-B049A103

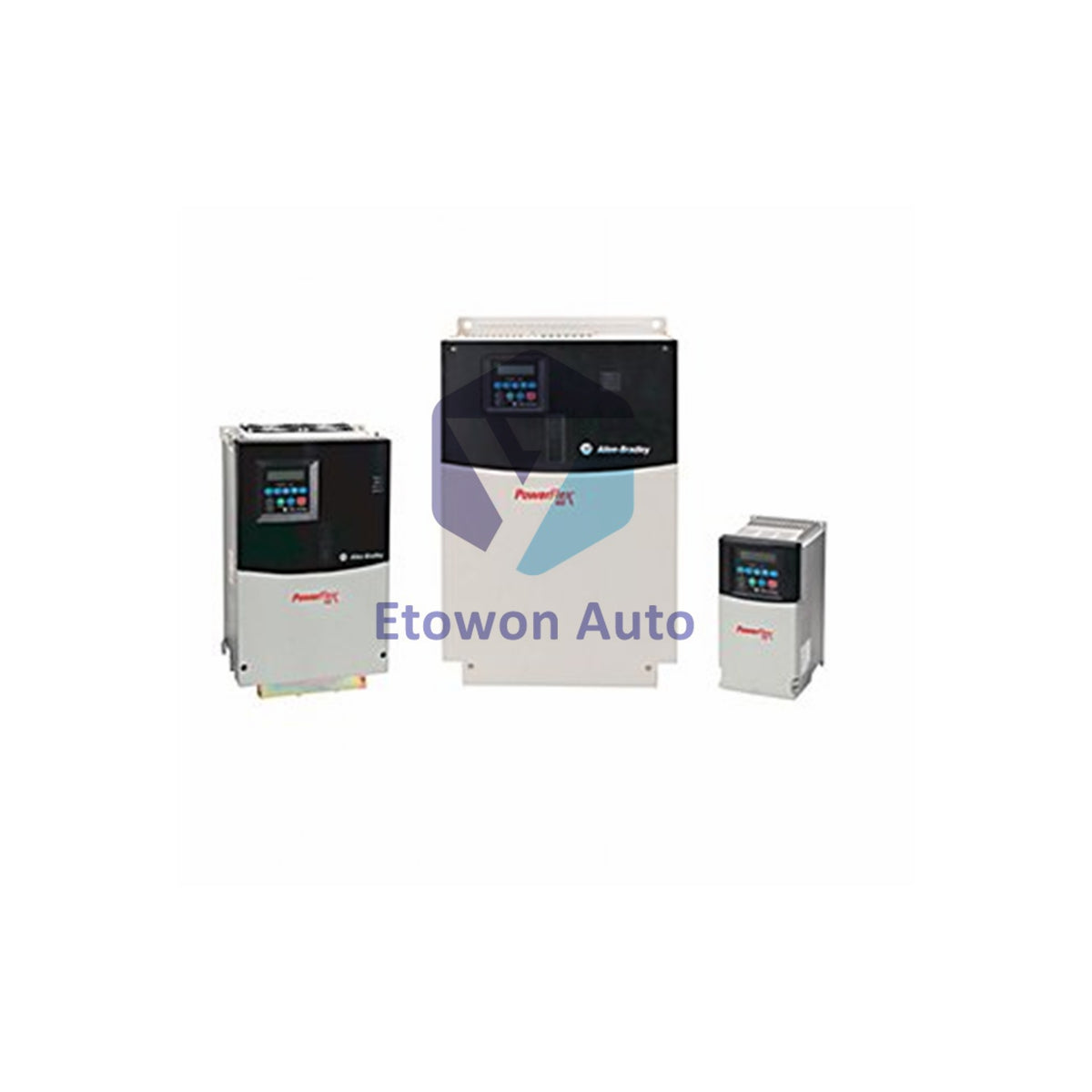

Allen-Bradley 22C-B049A103 0-400Hz 7 Inputs Drive

In stock (22 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 22C-B049A103

  • Product Type: Drive Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 13920g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

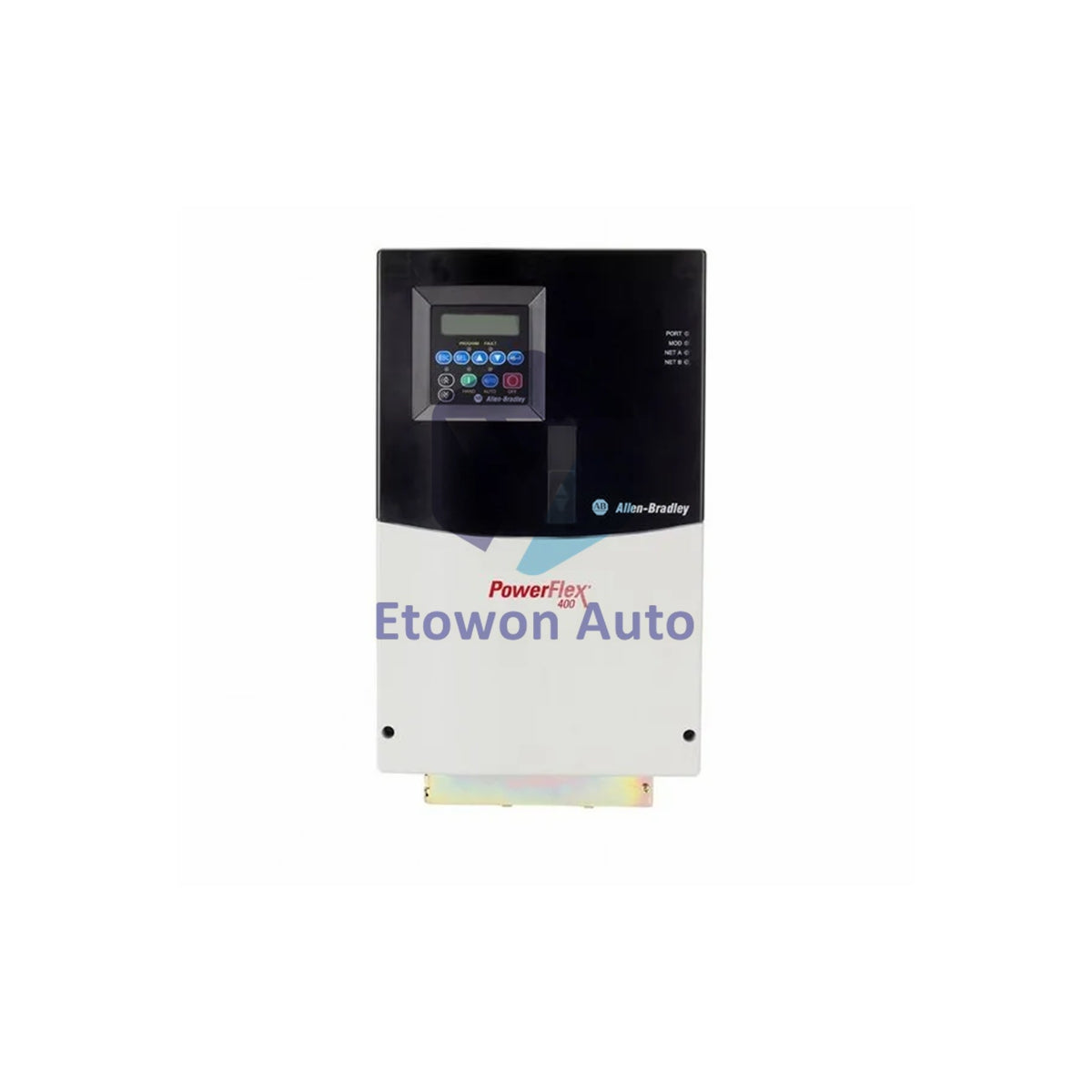

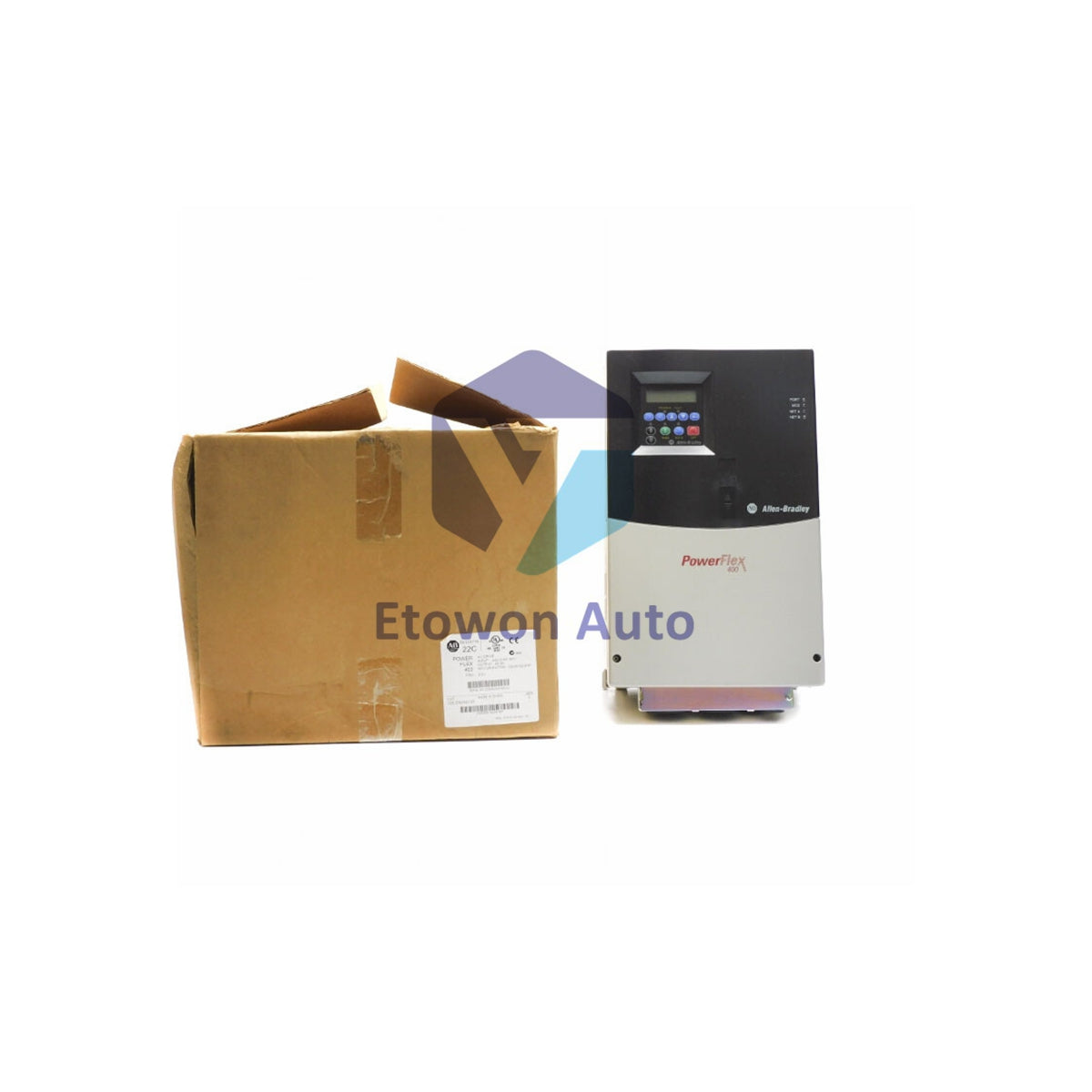

Allen-Bradley 22C-B049A103 PowerFlex 400 AC Drive

Allen-Bradley 22C-B049A103 is a PowerFlex 400 AC drive delivering 11 kW (15 HP) at 49A. Features 180-265V AC input, 0-400Hz output, V/Hz control with PID, and IP30/NEMA 1 enclosure.

Key Specifications

Parameter Value
Catalog No. 22C-B049A103
Output Power 11 kW (15 HP)
Input Voltage 180-265V AC, 3-Phase
Output Current 49A continuous
Frequency Range 0-400Hz adjustable
Control Methods V/Hz, PID, Slip Compensation
Enclosure Rating IP30 / NEMA 1
Weight 13.92 kg

I/O & Control

I/O Type Quantity
Digital Inputs 7 (sink/source)
Analog Inputs 2 (0-10V/4-20mA)
Relay Outputs 2 (Form C)
Analog Outputs 2 (0-10V/4-20mA)
Interface LCD keypad

Communication Options

  • Built-in RS485 port
  • Optional DeviceNet module
  • EtherNet/IP compatible
  • PROFIBUS DP support
  • BACnet/LonWorks ready

Safety Features

  • Fire alarm system integration
  • Emergency purge function
  • Coast-to-stop safety response
  • Fault reset protection
  • UL Type 1 enclosure

Environmental Limits

Parameter Value
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +85°C
Vibration Resistance 1G @ 5-2000Hz

FAQs

Q1: What is the output power rating?
A1: 11 kW (15 HP) with 49A output current.

Q2: What control methods are supported?
A2: V/Hz, PID, and Slip Compensation.

Q3: What is the enclosure rating?
A3: IP30 / NEMA 1, panel mount.

Download Product Specifications PDF
