1756-L85EP

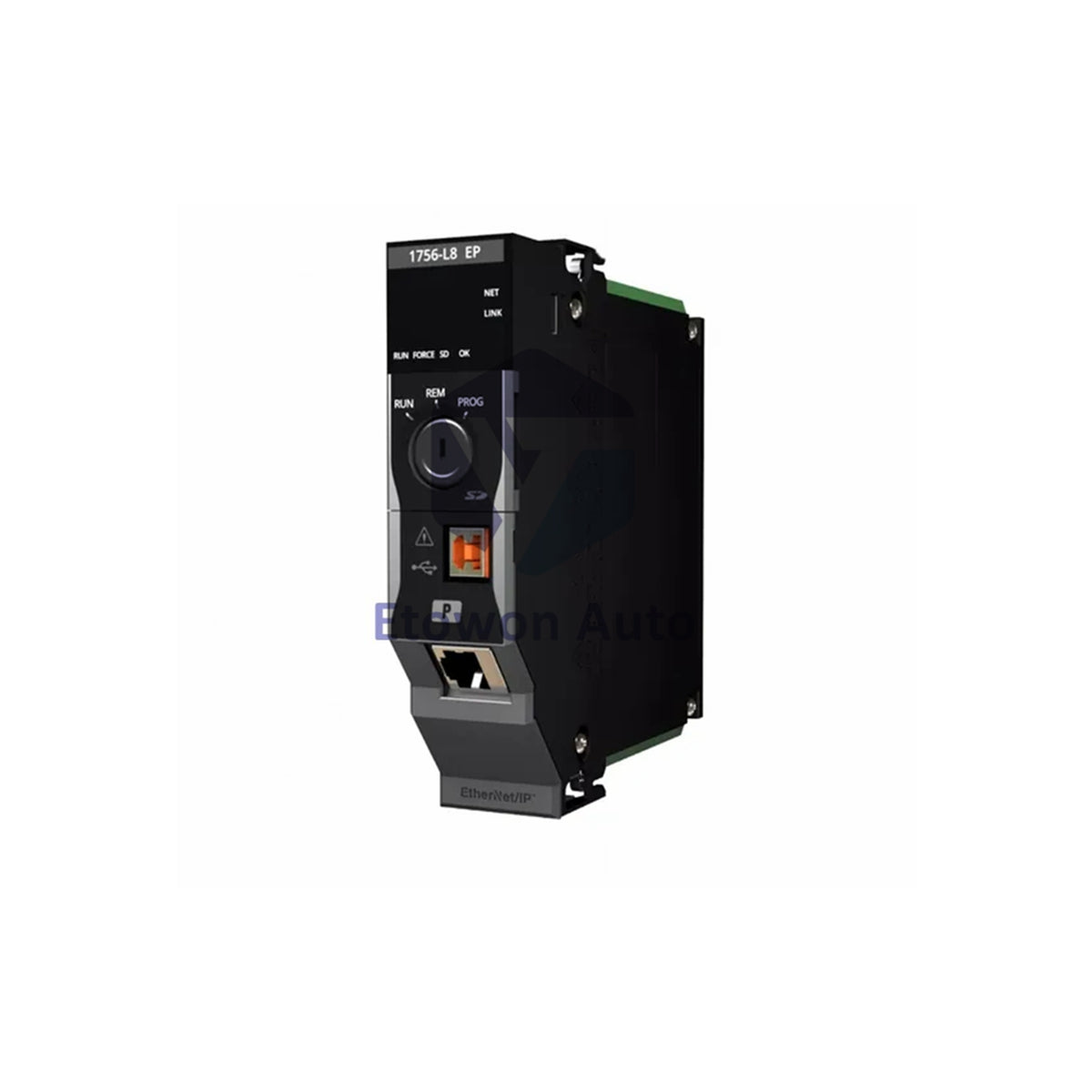

Allen-Bradley 1756-L85EP ControlLogix 5580E Process Controller

In stock (23 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-L85EP

  • Product Type: Process Controller

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Allen-Bradley, a Rockwell Automation brand, makes the 1756-L85EP for process tasks. This ControlLogix 5580E controller gives 40.00 MB user memory and supports 128,000 total I/O.

Essentials of 1756-L85EP

  • Part of ControlLogix 5580 family; fits Series C chassis (Series B with derated temp).
  • Direct Ethernet: 10/100/1000 Mbps; USB 2.0: 12.00 Mbps; 300 EtherNet/IP nodes max.
  • 128,000 digital I/O; 4,000 analog I/O; 4‑char display; programs in Studio 5000.

Core Specs – Brand: Allen-Bradley | Model: 1756-L85EP

  • User memory: 40.00 MB
  • Max digital I/O: 128,000; Max analog I/O: 4,000
  • Ethernet: 10/100/1000 Mbps; USB: 12.00 Mbps
  • Nodes: 300; Power: 6.20 W; Thermal: 21.20 BTU/hr
  • Current: 1.20 A at 5.00 V DC; 5.00 mA at 1.20 V DC
  • Op temp: 0.00–60.00 °C (32.00–140.00 °F)
  • Non‑op temp: -40.00–50.00 °C (32.00–122.00 °F)
  • Humidity: 5–95%; Vibration: 2.00 g at 10–500 Hz
  • Shock: 30.00 g op & non‑op; T4 ATEX rated.

Installation Tips

  • Install in Series C chassis for full range; use Series B with derating.
  • Power from ControlLogix chassis supply; connect Ethernet directly.

Package Contents

  • One 1756-L85EP controller module; ships via FedEx, UPS, DHL.

FAQ

  • Q: Memory of 1756-L85EP?
    A: 40.00 MB user memory.
  • Q: Max EtherNet/IP devices?
    A: 300 nodes.
  • Q: Programming software?
    A: Studio 5000 automation environment.
