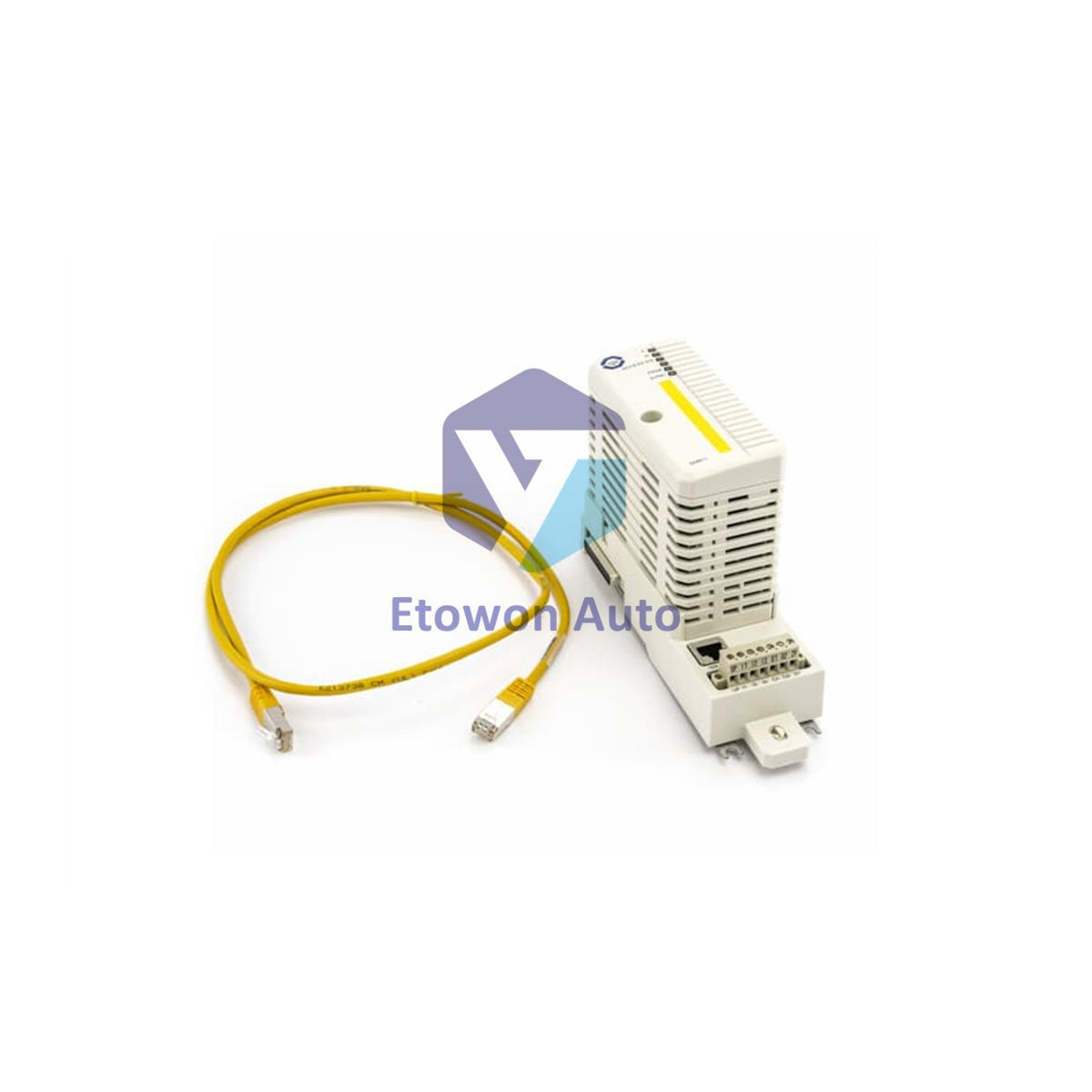

ABB SM811 3BSE018173R1 Classic Controller Module

ABB SM811 Classic Module (for PM865)

Article Number: 3BSE018173R1. This SM811 classic module is designed for use with PM865 controllers in ABB automation systems. Features MPC862P processor at 96 MHz, 32 MB memory, and redundant operation capability.

General information

• Article Number: 3BSE018173R1
• Life Cycle Status: Classic
• Redundancy: Yes, supports redundant operation
• Processor: MPC862P
• Clock Frequency: 96 MHz
• Memory: 32 MB

Power specifications

• Power Supply: 24V DC (19.2 - 30 V DC)
• Power Consumption: 160 mA typical
• Power Dissipation: 3.8 W

Environmental conditions

• Operating Temperature: +5°C to +55°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95%, non-condensing
• Pollution Degree: Degree 2

Physical dimensions

• Width: 59 mm
• Height: 186 mm
• Depth: 127.5 mm
• Weight: 0.7 kg (1.54 lb)

Package contents & shipping

• One ABB SM811 classic module (3BSE018173R1).
• Factory packaging with documentation included.
• Ships via FedEx, UPS, or DHL with tracking.
• Anti-static protection during transit.

FAQ

1. What processor does the SM811 use?
MPC862P processor running at 96 MHz with 32 MB memory.

2. Is this module redundant capable?
Yes, supports redundant operation with PM865 controllers.

3. What is the power supply requirement?
24V DC (19.2 - 30 V DC) with 160 mA typical consumption.
