ABB RTAC-03 | TTL Pulse Encoder Interface Module

In stock (25 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: RTAC-03

  • Product Type: Interface Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

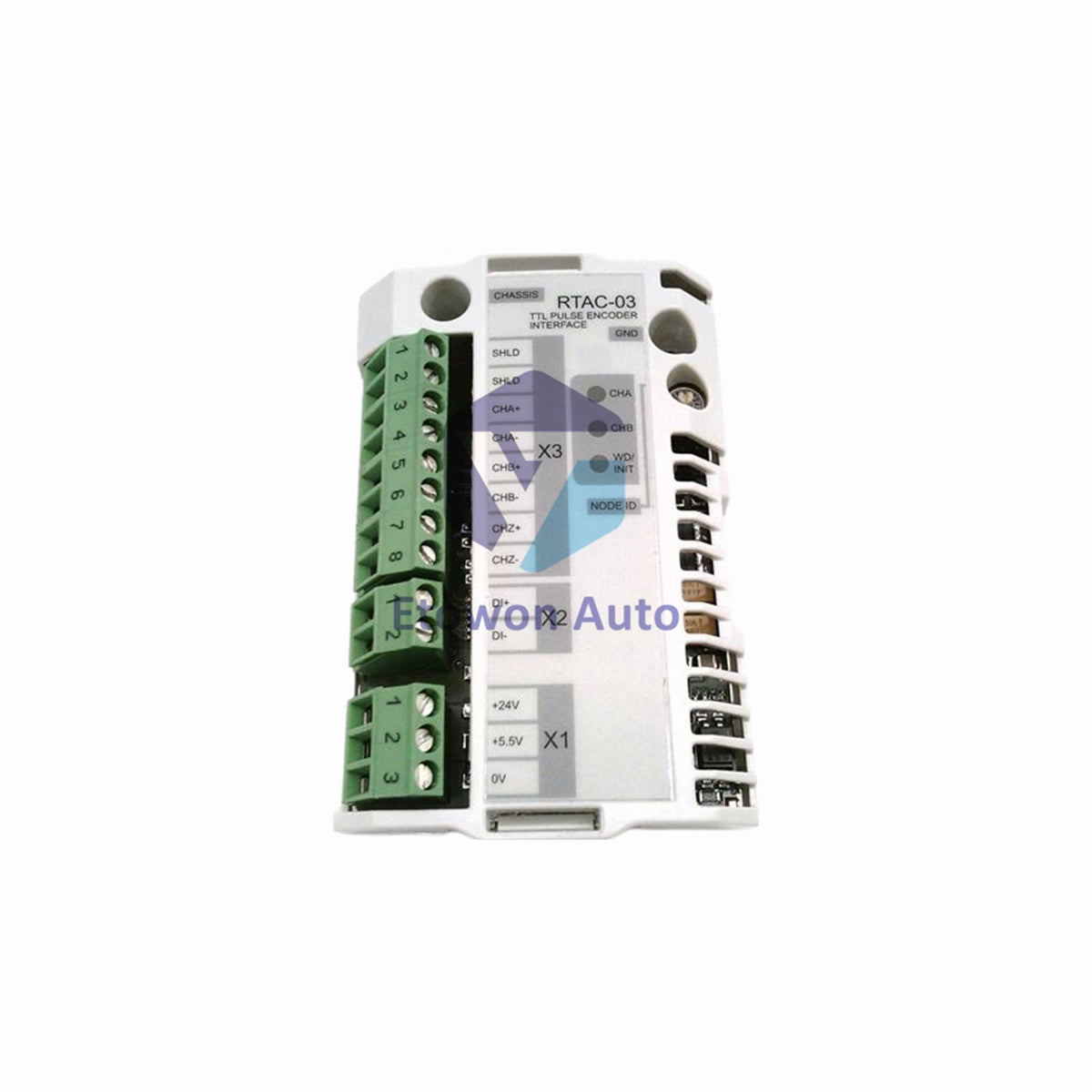

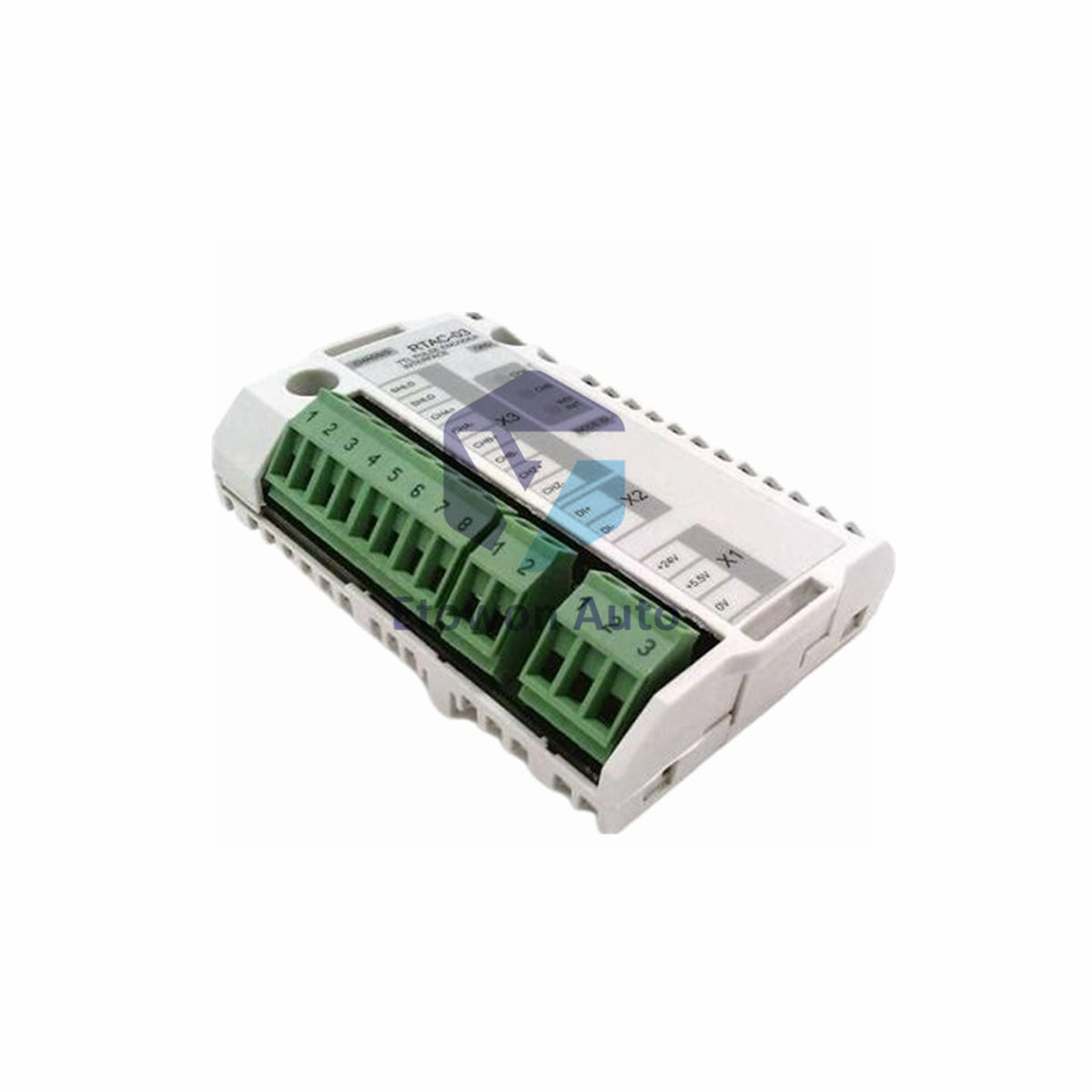

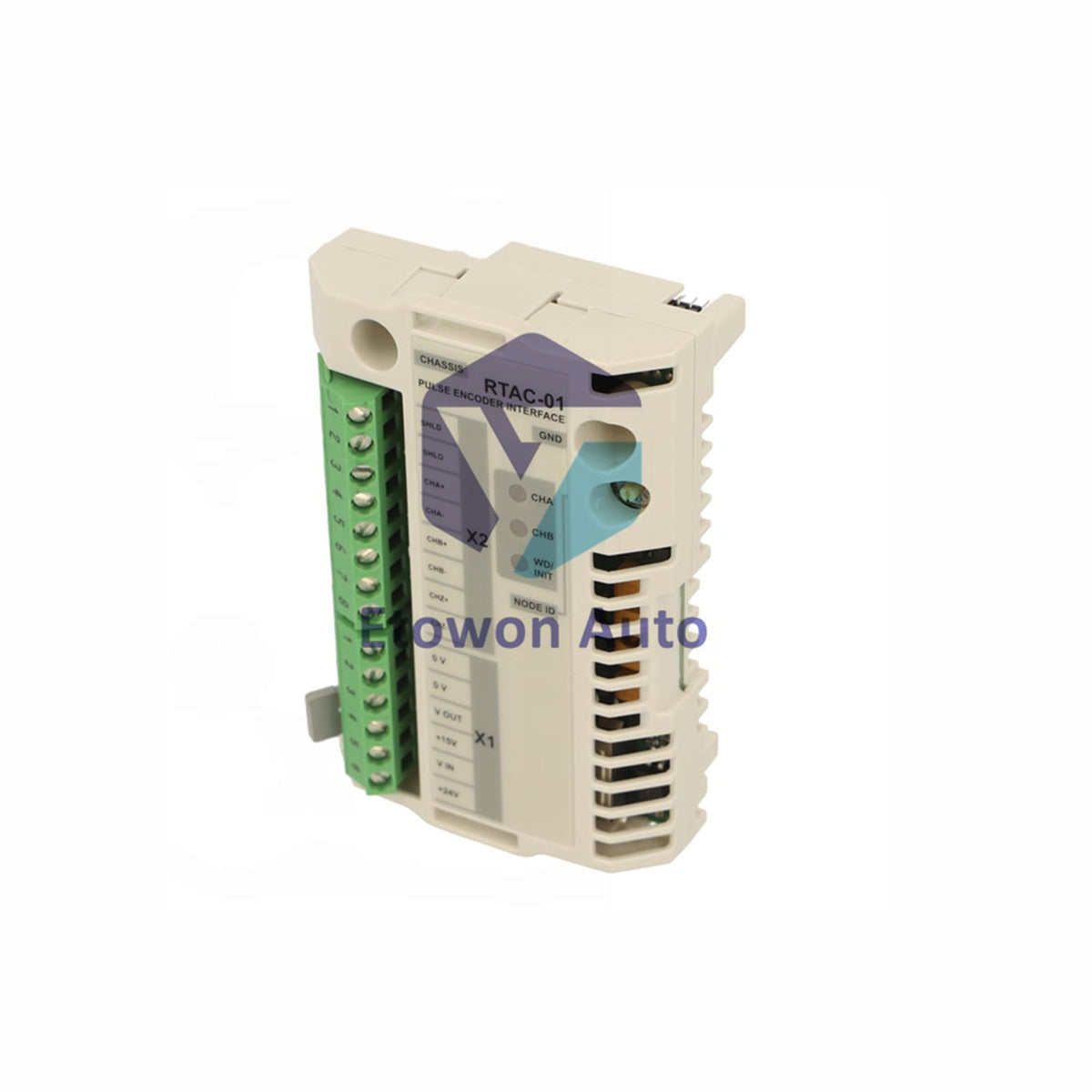

ABB RTAC-03 TTL Pulse Encoder Interface Module

The ABB RTAC-03 is a TTL pulse encoder interface module for drive systems. It provides high-speed encoder feedback with 200 kHz maximum frequency. Compact design for RMIO board or AIMA-01 adapter mounting.

Physical specifications

  • Dimensions: 34 x 95 x 20 mm
  • Mounting: RMIO board or AIMA-01 adapter
  • Protection class: IP20

Hardware configuration

  • Node ID: 16-31 (rotary switch selectable)
  • Connectors: 38-pin bus, non-detachable terminal blocks

Encoder interface

  • Type: TTL incremental encoder
  • Encoder supply: 5V DC (300 mA) or 10-30V DC (210 mA)
  • Output voltage: 5.5V DC or 24V DC
  • Maximum frequency: 200 kHz

Digital inputs

  • Logic level: 24V (0 = <5V, 1 = >15V)
  • Power consumption: 150 mA (5V) + 300 mA (24V)

Compliance

  • UL/CSA approved materials
  • Complies with EN 50081-2 and EN 50082-2

Includes

  • RTAC-03 interface module
  • Factory packaging
  • 12-month warranty

Shipping

  • FedEx, UPS, DHL
  • Tracking provided

FAQ

What encoders are compatible?

TTL incremental encoders with 5V or 10-30V supply.

What is the maximum frequency?

200 kHz for high-speed encoder feedback.

How is node ID set?

Rotary switch selects node ID from 16 to 31.
