CI871A

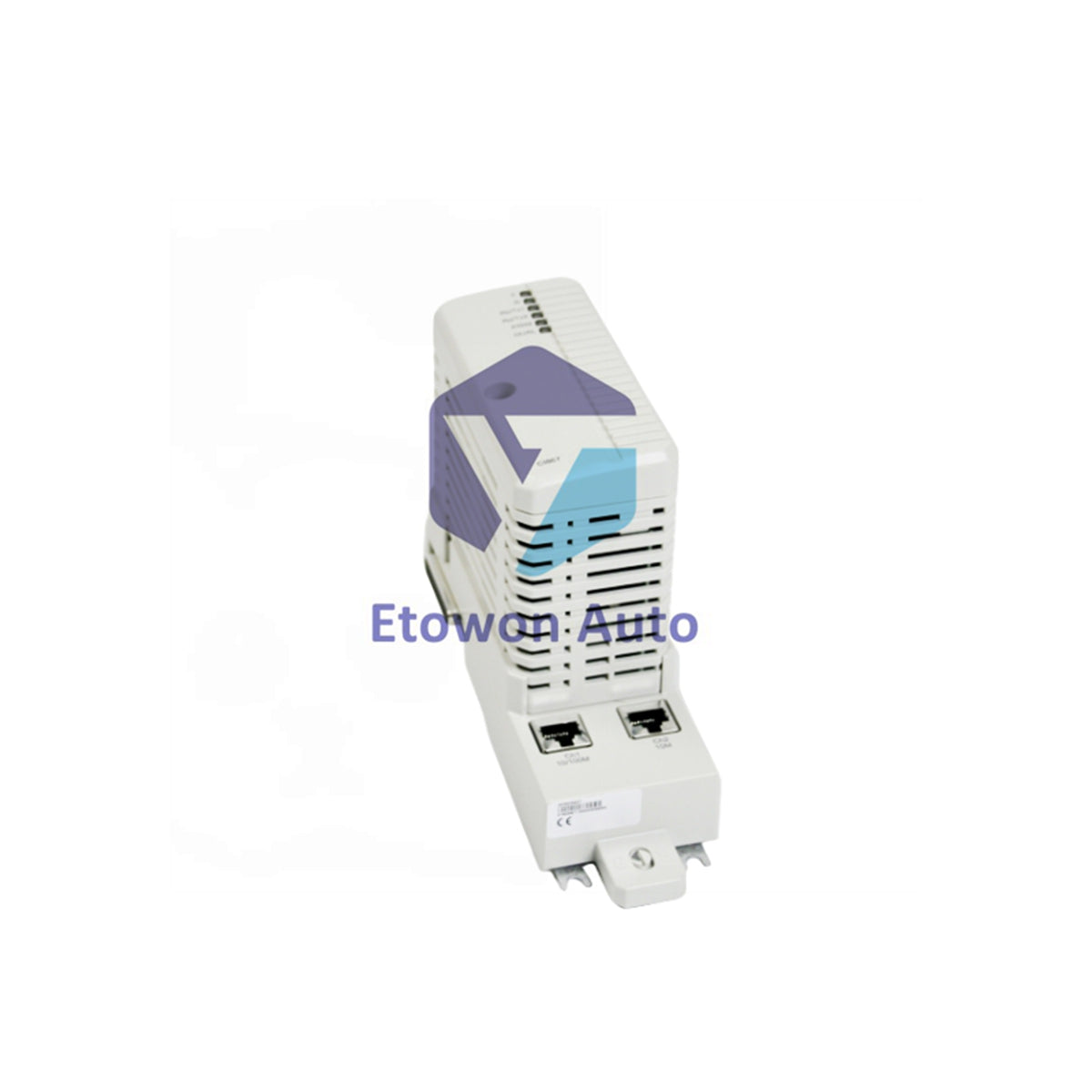

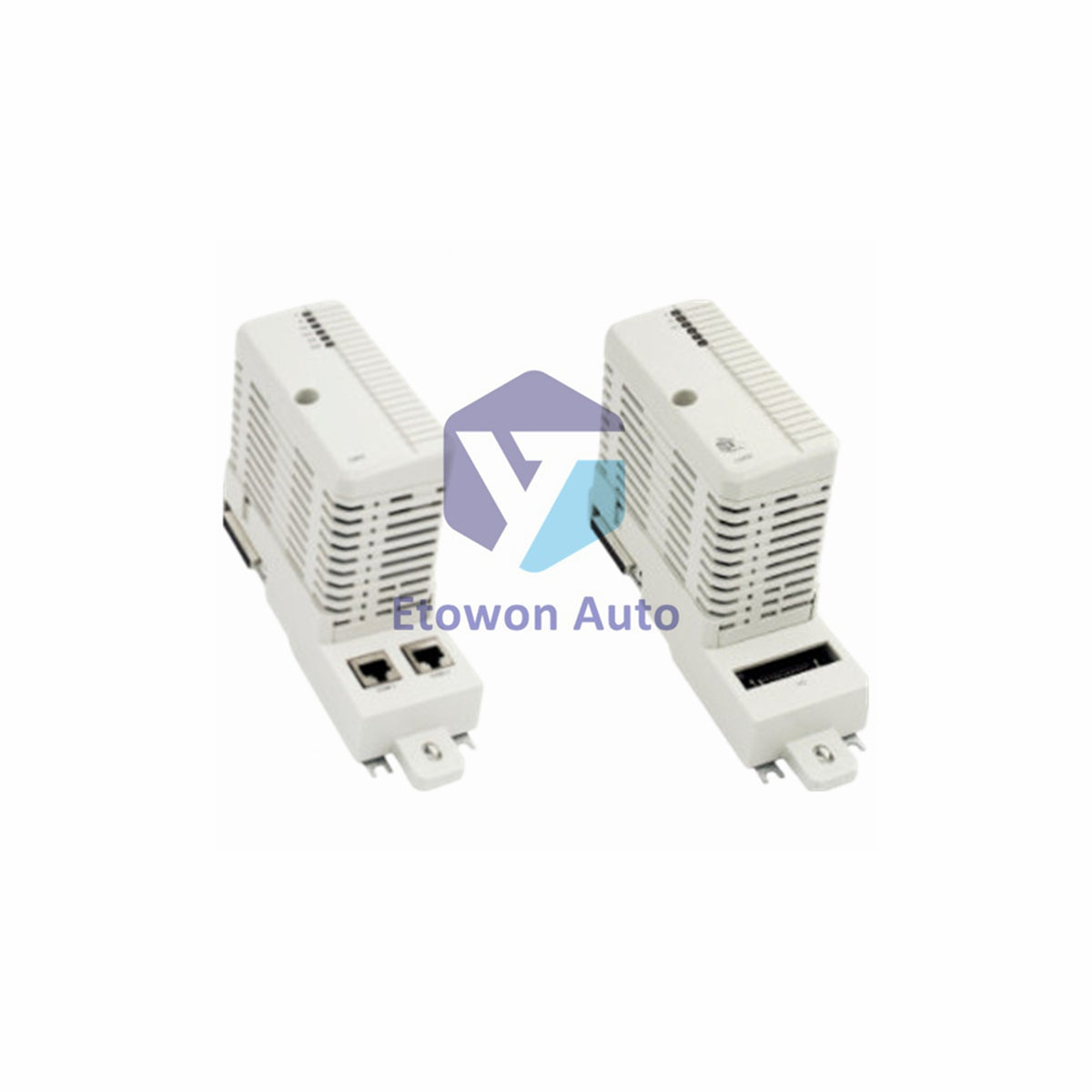

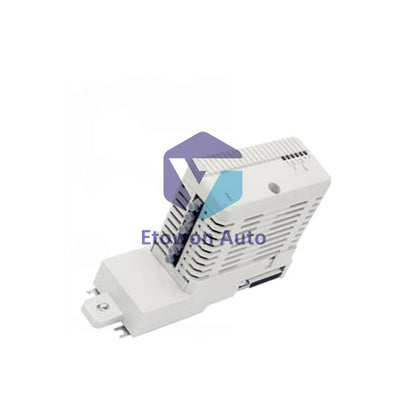

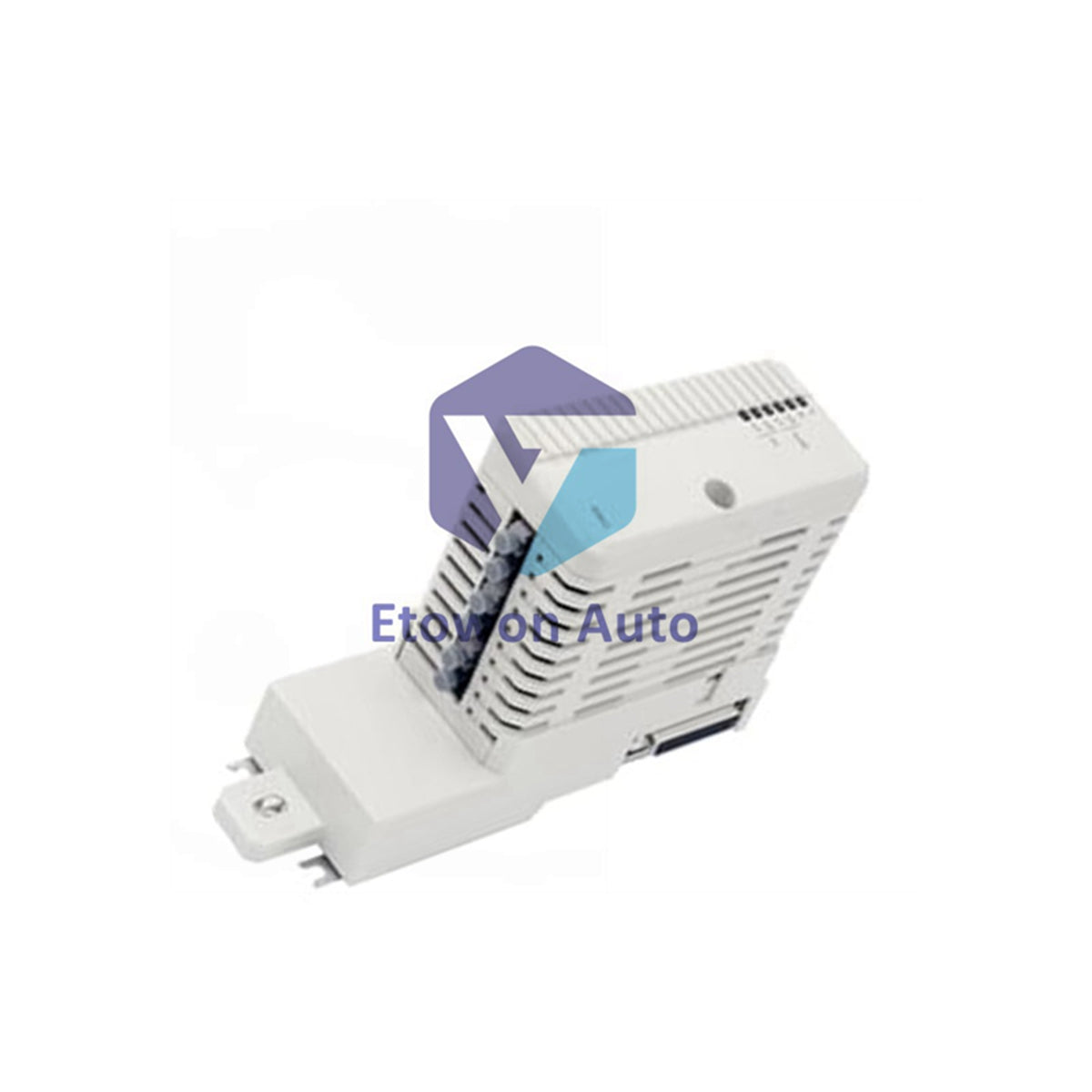

ABB CI871A 3BSE092693R1 PROFINET IO Module

In stock (18 units), ready to be shipped

  • Manufacturer: ABB

  • Product No.: CI871A

  • Product Type: Communication Interface

  • Product Origin: SE

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

Brand: ABB
Model: CI871A
Series: AC 800M
Article Number: 3BSE092693R1

The ABB CI871A 3BSE092693R1 is an AC 800M communication interface that connects to PROFINET IO devices through Ethernet. ABB designed this module for industrial automation networks. It uses the CH1 connector at 100 Mbps on the TP867 Baseplate. The CI871A works with System 800xA 6.0.3.3, 6.1.1 and later versions.

Key Features

  • PROFINET IO master functionality
  • Module redundancy: Yes
  • Hot swap: Yes
  • Up to 12 units on CEX bus
  • Can be used with HI Controller

Technical Specifications

  • Communication Protocol: PROFINET IO
  • Master or Slave: Master
  • Transmission Speed: 10/100 Mbit/s
  • Line Redundancy: No
  • Module Redundancy: Yes
  • Hot Swap: Yes
  • Max Units on CEX Bus: 12
  • Connector: RJ-45 female (8-pin)
  • 24 V Consumption: 160 mA typical

Environmental and Certification

  • Operating Temperature: +5 to +55 °C (+41 to +131 °F)
  • Storage Temperature: -40 to +70 °C (-40 to +158 °F)
  • Altitude: 2000 m according to IEC/EN 61131-2
  • Pollution Degree: Degree 2 according to IEC/EN 61131-2
  • Corrosion Protection: G3 compliant to ISA 71.04
  • Relative Humidity: 5 to 95%, non-condensing
  • Protection Class: IP20 according to EN60529, IEC 529
  • CE Marking: Yes

Safety and Approvals

  • Electrical Safety: UL 61010-1, UL 61010-2-201
  • Hazardous Location: UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X
  • Marine Certificates: DNV-GL (Pending: ABS, BV, LR)
  • RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
  • WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions and Weight

  • Width: 59 mm (2.3 in.)
  • Height: 185 mm (7.3 in.)
  • Depth: 127.5 mm (5.0 in.)
  • Weight (including base): 700 g (1.5 lbs)

Package Includes

  • 1x ABB CI871A 3BSE092693R1 communication module
  • 1x TP867 Baseplate
  • 1x installation manual
  • 1x certification document

Shipping

  • FedEx, UPS, DHL express worldwide
  • Ships within 24 hours from stock

FAQ

1. What is the article number for this module?

The article number is 3BSE092693R1.

2. What communication protocol does the CI871A use?

It uses PROFINET IO as a master device.

3. Does the CI871A support redundancy?

Yes. It supports module redundancy and hot swap.
