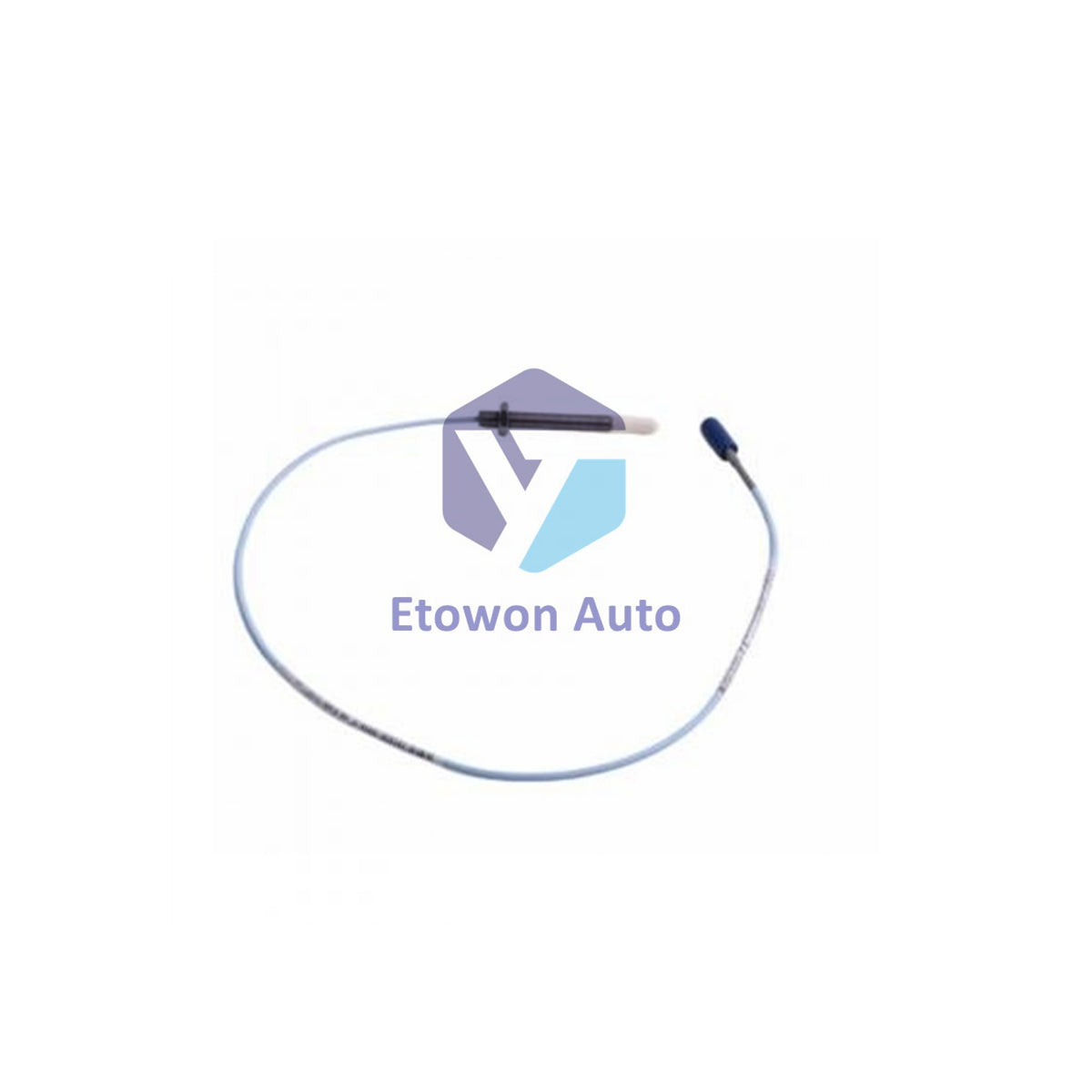

330905-00-03-10-01-00 Bently Nevada Proximity Probe 30mm

The Bently Nevada 330905-00-03-10-01-00 is a 3300 NSv Proximity Probe with connector protector for industrial vibration monitoring. It features M10X1 threads with 1.0m standard cable and no agency approvals.

Product Details

• Part Number: 330905-00-03-10-01-00
• Model: 3300 NSv Proximity Probe
• Manufacturer: Bently Nevada
• Condition: New Original, Factory Sealed
• Warranty: 12 Months
• Weight: 14-150 g (0.5-5.3 oz)

Configuration

• Thread Type: M10X1, without armor
• Unthreaded Length: 00 mm
• Case Length: 30 mm
• Cable Length: 1.0 meter (39 in)
• Connector: Miniature coaxial ClickLoc with connector protector, standard cable
• Approval: Not required (00)

Extension Cable

• DC Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
• Capacitance: 69.9 pF/m typical

Mechanical Specifications

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable: 75 Ω coaxial, FEP insulated
• Min Bend Radius: 25.4 mm (1.0 in)
• Seal: Viton O-ring

Torque Specifications

• Recommended Torque: Finger tight
• Maximum Torque: 0.56 N•m (5 in•lb)
• Case Max Rated: 33.9 N•m (300 in•lb)
• Case Recommended: 11.3 N•m (100 in•lb)
• First Threads Max: 22.6 N•m (200 in•lb)
• First Threads Rec: 7.5 N•m (66 in•lb)

Environmental

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Target Requirements

• Minimum Flat Target: 8.9 mm (0.35 in) diameter
• Recommended Target: 13 mm (0.5 in) diameter

Field Wiring

• Wire Size: 0.2-1.5 mm² (16-24 AWG)
• With Ferrules: 0.25-0.75 mm² (18-23 AWG)
• Max Cable Length: 305 m (1000 ft)

FAQs

• What is the case length of this probe?
  The 330905-00-03-10-01-00 has a 30 mm overall case length.
• What is the connector type?
  This probe features a ClickLoc connector with protector for enhanced durability.
• Does this probe have agency approvals?
  No, this configuration has no agency approvals (Option 00).
