330101-00-20-05-02-05

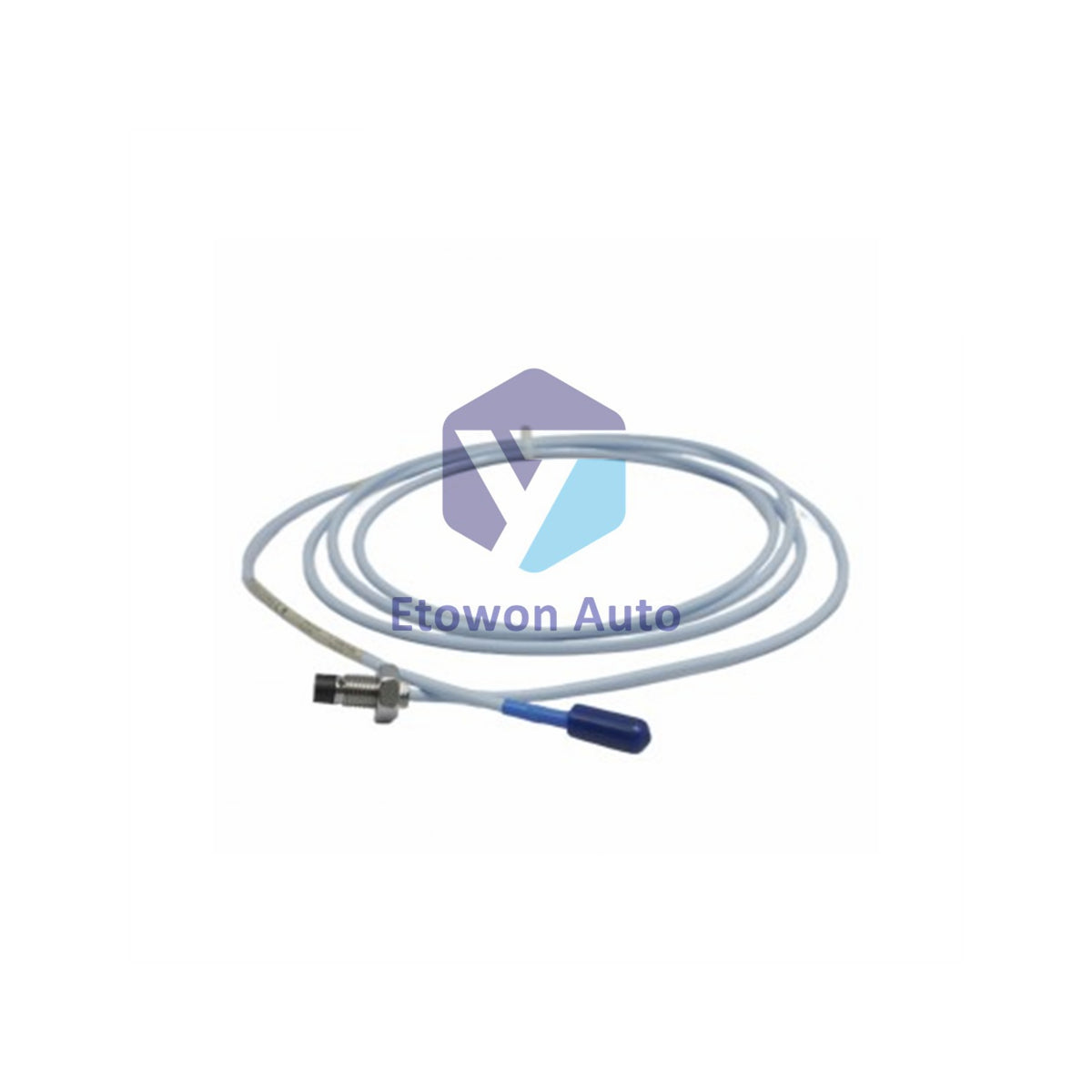

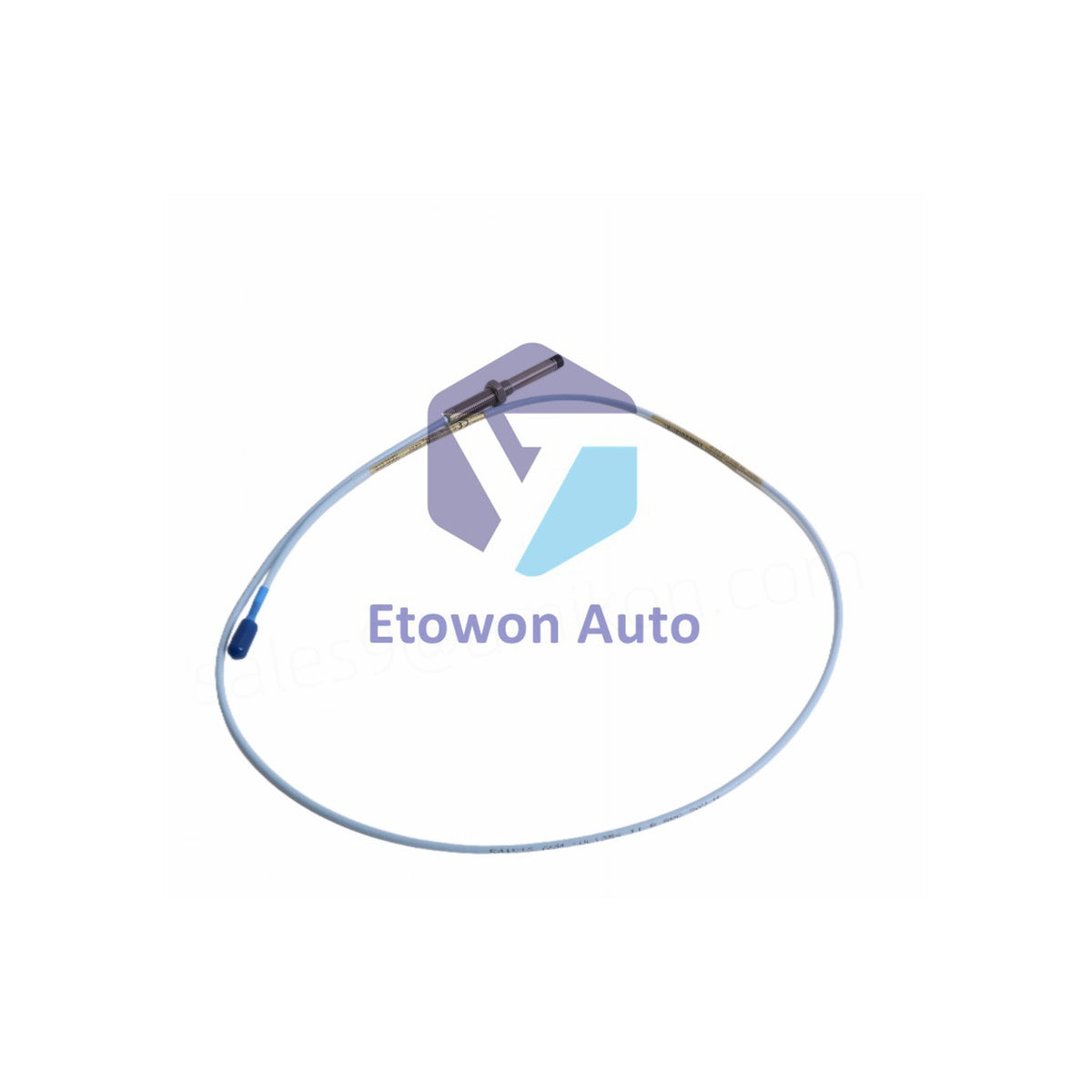

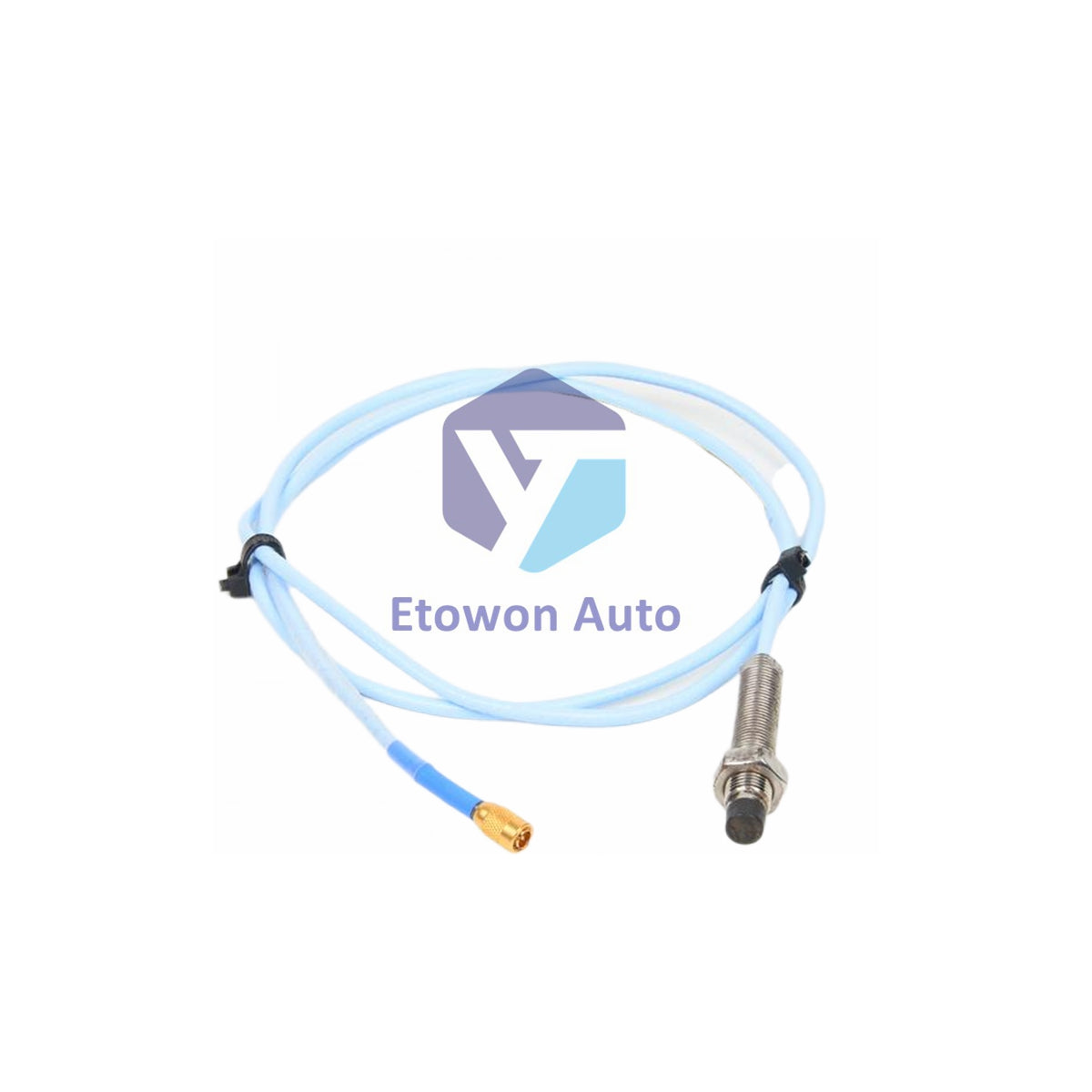

330101-00-20-05-02-05 Bently Nevada 3300 XL Proximity Probe

In stock (23 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-20-05-02-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Bently Nevada 330101-00-20-05-02-05 is a high-performance 3300 XL 8 mm proximity probe engineered for precise machinery vibration and position monitoring in critical industrial applications. Built with a 3/8-24 UNF threaded 304 stainless steel casing and a high-durability PPS probe tip, this sensor delivers an accurate linear scale factor of 7.87 V/mm (200 mV/mil). It features a 2.0-inch case length, a 0.5-meter (1.6 ft) integrated cable, and standard ClickLoc connectors for fast installation. Weighing approximately 0.32 kg (0.71 lbs), the probe incorporates patented TipLoc technology for superior tip bonding and Viton O-ring seals to withstand harsh operating environments ranging from -52°C to +177°C.

Key Advantages

  • TipLoc Technology: Provides a 40% stronger bond between the PPS probe tip and stainless steel body for high-vibration resilience.
  • FluidLock Ingress Protection: Engineered to prevent internal fluid migration under differential pressures up to 10 bar (145 psi).
  • Rapid ClickLoc Connector: Enables secure 15-second connector mating without special tools, accelerating maintenance downtime.
  • Robust Cable Design: Features 330 N (75 lbf) pull strength with 69.9 pF/m capacitance and 7.45 Ω DC resistance.
  • Global Hazardous Approvals: Certified for worldwide installation with CSA, ATEX, and IECEx hazardous area ratings.

Technical Specifications

Part Number / Order Code 330101-00-20-05-02-05
Manufacturer / Product Series Bently Nevada / 3300 XL 8 mm Transducer System
Thread Size & Case Length 3/8-24 UNF Thread / 2.0 Inch Case Length
Cable Length & Type 0.5 Meter (1.6 Feet) Standard Cable with ClickLoc Connector
Linear Scale Factor 7.87 V/mm (200 mV/mil) ±5%
Linearity Deviation ±0.025 mm (±1.0 mil)
Operating Temperature -52°C to +177°C (-62°F to +350°F)
Probe & Case Materials Polyphenylene Sulfide (PPS) Tip / 304 Stainless Steel Casing
Net Weight Approx. 0.32 kg (0.71 lbs)
Certifications CSA, ATEX, IECEx Hazardous Area Approved

Frequently Asked Questions

Q1: What is the weight of the Bently Nevada 330101-00-20-05-02-05 probe?

A1: It has a net weight of approximately 0.32 kg (0.71 lbs).

Q2: What is the recommended gap voltage setting during installation?

A2: The probe gap is typically set at -9 Vdc, corresponding to approximately 1.27 mm (50 mils) physical gap.

Q3: What cable length and thread option are configured for this part number?

A3: This specific configuration features a 3/8-24 UNF thread, 2.0-inch case length, and a 0.5-meter cable length.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 8 mm Probe Proximity Probe

Scalar (V/f)

Vector

AC-powered
  • Confirm the exact model, part number, and specifications before ordering.
  • Ensure compatibility with your current machinery or control systems.
  • Reach out via sale@etowonauto.com or +8617859788089 for technical assistance.
  • Review delivery options, lead times, and shipping requirements.
  • Follow manufacturer instructions and best practices during installation.

In-stock items are typically dispatched the same business day. For products not currently in stock, dispatch times may vary based on availability. International shipping is available, and shipping costs are calculated according to destination, weight, and carrier selection.

Returns are accepted within 30 days of receipt, provided items are unused and in original condition. Return shipping costs are the responsibility of the customer. Please contact us before returning any item to receive return authorization.

For more details, please review our Shipping & Return Policy.
