330101-00-08-05-02-05

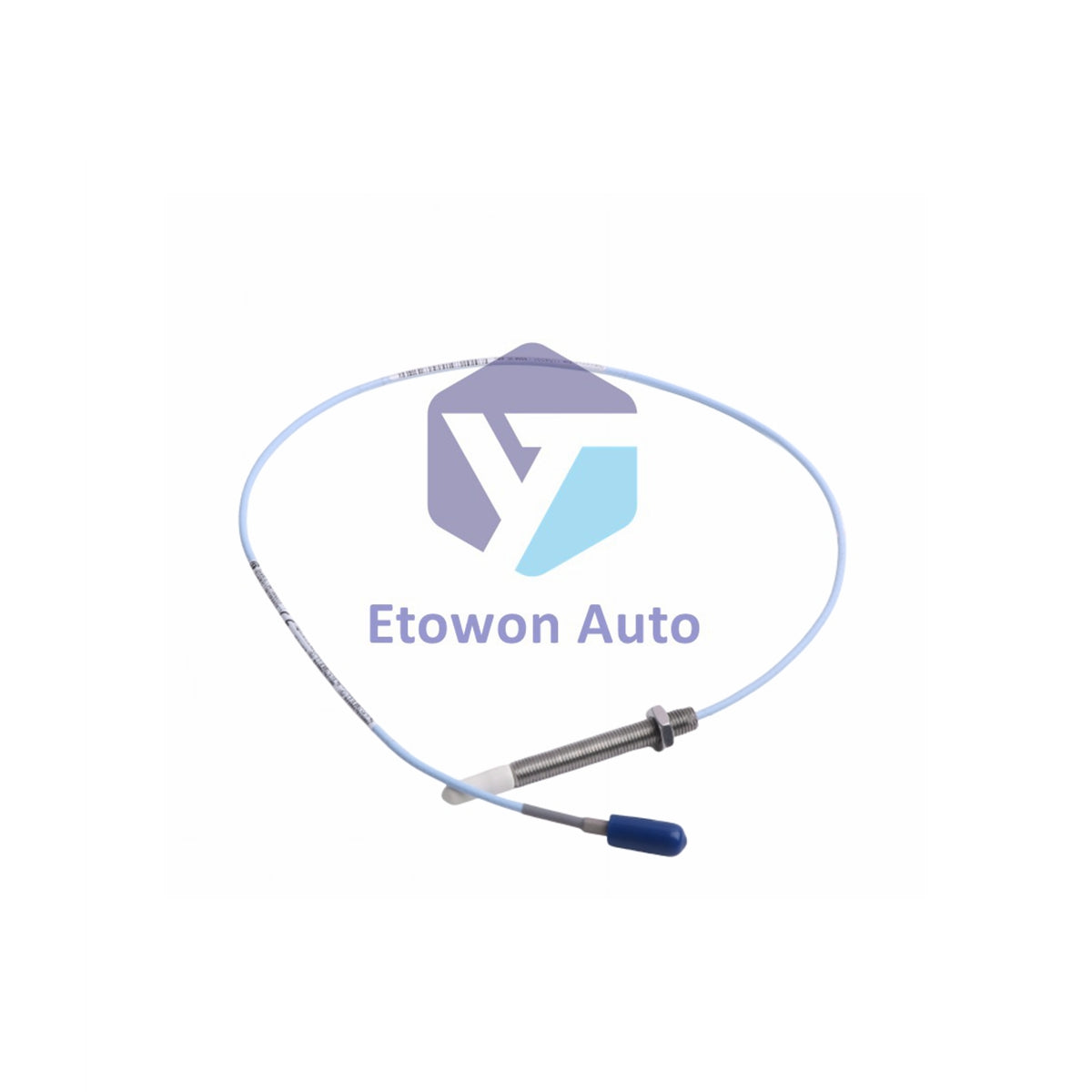

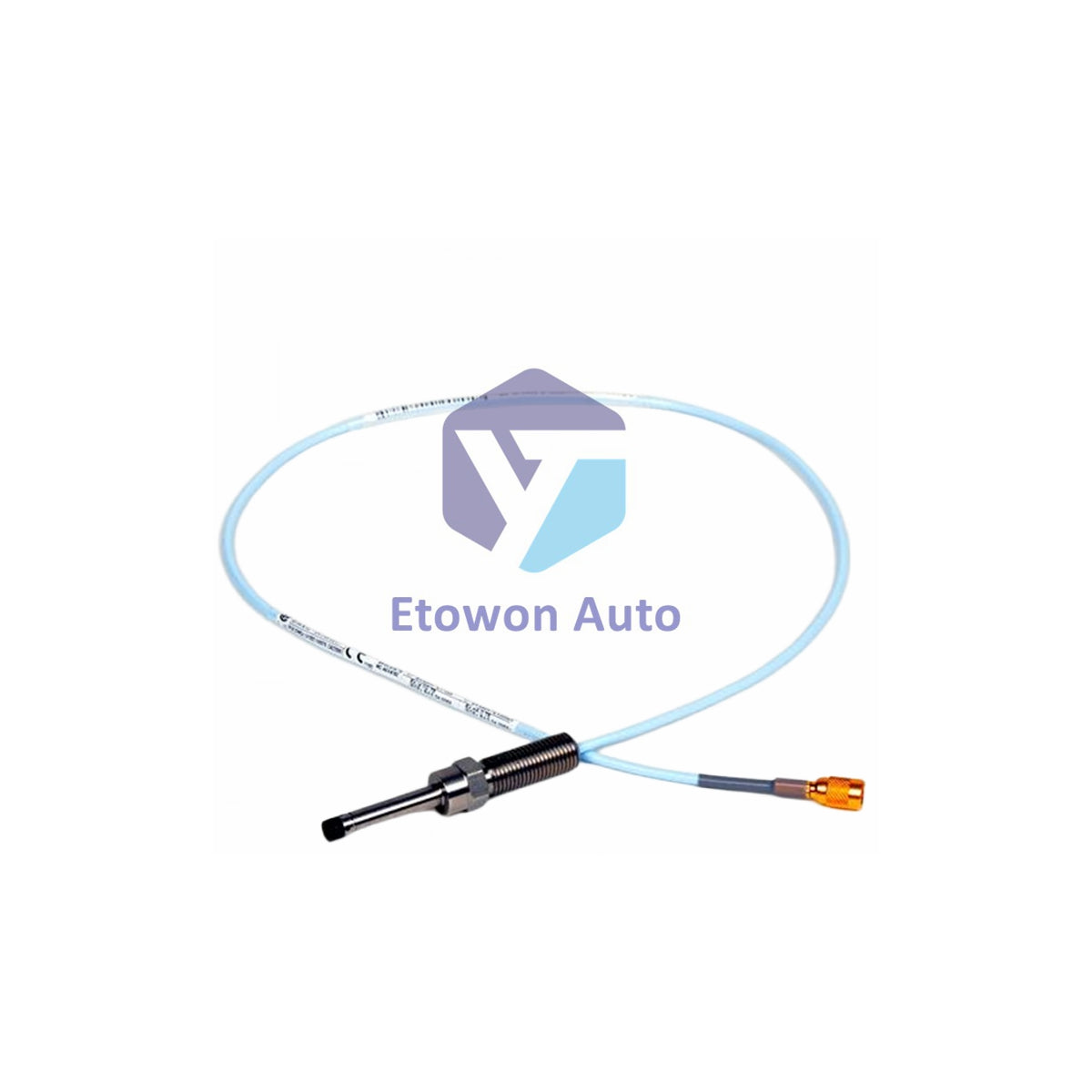

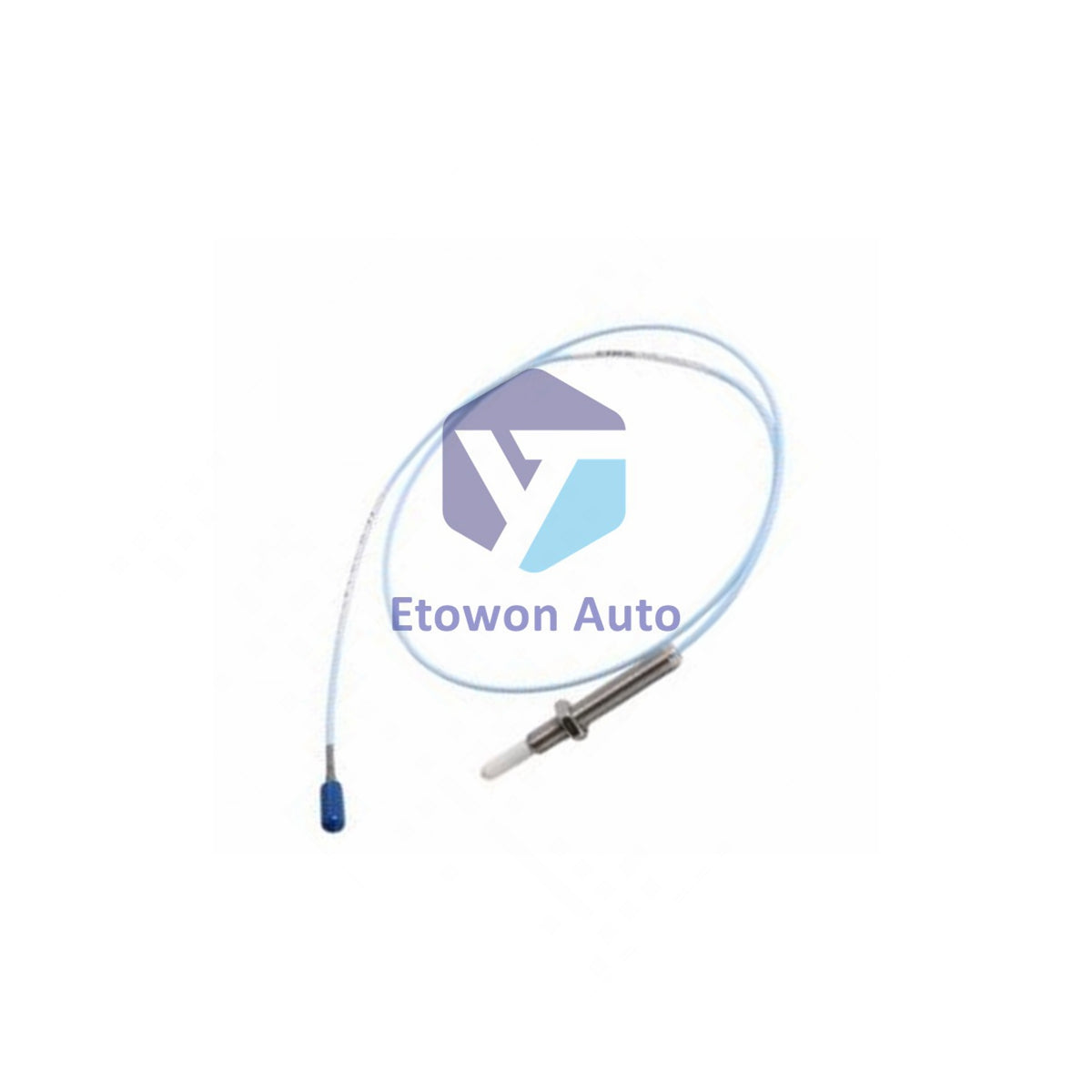

330101-00-08-05-02-05 Bently Nevada 3300 XL 8mm Vibration Probe

In stock (21 units), ready to be shipped

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-08-05-02-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Product Overview

The Bently Nevada 330101-00-08-05-02-05 is a 3300 XL 8 mm proximity probe for vibration and position monitoring of rotating machinery. Designed for non‑contact measurement of shaft vibration, thrust position, and eccentricity in turbines, compressors, and pumps. Weight: 0.323 kg.

Core Advantages

Precision 8mm Probe Design

Delivers high‑accuracy displacement measurements. 3/8‑24 UNF thread standard. 0.8 inch overall case length with 0.0 inch unthreaded length.

Rugged Environmental Tolerance

Operates from –40°C to +120°C. Withstands 15 g vibration (10–2000 Hz). Connector rated for >500 mating cycles.

Flexible Ordering Configuration

0.5 metre (1.6 feet) total length with miniature coaxial ClickLoc connector and standard cable. Multiple agency approvals available.

Specifications

Parameter Value
Part Number 330101-00-08-05-02-05
Manufacturer Bently Nevada
Model 3300 XL 8 mm Probe
Thread Type 3/8‑24 UNF (without armor)
Unthreaded Length 0.0 in
Overall Case Length 0.8 in
Total Length 0.5 m (1.6 ft)
Connector Type Miniature coaxial ClickLoc, standard cable
Agency Approval Multiple Approvals
Operating Temperature –40°C to +120°C
Vibration Resistance 15 g (10–2000 Hz)
Connector Mating Cycles >500
Frequency Response 10 Hz to 10 kHz
Weight 0.323 kg

Installation Tips

Probe Mounting

Use the 3/8‑24 UNF thread for installation. Ensure proper gap voltage setting per Bently Nevada guidelines for accurate vibration measurement.

Cable Routing

Avoid sharp bends near the ClickLoc connector. Use proper strain relief to prevent damage to the miniature coaxial cable.

Environmental Considerations

Suitable for temperatures from –40°C to +120°C. Ensure connector protection in high‑vibration or wet environments.

Why Choose 330101-00-08-05-02-05?

Delivers the proven reliability of Bently Nevada 3300 XL series. Compact 8mm design ideal for tight machine installations. 0.5 metre length provides installation flexibility. Withstands extreme temperatures and vibration. ClickLoc connector ensures secure, repeatable connections.

FAQs

Q1: What does the 02 connector option indicate?
A1: The 02 option specifies a miniature coaxial ClickLoc connector with standard cable, providing secure, quick connections.

Q2: What is the frequency response of this probe?
A2: The frequency response is 10 Hz to 10 kHz, suitable for most rotating machinery vibration monitoring applications.

Q3: Is this probe armored?
A3: No. The 330101 model does not include armor. For armored versions, refer to other 3300 XL options.
