1756-OF8IK

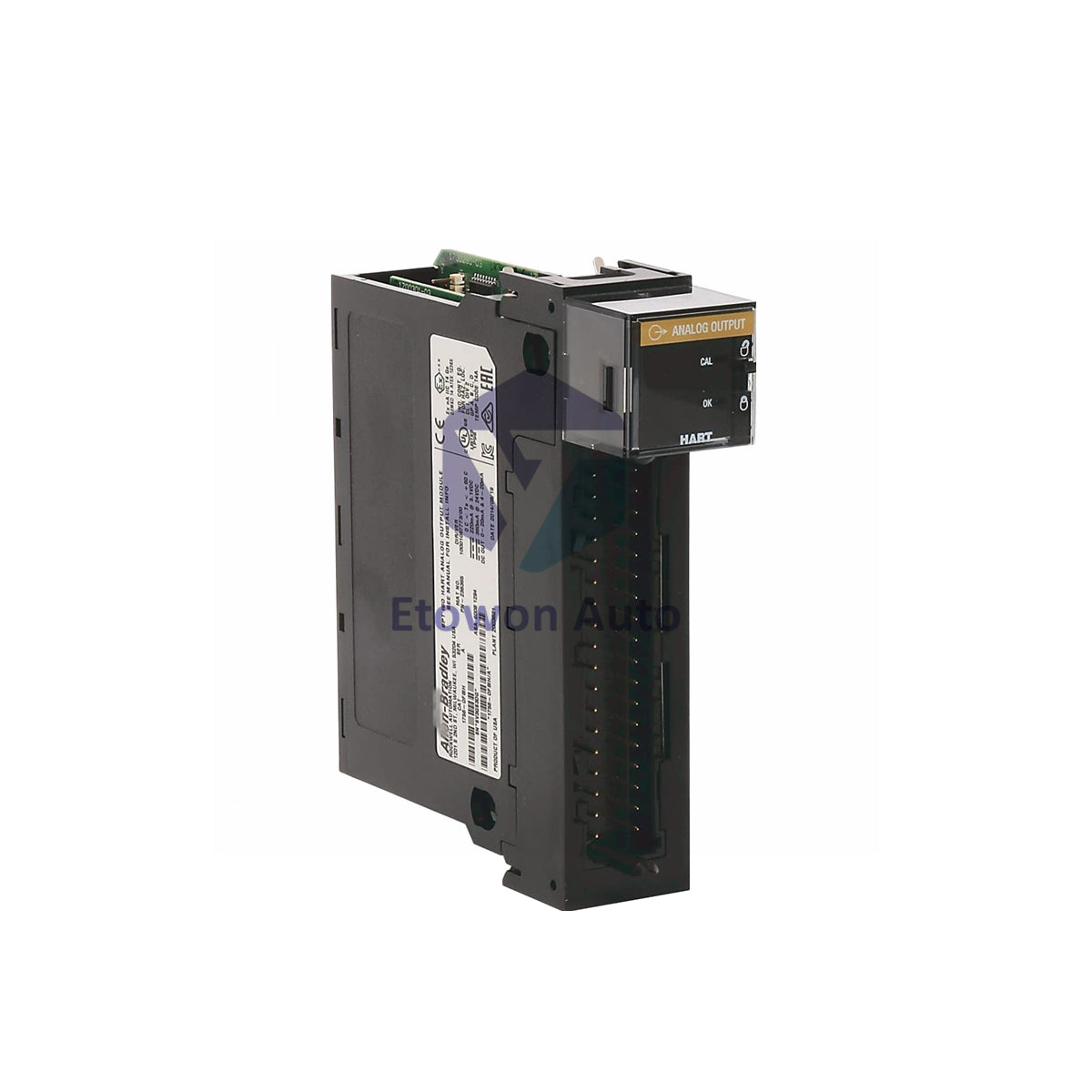

1756-OF8IK Allen-Bradley 8-Channel Isolated Output 0-20mA 16-bit

In stock (15 units), ready to be shipped

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-OF8IK

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

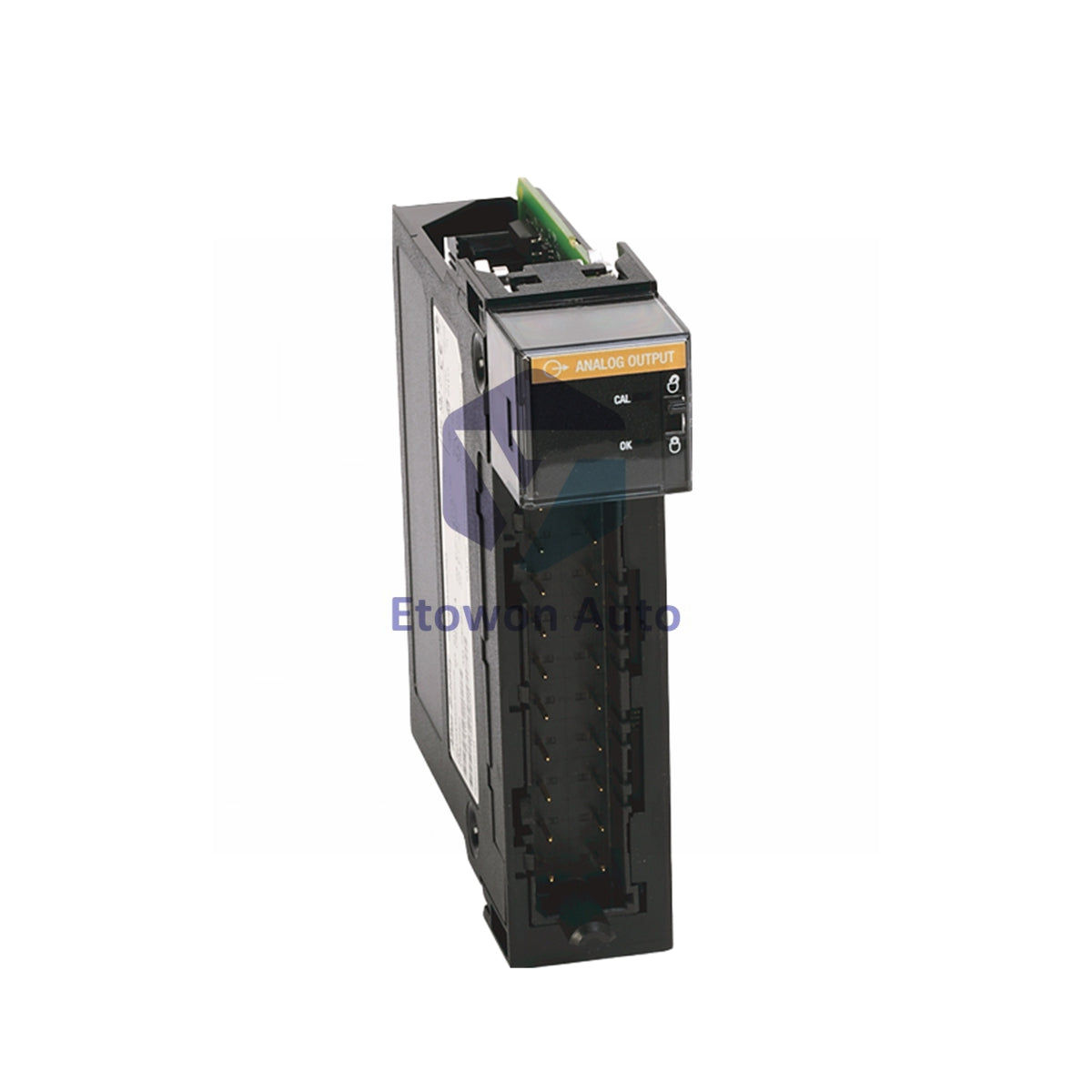

Allen-Bradley 1756-OF8IK ControlLogix Isolated Analog Output Module

The Allen-Bradley 1756-OF8IK is an 8-channel isolated analog output module for ControlLogix. Supports 0-20mA/4-20mA current and -10V to +10V voltage. 16-bit resolution.

Specifications

  • Part Number: 1756-OF8IK.
  • Brand: Allen-Bradley / Rockwell Automation.
  • Series: ControlLogix.
  • Output Type: 8 Isolated Current Outputs.
  • Output Range: 0-20mA / 4-20mA (selectable).
  • Voltage Range: -10V to +10V.
  • Resolution: 16-bit.
  • Isolation: 50V continuous channel-to-channel.
  • Load Capacity: Up to 1000 Ohms (current mode).
  • Power Consumption: 6.5W @ 24V DC (6.3W voltage mode, up to 10.2W current mode).
  • Response Time: 1ms per channel.
  • Wire Compatibility: 22-14 AWG shielded copper.
  • Terminal Blocks: 1756-TBNH, 1756-TBSH.
  • Mounting: Any ControlLogix chassis slot.
  • Weight: 0.5 kg.

Download Resources

Access Detailed Product Specifications PDF

FAQs

How many outputs on 1756-OF8IK?

8 isolated analog outputs with 16-bit resolution.

What output signals are supported?

0-20mA, 4-20mA current, and -10V to +10V voltage.

What is the weight?

0.5 kg with conformal coating for harsh environments.
