140NWM10000

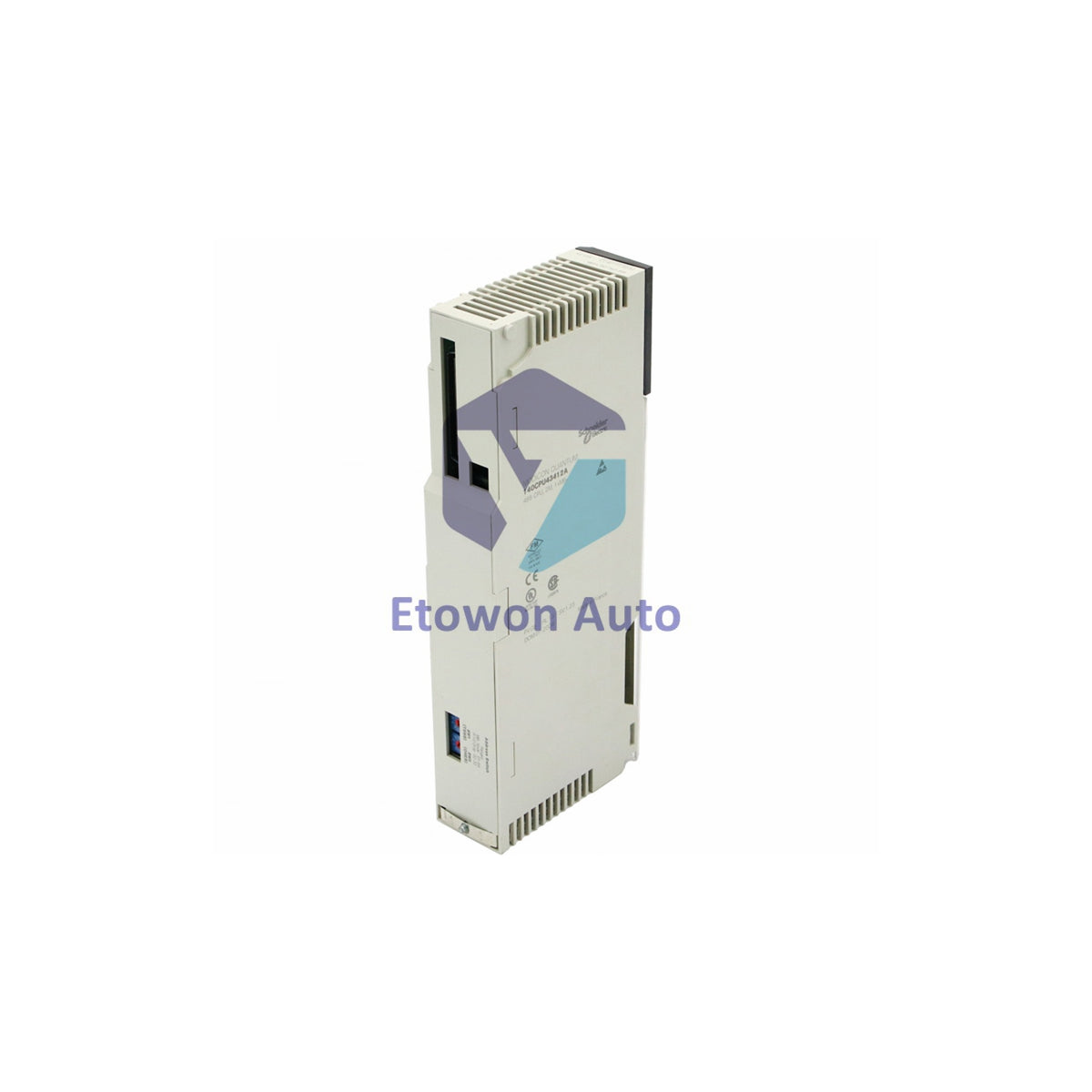

140NWM10000 Class D10 FactoryCast Modbus Schneider

In stock (15 units), ready to be shipped

  • Manufacturer: Schneider

  • Product No.: 140NWM10000

  • Product Type: Adaptor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 345g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Schneider Electric Modicon Quantum 140NWM10000 Ethernet TCP/IP Module Class D10 with FactoryCast HMI Active

The 140NWM10000 is an Ethernet TCP/IP module from the Schneider Electric Modicon Quantum automation platform.

Technical Specifications

  • Brand: Schneider Electric
  • Series: Modicon Quantum
  • Model: 140NWM10000
  • Product Type: Ethernet TCP/IP Module Class D10
  • Concept: Transparent Ready with web server
  • Web Server: FactoryCast HMI active
  • Web Services: Rack viewer, Data editor, FactoryCast configurable
  • Communication Services: SNMP agent, Modbus TCP messaging
  • Communication Protocol: Ethernet Modbus TCP/IP
  • Physical Interfaces:
    • MT/RJ - 10BASE-T/100BASE-TX fiber optic
    • RJ45 - 100BASE-FX twisted pair
  • Transmission Rate: 10/100 Mbit/s
  • Supply: Via rack power supply
  • Current Consumption: 750 mA @5V DC
  • Module Format: Standard
  • Product Weight: 0.345 kg (0.761 lb)
  • IP Protection: IP20
  • CE Marking: Yes

Environmental Specifications

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Relative Humidity: 95% without condensation
  • Operating Altitude: ≤ 4500 m (14763 ft)
  • Resistance to Electrostatic Discharge: 4 kV contact, 8 kV air (IEC 801-2)
  • Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) 80-1000 MHz (IEC 801-3)

Package Details

  • Package Dimensions:
    • Height: 5.0 cm (1.97 in)
    • Width: 16.5 cm (6.50 in)
    • Length: 31.0 cm (12.20 in)
  • Package Weight: 614.0 g (21.7 oz)
  • Package Volume: 2,557.5 cm³ (5.0 × 16.5 × 31.0 cm)
  • Unit Type: PCE (Piece)
  • Units per Package: 1

FAQ

Q1: What is the part number for this Class D10 Ethernet module?

The part number is 140NWM10000.

Q2: What web services and HMI capabilities does the 140NWM10000 offer?

It features a FactoryCast HMI active web server with rack viewer, data editor, and configurable FactoryCast interface.

Q3: What physical interfaces and certifications are available?

It supports MT/RJ fiber optic (10/100BASE-TX) and RJ45 twisted pair (100BASE-FX) with FM Class 1 Division 2 and cUL certifications.
