TSXDMZ28AR

TSXDMZ28AR Schneider Electric 28 Point Relay Discrete Base

A kan haja (16 guda), a shirye don aikawa

  • Manufacturer: Schneider

  • Product No.: TSXDMZ28AR

  • Product Type: I/O Base

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

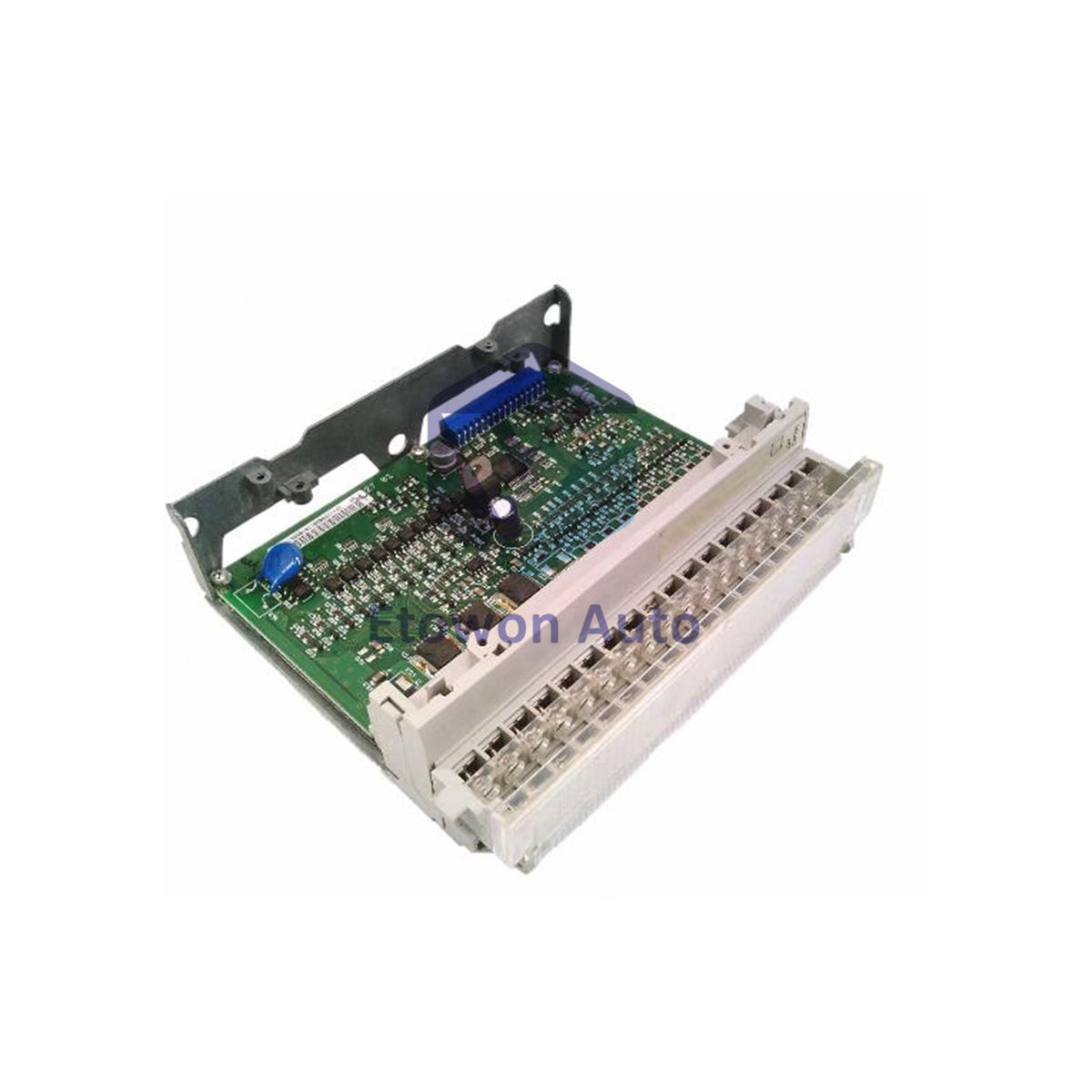

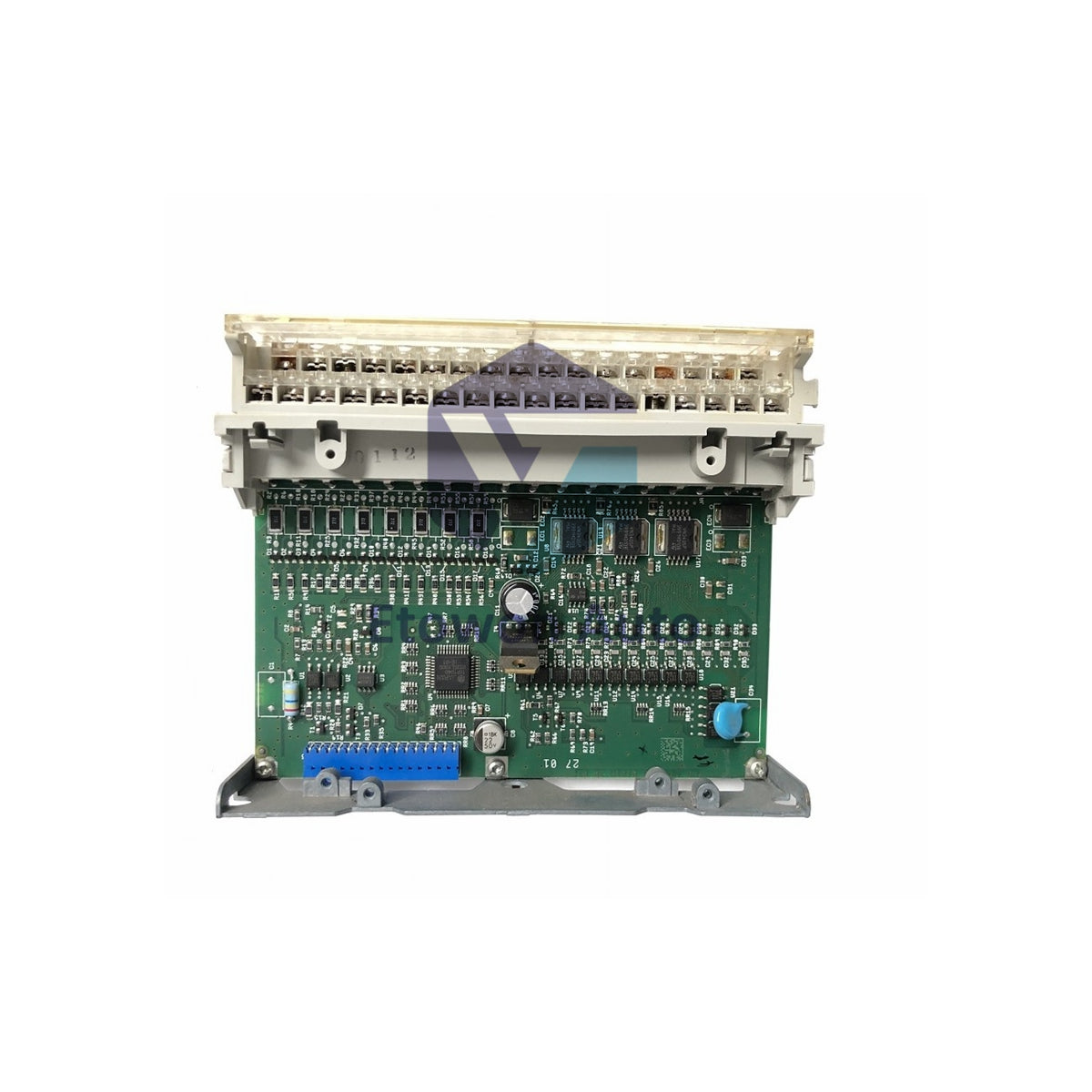

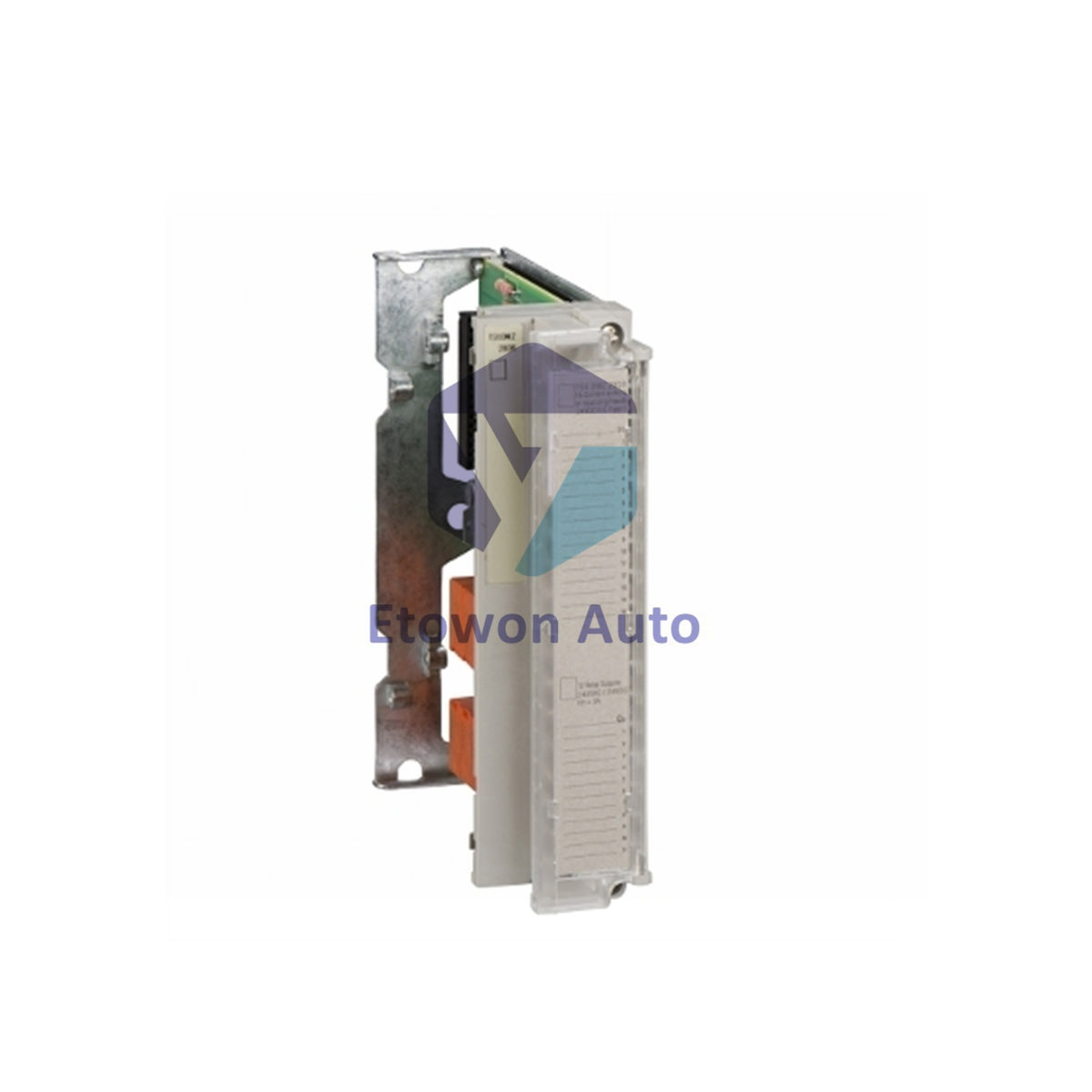

The TSXDMZ28AR is a discrete relay I/O base module engineered by Schneider Electric for the Modicon TSX Micro automation platform. Designed for industrial process control, this module integrates 28 total channels comprising 16 AC discrete inputs (100–120 V AC) and 12 Normally Open (NO) relay outputs. Equipped with screw terminal blocks and certified to IEC 1131-2 Type 2 standards, the TSXDMZ28AR provides high isolation between field circuits and logic controls. Weighing 0.5 kg (1.1 lb) in a compact housing, it mounts directly onto standard DIN rails in control cabinets.

Core Technical Advantages

  • Combined High-Density I/O: Integrates 16 AC inputs and 12 relay outputs into a single Modicon TSX Micro slot base.
  • Versatile Relay Output Ratings: Supports switching loads up to 264 V AC and 34 V DC with a 3 A conventional thermal current (Ith).
  • Rugged Electrical Isolation: Provides 1500 V isolation for 1 second with an insulation resistance of ≥ 10 MΩ.

Technical Specifications

Parameter Specification Details
Brand & Manufacturer Schneider Electric
Product Line Family Modicon TSX Micro Automation Platform
Model Part Number TSXDMZ28AR
EAN Code 3389110540444
Product Function Type Discrete Relay I/O Base Module
Total I/O Channels 28 Channels (16 Inputs / 12 Relay Outputs)
Discrete Input Voltage 100...120 V AC (47...63 Hz)
Discrete Input Current 11 mA at 50 Hz / 13 mA at 60 Hz
Input Voltage Limits State 1: ≥ 74 V / State 0: < 20 V
Output Voltage Limits 19...264 V AC / 10...34 V DC
Output Contact Type Normally Open (NO) Contacts
Thermal Current (Ith) 3 A conventional free air thermal current
Power Dissipation 5.6 W
Isolation Rating 1500 V AC for 1 s / 500 V AC continuous
Mounting Method 35 mm DIN Rail Mount
Standards Compliance IEC 1131-2 Type 2; CE, UL, CSA Certified
Operating Ambient Thermal Scope -25°C to +70°C
Storage Thermal Scope -40°C to +85°C
Product Net Weight 0.5 kg (1.1 lb)

Industrial Applications

  • Machinery Control Automation: Interfaces 110V limit switches and control pushbuttons to TSX Micro PLCs.
  • Process Actuator Driving: Operates small solenoids, contactors, and indicator lamps via NO relay contacts.
  • HVAC & Facility Monitoring: Controls auxiliary pumps, dampers, and status feedback loops in plant panels.

Wiring & Installation

  • Rack Mounting: Snap the TSXDMZ28AR onto the TSX Micro rack or DIN rail until the locking clip engages.
  • Field Terminal Wiring: Connect 100–120 V AC inputs and relay load wiring directly to the screw terminal block.
  • Sensor Compatibility: Wire 2-wire proximity switches directly to input terminals observing voltage limits.

Engineering Advantages

  • High Load Capacity: Relay contacts switch up to 220 VA AC resistive/inductive and 40 W 24V DC loads.
  • Wide Thermal Endurance: Operates continuously from -25°C to +70°C in demanding panel environments.
  • Compact Form Factor: Weighs only 0.5 kg to streamline backplate load distribution.

Technical FAQs

Q1: What input voltage rating does the Schneider TSXDMZ28AR module support?
A1: The module features 16 discrete input channels rated for 100...120 V AC at 47...63 Hz.

Q2: What is the maximum continuous current capacity for the relay outputs?
A2: The NO relay outputs support a conventional free air thermal current (Ith) of 3 A per channel.

Q3: Is the TSXDMZ28AR compatible with 2-wire proximity sensors?
A3: Yes, the input circuitry is fully compatible with 2-wire AC proximity sensors.
