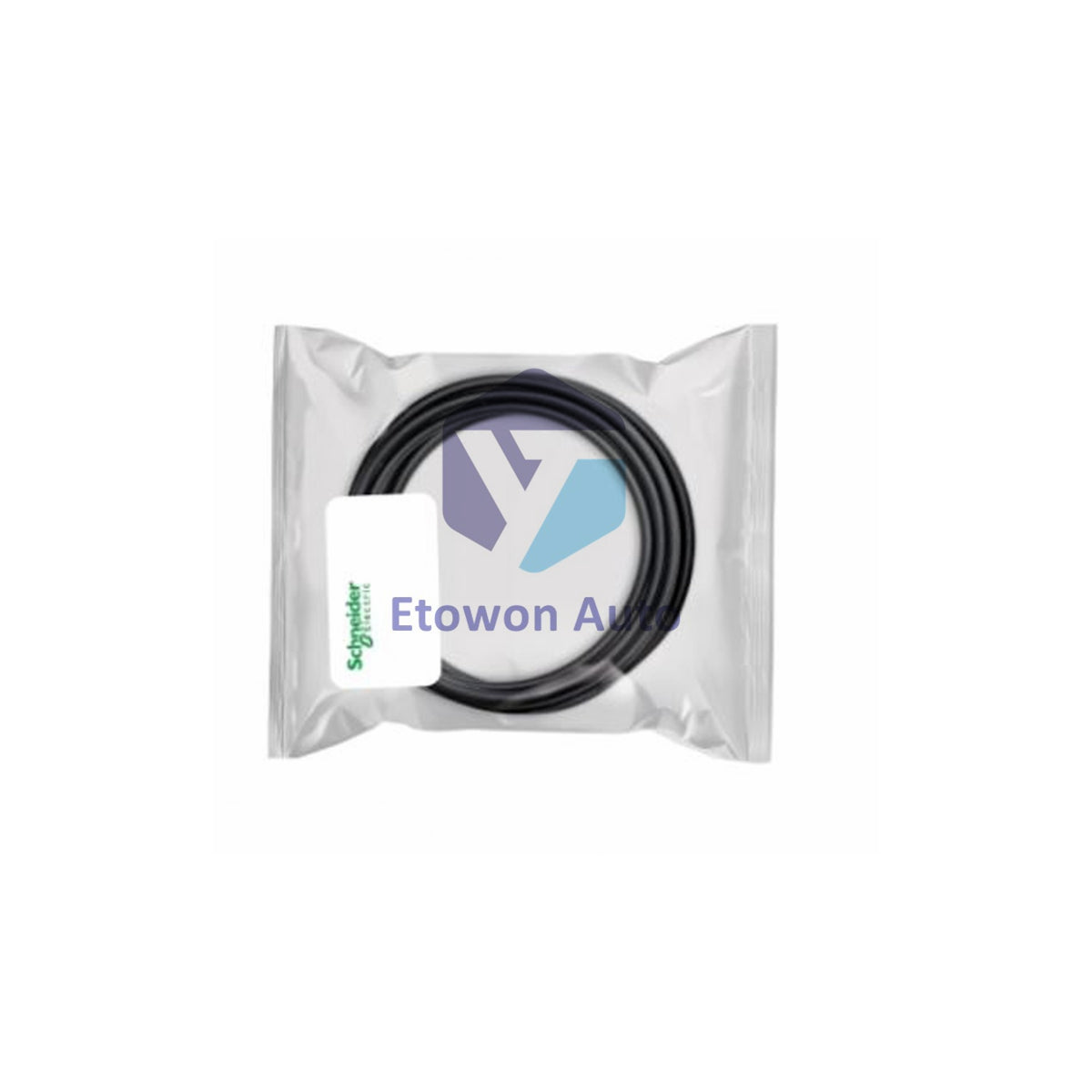

  • ABFM16S201-1
1 2

ABFM16S201

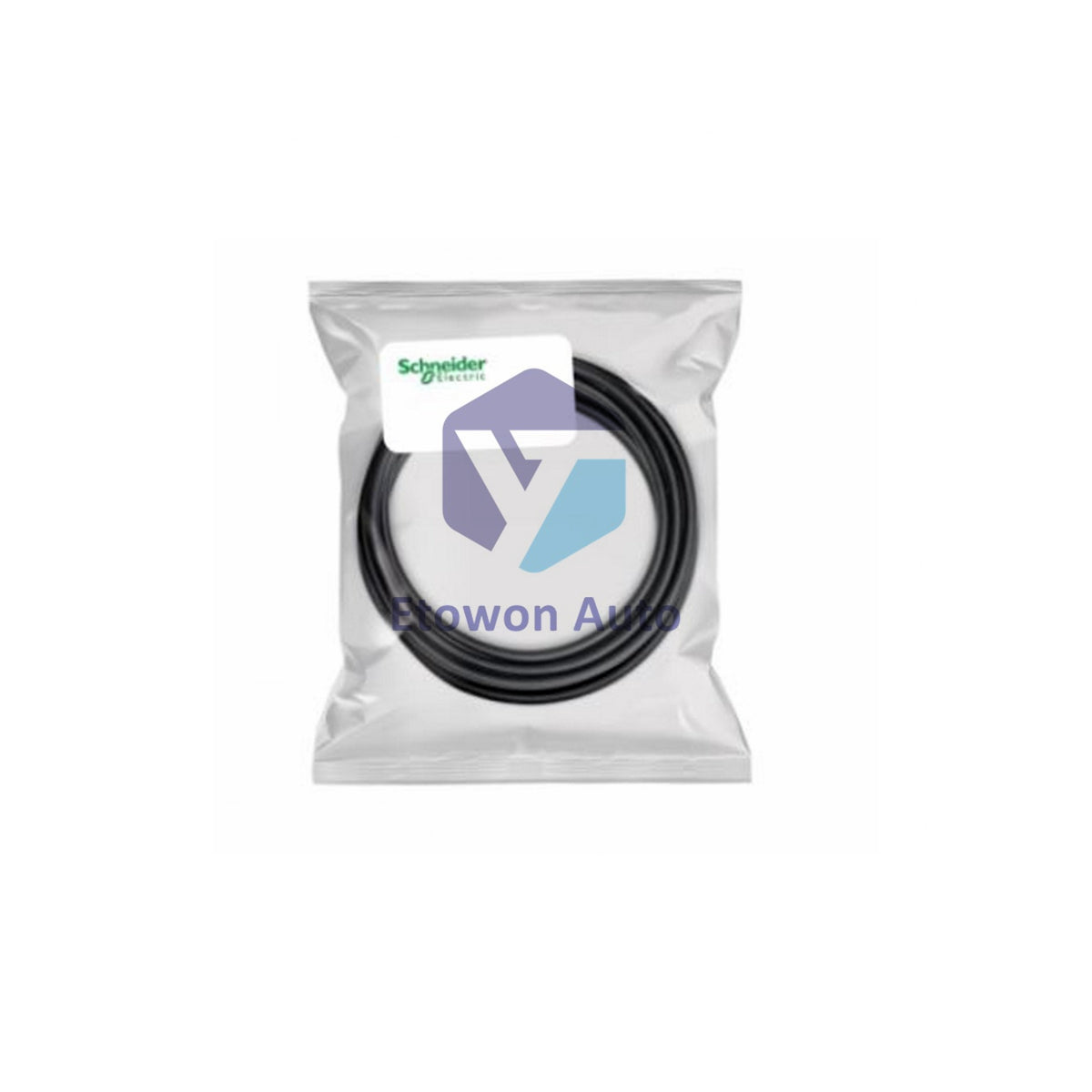

Schneider ABFM16S201 16 Channel Analog Input SUB-D Connector

A kan haja (13 guda), a shirye don aikawa

  • Manufacturer: Schneider

  • Product No.: ABFM16S201

  • Product Type: Cable

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 620g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The Schneider ABFM16S201 is a 16 channel cabled connector designed for analog input transmission in the Modicon Quantum series. Featuring a 2 meter shielded cable and dual SUB-D connectors, it ensures reliable signal transfer for sensitive analog applications.

Key Features

16 analog input channels with 25 way SUB-D connectors. 2 meter (6.6 ft) cable length provides installation flexibility. Shielded multi-conductor construction minimizes electromagnetic interference. PVC insulation enhances durability. Lightweight at 0.62 kg for easy handling.

Technical Specifications

Manufacturer Schneider Electric
Part Number ABFM16S201
Product Line Modicon Quantum
Type Cabled Connector
Signal Type Analog Input
Number of Channels 16
Cable Length 2 m (6.6 ft)
Connector Type SUB-D
Number of Ways 25
Electrical Connection 2 Connectors
Wire Gauge AWG 24
Wire Section 0.22 mm²
Current Rating 1 A
Voltage Rating 250 V
Insulation Material PVC
Cable Construction Multi-conductor Shielded
Operating Temperature -20°C to +60°C
Weight 0.62 kg (1.37 lbs)
Compatibility 140ACI04000

Installation Guide

Connect the ABFM16S201 to compatible Modicon Quantum analog input modules such as 140ACI04000. Secure both SUB-D connectors to their respective ports. Route the 2 meter shielded cable away from high voltage lines to minimize interference. Ensure operating temperature stays within -20°C to +60°C range.

Engineering Advantages

Shielded multi-conductor cable protects sensitive analog signals from electrical noise. 16 channels in a single assembly reduce wiring complexity and cabinet space. PVC insulation withstands industrial environments. Lightweight 0.62 kg design simplifies installation and cable management.

Frequently Asked Questions

Q1: How many analog channels does the ABFM16S201 support?

A1: It supports 16 analog input channels via 25 way SUB-D connectors.

Q2: What is the cable length of this connector assembly?

A2: The cable measures 2 meters (6.6 feet).

Q3: Which PLC modules are compatible with this connector?

A3: It is compatible with Modicon Quantum analog input modules, specifically 140ACI04000.
